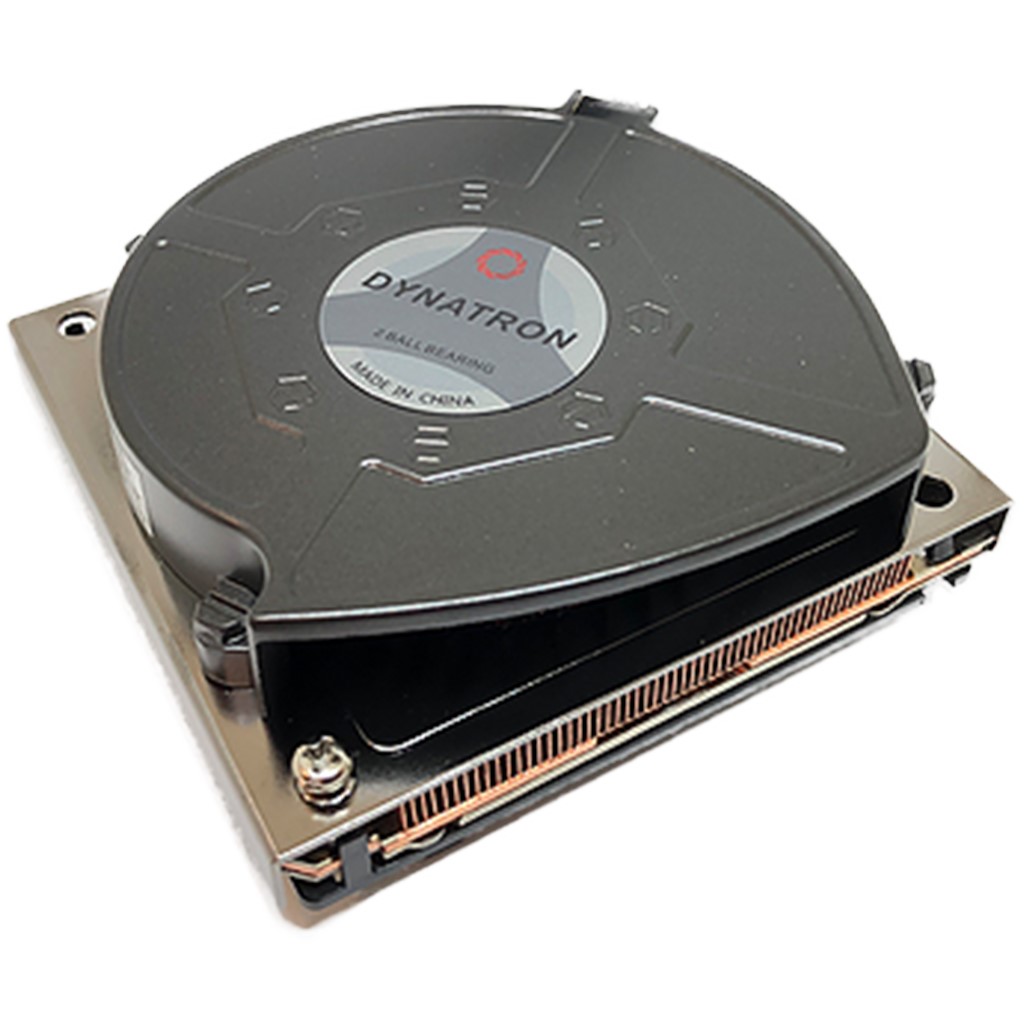

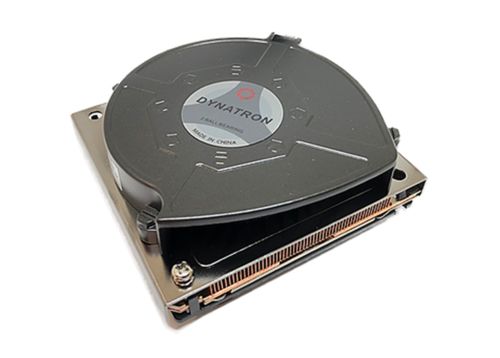

High-quality CPU cooler to Intel® standard with Vapor Chamber Base

CPU Sockets Intel® Socket LGA 3647 (square type)
TDP up to 205 Watts
Solution 1U Server
Cooling type active

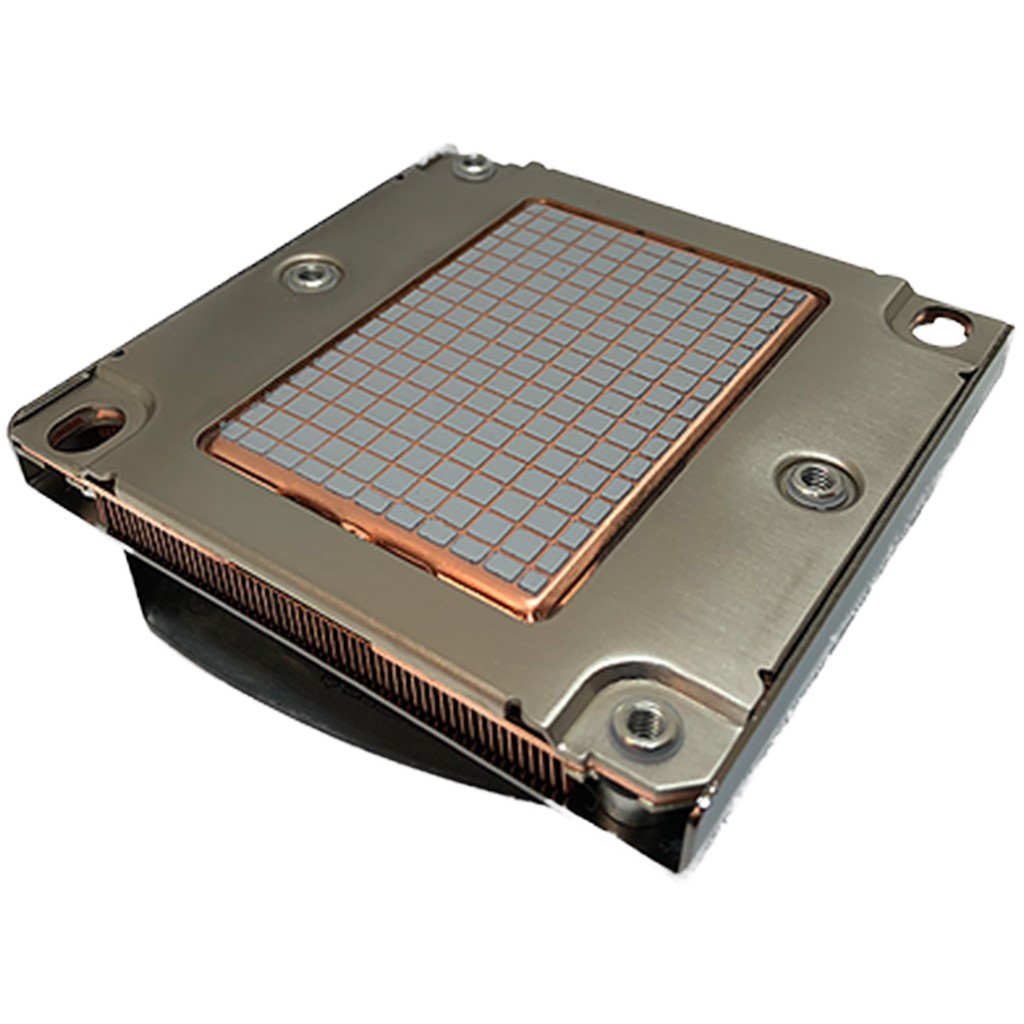

Material Copper Heatsink with Vapor Chamber Base
Fan Dimensions ∅ 90 x 15mm
Rated Voltage 12V
Bearing 2 Ball Bearing
Fan Speed At 20%: 1000 ± 200 RPM
At 50%: 2500 ± 10% RPM
At 100%: 5000 ± 10% RPM
Fan Power At 20%: 1.20 Watts
At 50%: 2.60 Watts
At 100%: 12.00 Watts
Air Flow At 20%: 6.800 CFM
At 50%: 11.000 CFM
At 100%: 19.000 CFM
Air Pressure At 20%: 2.800 mm-H2O
At 50%: 18.000 mm-H2O
At 100%: 46.000 mm-H2O
Noise Level At 20%: 16.00 dBA
At 50%: 31.50 dBA
At 100%: 46.40 dBA
Fan Connector 4Pin PWM
Dimension 93 x 90.5 x 28mm
Warranty 24 months
Scope of delivery


Retail packaging


Thermal Grease Shin-Etsu 7762 Pre-printed

Shipping Unit 1 Pcs
Weight net = 0.470kgs
Item number 88885431
EAN-Code 4260455642699


Data sheet B-9
Picture package B-9
