GENERAL DATA | |
---|---|
CPU Sockets | Intel® Socket LGA 1700 |
TDP | up to 195 Watts |
Solution | 3U Server |
Cooling type | active |

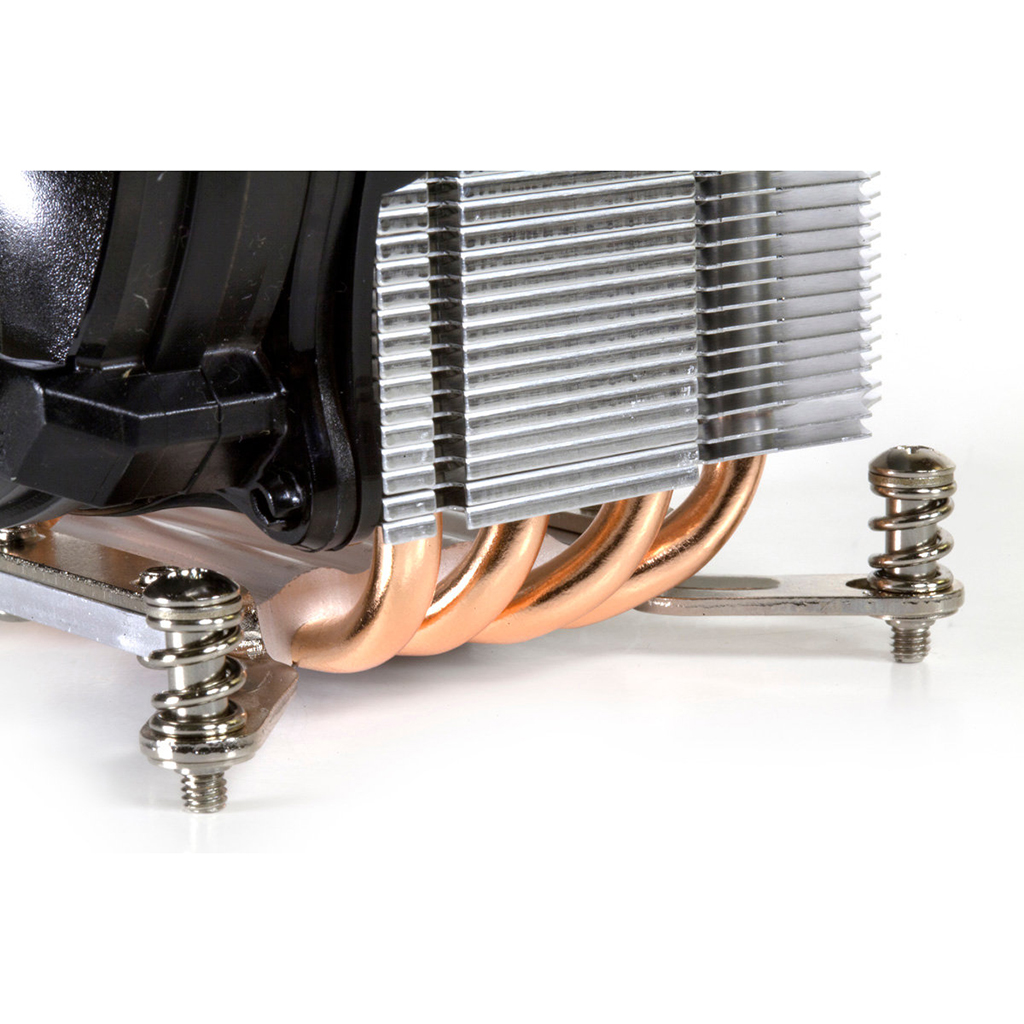

Material | Aluminum Fins, 4x Heat Pipes with H.C.C. Technology |
Fan Dimensions | ∅ 92 x 25mm |
Rated Voltage | 12V |
Bearing | 2 Ball Bearing |
Fan Speed | At 0~20%: 1600 ± 200 RPM At 50%: 2850 ± 10% RPM At 100%: 6000 ± 10% RPM |
Fan Power | At 0~20%: 0.72 Watts At 50%: 1.48 Watts At 100%: 9.60 Watts |
Air Flow | At 0~20%: 21.45 CFM At 50%: 48.83 CFM At 100%: 107.25 CFM |
Air Pressure | At 0~20%: 0.68 mm-H2O At 50%: 5.34 mm-H2O At 100%: 17.10 mm-H2O |
Noise Level | At 0~20%: 16.00 dBA At 50%: 33.20 dBA At 100%: 50.40 dBA |
Fan Connector | 4Pin PWM |
OTHER DATA | |
Dimension | 91 x 91 x 110mm |
Warranty | 24 months |
SCOPE OF DELIVERY & FEATURES | |
Scope of delivery |
CPU-Cooler Retail packaging Backplate |
Features |
Thermal Grease Shin-Etsu 7762 Pre-printed |
LOGISTICAL DATA | |
Shipping Unit | 1 Pcs |
Weight | net = 0.530kgs |
Item number | 88885585 |
EAN-Code | 4260455647748 |
