ALSEYE X360

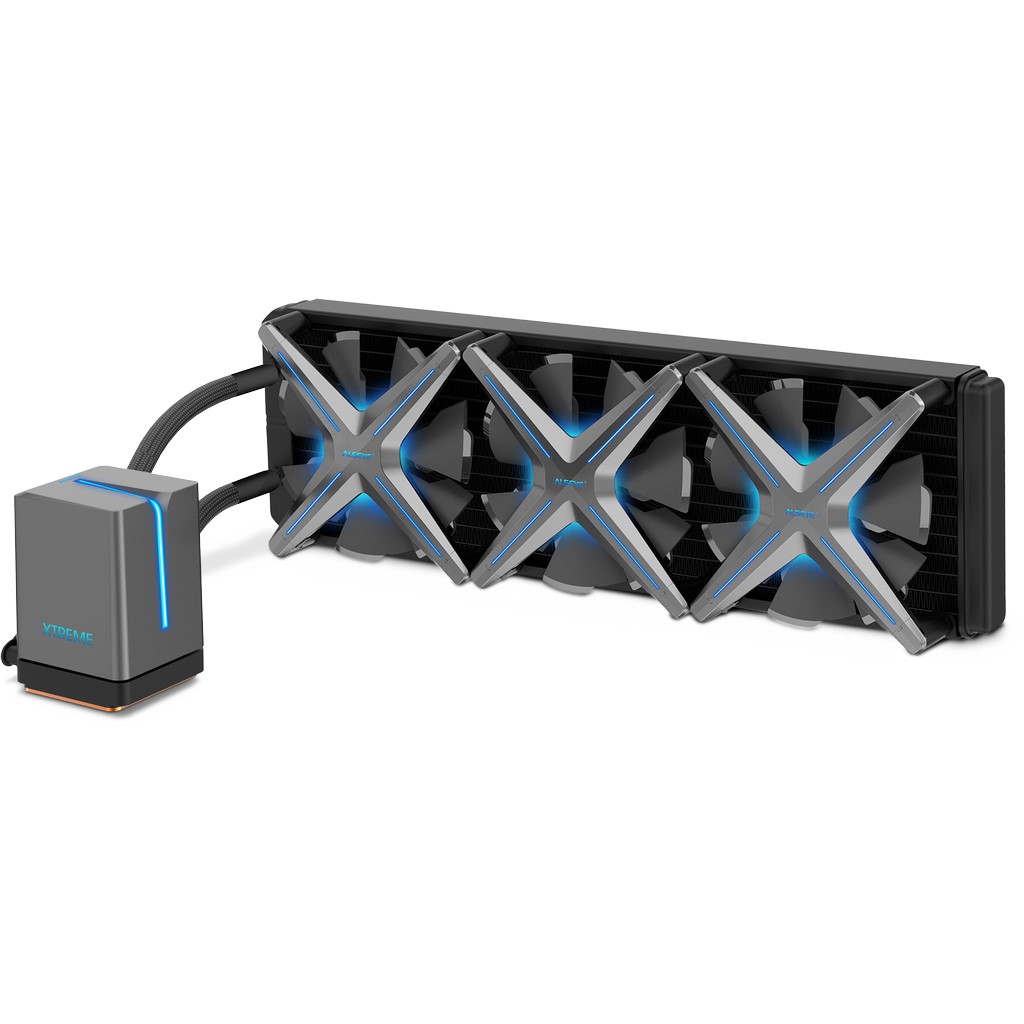

ALSEYE X360 – 360mm AiO water cooling

Now also for Socket LGA 1700



The X360 AiO water cooling of the X series from ALSEYE impresses with its compact design and, thanks to the cooling plate made of copper and the radiator made of pure aluminum, ensures that the generated heat is reliably removed. The three 120mm X12 fans reliably transport the heat away at up to 1600 rpm and also shine in rich RGB colors.

The lighting and fan speed are controlled centrally via the enclosed control unit, to which up to five additional X12 fans, which are available separately, can be connected. The RGB effects can be managed either via the RF wireless remote control or via the 5V 3pin RGB header.

The pump with high-quality ceramic bearing and integrated RGB LEDs as well as the high-quality sleeved, swiveling FEP tubes with a length of 350 mm ensure safe, reliable and long-lasting operation.


  • AiO water cooling with a compact design
  • High quality materials made of copper and aluminum
  • Three powerful 120mm X12 fans with RGB lighting
  • TDP up to 350W

GENERAL DATA
CPU Sockets Intel® Socket LGA 2011, 2066 Square ILM
Intel® Socket LGA 775, 1150, 1151, 1155, 1156, 1200, 1366
AMD® Socket AM2, AM2+, AM3, AM3+, FM1, FM2, AM4
TDP up to 350 Watts
Fan Dimensions 120 x 120 x 30mm
Rated Voltage 12V
Fan Speed 1600 rpm
Air Flow per fan 95.65 m³/h
Air Pressure per fan 1.97 mmH2O
Noise Level 35.6 dBA
Fan Connector 4Pin PWM
Tube length 350mm
Cooling fluid Ecofriendly liquid with anti-corrosion protection
OTHER DATA
Dimension (h/w/d) Water block: 62 x 62 x 90mm
Radiator: 27 x 393 x 120mm
Warranty 24 months
SCOPE OF DELIVERY & FEATURES
Scope of delivery

ALSEYE X360 – 360mm AiO water cooling

Retail packaging

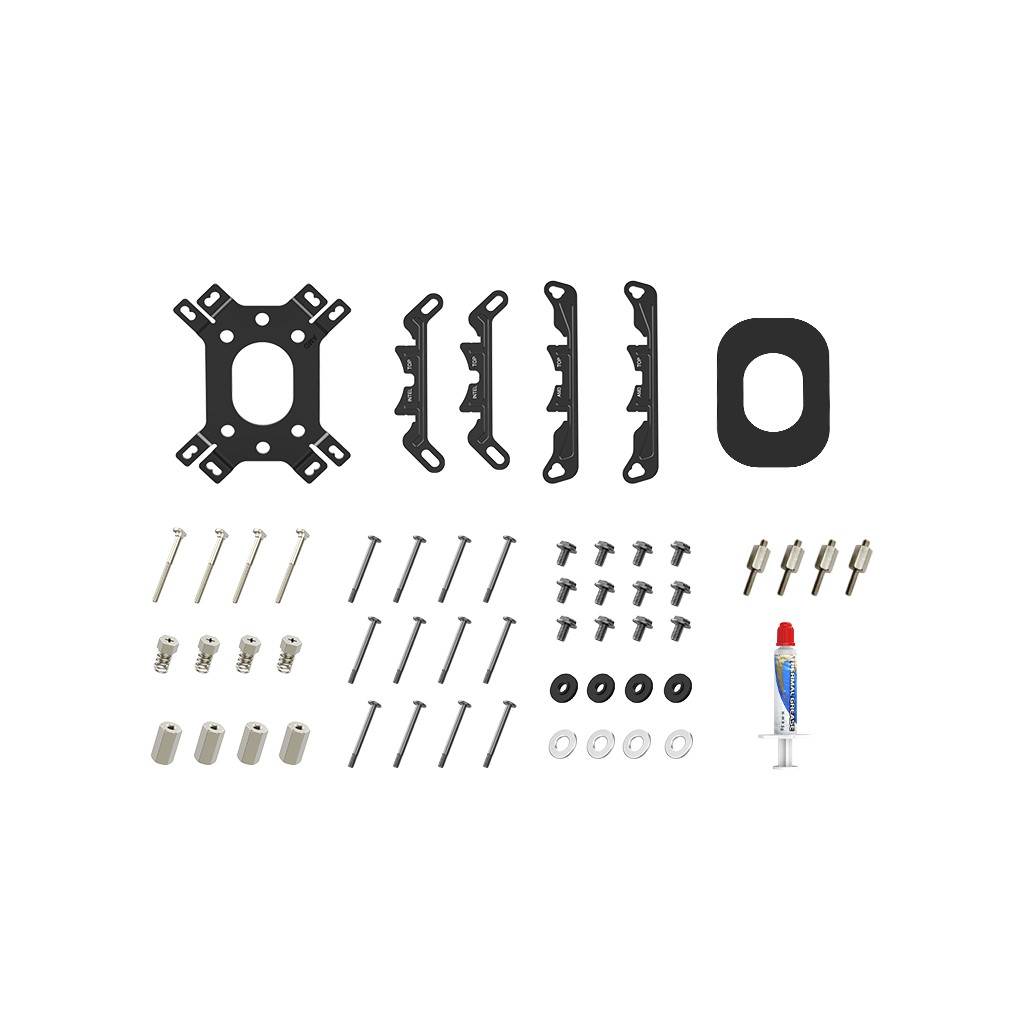

Mounting kit for Intel® Socket LGA775, 1150, 1155, 1151, 1156, 1200, 1366, 2011, 2066 Square ILM

Mounting kit for AMD® Socket AM2, AM2+, AM3, AM3+, AM4, FM1, FM2

Backplate mounting kit

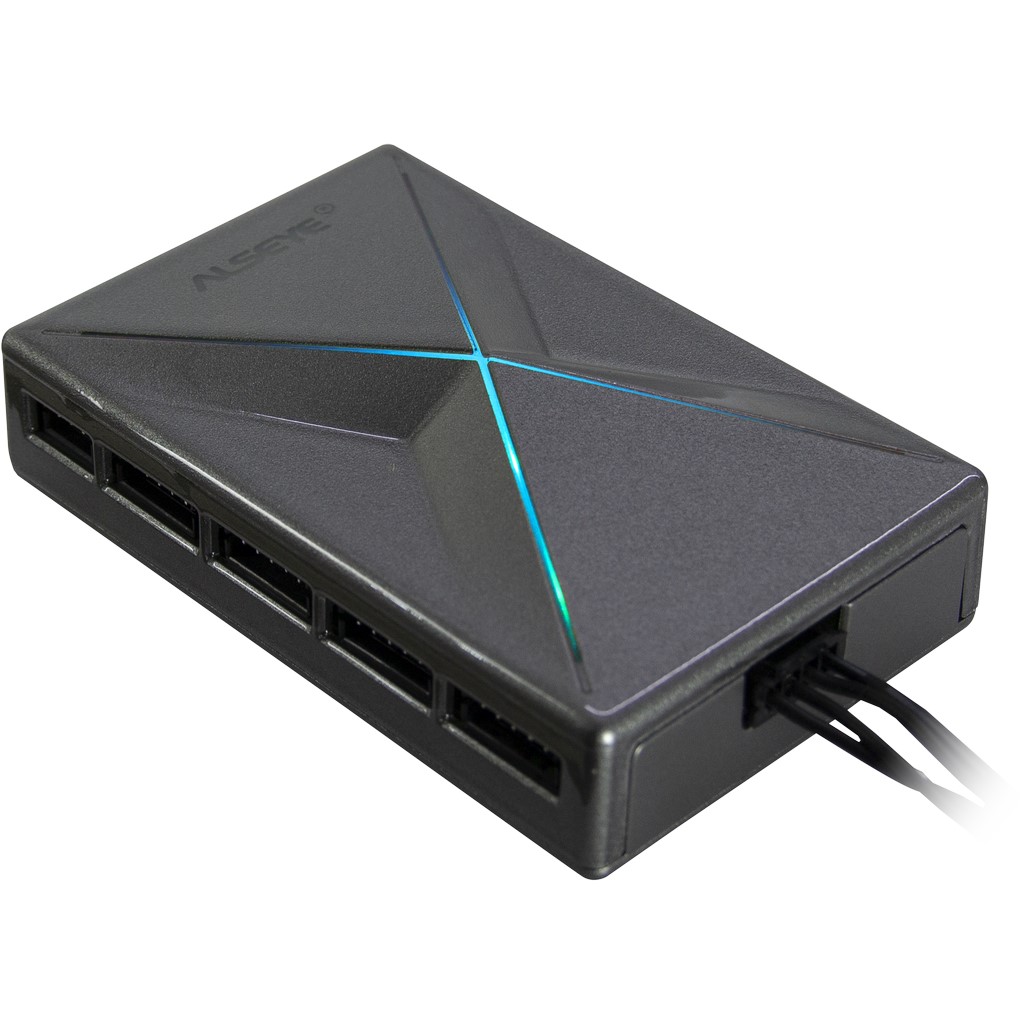

Control unit for X12 fan (magnetically attachment in the case, up to 8 fans connectable in total)

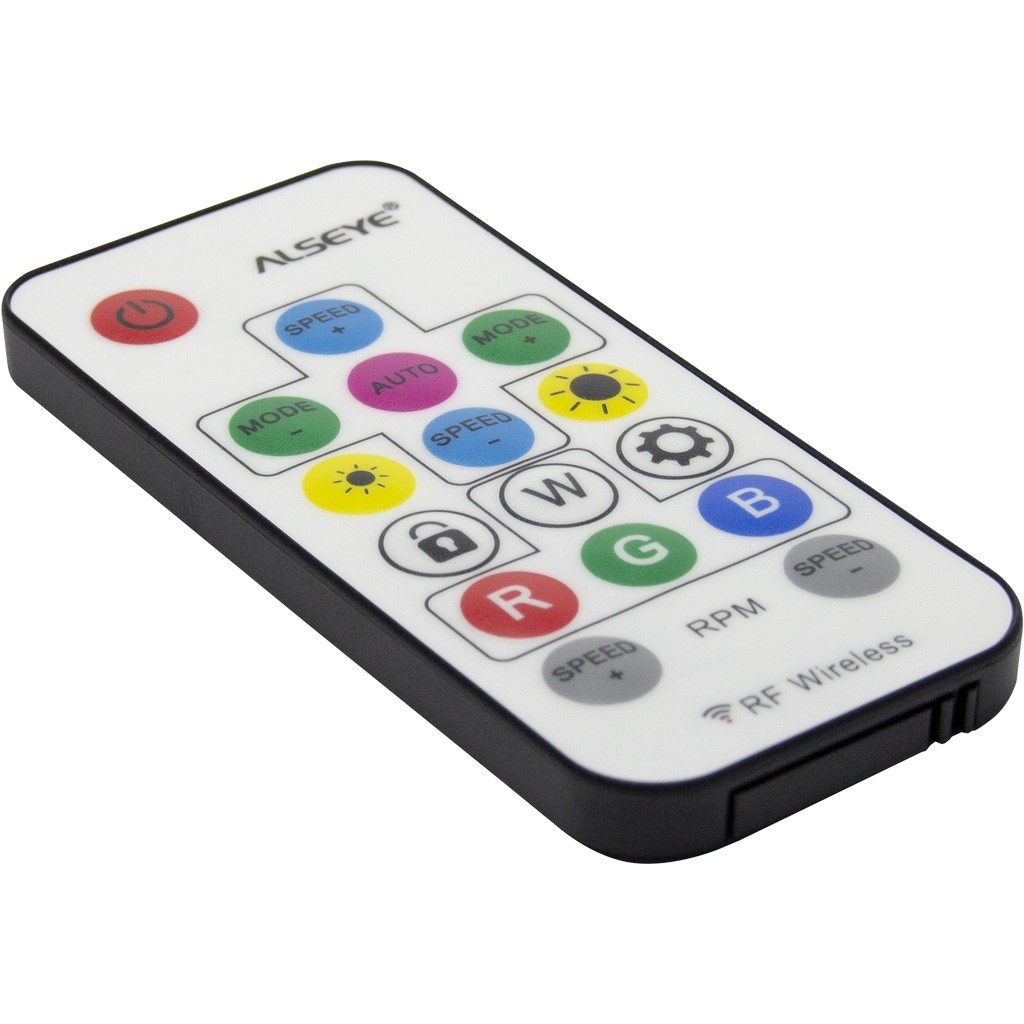

RF wireless remote control

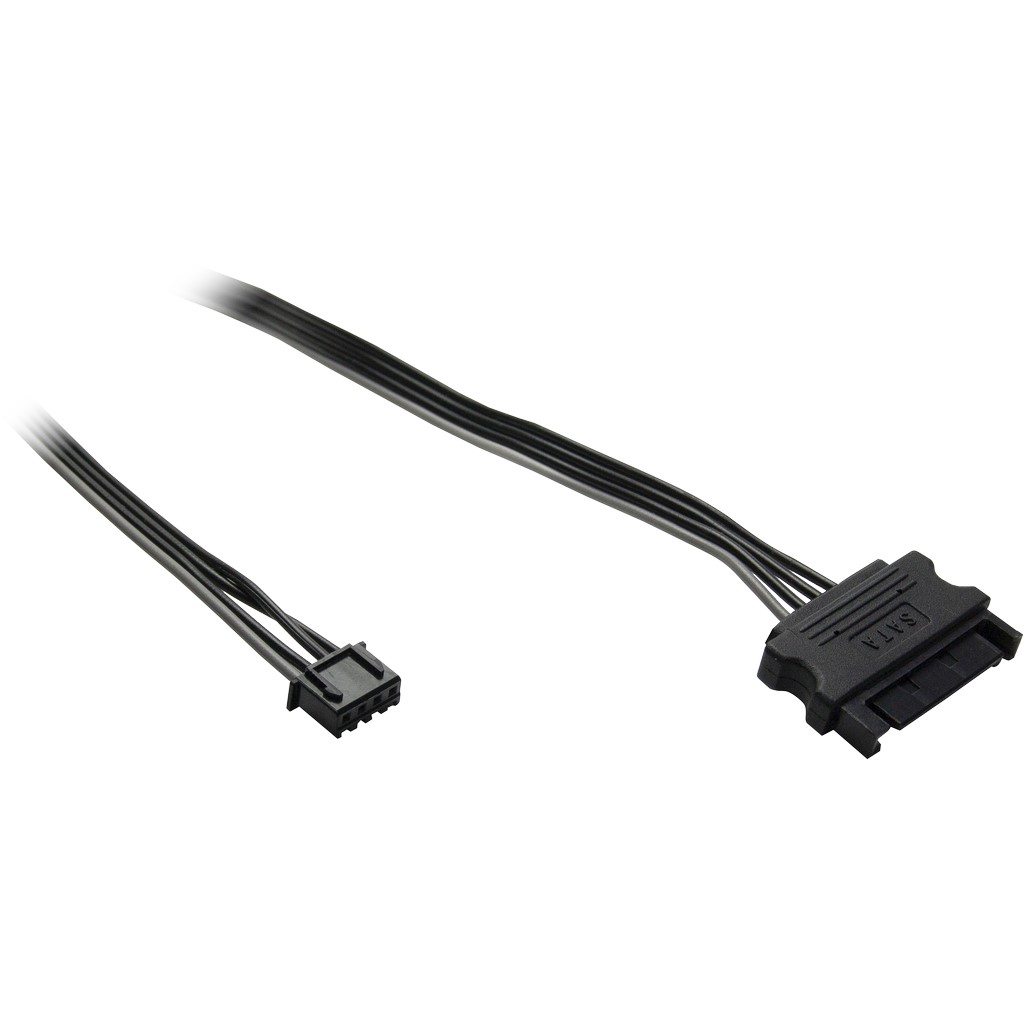

Power cord for control unit (Connection over S-ATA power connector)

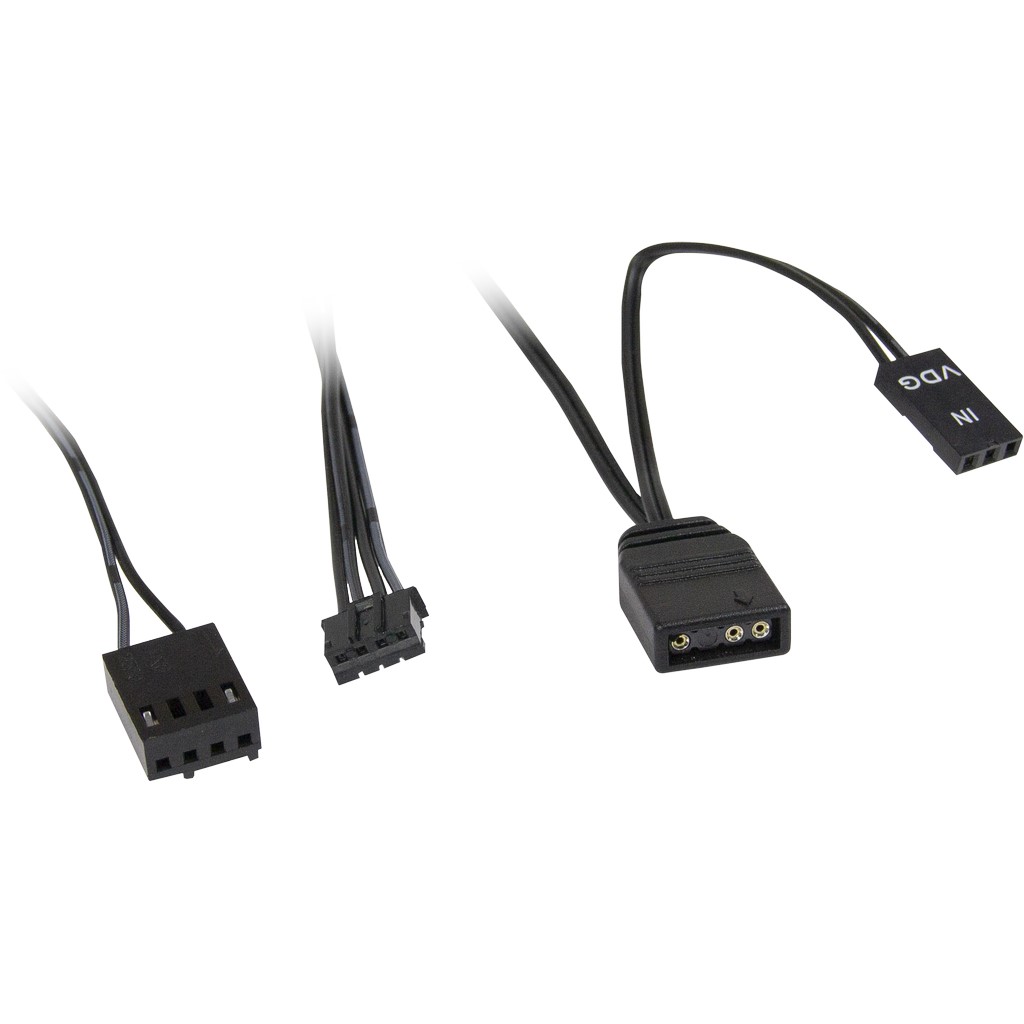

Combo cable for 5V 3pin RGB header and PWM

Thermal compound

Manual (English)

Features

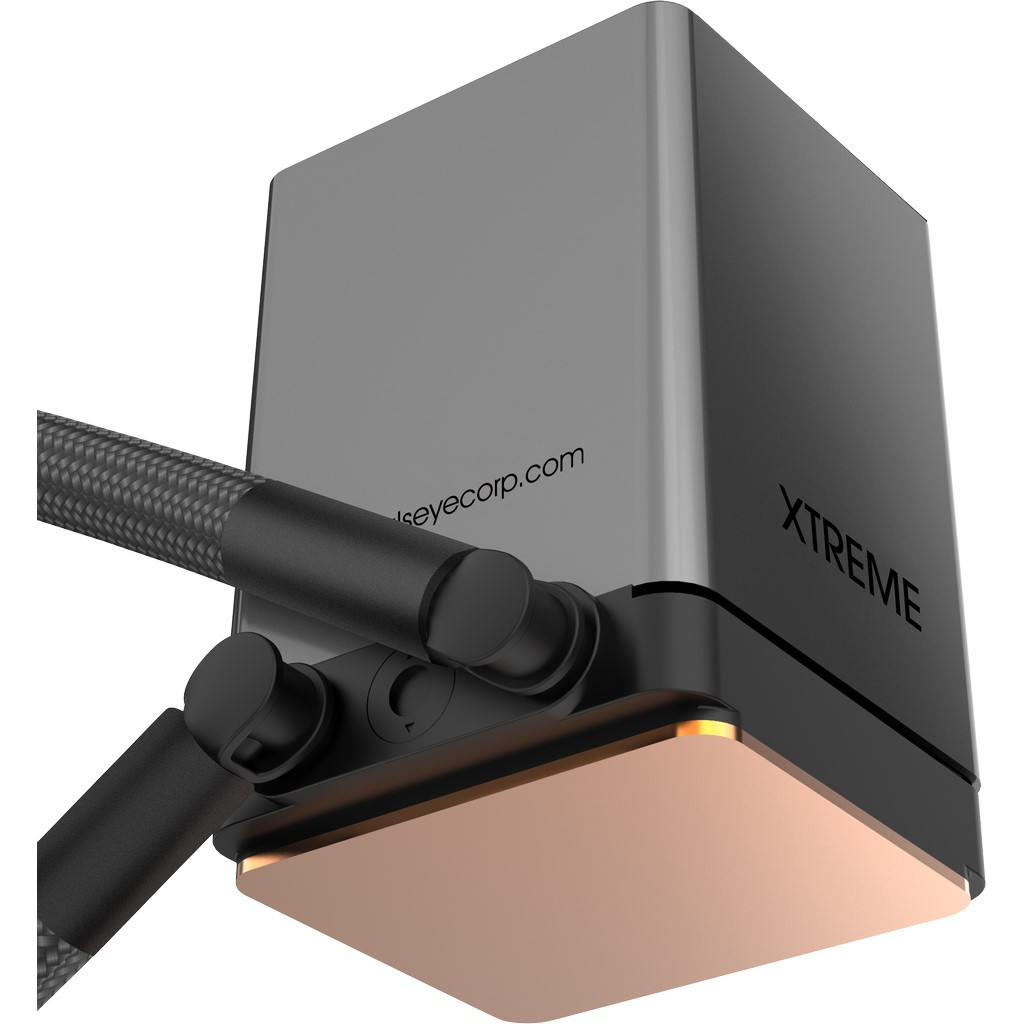

Cooling plate with copper base

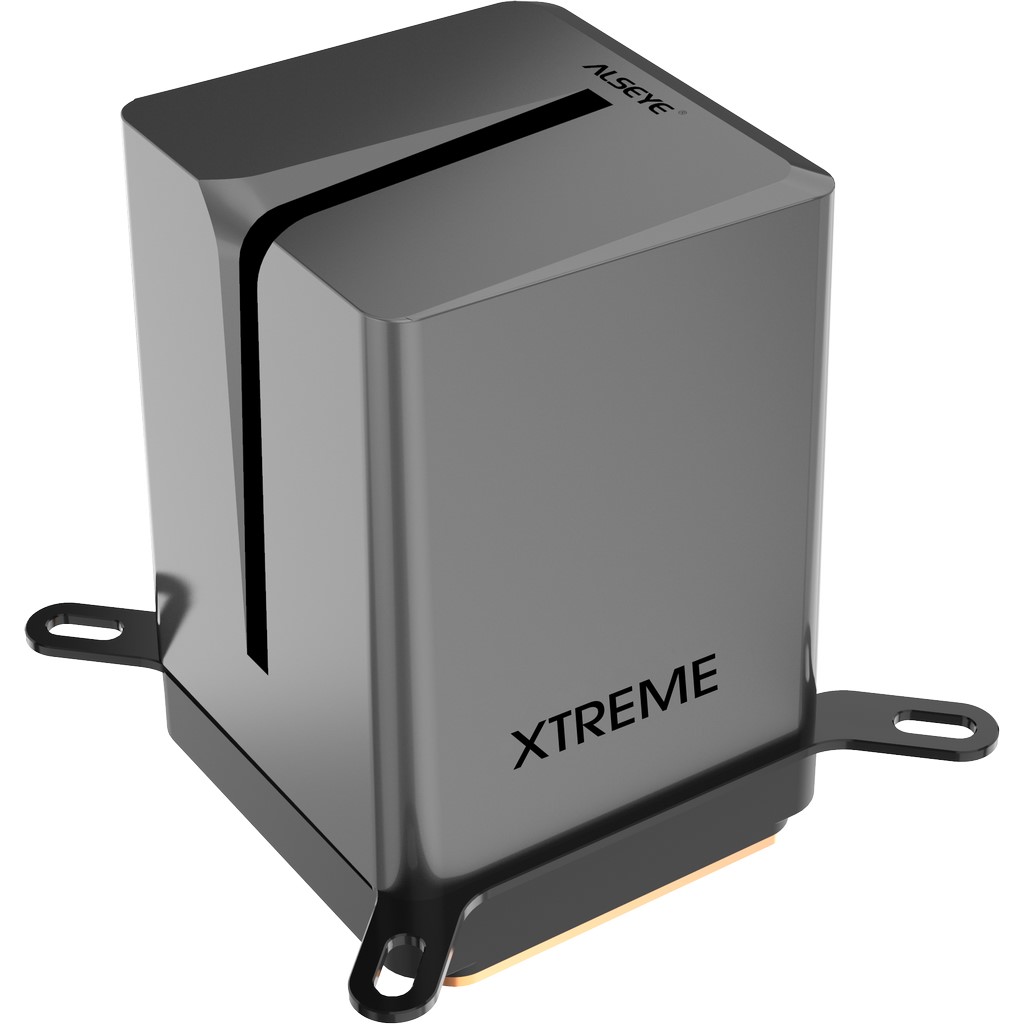

Pump with high quality ceramic bearing and RGB LEDs

Space-saving radiator made of pure aluminum

3x 120mm X12 fans with each 26 RGB LEDs

RGB LEDs controllable via remote control or 5V 3pin RGB

3Pin RGB header connection for 5V RGB mainboard control

High quality sleeved, swiveling FEP tubes

Supports CPUs with a max. TDP of 350W

LOGISTICAL DATA
Shipping Unit 1 Pcs
Packing Unit 6 Pcs
Weight net = 1.530kgs
gross = 1.895kgs
Item number 88885515
EAN-Code 4897059872735



Data sheet X-360
Download
Picture package X-360
Download
