DN-01

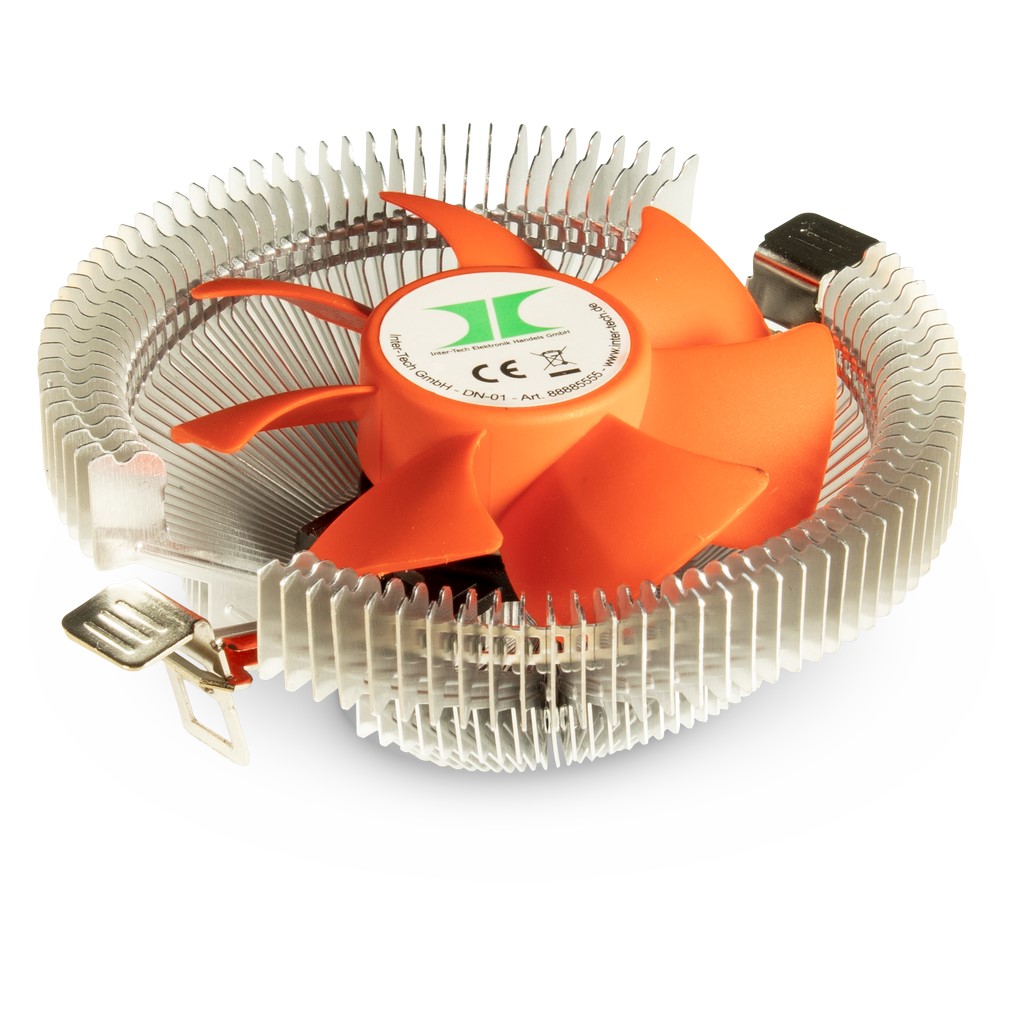

Desktop cooler DN-01
The DN-01 is an inexpensive and compact CPU cooler with a low height of 43mm for the Intel® sockets LGA775, 1150, 1151, 1155, 1156, 1200 and AMD® sockets FM1, FM2, AM2, AM2 +, AM3, AM3 +, AM4, AM5.
Also suitable for socket LGA1700 in connection with extension set KH-003 (item no. 88885600).
The 80mm fan with 4pin PWM connection can also be regulated depending on the temperature and cools CPUs with a maximum TDP of up to 65W, in combination with 86 aluminum fins. With a maximum of 25.0dbA, it remains whisper-quiet.
- Multi-socket cooler for Intel® and AMD® CPUs
- 80mm fan with 4pin PWM connector
- TDP up to 65W
- low height of 43mm
| GENERAL DATA | |
|---|---|
| CPU Sockets | Intel® Socket LGA775, 1150, 1151, 1155, 1156, 1200 AMD® Socket FM1, FM2, AM2, AM2+, AM3, AM3+, AM4-, AM5 |
| TDP | up to 65 Watts |
| Solution | Desktop PCs |
| Cooling type | active |
| Fan Dimensions | ∅ 80 x 25mm |
| Rated Voltage | 12V |
| Fan Speed | 1000-2200 RPM |
| Air Flow | up to 51.82 m³/h |
| Noise Level | max. 25 dBA |
| Fan Connector | 4Pin PWM |
| OTHER DATA | |
| Dimension (h/w/d) | 43 x 105 x 120mm |
| Warranty | 24 months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |

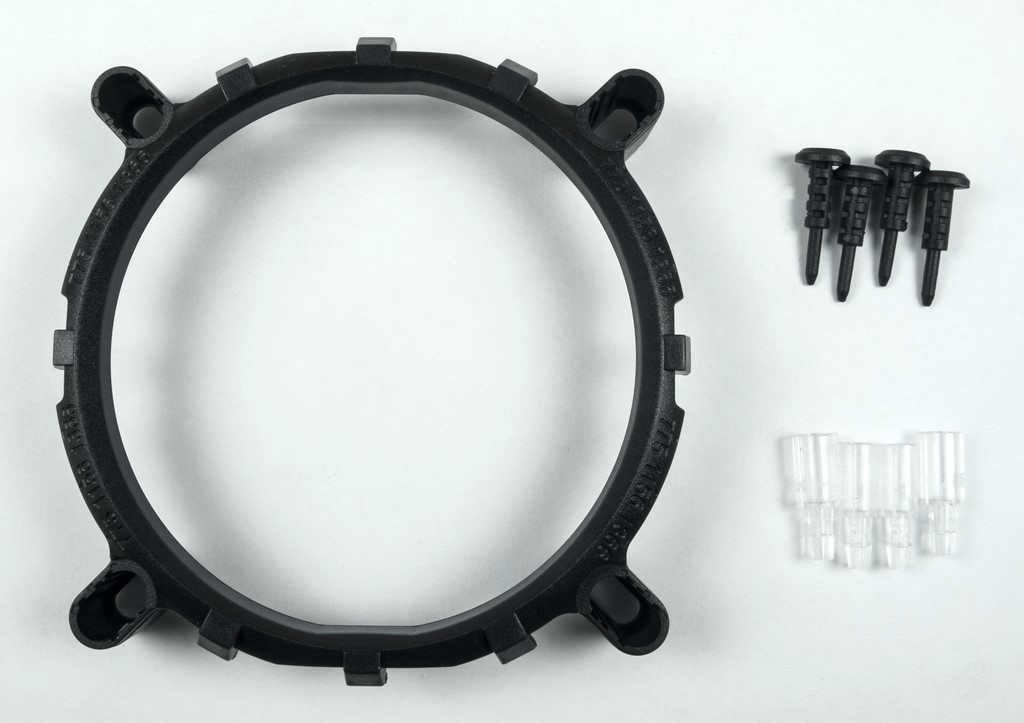

CPU-Cooler DN-01 Retail packaging Mounting kit for Intel®-Socket LGA775, 1150, 1151, 1155, 1156, 1200 Thermal compound |
| Features |

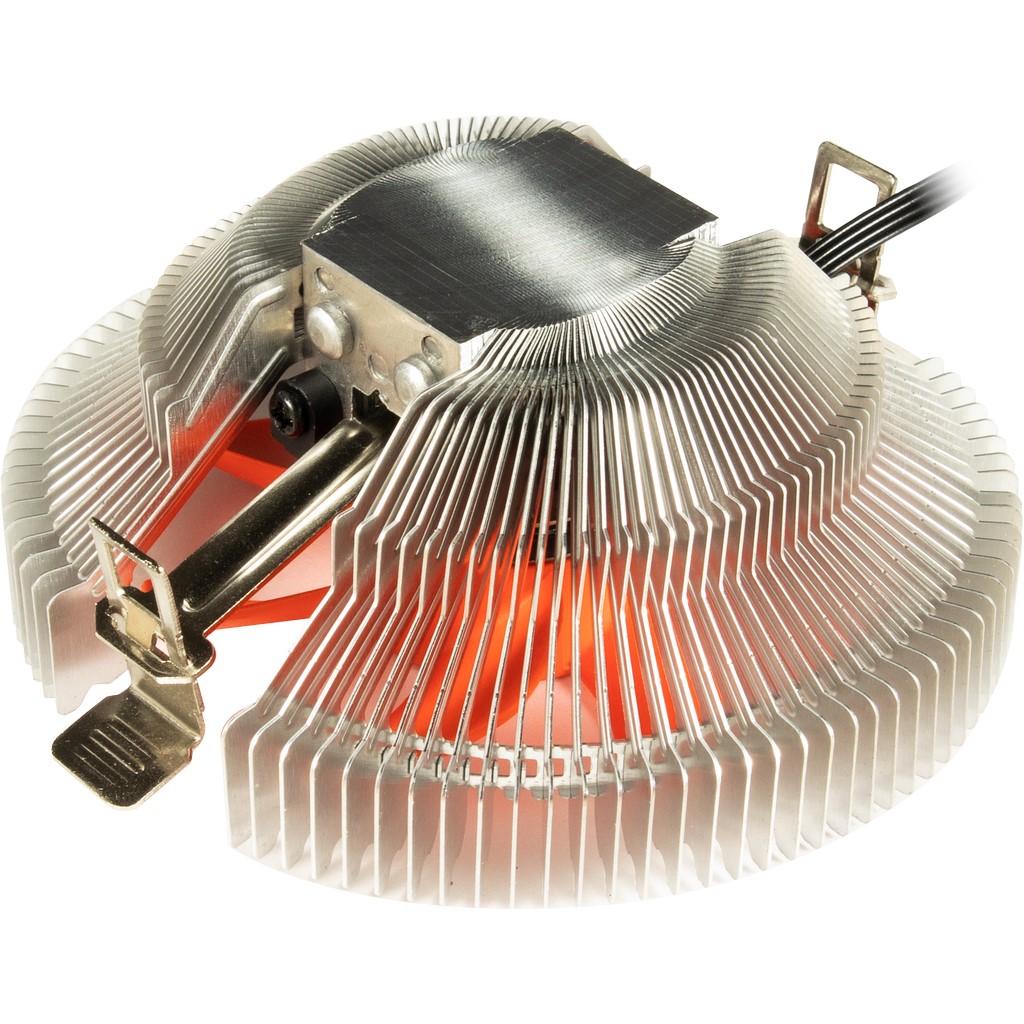

Aluminum cooling plate with 86 aluminum fins Push-pin fastening for Intel® sockets 80mm PWM fan Supports CPUs with a TDP of up to 65W |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| Packing Unit | 100 Pcs |
| EU palett | 2000 Pcs |
| Weight | net = 0.130kgs gross = 0.180kgs |
| Item number | 88885555 |
| EAN-Code | 4260455646857 |
