The surge baffle system is integrated in the mounting and absorbs emerging vibrations between fan and holder; this means that additional decoupling is no more necessary. Due to this surge baffle system the fitting dimensions rest unmodified, in order to permit assembling of every commercial 120mm holder.

Thus this smooth and ball bearing fan, which interacts with the integrated surge baffle system, guarantees minimal running noise.

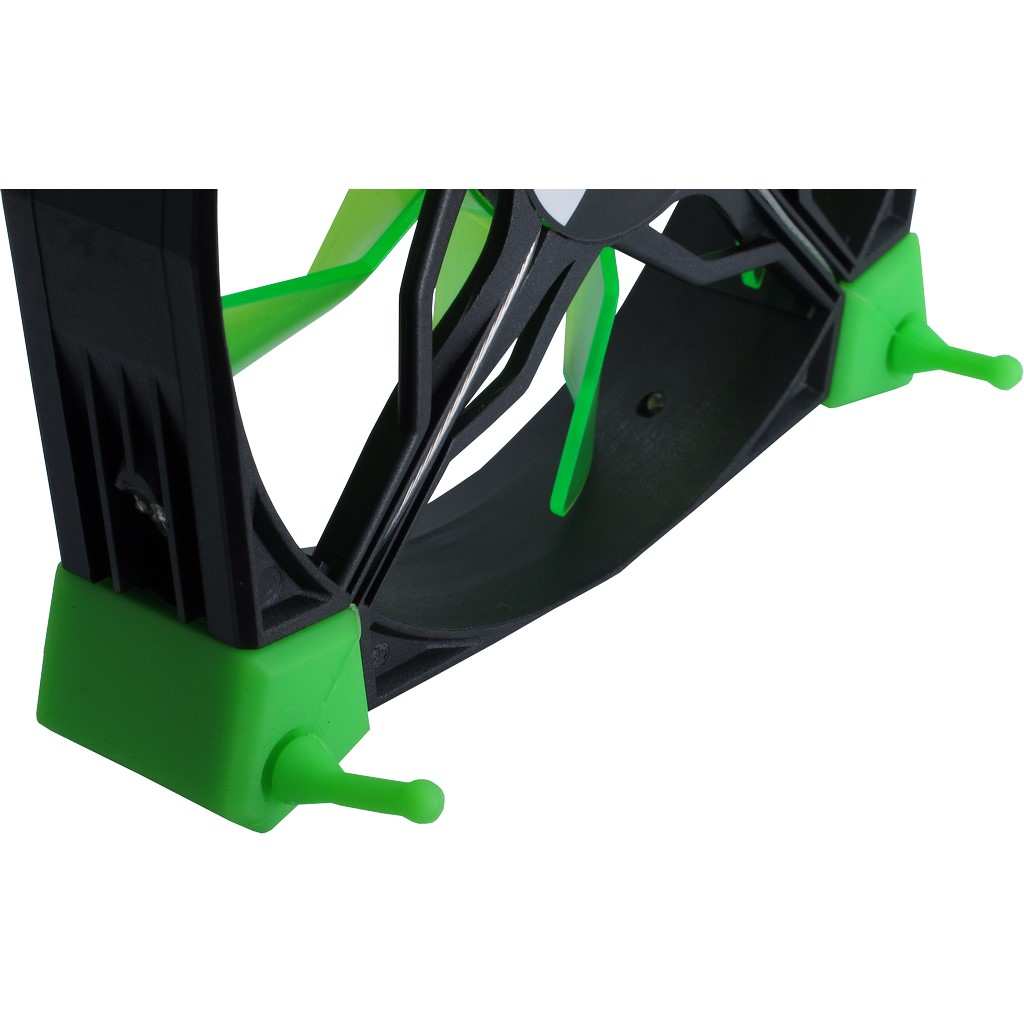

The fan brackets are installable without screws and can be turned through 180° so that it can be mounted not only to create a pushing airflow but also so to provide a pulling one.

Additionally the N-120-GR comes with a modern colouring and a cool coloured LED-Fan.

Fan Dimension (H/W/D) 25 x 120 x 120mm
Fan Speed 1200U/min
Rated Voltage 12V
Power 0.96W
Air Flow 90cbm/h
Noise Level 19dBA
Connector 3Pin
Dimension (h/w/d) 25 x 120 x 120mm
Warranty 24 months
Scope of delivery

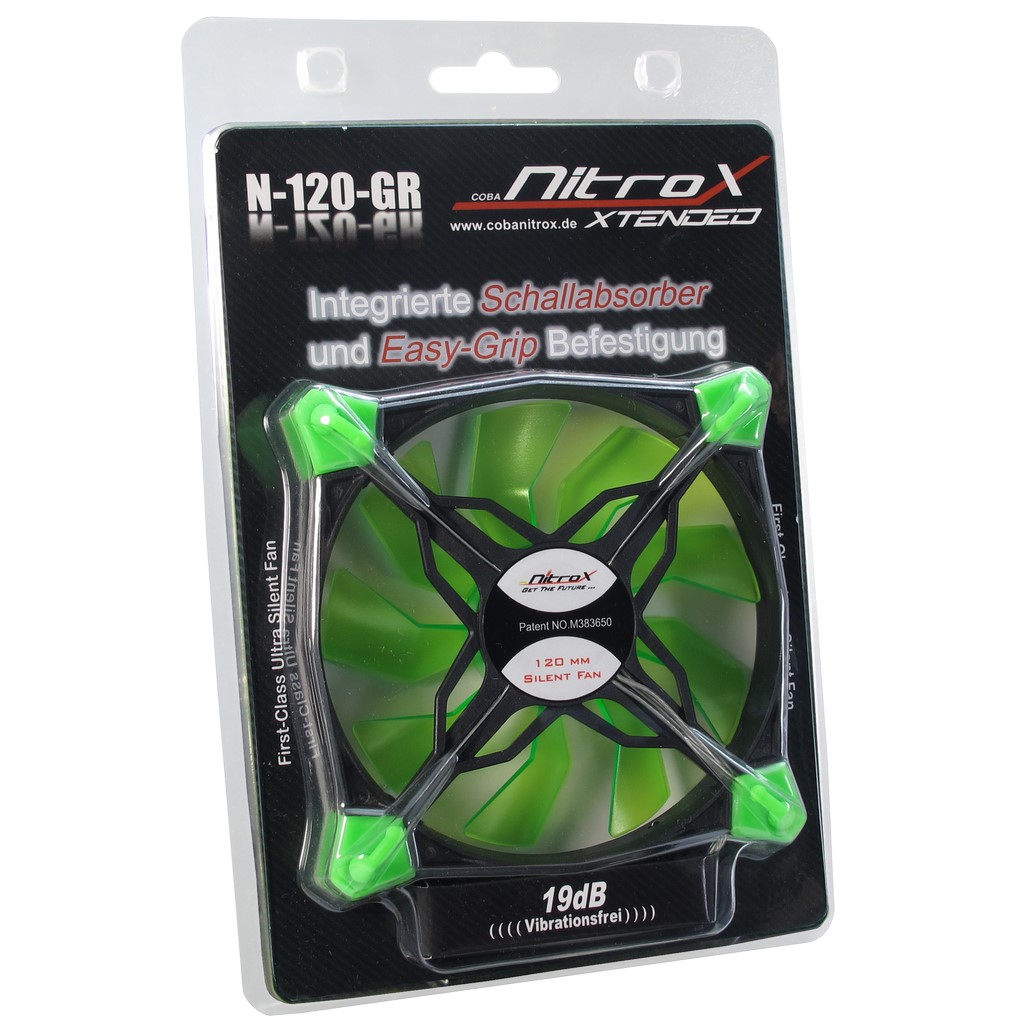

Retail packaging

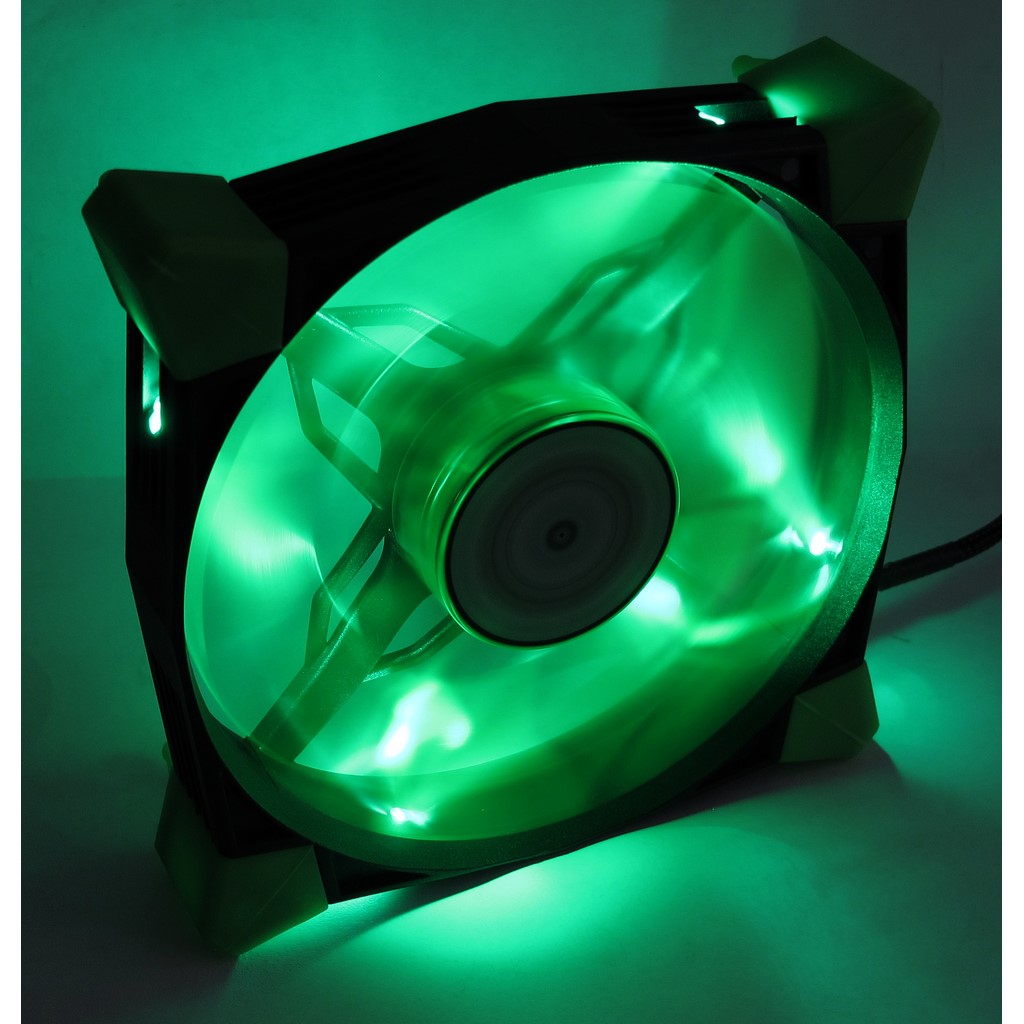

Green illuminated LED fan

Rotatable coloured rubber holder

Screwless mounting

Shipping Unit 1 Pcs
Packing Unit 40 Pcs
Weight net = 0.155kgs
gross = 0.215kgs
Item number 88885356
EAN-Code 4260133129962


Data sheet N-120-GR
Picture package N-120-GR

* You need a PDF reader to read these documents
* Pictures and drivers are always packed as Zip. You need to unzip them before using.
