Features
|
|

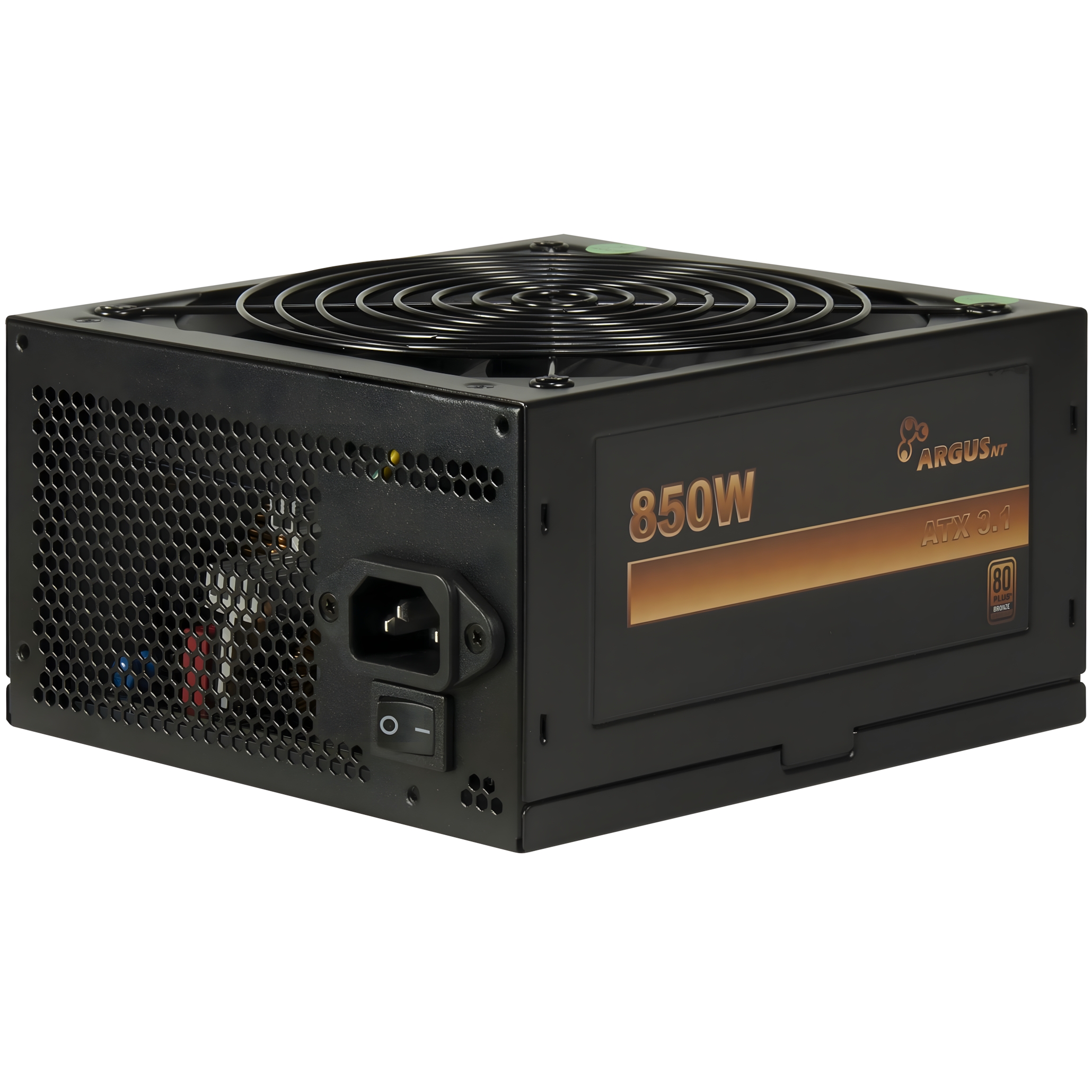

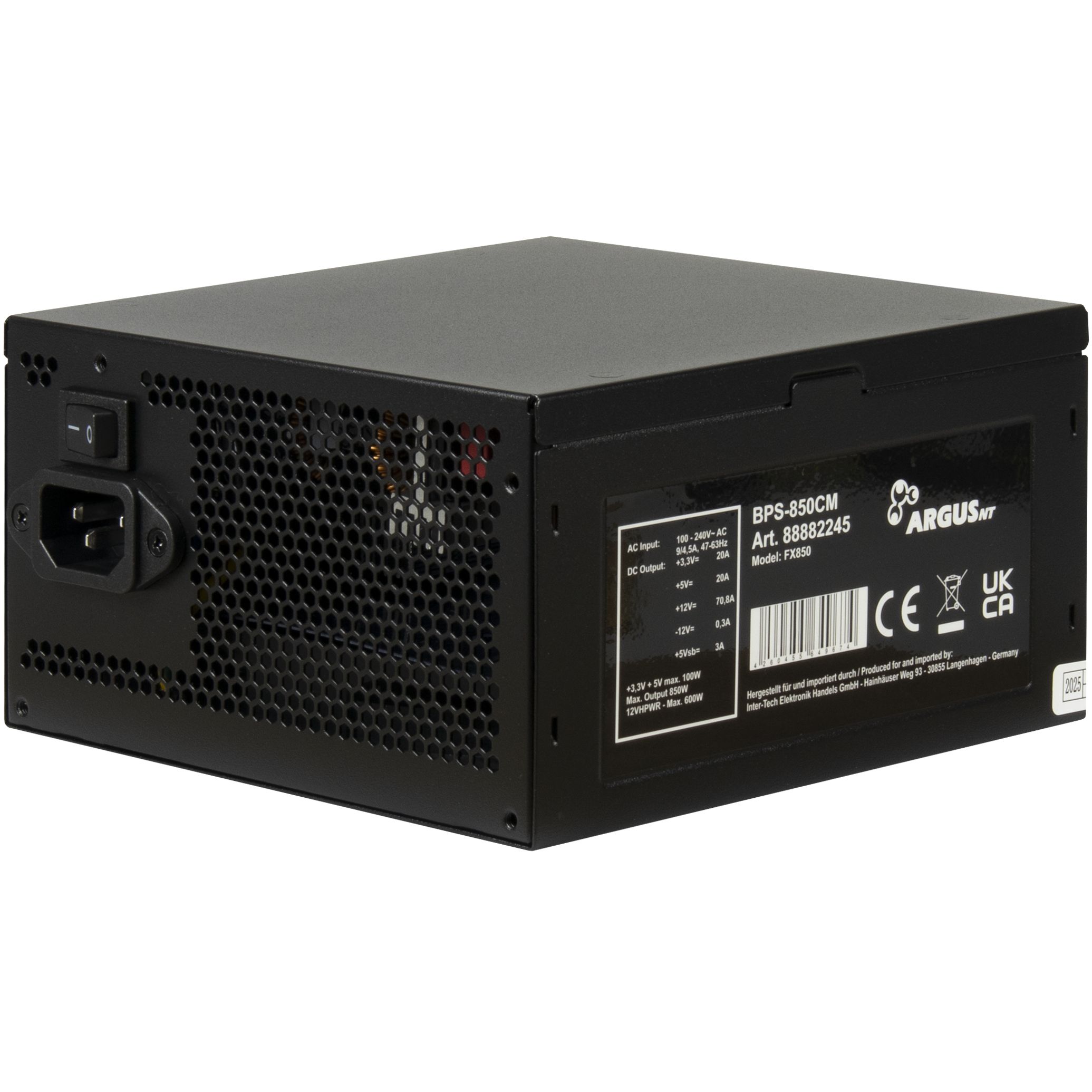

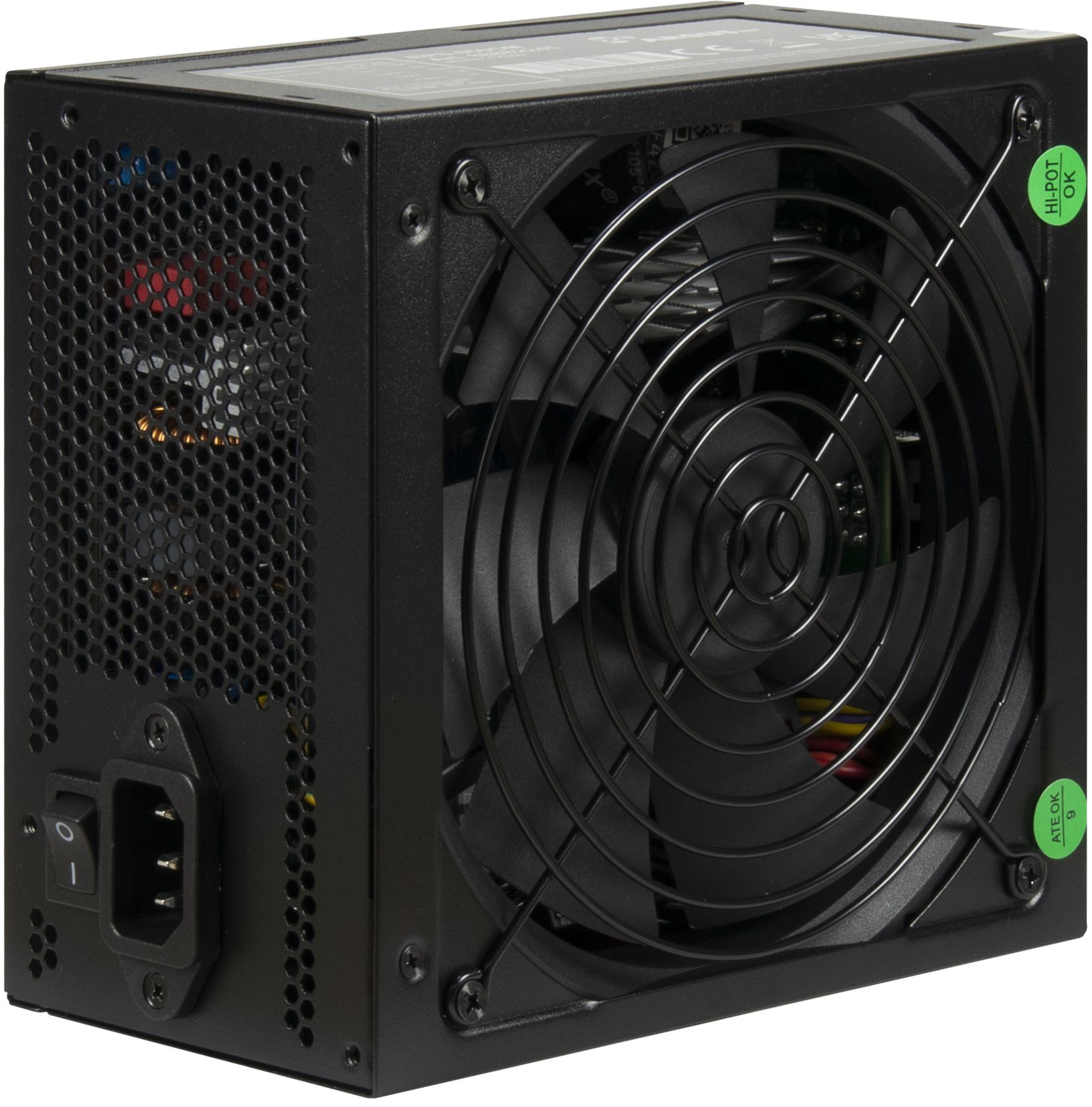

850Watt Power supply

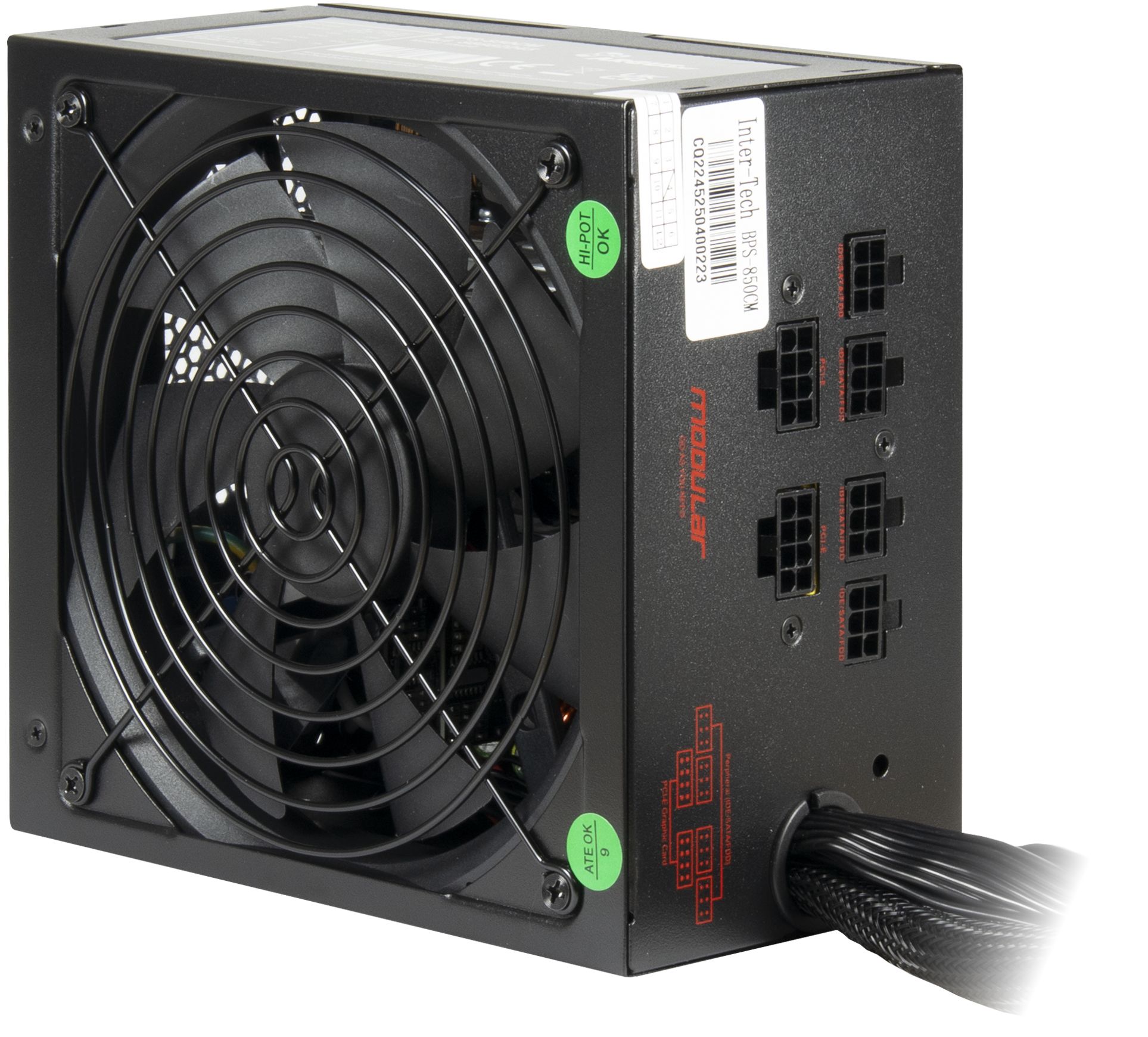

Cable management
Intel ATX 3.1 standard

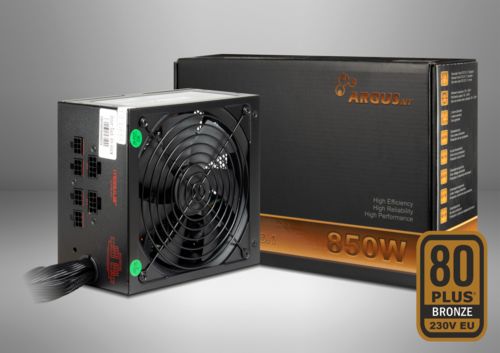

80PLUS EU Bronze
12VHPWR-connector up to 600W
Traditional PCIe connections for older graphics cards
Numerous connections for mainboard, drives and peripherals
|
| |
|
|
Input
|
Input voltage
Frequency
Current
|
AC 100 - 240 V~
47 - 63Hz
10A @110V
5A @230V
|
| |
|
|
Output
|
Output voltage
+ 3.3V
+ 5V
+ 12V
- 12V
+ 5Vsb
Total power
Power 3.3V + 5V
Power 12VHPWR
Tolerance
Ripple/ Noise
|
Current
max. 20A
max. 20A
max. 70.8A
max. 0.3A
max. 3A
max. 850W
max. 100W
max. 600W
+/- 5%
<50mV @ +3.3V, +5V, +5Vsb
<100mV @ +12V
<120mV @ -12V
|
| |
|
|
Connectors
|
Mainboard 20+4pin
CPU 4+4pin
PCIe 12VHPWR
PCIe 6+2pin
SATA 15pin
IDE/ Molex 4pin
Floppy 4pin
|
1
2
1
4
8
3
1
|
| |
|
|
Safety
|
Overload protection
Overvoltage protection
Overcurrent protection
Undervoltage protection
Short-circuit protection
Overtemperature protection
No Load Protection
|
+
+
+
+
+
+
+
|
| |
|
|
Economic data
|
Efficiency @230V
@ 10% Load
@ 20% Load
@ 50% Load
@ 100% Load
Standby consumption
|
82.68 %
87.57 %
89.21 %
86.32 %
< 0.30 W
|
| |
|
|
Environmantal
|
Temperature
Humidity
Altitude
|
0°C - 40°C (operating)
-20°C - 90°C (storage)
up to 85% (operating, not condensing)
up to 95% (storage, not condensing)
0 - 5000m (operating)
0 - 5000m (storage)
|
| |
|
|
Scope of delivery
|
|
Power supply
Power cord
Connection cable
Screws
Cable ties
Manual
|
| |
|
|
Warranty
|
|
3 years
|
| |
|
|
Logistic data
|
Dimension
Net weight
Gross weight
Article number
GTIN
Packing unit
|
150 x 165 x 86 mm
1.74 kg
2.56 kg
88882245
4260455649674
1 pcs
5 pcs (carton)
|
