KT001B
Adapter for M.2 S-ATA drives.

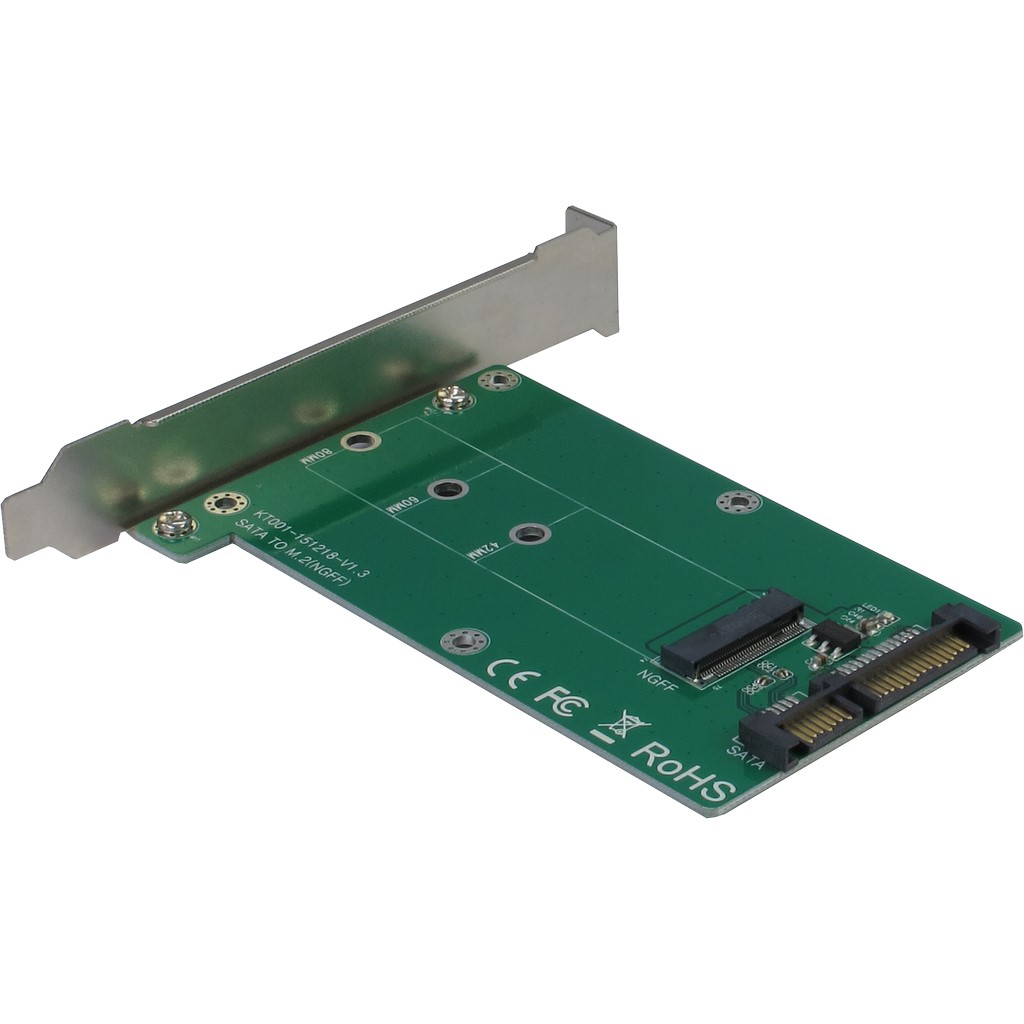

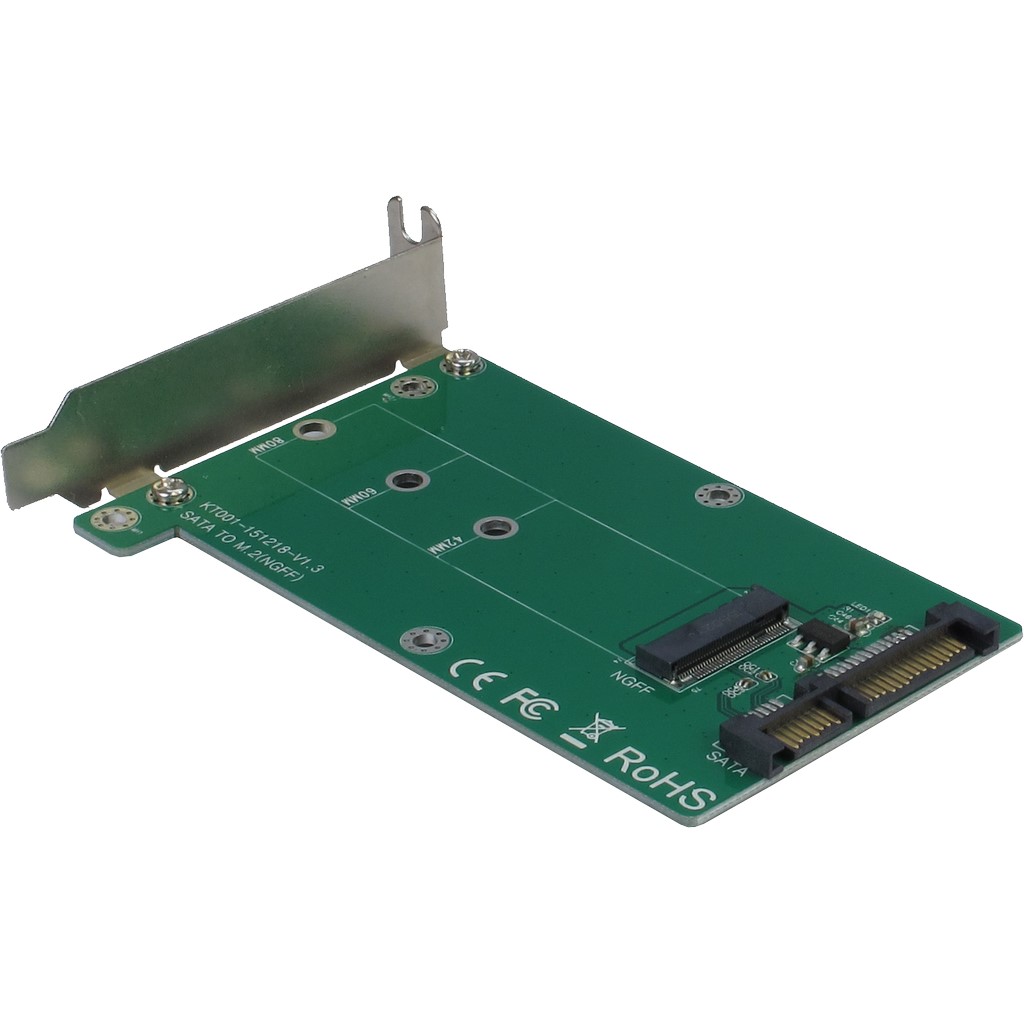

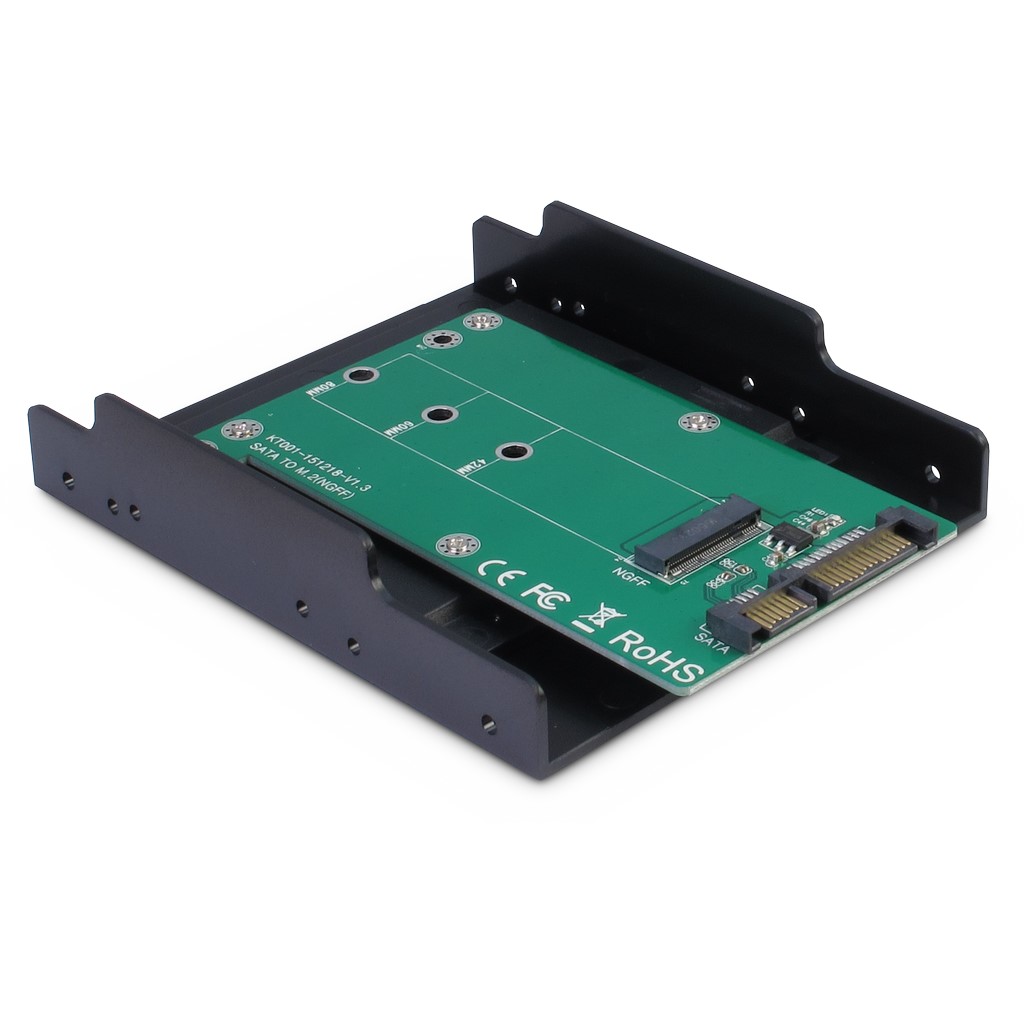

The KT001B adapter enables connecting a M.2 SSD (42/ 60/ 80mm) to any S-ATA port inside a computer. Just fix the M.2 SSD on the adapter and mount it in a free 3.5" slot. The connection between board and computer is made by S-ATA data/ power. With the two included full-size and low-profile slot brackets, the KT001B can also be mounted in a free slot. The scope of delivery includes mounting screws as well as a small screwdriver.
- Direct connection
- Frame made of stable plastic
- S-ATA III Standard
- Fast data transfer
| GENERAL DATA | |
|---|---|
| Drive connector Host connector |
M.2 SSD (NGFF, B-Key) S-ATA 15pin + 7pin plug (S-ATA III) |
| HDD Size | Depending on S-ATA-Controller |
| Max. Transfer rate | 6Gbit/s |
| Supported M.2 formats | Type 2242, 2260, 2280 (Key B) |
| Operating System | Windows XP/Vista/7/8/8.1/10/11 Linux up from Kernel 2.4, MAC OS up from 10.4 |
| Plug & Play | |
| OTHER DATA | |
| Material | Plastic and hard paper |
| Dimension (h/w/d) | 25 x 101 x 130mm |
| Warranty | 12 months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
Argus KT001B Retail package M.2 to 3.5" frame (premounted) Full-size slot bracket Low-profile slot bracket Screwdriver Screw set Manual (German) |
| Features | |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| Weight | net = 0.080kgs gross = 0.170kgs |
| Item number | 88885370 |
| EAN-Code | 4260455640565 |
| Artikelnummer | 88885381 |
| EAN-Code | 4260455640671 |
