EN


K-1696-P2

Article No.
88885592

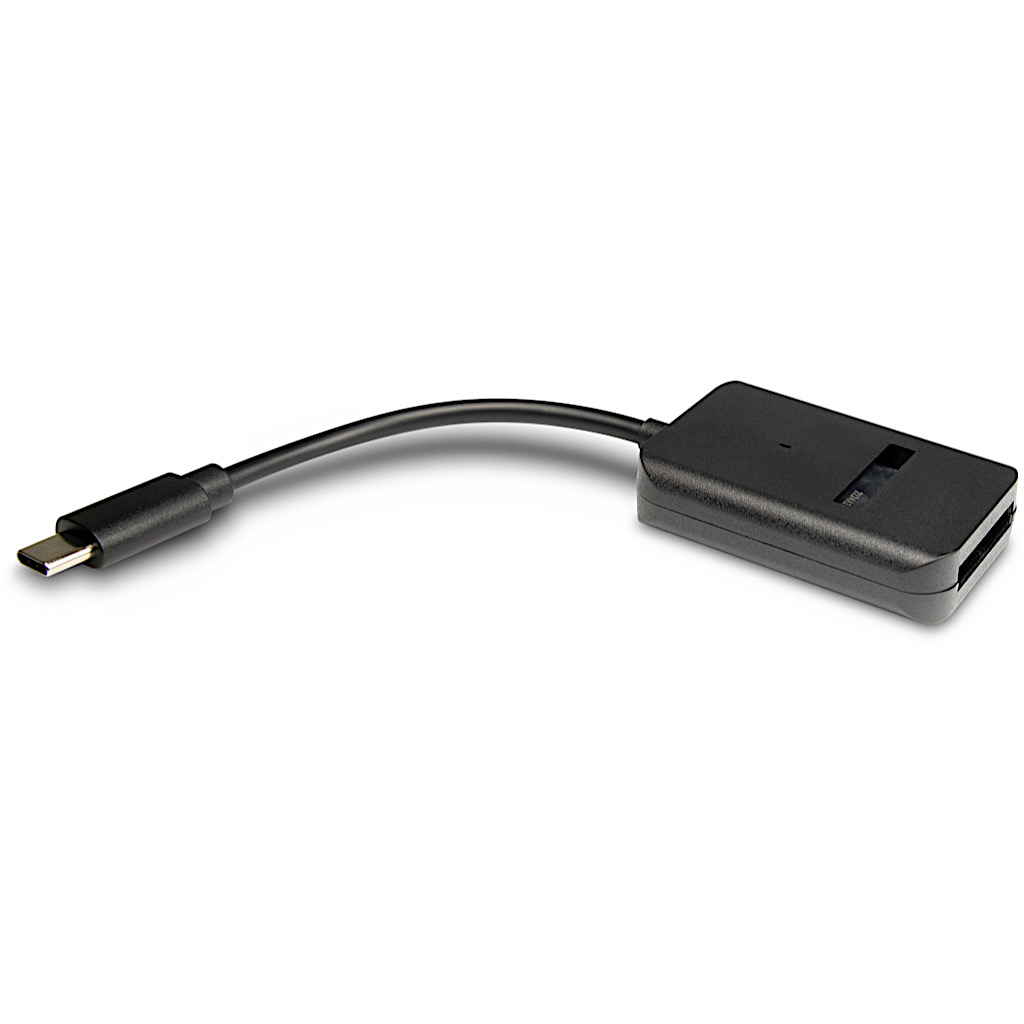

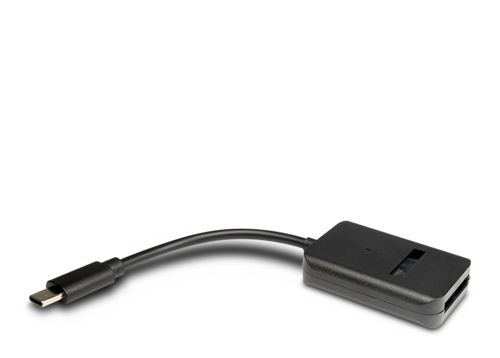

The K-1696-P2 is a small USB-Type C adapter for easy use of M.2 hard disks.

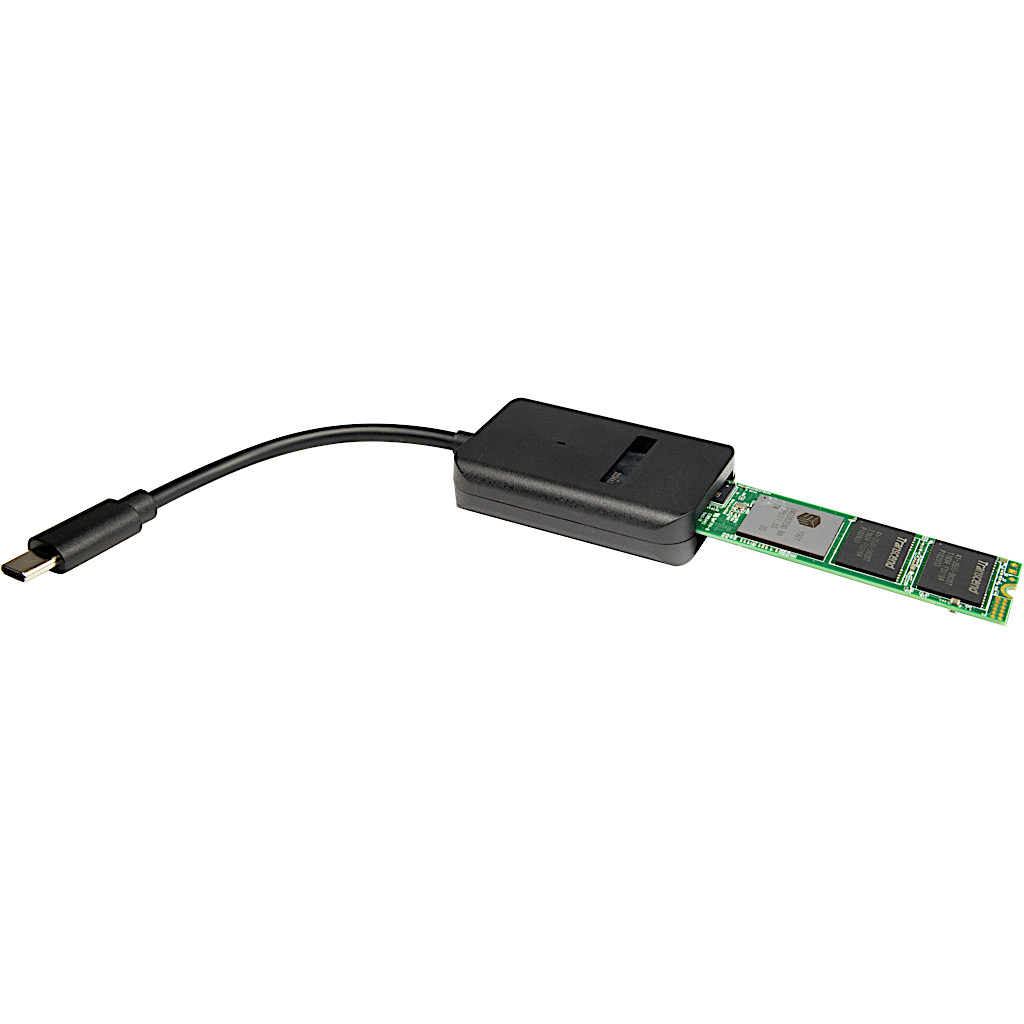

The M.2 SSDs can easily placed into the adapter and connected by fast USB 3.2 to the computer.

Features

Fast USB 3.2 Gen2 10Gbps Interface
Easy use
Supports PCIe (NVMe) and SATA SSDs
Screwless mounting
Plug & Play

Size
Case
Quantity hard disks
Hard disk format
hard disks length
54 x 37 x 12 mm
1
M.2
80/ 60/ 42/ 30 mm

Connection
Data internal
Data external
Power
PCIe (NVMe) and SATA (Key M or B+M)
USB C 3.2 Gen2
By USB 5V=

Data transfer rate
USB 3.2 Gen2
max. 10 Gbit/s

Compatibility
OS


Interface
Windows® up from version 2000
MacOS up from version 10.x
Linux up from version 2.4.2
USB 3.2 Gen2
USB 3.2 Gen1
USB 2.0
USB 1.0

LEDs
Operating
Hard disk activity
+
+

Scope of delivery

M.2 Adapter
Manual

Warranty

24 Months

Material
Case
Plastics

Logistic data
Net weight
Gross weight
Article number
GTIN
Packing unit
0,020 kgs
0,025 kgs
88885592
4260455647847
1 pcs
300 pcs (carton)

Actually no tests available

Data sheet K-1696-P2
Download
Manual K-1696-P2
Download
Picture package K-1696-P2
Download

* You need a PDF reader to read these documents
* Pictures and drivers are always packed as Zip. You need to unzip them before using.

No specific accessories available
