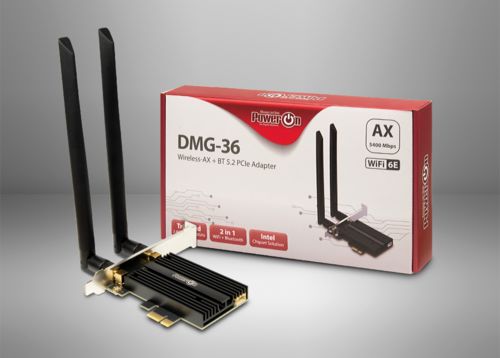

DMG-36
Wi-Fi 6E + BT 5.2 PCIe adapter - 5400Mbps
The DMG-36 is a 2in1 WLAN & Bluetooth 5.2 adapter. It allows you to connect your PC to the Wi-Fi network at home or in the office. The WLAN (802.11 a/b/g/n/ac/ax (Wi-Fi 6E)) PCIe adapter is equipped with a modern Intel® AX210 chipset and two 6dBi strong antennas and offers speeds of up to 5400Mbps in 2.4GHz, 5GHz or 6GHz network (tri-band) is the ideal basis for high-speed data transfer.
In addition to the WLAN function, the DMG-36 also offers a Bluetooth 5.2 interface, allowing you to connect your computer to a smartphone, tablet or other Bluetooth device.
Since WiFi and Bluetooth connections are possible at the same time, you can use the DMG-36 to play files from your WiFi network directly on your Bluetooth speakers or headphones, for example.
- Wi-Fi 6E with up to 5400Mbps
- for 2.4GHz, 5GHz or 6GHz networks (tri-band)
- Intel® chipset with Bluetooth 5.2
- two powerful 6dBi antennas
WIRELESS | |
---|---|
Standard | IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
Antenna | 2T2R |
Antenna strength | 6dBi |
Data rate | 5400Mbps |
Frequency Range | 2.4GHz/5GHz/6GHz |
BLUETOOTH | |
Standard | 5.2 |
OTHER DATA | |
Interface | PCIe 2.0 x1 |
Chipset | Intel® AX210 |
Operating system | Windows 10/11 |
Dimension (l/w/h) | 20 x 120 x 95mm |
Warranty | 24 months |
SCOPE OF DELIVERY & FEATURES | |
Scope of delivery |
DMG-36 Retail packaging Mounting screw Low-profile slot bracket Internal USB cable for Bluetooth connection Driver CD Manual (english, german) |
Features |
Wi-Fi 6E with transfer speed up to 5400Mbps Bluetooth 5.2 Two strong 6dBi antennas Tri-band |
LOGISTICAL DATA | |
Shipping Unit | 1 Pcs |
Packing Unit | 80 Pcs |
Weight | net = 0.140kgs gross = 0.235kgs |
Item number | 88888165 |
EAN-Code | 4260455647755 |
![]() |
GAMAZINE GOLD TROPHY
(Read more. Test is in German language) |
Data sheet DMG-36 |
Download |
Driver DMG-36 |
WLan (Intel Homepage)Bluetooth(Intel Homepage) |
Picture package DMG-36 |
Download |
* You need a PDF reader to read these documents
* Pictures and drivers are always packed as Zip. You need to unzip them before using.
