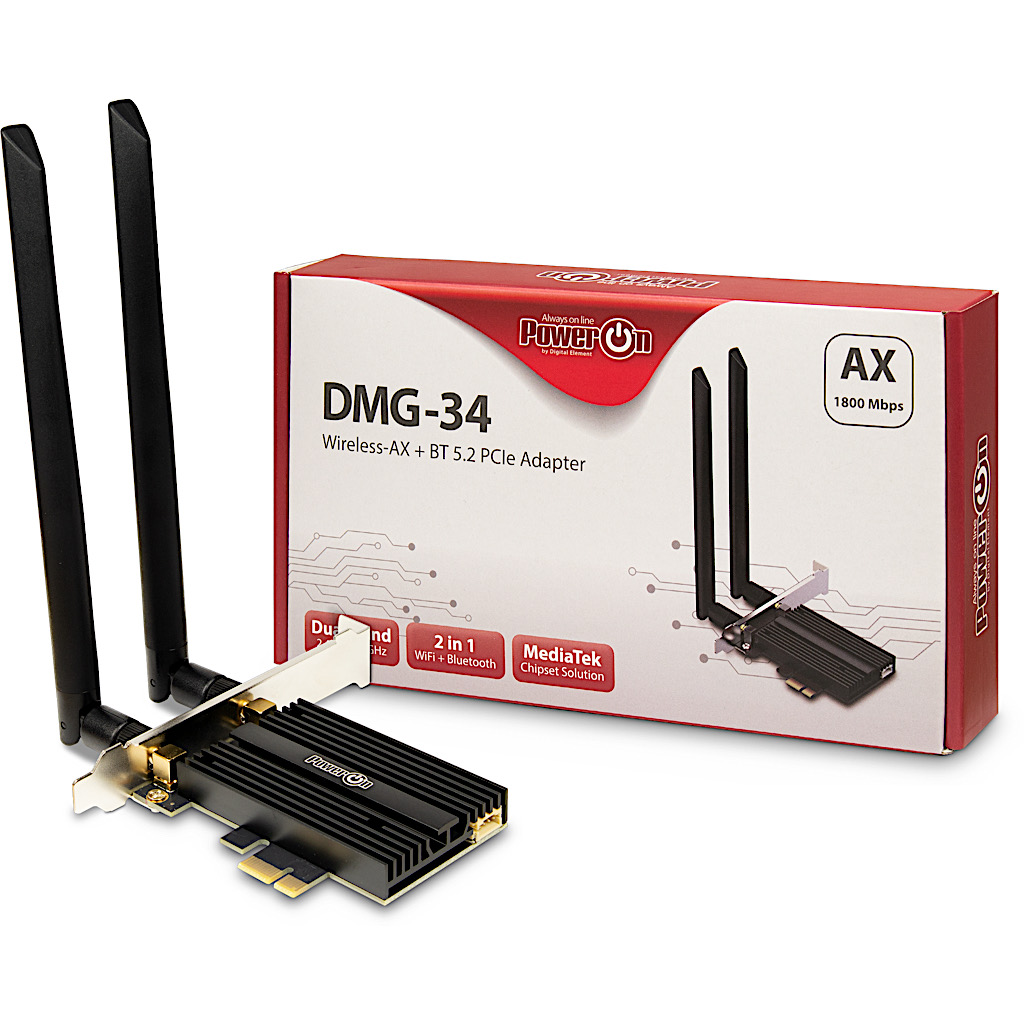

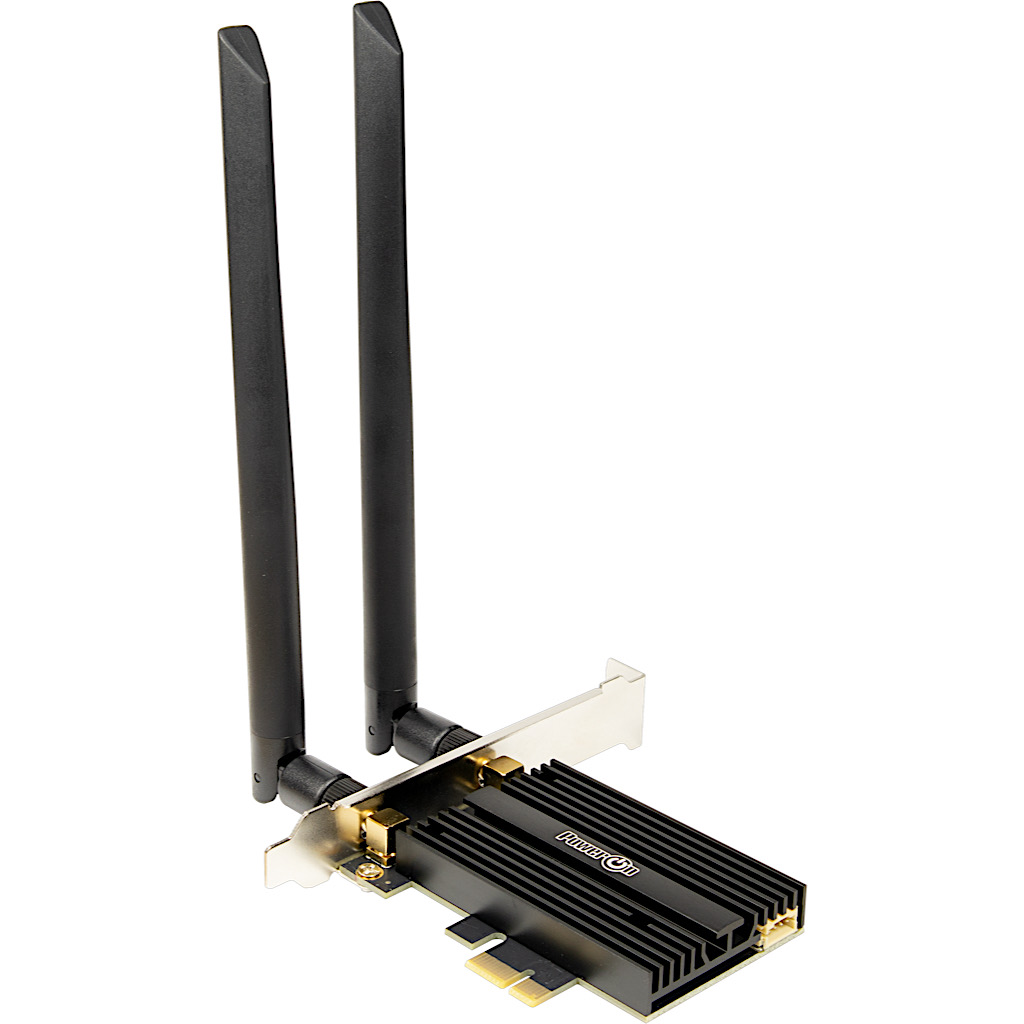

Wi-Fi 6 + BT 5.2 PCIe adapter - 1800Mbps

The DMG-34 is a 2in1 WLAN & Bluetooth 5.2 adapter. It allows you to connect your PC to the Wi-Fi network at home or in the office. The WLAN (802.11 a/b/g/n/ac/ax (Wi-Fi 6)) PCIe adapter is equipped with a modern MediaTek® MT7291 chipset and two 6dBi strong antennas and offers speeds of up to 1800Mbps in 2.4GHz or 5GHz network is the ideal basis for high- speed data transfer.

In addition to the WLAN function, the DMG-34 also offers a Bluetooth 5.2 interface, allowing you to connect your computer to a smartphone, tablet or other Bluetooth device.

Since WLAN and Bluetooth connections are possible at the same time, you can use the DMG-34 to play files from your WLAN network directly on your Bluetooth speakers or headphones, for example.

  • Wi-Fi 6 up to 1800Mbps
  • for 2.4GHz or 5GHz networks
  • MediaTek® MT7291 with Bluetooth 5.2
  • two powerful 6dBi antennas

Standard IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Antenna 2T2R
Antenna strength 6dBi
Data rate 1800Mbps
Frequency Range 2.4GHz/5GHz
Data rate 1800Mbps
Transmission power max. 20dBm (100mW)
Standard 5.2
Transmission rate max. 14,5dBm (28mW)
Interface PCIe 2.0 x1
Chipset MediaTek® MT7291
Operating system Windows 10/11
Dimension (l/w/h) 20 x 120 x 95mm
Warranty 24 months
Scope of delivery

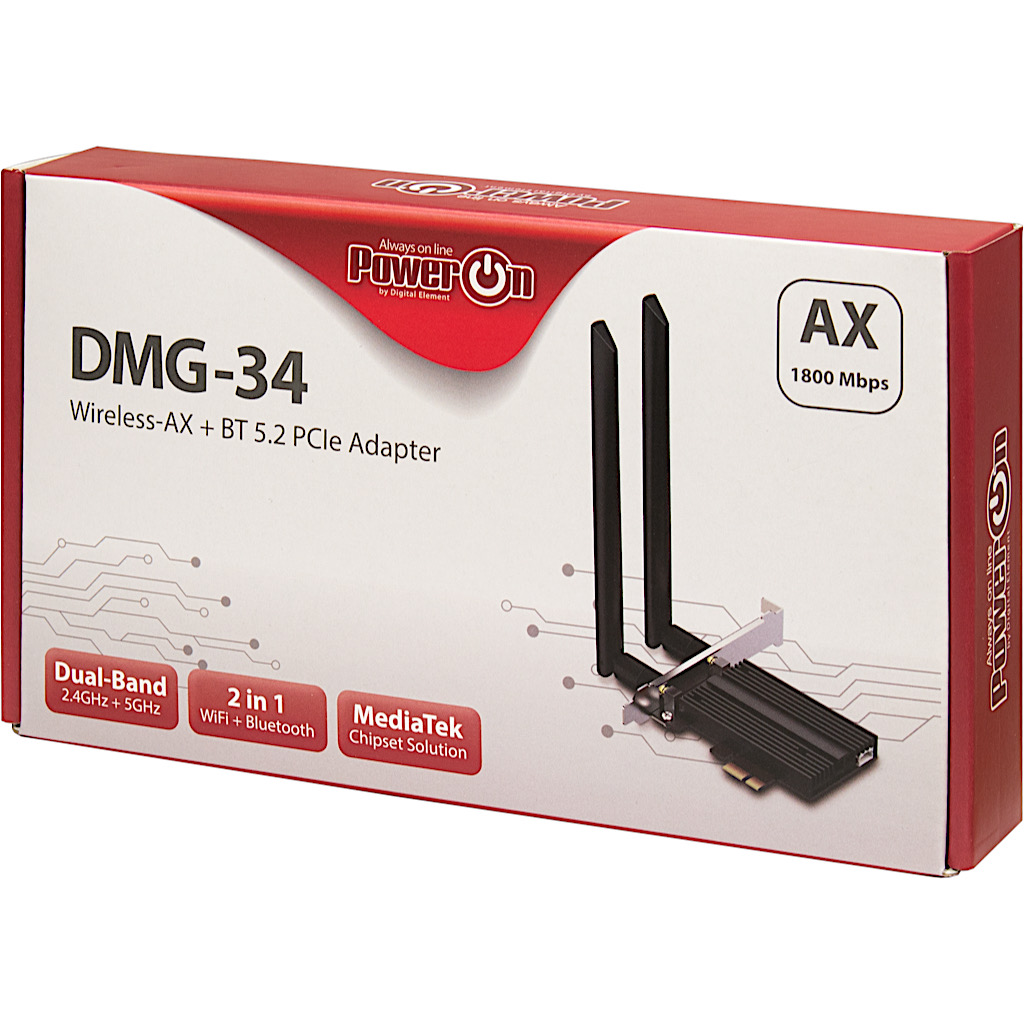

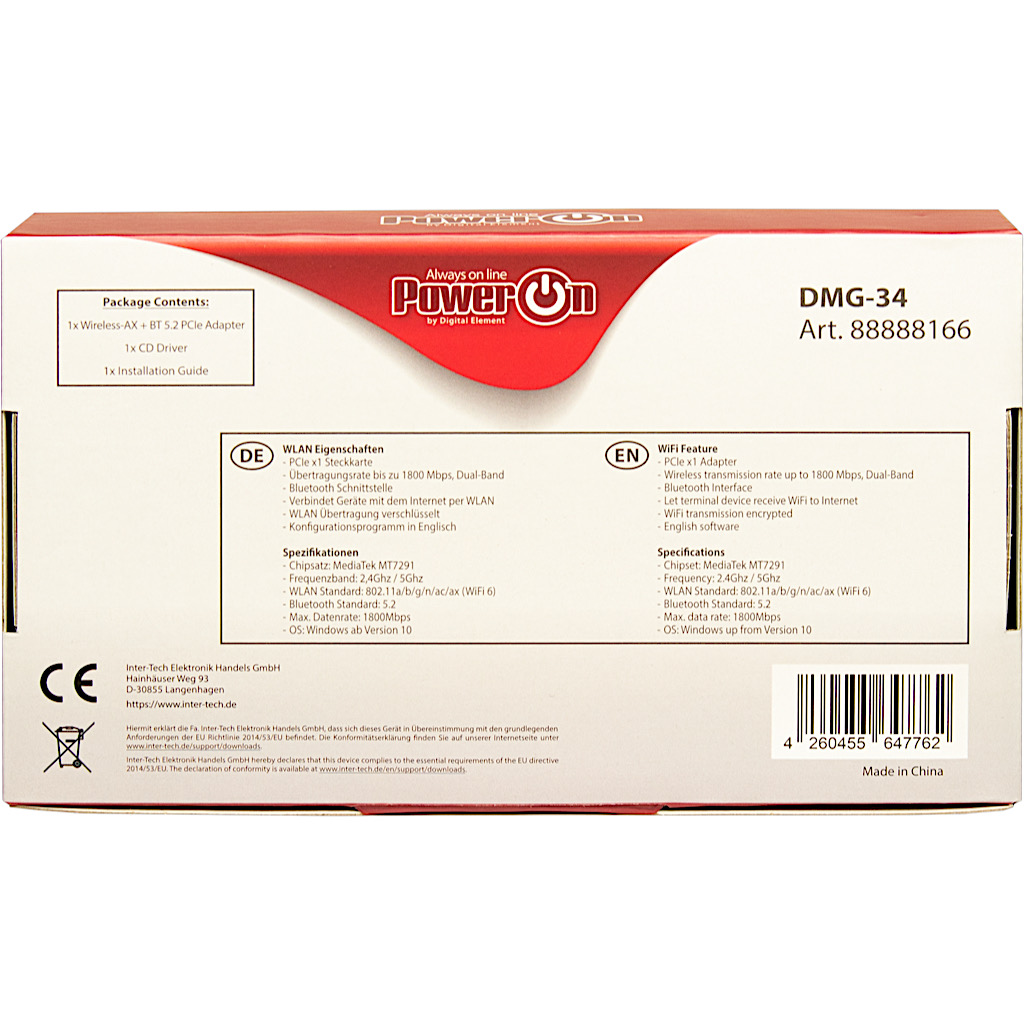

Retail packaging

Mounting screw

Low-profile slot bracket

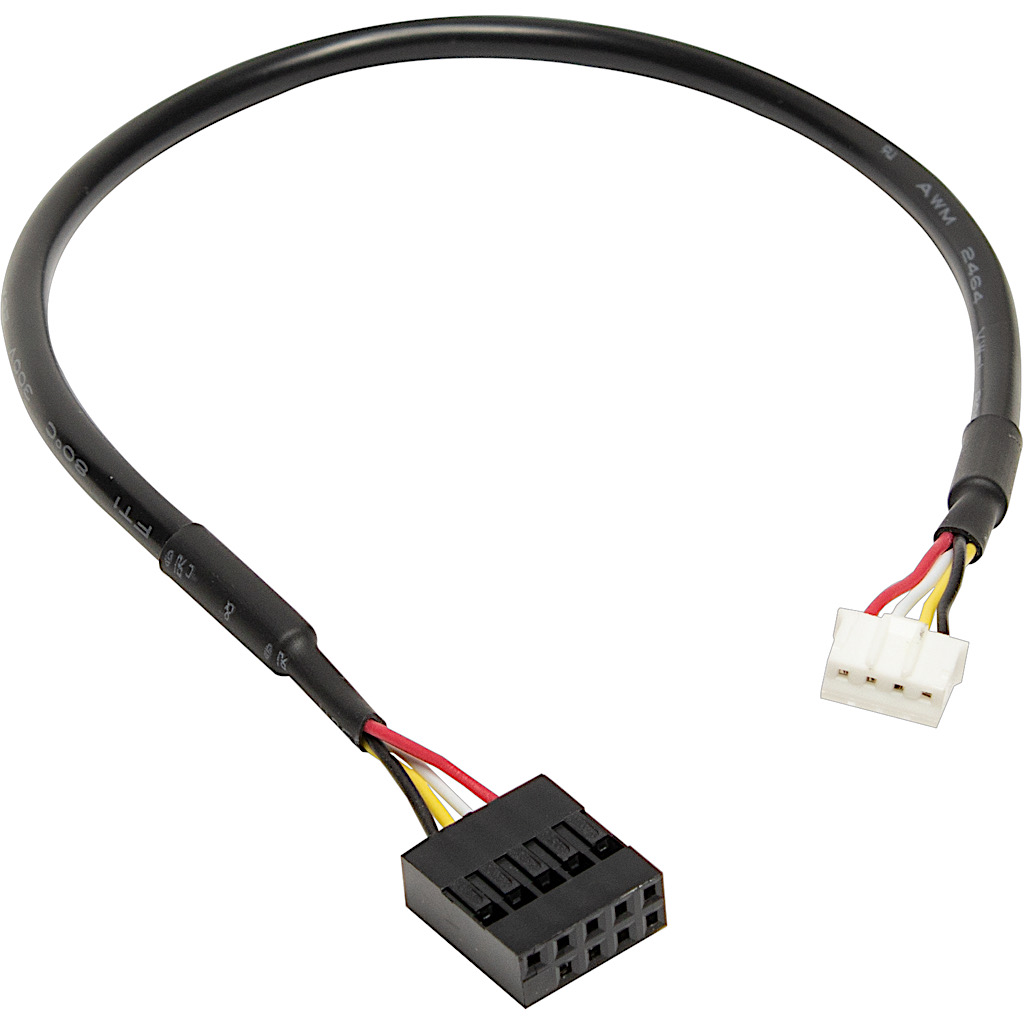

Internal USB cable for Bluetooth connection

Driver CD

Manual (english, german)


Wi-Fi 6 with transfer speed up to 1800Mbps

Bluetooth 5.2

Two strong 6dBi antennas

Shipping Unit 1 Pcs
Packing Unit 80 Pcs
Weight net = 0.140kgs
gross = 0.235kgs
Item number 88888166
EAN-Code 4260455647762

Data sheet DMG-34
Driver DMG-34
Picture package DMG-34

* You need a PDF reader to read these documents
* Pictures and drivers are always packed as Zip. You need to unzip them before using.
