ST-7238

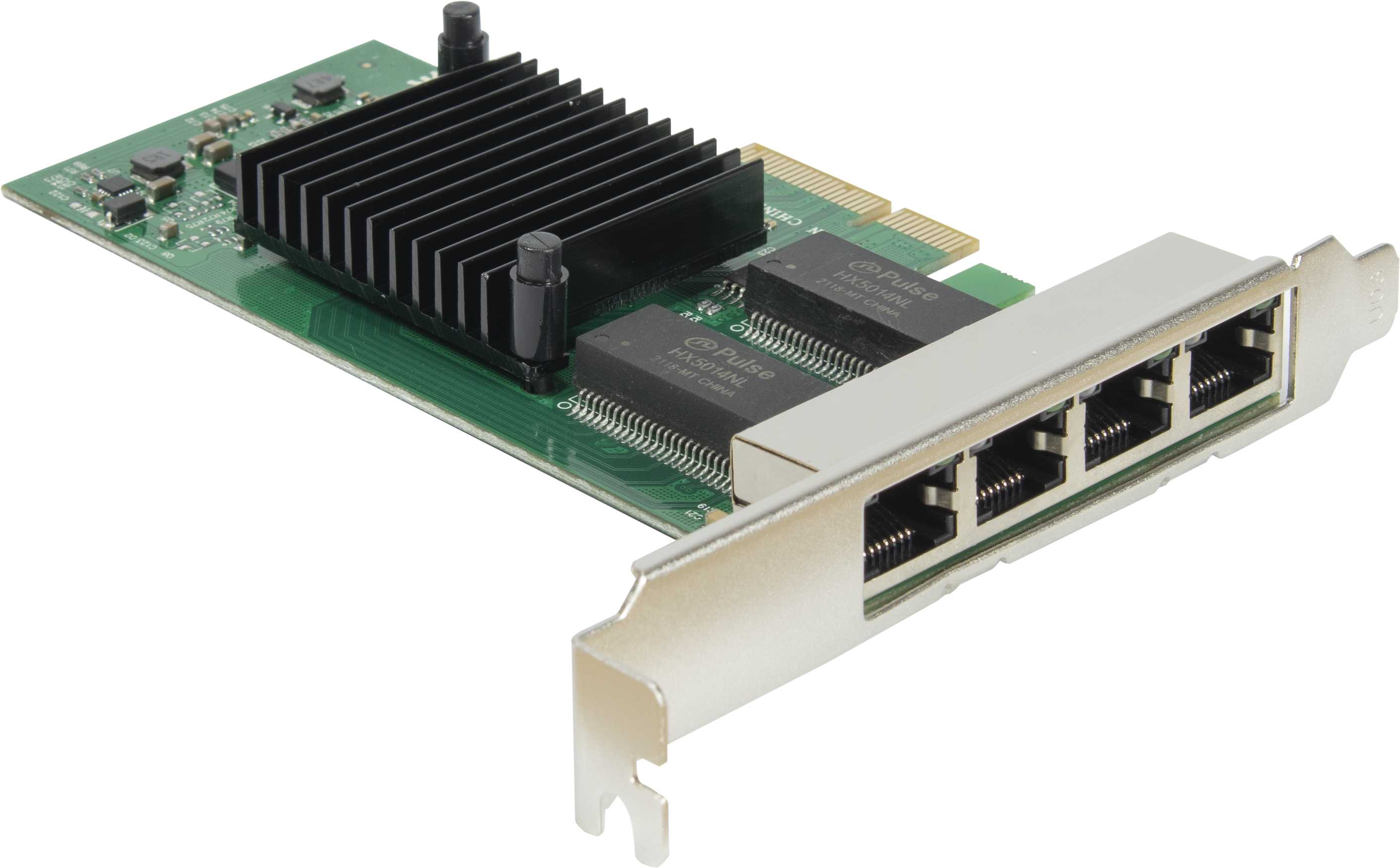

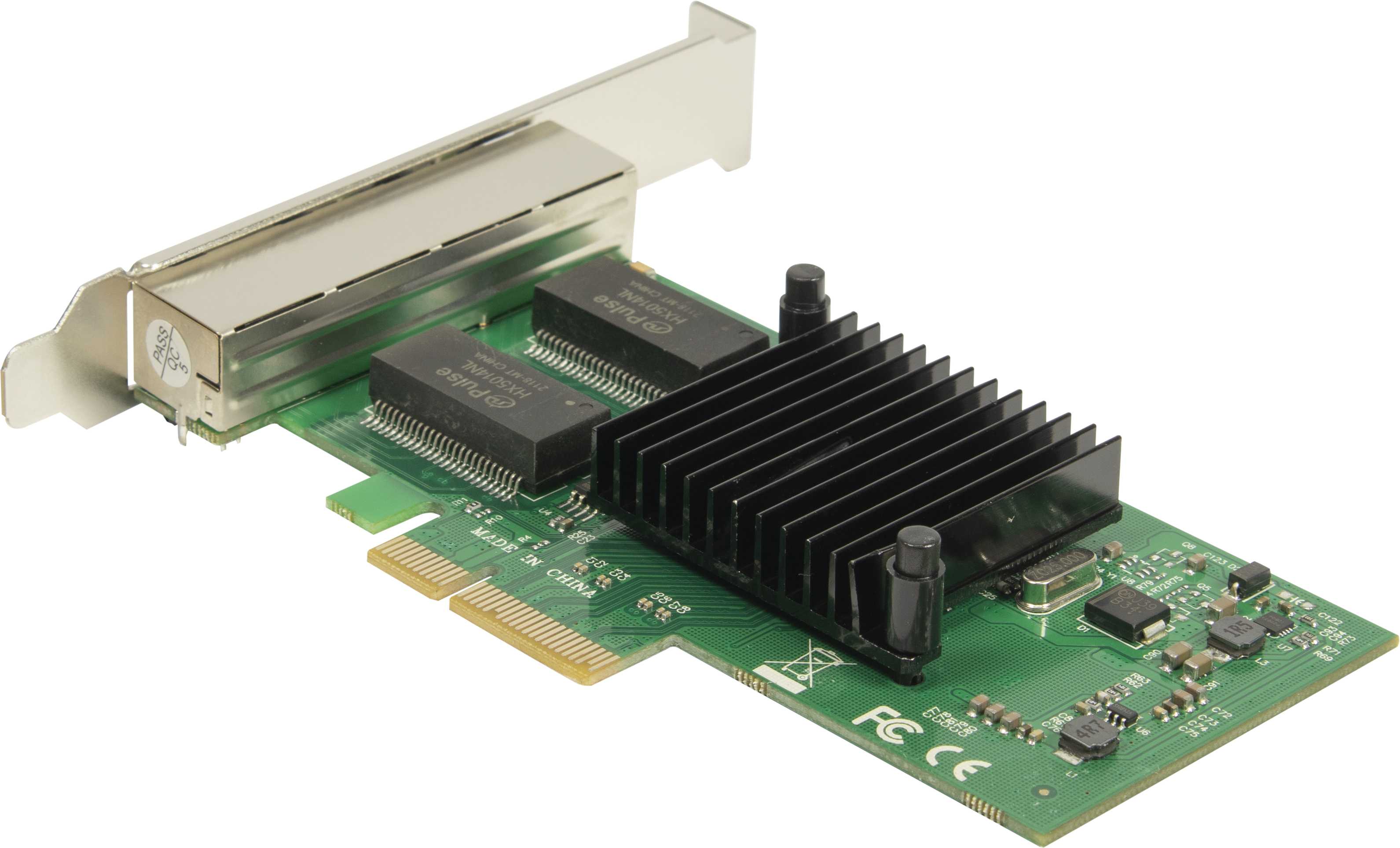

Argus ST-7238 – Quadport-Network adapter
Quadport Gigabit LAN-Adapter for use in server environments. The inbuilt Intel® chipset i350 offers even more integrated features than standard chipsets. This way the ST-7238 is able to relieve the main processor which means less stress for the main processor due to networking transfer – as "regular" networking cards would cause.
- Off-Load Checksum-, UDP-, TCP-, IP- & Segmentation calculation
- VT-c (VMDq, SR-IOV)
- RSS, MSI-X
- Retail packing
| GENERAL DATA | |
|---|---|
| Interface | PCIe x4 v2.0 |
| Connectors | 4x RJ45 - 10/100/1000 |
| Chipset | Intel® i350 |
| OTHER DATA | |
| Operating System | Windows XP/7/8/8.1/10/11, Linux, WinServer: 2008/2012/2016/2019 |
| Dimension (h/w/d) | 22 x 145 x 120mm |
| Guarantee | 12 months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
ST-7238 Retail packaging Driver-CD (multi-language) Low-Profile slot bracket quickinstall (english) |
| Features |
Supports Auto MDI 8 Rx and TX queues per port Off-Load Checksum-, UDP-, TCP-, IP- and Segmentation calculation Intel Quick Data Technology Jumbo Frames RSS MSI-X VT-c (VMDq, SR-IOV) IEEE 1588 (Timesync.) 802.1AS Security (IPsec, LinkSec3) |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| Packing Unit | 50 Pcs |
| Weight | net = 0.090kgs gross = 0.205kgs |
| Item number | 77773010 |
| EAN-Code | 4260455647656 |
