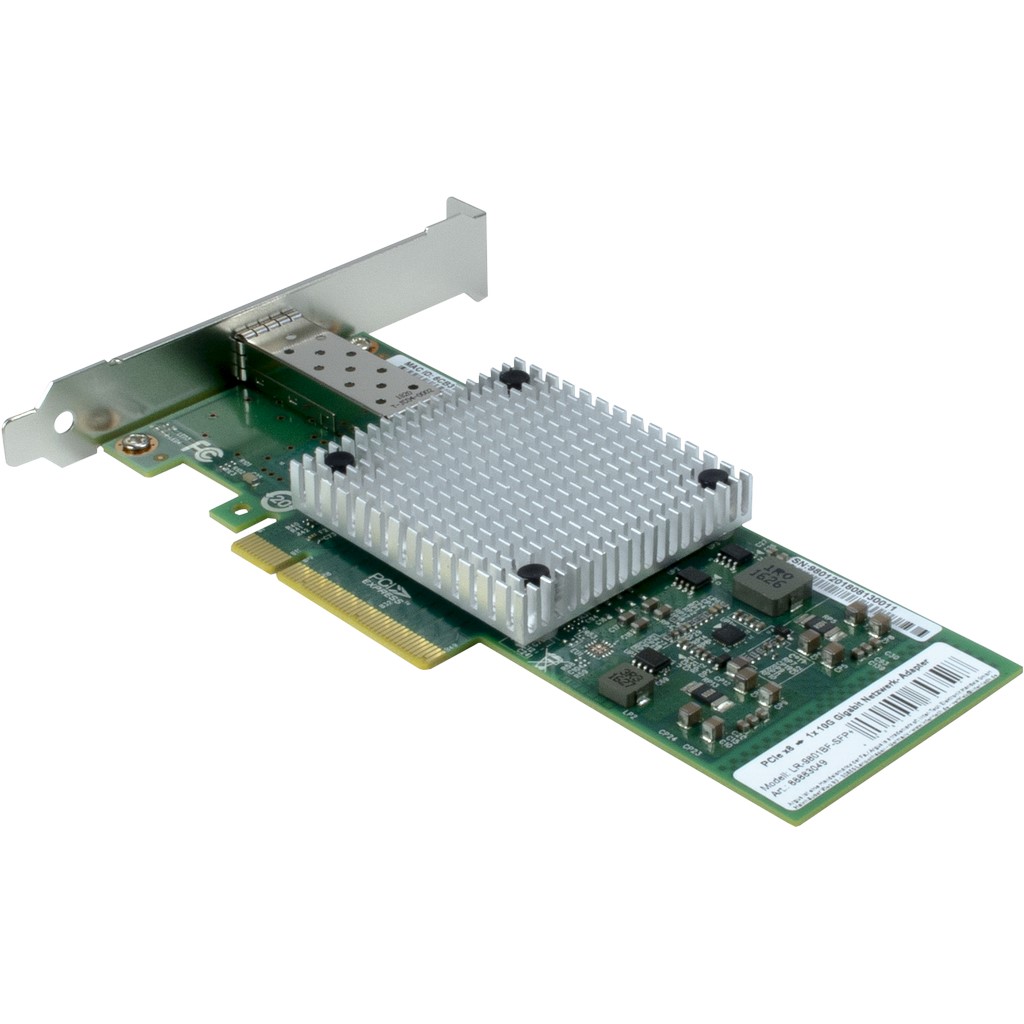

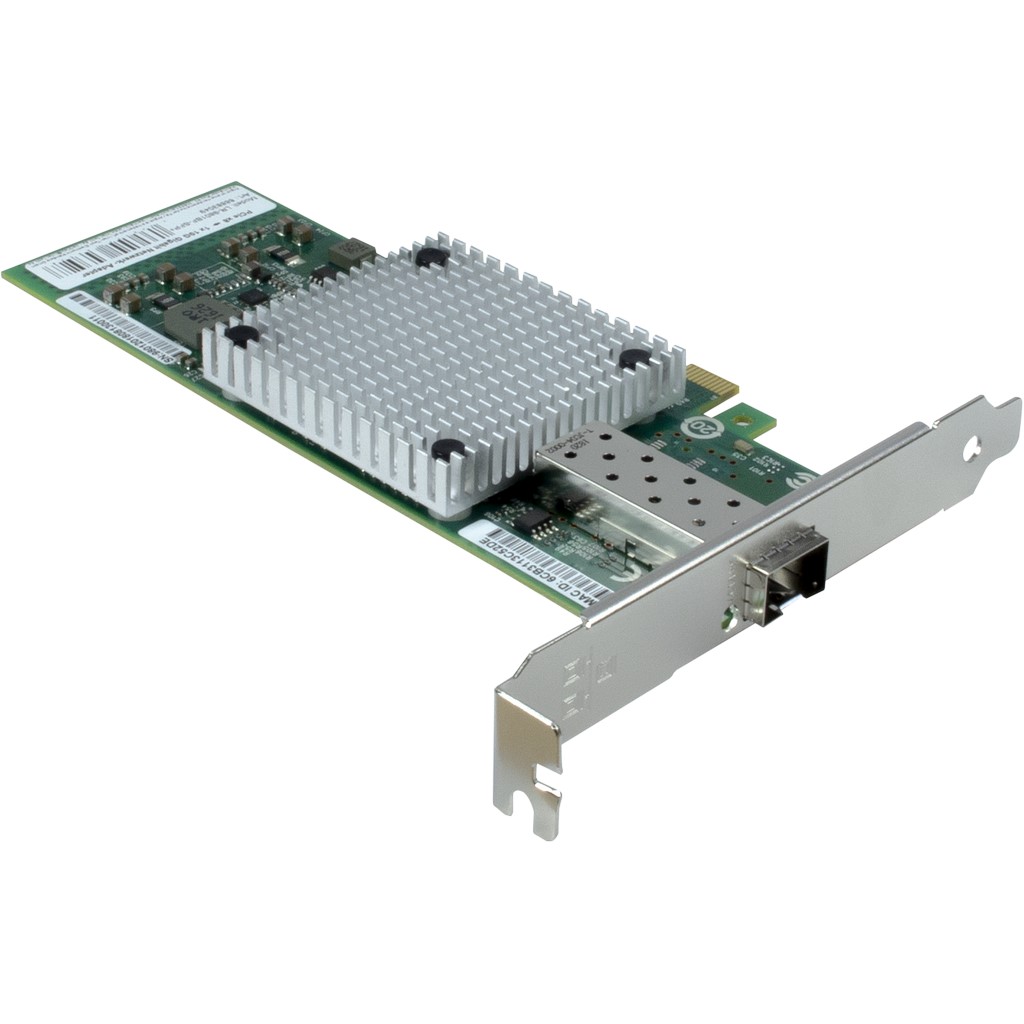

LR-9801BF-SFP+

Your adapter for the 10-gigabit network

The built-in Intel® chipset 82599 offers excellent performance and ensures fast data throughput.

In addition, the LR-9801BF-SFP+ is able to relieve the main processor which means less stress for the main processor due to networking transfer. The connection is made by the fast SFP+ standard.


  • Off-Load Checksum-, UDP-, TCP-, IP- & Segmentation calculation
  • VT-c (VMDq, SR-IOV)
  • MSI, MSI-X
  • Supports WOL (Wake-On-LAN) and Boot-ROM

GENERAL DATA
Interface PCIe x8 v2.0
Connectors 1x SFP+ 1G/10G
Chipset Intel® 82599
OTHER DATA
Operating System Windows 7/8/8.1/10/11, Linux
Dimension (h/w/d) 22 x 120 x 170mm
Guarantee 12 months
SCOPE OF DELIVERY & FEATURES
Scope of delivery

LR-9801BF-SFP+

Retail packaging

Driver-CD

Low-Profile slot bracket

Manual (German, English)

Features

Supports DAC

16x8 or 32x4 Rx and 128 TX queues per port

Off-Load Checksum-, UDP-, TCP-, IP- and Segmentation calculation

Supports up to 64 virtual machines per port

MSI, MSI-X

VT-c (SR-IOV)

Supports protocols 802.3ae, 802.3ap, 802.3ak and 802.3x

Supports data center bridging (802.1Qaz, 802.1Qbb)

Supports WOL (Wake-On-LAN) and Boot-ROM

LOGISTICAL DATA
Shipping Unit 1 Pcs
Packing Unit 60 Pcs
Weight net = 0.105kgs
gross = 0.235kgs
Item number 88883049
EAN-Code 4260455643528



Data sheet LR-9801BF-SFP+
Download
Picture package LR-9801BF-SFP+
Download

* You need a PDF reader to read these documents
* Pictures and drivers are always packed as Zip. You need to unzip them before using.
