SNB-8842

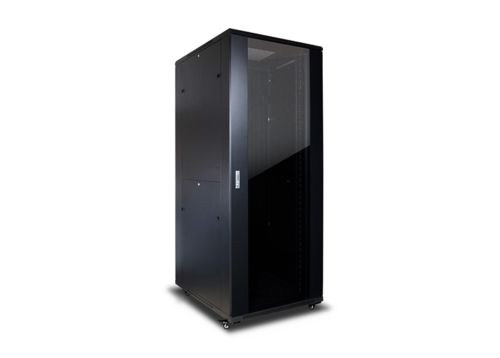

The server rack SNB-8842 impresses with a spacious height of 42U and its depth of 800mm and offers sufficient space for a variety of active and passive server & network components.

With a material thickness between 1.25 and 1.50 mm, the server rack carries a total load of up to 800kg and also complies with the IP20 protection class. The cabinet is powder-coated in RAL 9005 color and can be individually closed by the integrated tempered glass door, the back door, as well as by the split removable side panels. Cable inlets in the lid and in the floor also ensure a clean routing of the cables.

The optionally available fan element, which can be installed in the lid of the cabinet, ensures optimum ventilation and the rack also scores with three standard depth struts per side as well as optional rollers or leveling feet.


  • 42U and 800mm depth
  • Total load of up to 800kg
  • Meets protection class IP20
  • Lockable glass door, back door and side panels

GENERAL DATA
Unit 42U
Width 800mm
Depth 800mm
Max. total weight 800kg
Material front door Tempered Glass
Material back door Steel
Opening angle of the doors 180°
Colour RAL 9005
IP class Fulfills IP20
Dimensions (h/w/d) 1990 x 800 x 800mm (Height with rolls +65mm; Height with feet +22-70mm)
GUARANTEE / WARRANTY
Warranty 24 months
SCOPE OF DELIVERY & FEATURES
Scope of delivery

SNB-8842

Rolls (four pieces, two with locks)

Leveling feet (four pieces)

Screw set

40 mounting screws and cage nuts

Two earthing cables for the doors

Two cable channels over the entire height

Assembly instructions (English, German for download)

Features

1.25-1.5mm material thickness (cold rolled steel)

The back door can be hinged left or right

Doors are lockable individually (Front door with snap lock)

Doors with 1-point locking

Divided sidewalls (two each side)

Side parts individually lockable

Preparation for the fan element

Base and lid with cable inlets (screwed cover)

Three depth struts per side

Profile rails adjustable in depth

Extensive accessories

Delivery is disassembled in four packages

LOGISTICAL DATA
Shipping Unit 1 Pcs (4 packages)
Weight net = 115.41kgs
gross = 125.08kgs
Item number 88887256
EAN-Code 4260455644235

Data sheet SNB-8842
Download
Manual SNB-8842
Download
Technical drawing SNB-8842
Download
Picture package SNB-8842
Download

* You need a PDF reader to read these documents
* Pictures and drivers are always packed as Zip. You need to unzip them before using.
