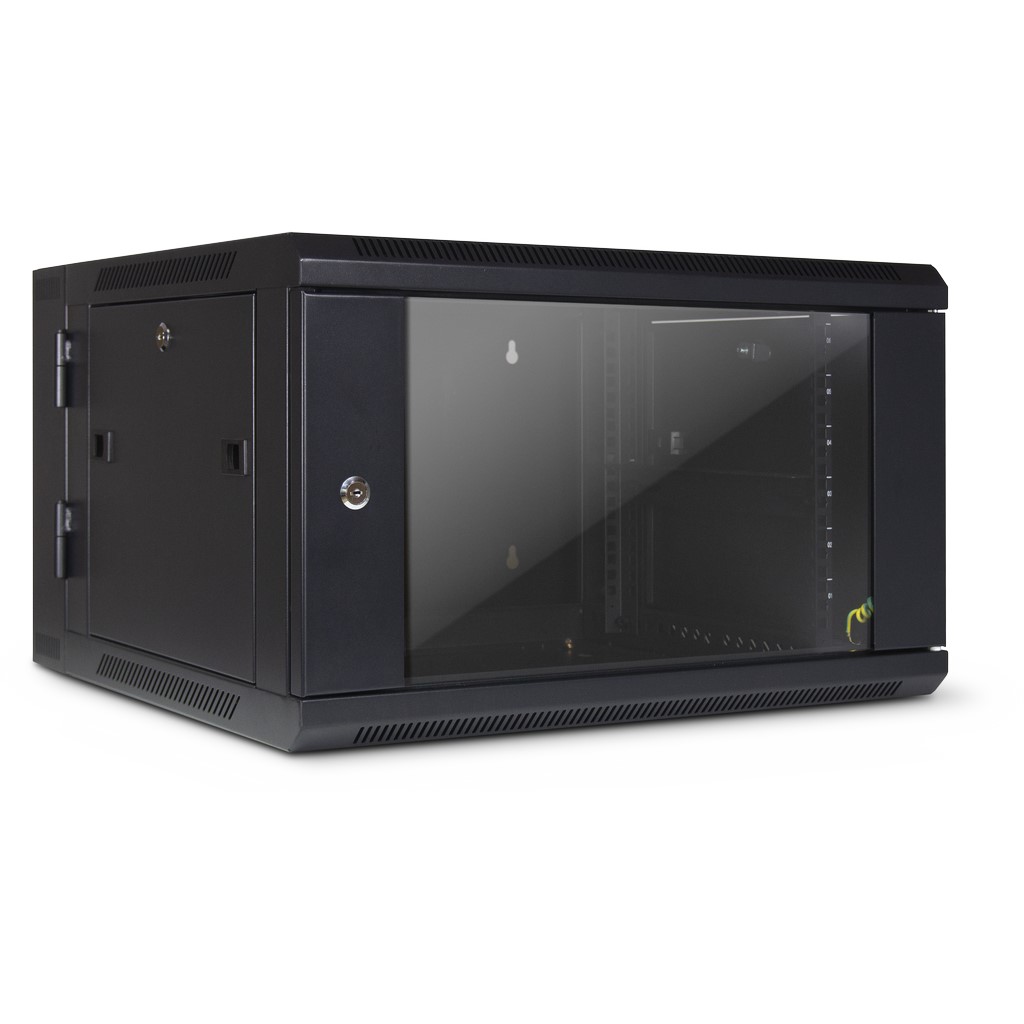

The SMB-6606 wall-mounted rack stands out for its low height of just 6U and a depth of only 600mm, offering a space-saving alternative compared to large and bulky server & network cabinets.

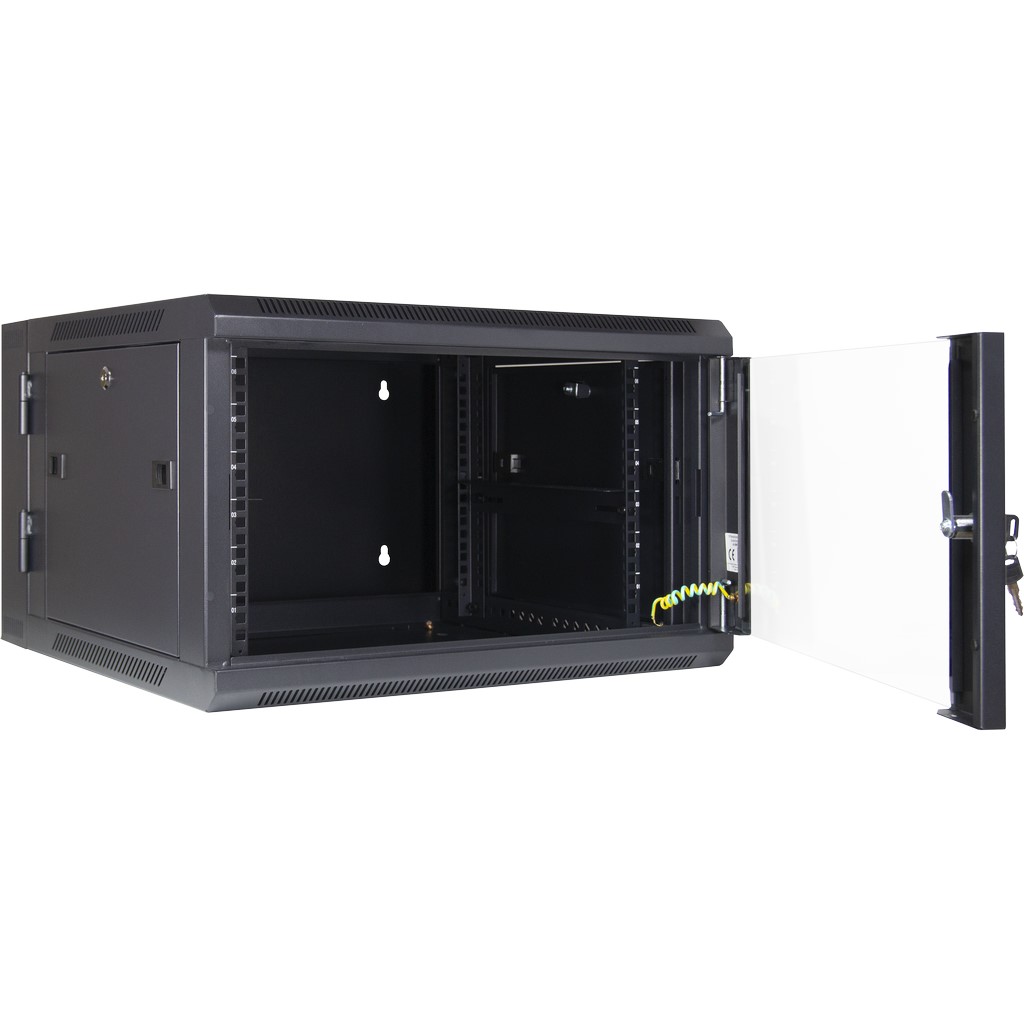

With a material thickness between 1.25 and 1.50 mm, the wall-mounted rack carries a total load of up to 40kg and also complies with the IP20 protection class. The rack is powdercoated in the colour RAL 9005 and can be closed both by the integrated door made of tempered glass and by the individually removable side panels. Cable inlets in the lid and in the floor also ensure a clean routing of the cables. Two optional 120mm fans, which find their place in the lid, support the case during ventilation.

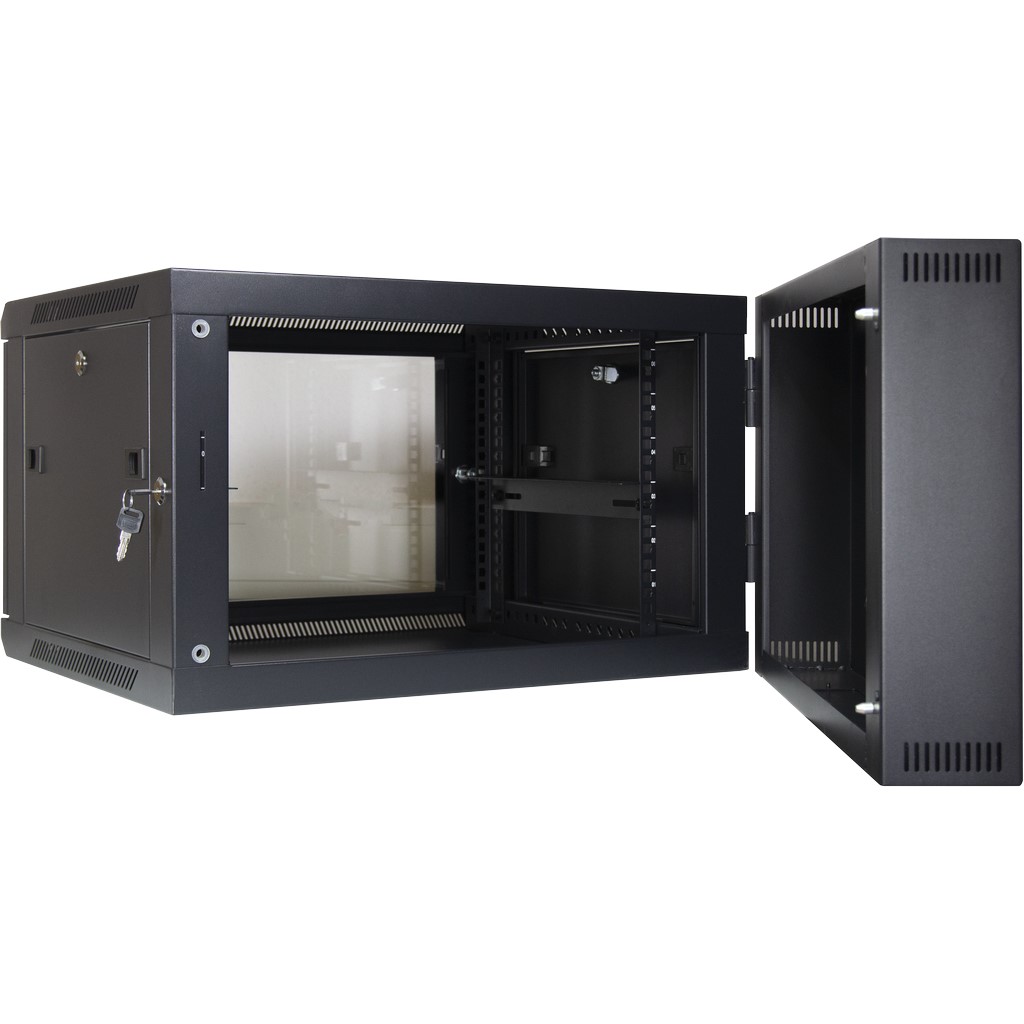

Thanks to the double section, the rear part of the rack can be opened like a door, thus offering the possibility of simpler and more comfortable maintenance of the installed components.

  • 6U and 600mm depth
  • Total loading capacity of up to 40kg
  • Meets protection class IP20
  • Lockable glass door and side panels

Unit 6U
Width 600mm
Depth 600mm
Max. loading capacity 40kg
Material front door Tempered Glass
Opening angle of the doors 180°
Colour RAL 9005
IP class Fulfills IP20
Dimensions (h/w/d) 440 x 670 x 670mm
Warranty 24 months
Scope of delivery


Screw set

12 mounting screws and cage nuts

12 washers made of plastics

Earthing screw

Wall-mounting (double section)¹

Assembly instructions (English, German for download)


1.25-1.5mm material thickness (cold rolled steel)

The door can be hinged left or right

Doors is lockable

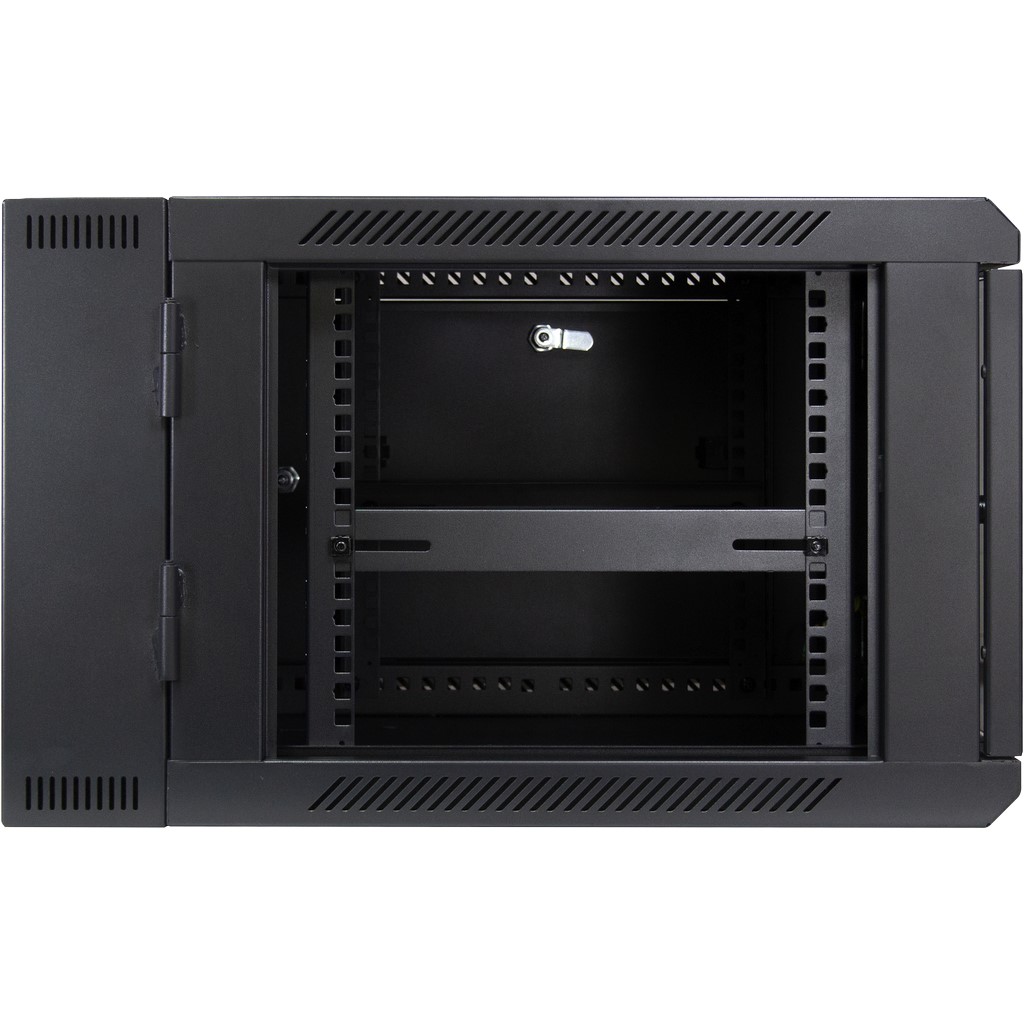

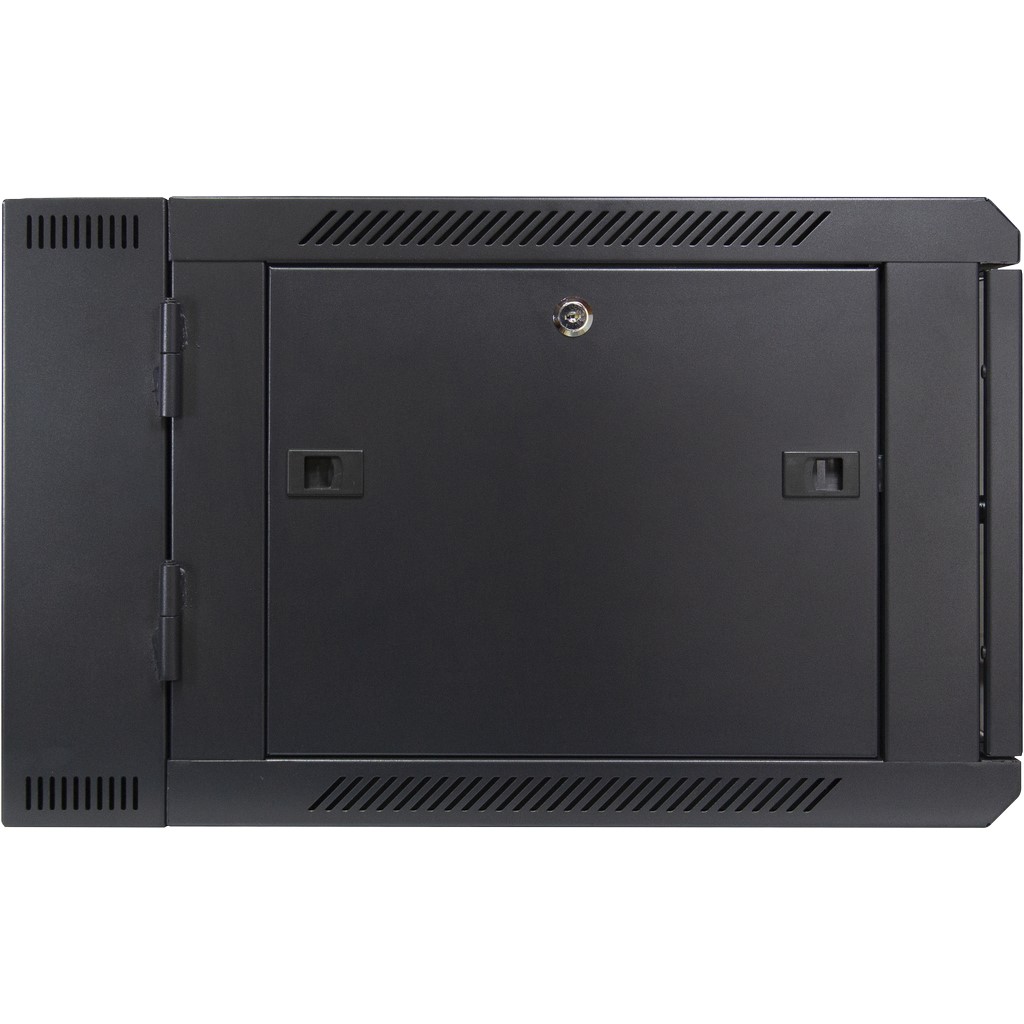

Side parts removable and lockable

Space for 2x 120mm fans in the lid (Fan SWFAN 120mm/230V, Item No.: 88887269)

Base and lid with cable inlets (screwed cover)

Delivery is disassembled in one package

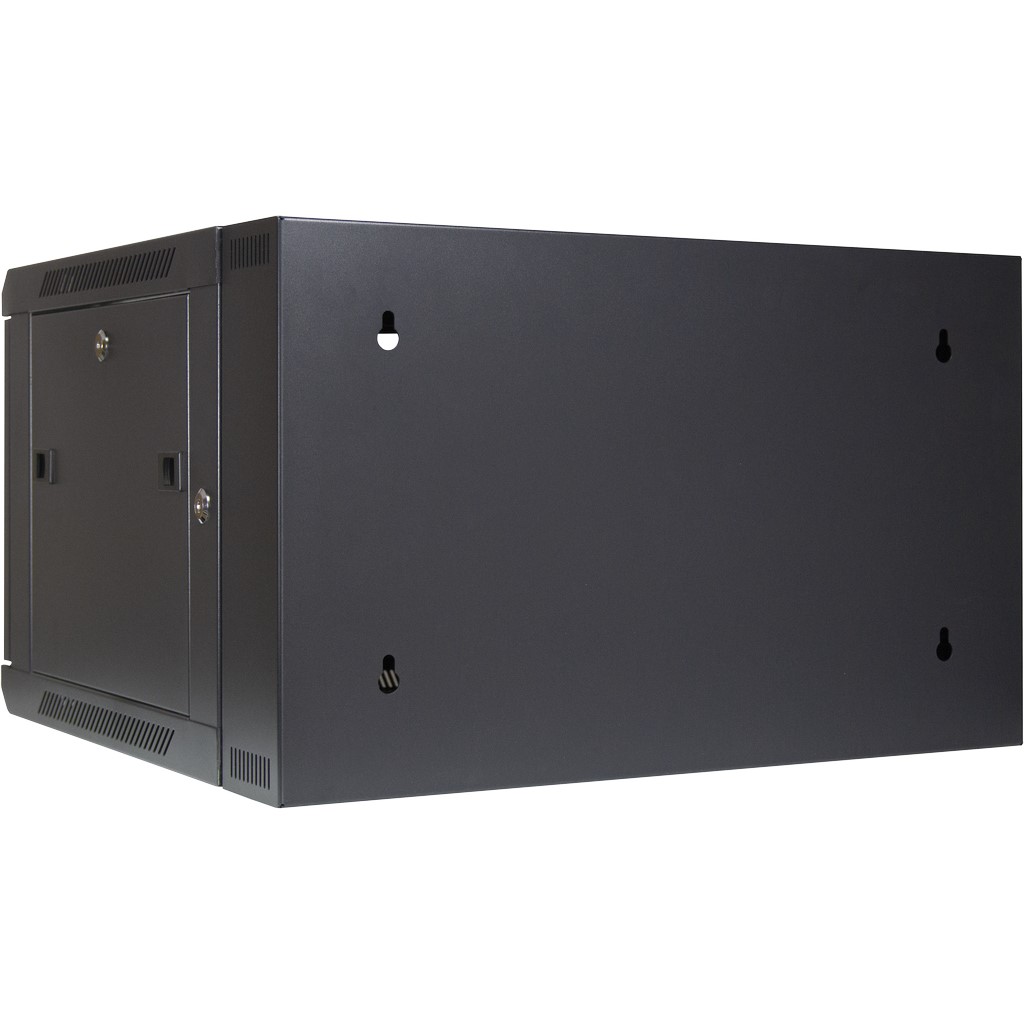

¹ The wall bracket is the back part (100mm) of the case and so the case can be opened like a door


Shipping Unit 1 Pcs
EU palett 14 Pcs
Weight net = 20.00kgs
gross = 22.50kgs
Item number 88887255
EAN-Code 4260455644228

Data sheet SMA-6606
Technical drawing SMA-6606
Picture package SMA-6606
