SMA-6409

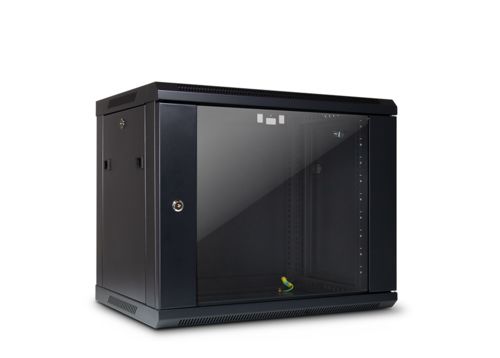

The SMA-6409 wall-mounted rack stands out for its low height of just 9U and a depth of only 450mm, offering a space-saving alternative compared to large and bulky server & network cabinets.

With a material thickness between 1.25 and 1.50 mm, the wall-mounted rack carries a total load of up to 30kg and also complies with the IP20 protection class. The rack is powdercoated in the colour RAL 9005 and can be closed both by the integrated door made of tempered glass and by the individually removable side panels. Cable inlets in the lid and in the floor also ensure a clean routing of the cables. Two optional 120mm fans, which find their place in the lid, support the case during ventilation.


  • 9U and 450mm depth
  • Total loading capacity of up to 30kg
  • Meets protection class IP20
  • Lockable glass door and side panels

GENERAL DATA
Unit 9U
Width 600mm
Depth 450mm
Max. loading capacity 30kg
Material front door Tempered Glass
Opening angle of the doors 180°
Colour RAL 9005
IP class Fulfills IP20
Dimensions (h/w/d) 500 x 600 x 450mm
GUARANTEE / WARRANTY
Warranty 24 months
SCOPE OF DELIVERY & FEATURES
Scope of delivery

SMA-6409

Screw set

12 mounting screws and cage nuts

12 washers made of plastics

Earthing screw

Wall-mounting

Assembly instructions (English, German for download)

Features

1.25-1.5mm material thickness (cold rolled steel)

The door can be hinged left or right

Doors is lockable

Side parts removable and lockable

Space for 2x 120mm fans in the lid (Fan SWFAN 120mm/230V, Item No.: 88887269)

Base and lid with cable inlets (screwed cover)

Delivery is disassembled in one package

LOGISTICAL DATA
Shipping Unit 1 Pcs
EU palett 14 Pcs
Weight net = 16.73kgs
gross = 19.80kgs
Item number 88887253
EAN-Code 4260455644204

Data sheet SMA-6409
Download
Manual SMA-6409
Download
Technical drawing SMA-6409
Download
Picture package SMA-6409
Download

* You need a PDF reader to read these documents
* Pictures and drivers are always packed as Zip. You need to unzip them before using.
