SMA-6406

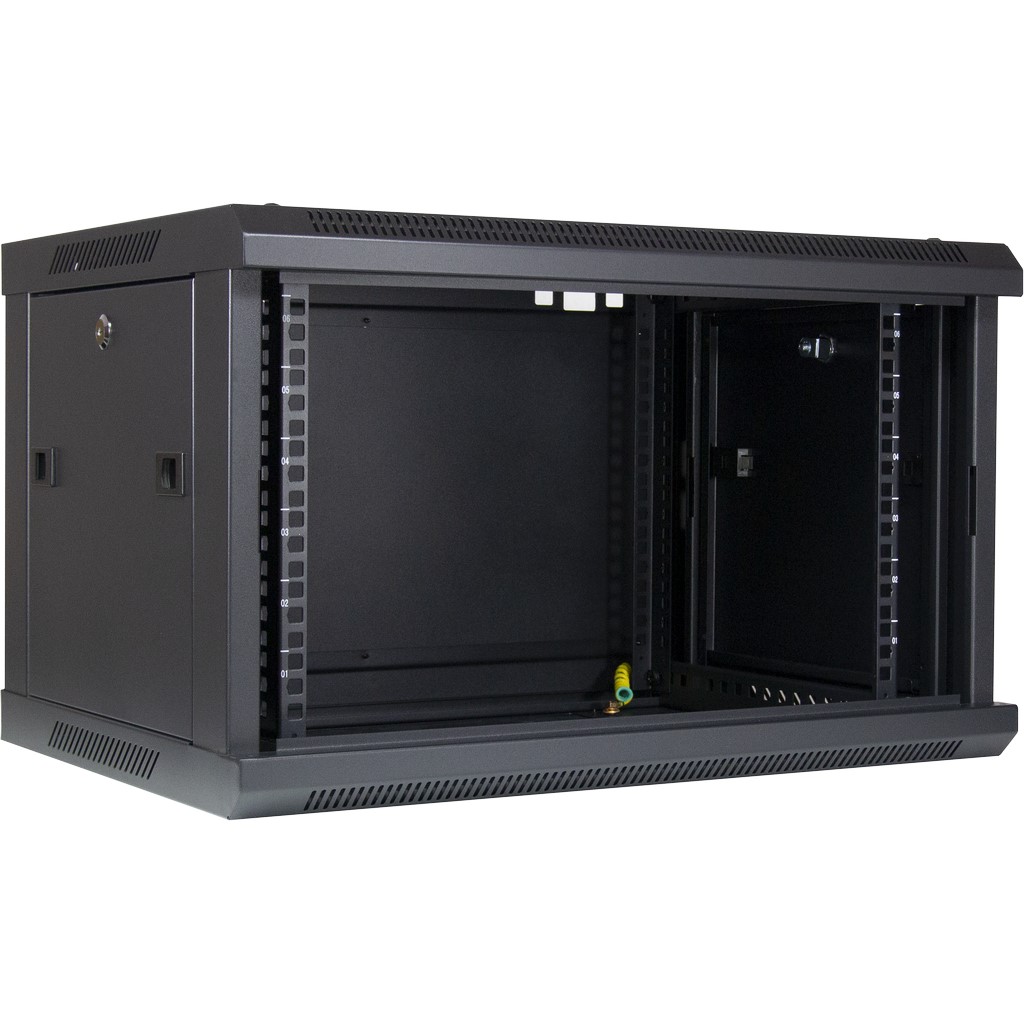

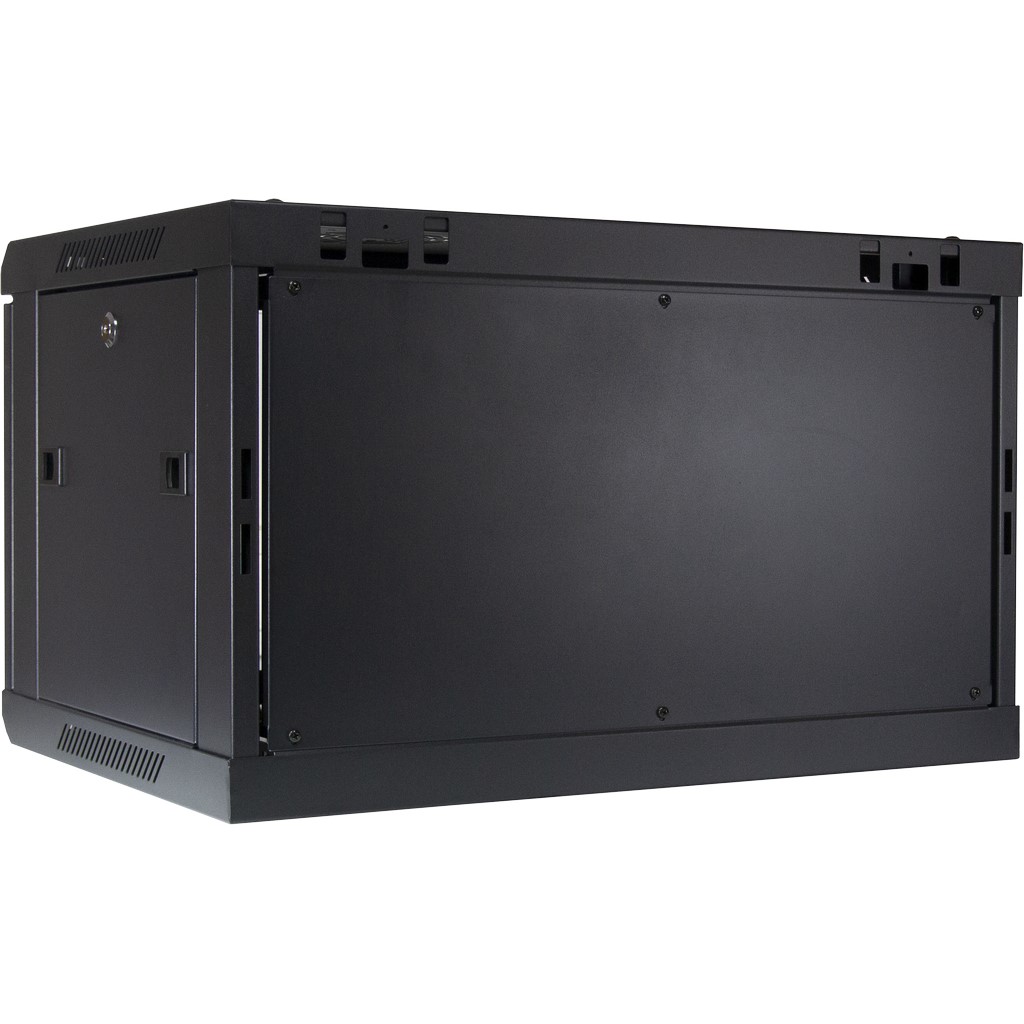

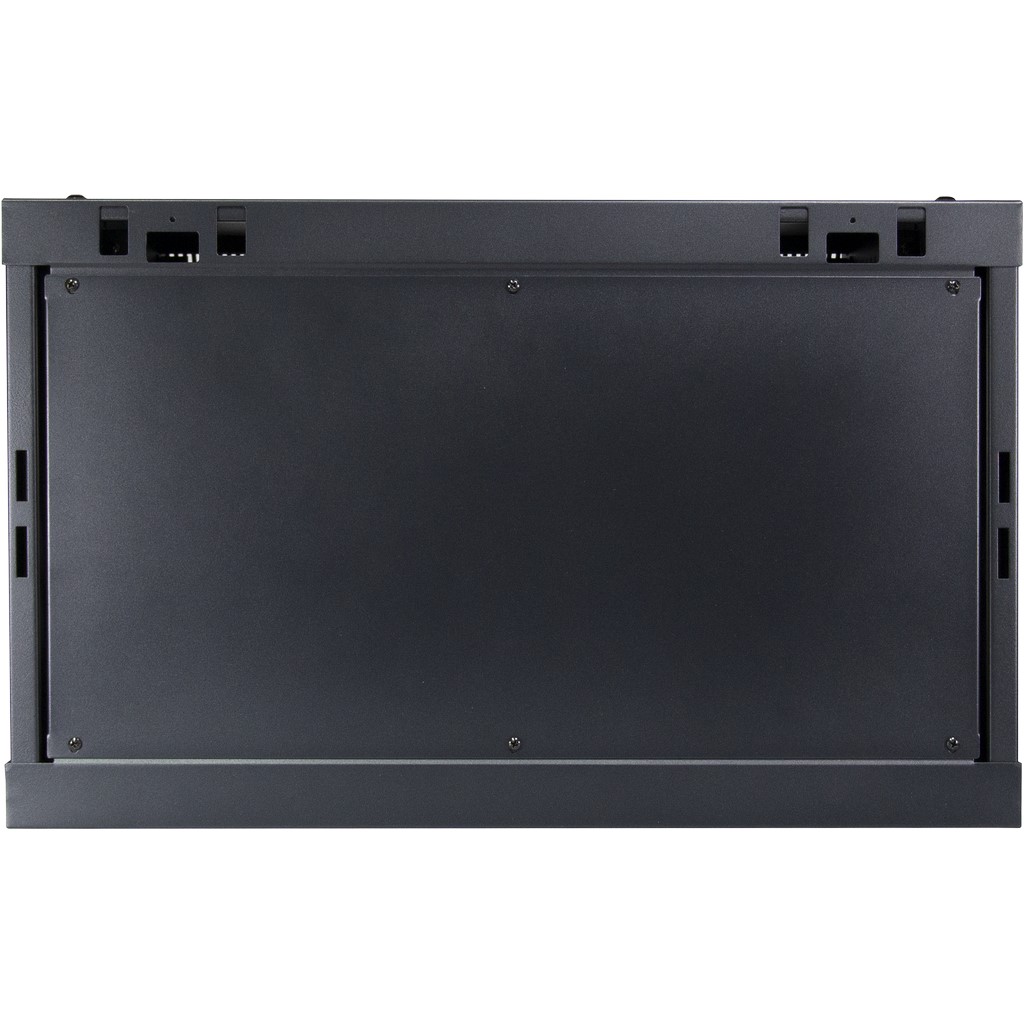

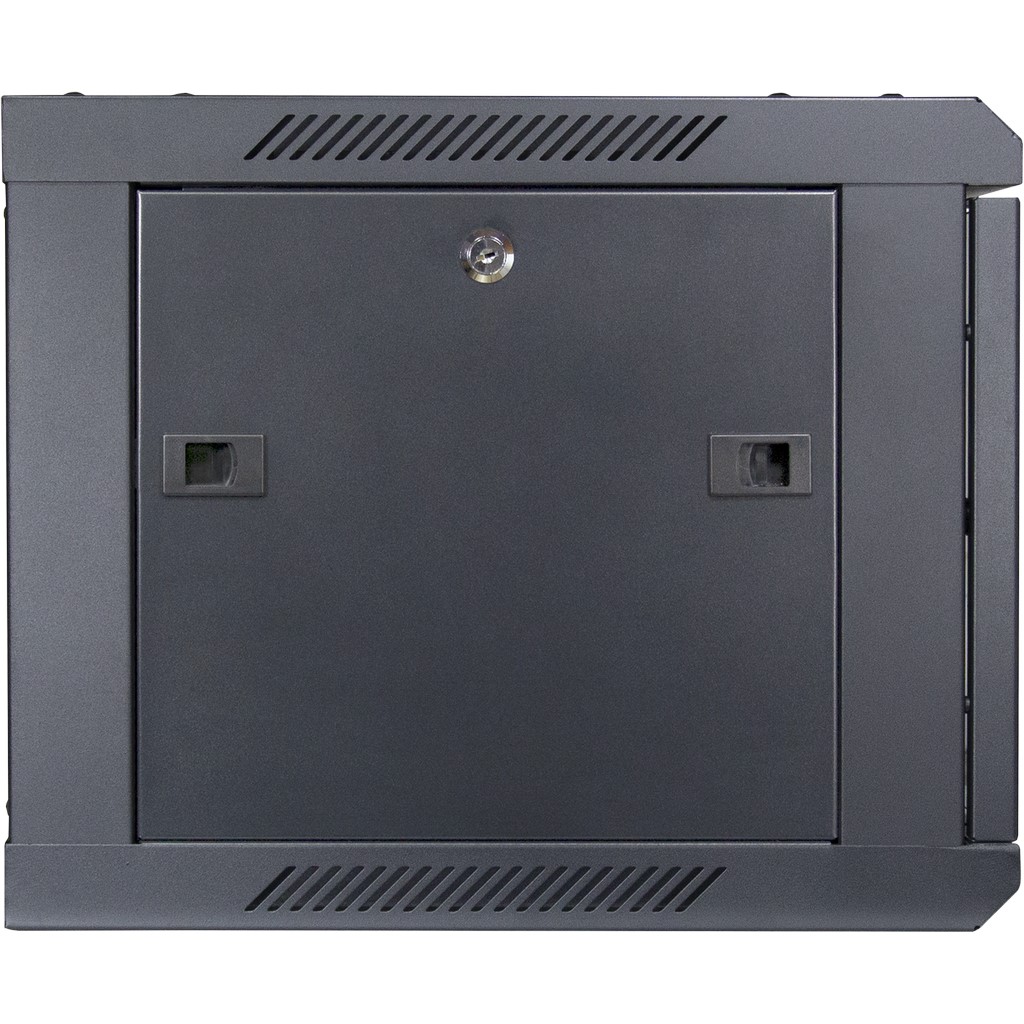

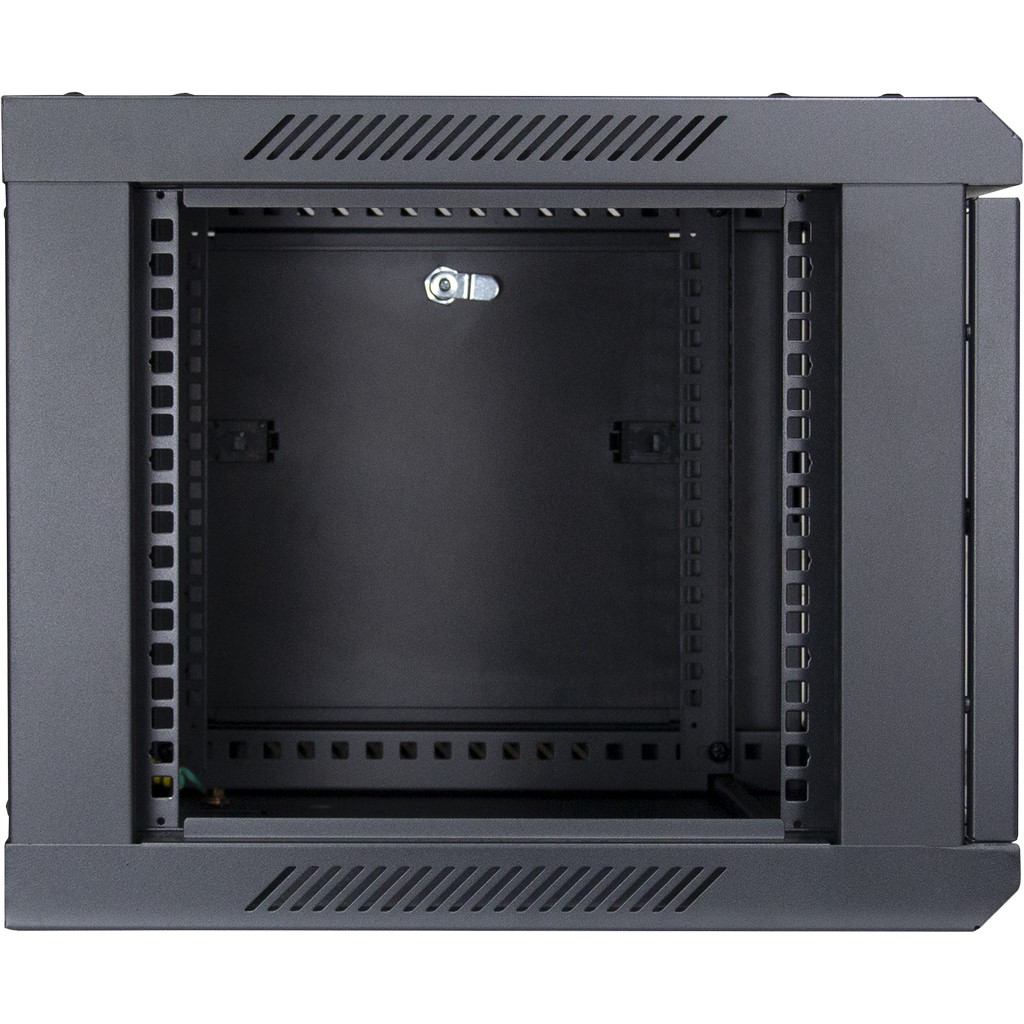

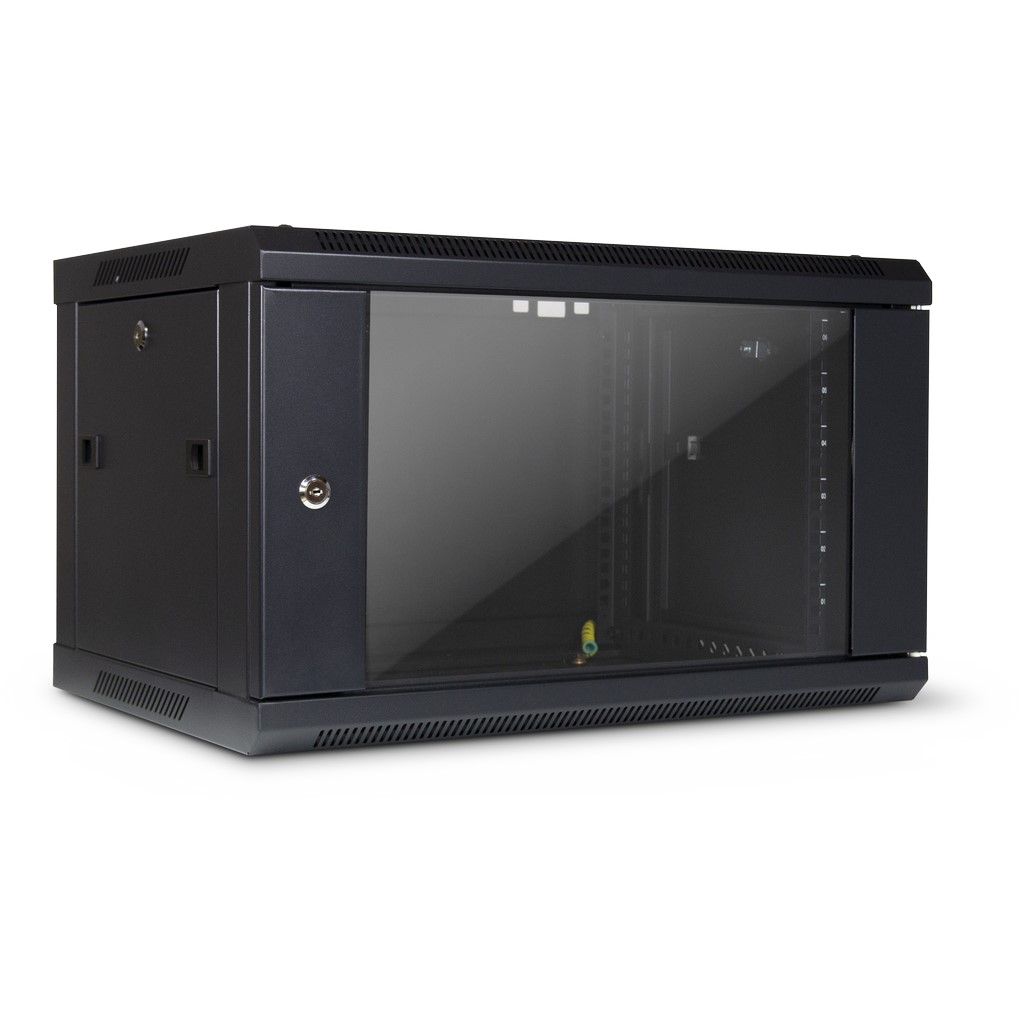

The SMA-6406 wall-mounted rack stands out for its low height of just 6U and a depth of only 450mm, offering a space-saving alternative compared to large and bulky server & network cabinets.
With a material thickness between 1.25 and 1.50 mm, the wall-mounted rack carries a total load of up to 30kg and also complies with the IP20 protection class. The rack is powdercoated in the colour RAL 9005 and can be closed both by the integrated door made of tempered glass and by the individually removable side panels. Cable inlets in the lid and in the floor also ensure a clean routing of the cables. Two optional 120mm fans, which find their place in the lid, support the case during ventilation.
- 6U and 450mm depth
- Total loading capacity of up to 30kg
- Meets protection class IP20
- Lockable glass door and side panels
GENERAL DATA | |
---|---|
Unit | 6U |
Width | 600mm |
Depth | 450mm |
Max. loading capacity | 30kg |
Material front door | Tempered Glass |
Opening angle of the doors | 180° |
Colour | RAL 9005 |
IP class | Fulfills IP20 |
Dimensions (h/w/d) | 368 x 600 x 450mm |
GUARANTEE / WARRANTY | |
Warranty | 24 months |
SCOPE OF DELIVERY & FEATURES | |
Scope of delivery |

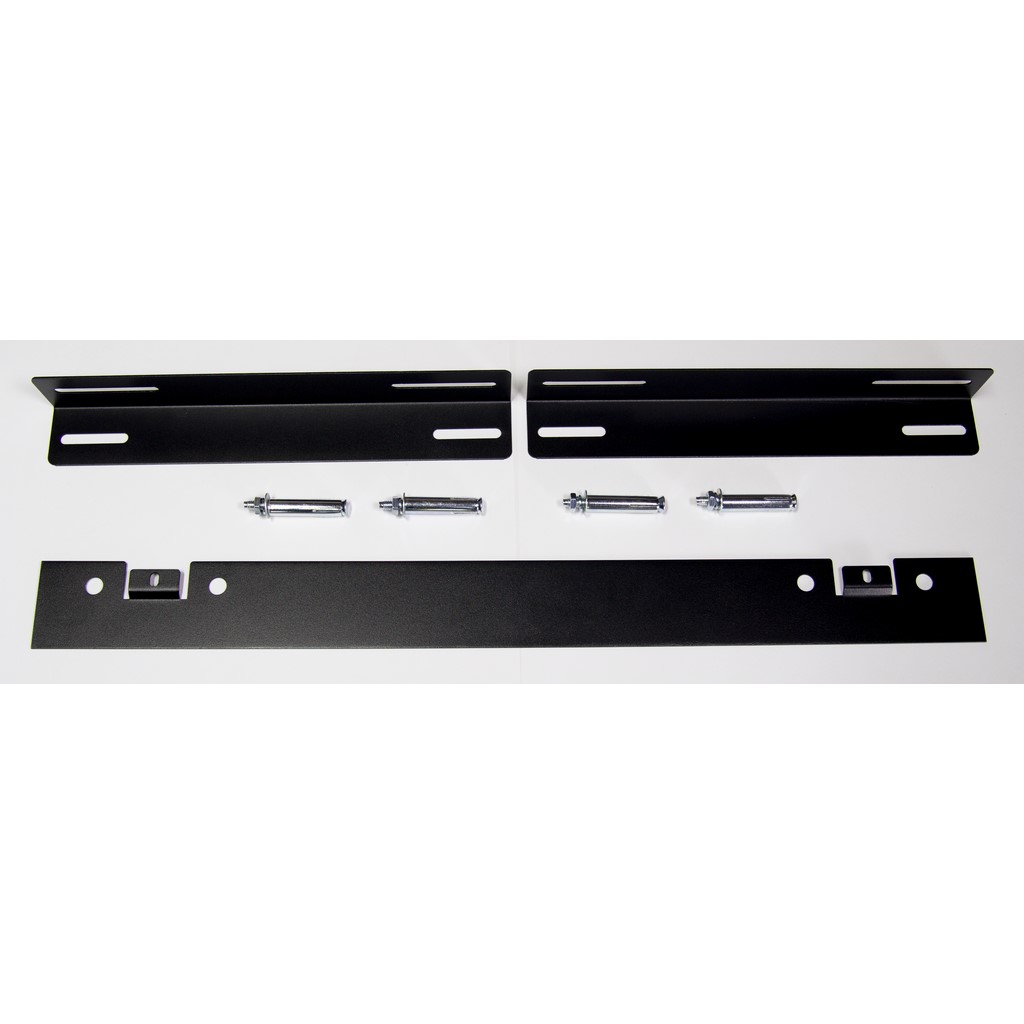

SMA-6406 Screw set 12 mounting screws and cage nuts 12 washers made of plastics Earthing screw Wall-mounting Assembly instructions (English, German for download) |
Features |

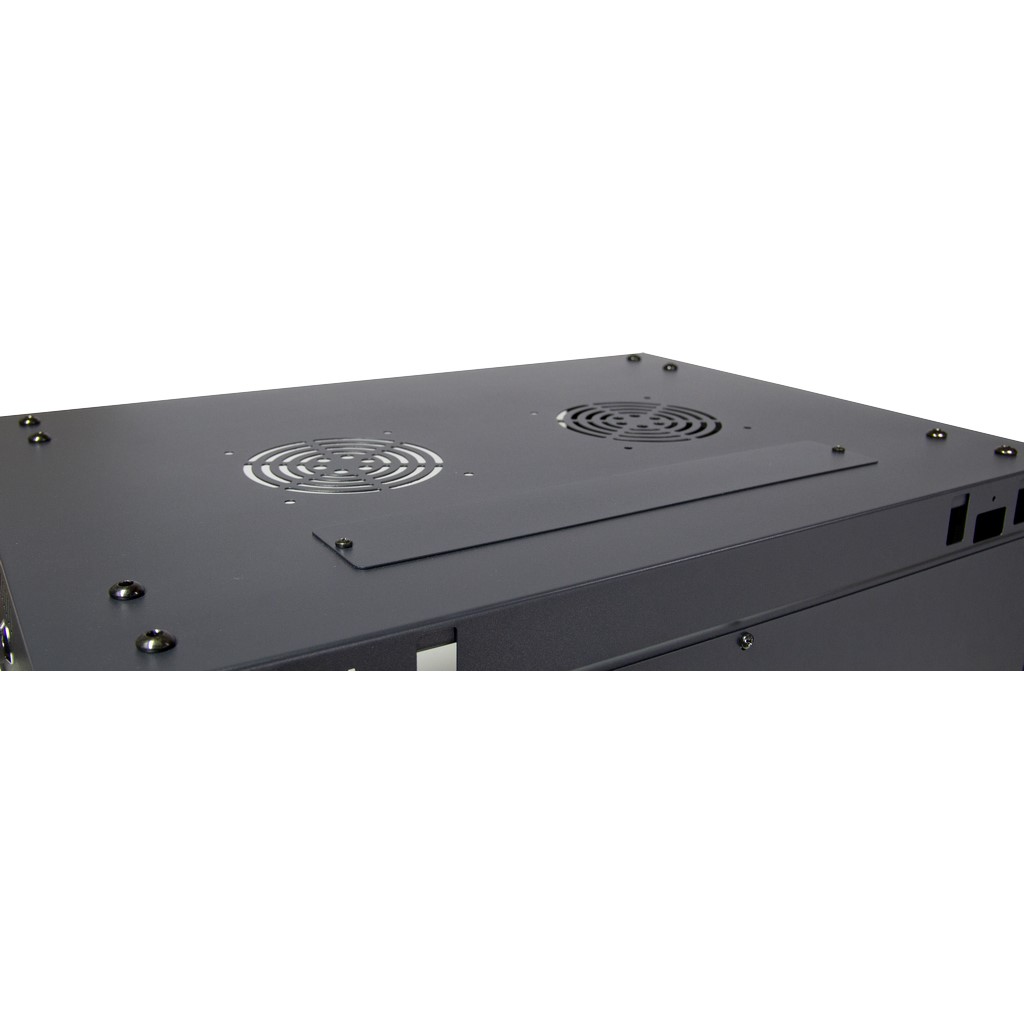

1.25-1.5mm material thickness (cold rolled steel) The door can be hinged left or right Doors is lockable Side parts removable and lockable Space for 2x 120mm fans in the lid (Fan SWFAN 120mm/230V, Item No.: 88887269) Base and lid with cable inlets (screwed cover) Delivery is disassembled in one package |
LOGISTICAL DATA | |
Shipping Unit | 1 Pcs |
EU palett | 14 Pcs |
Weight | net = 14.44kgs gross = 16.22kgs |
Item number | 88887252 |
EAN-Code | 4260455644198 |
