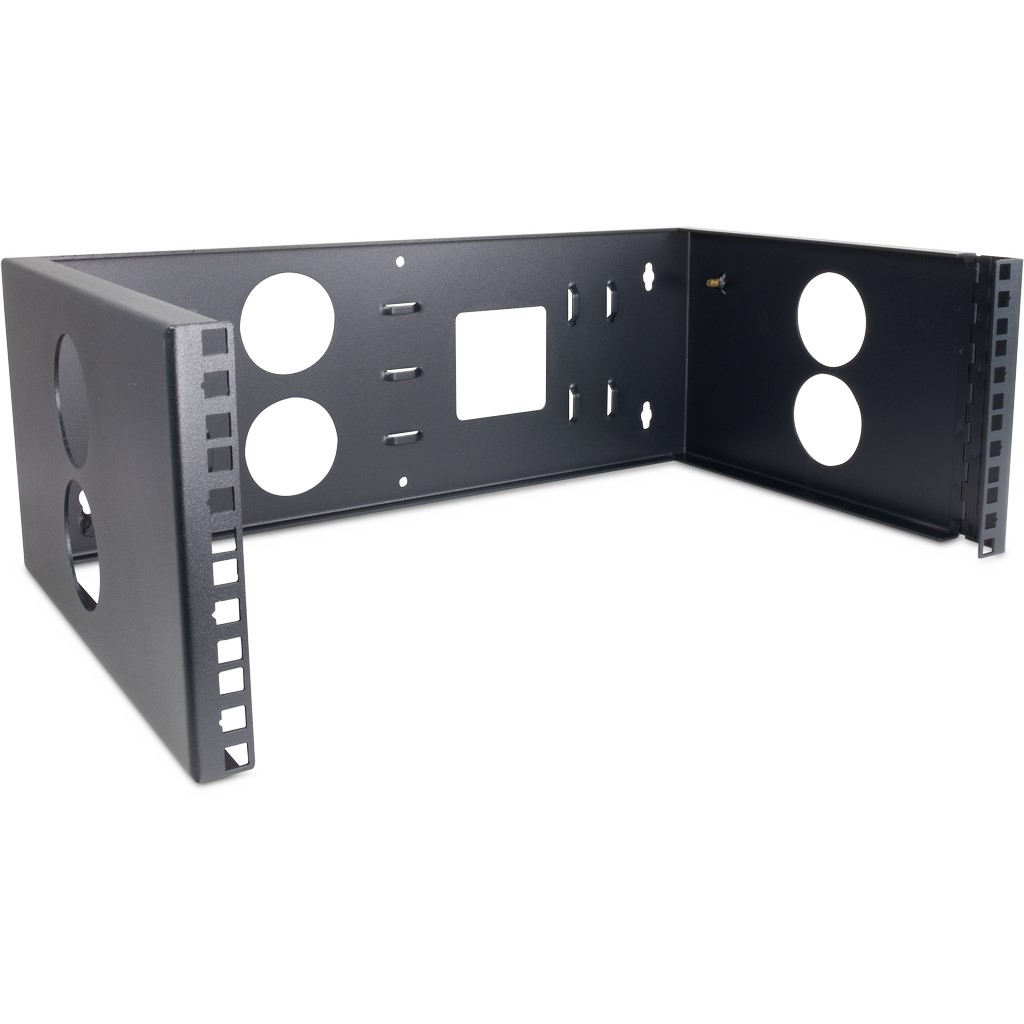

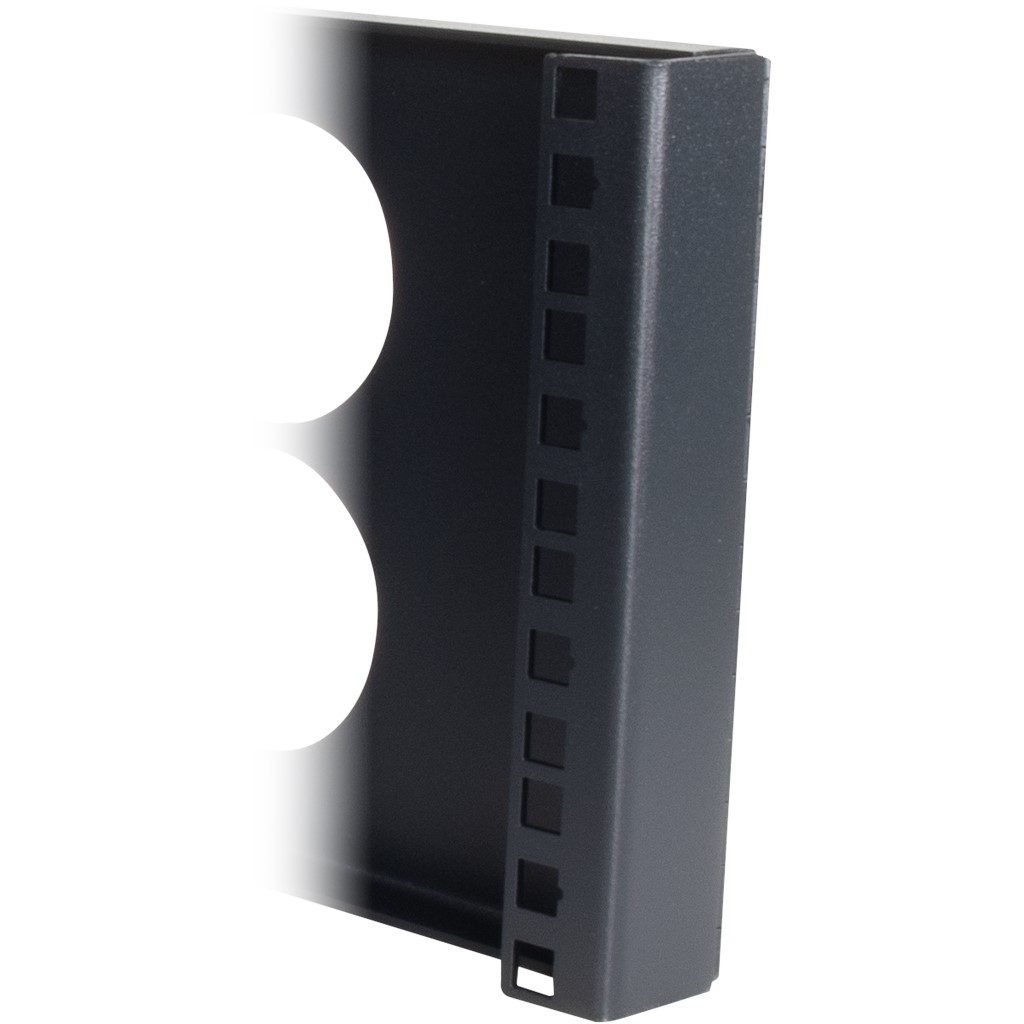

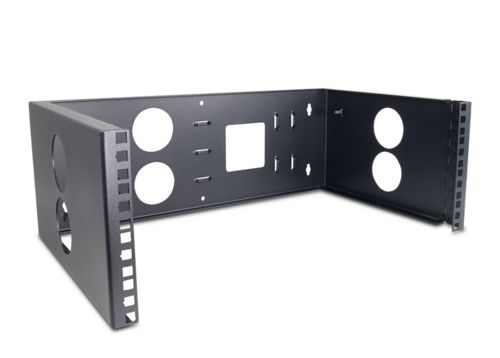

WALL BRACKET SME-5304D, 4U HORIZONTAL

Article No.
88887329

19" wall bracket for mounting 19" devices up to max. 4U.

GENERAL DATA
Required slot Free wall space
Colour RAL 9005
Dimensions (h/w/d) 180 x 500 x 305mm
GUARANTEE / WARRANTY
Warranty 24 months
SCOPE OF DELIVERY & FEATURES
Scope of delivery

Wall bracket

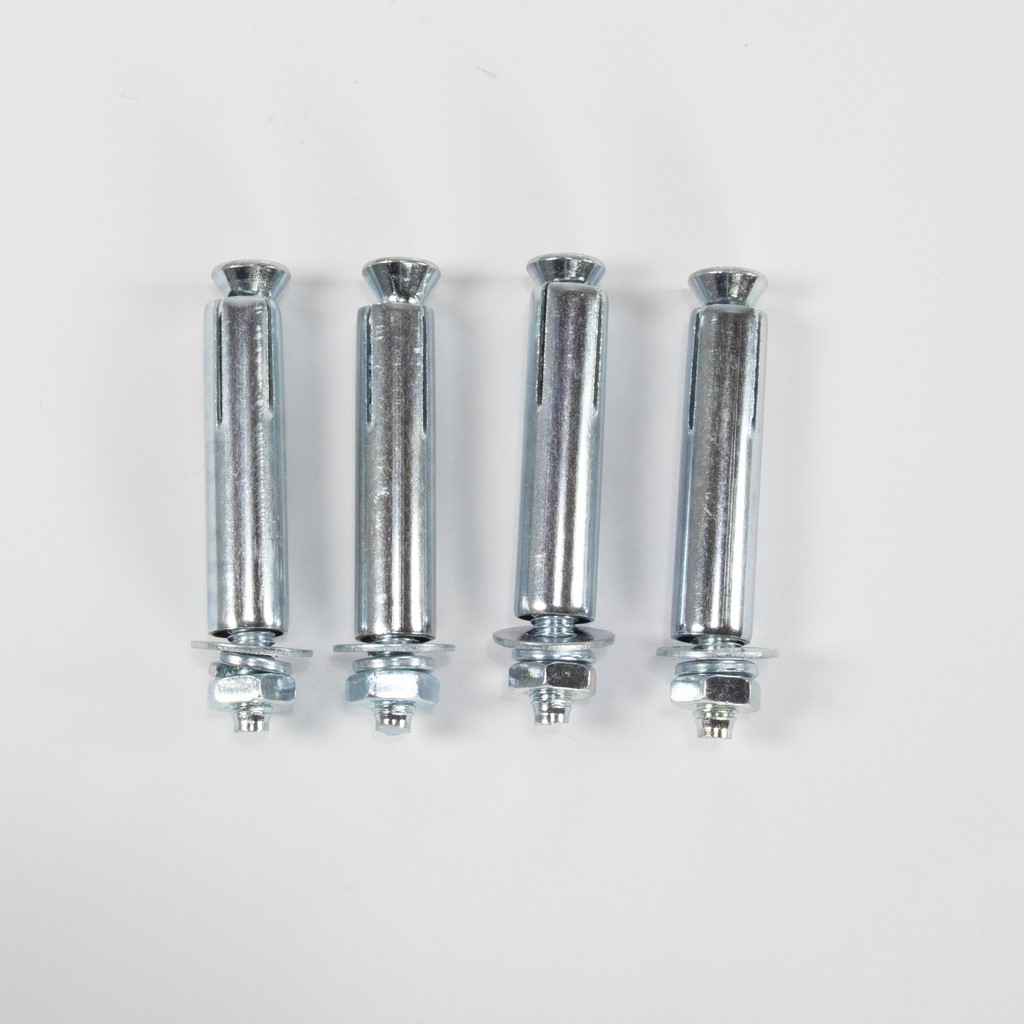

Wall mounting screws

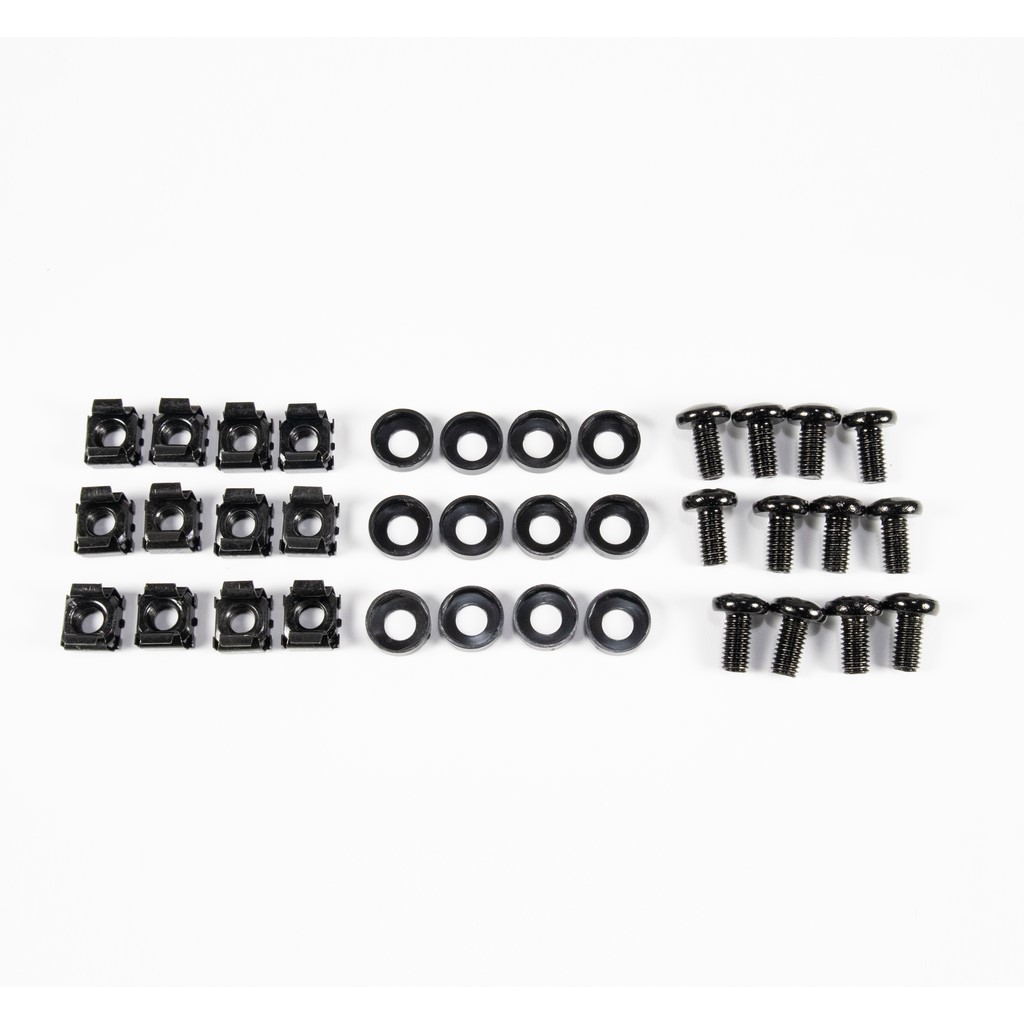

Screws for mounting the 19" device
Features

Load up to 15kg

For 19" devices for up to max. 4U
LOGISTICAL DATA
Shipping Unit 1 Pcs
Weight net = 3.18kgs
gross = 4.04kgs
Item number 88887329
EAN-Code 4260455646338

Data sheet SME-5304D
Download
Picture package SME-5304D
Download
