| GENERAL DATA | |
|---|---|
| Required slot | 120 x 120mm |
| Colour | RAL 9005 |
| Bearing | Sleeve |
| Fan speed | 2600-3000rpm |
| Air Flow | 127.43-152.91cbm/h |
| Air Pressure | 6.3-7.3 mmH2O |
| Noise Level | 44-47dBA |
| Operating Temperature | -10°C-60°C |
| Humidity | 20%-80% |
| Lifecycle | at 25°C ~ 30.000 hrs. |
| Dimensions (h/w/d) | 120 x 120 x 50mm |
| GUARANTEE / WARRANTY | |
| Warranty | 24 months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |

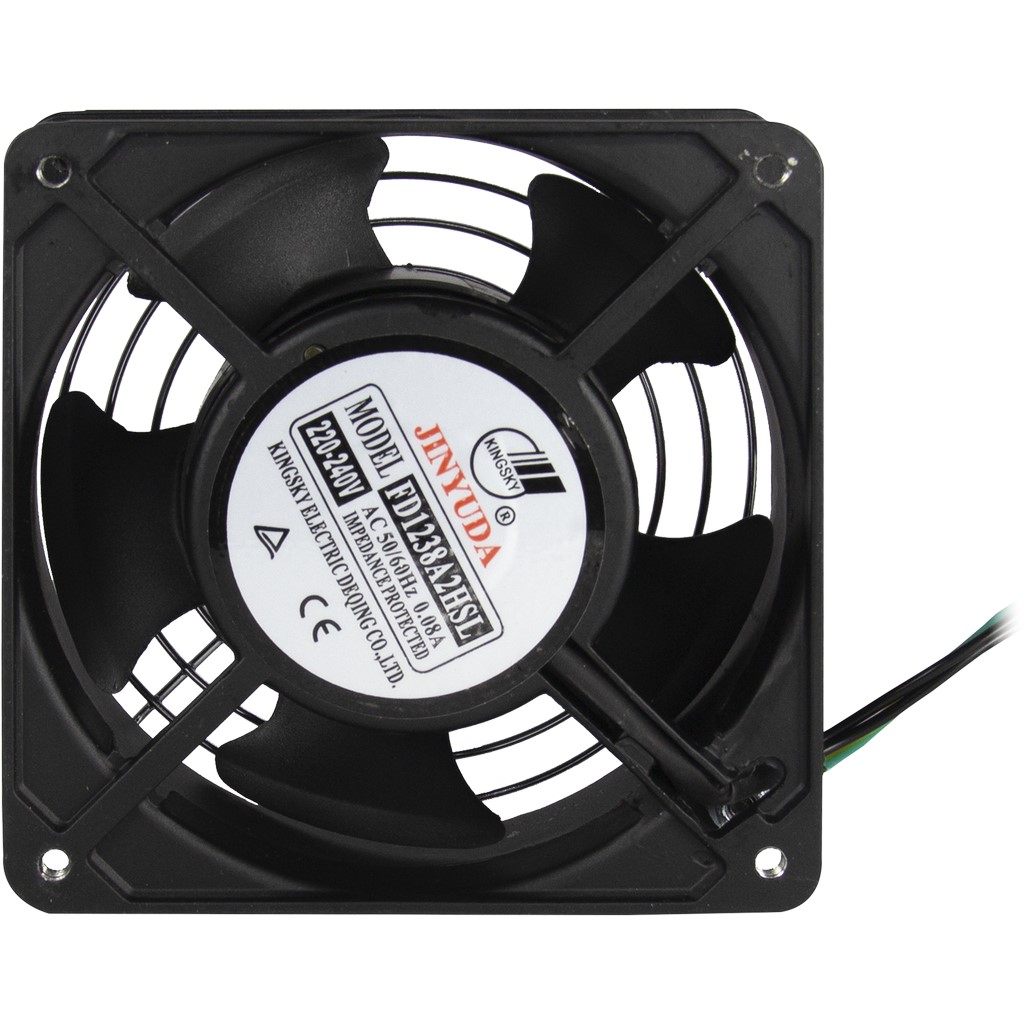

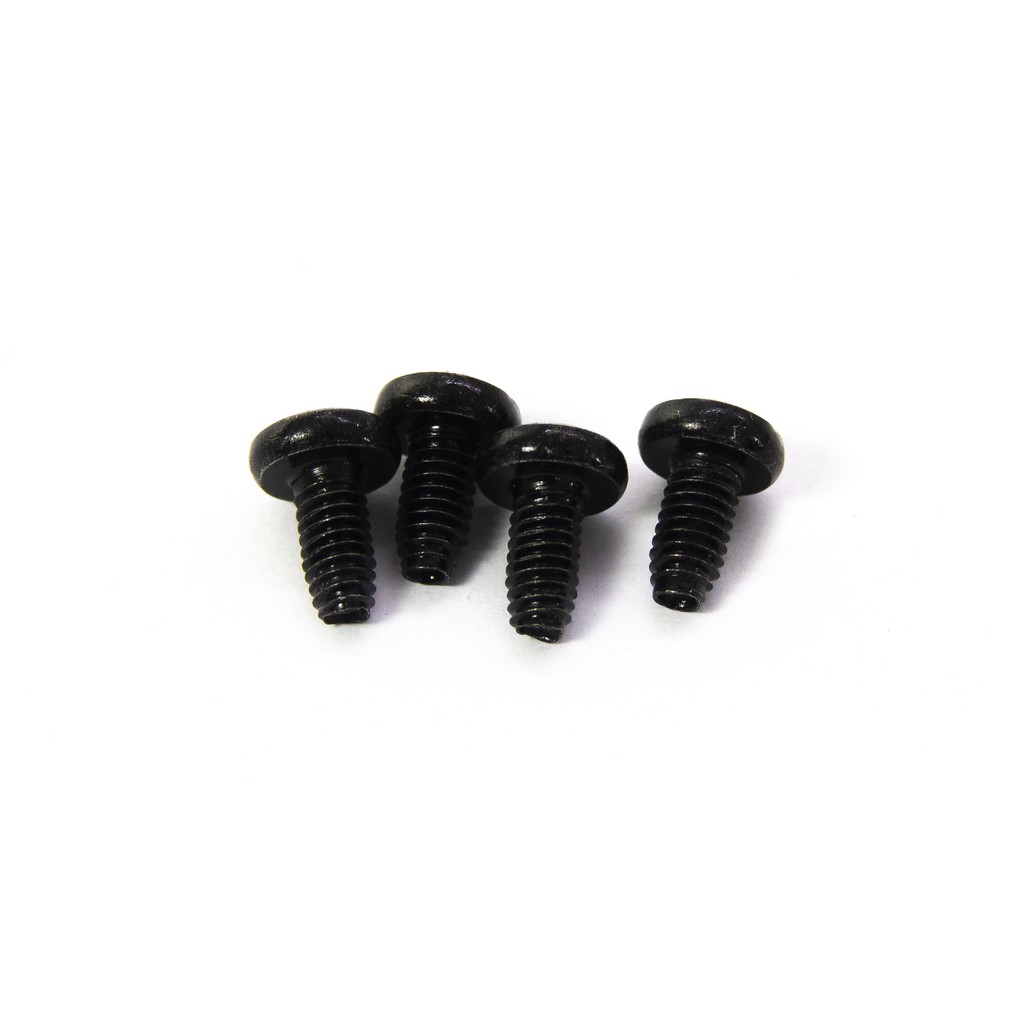

SWFAN 120mm 4 mounting screws |
| Features |

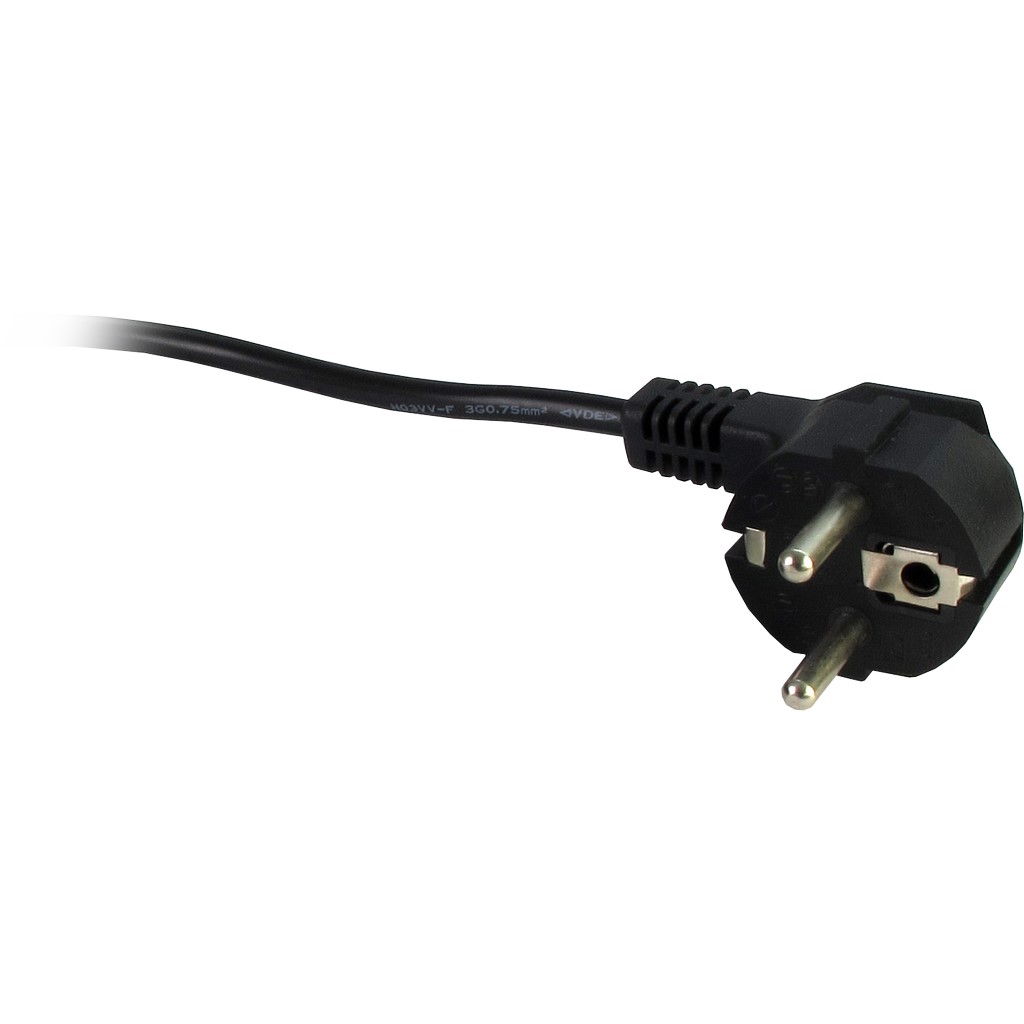

Fan grid made of metal 230 Volt connector Dielectric 1 min. at 1500VAC/50-60Hz, current <5mA |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| Packing Unit | 20 Pcs |
| Weight | net = 0.61kgs gross = 0.65kgs |
| Item number | 88887269 |
| EAN-Code | 4260455644365 |
Data sheet SW-FAN 120MM/230V |
Download |
