KVM LS-21JA VGA

Article No.
88887170

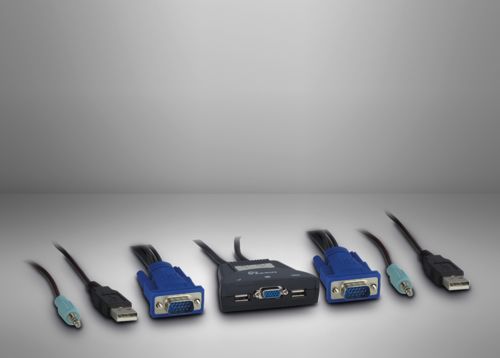

The KVM-LS-21CA VGA is a 2-Port KVM-Switch with reasonable price and audio switch for Desktops.

The KVM is connected to your system via PS2, 3.5mm audio jack and DB15 VGA by 2 integrated cables.

GENERAL DATA
Outputs 2
Connectors input 2x DB15 (VGA)
2x 3.5mm Audio Jack (Audio)
2x USB (Keyboard, Mouse)
Connectors output 1x VGA
1x 3.5mm Audio Jack (Audio)
2x USB (Keyboard, Mouse)
Supported OS No Restrictions
Switch Modi Hotkey
OTHER DATA
Power Supply Via connected PC
Material Placstic
Operating Temperature
Storage Temperature		 -5°C~50°C
-10°C~60°C
Humidity 0-80%
MBTF Approx. 120.000 hrs.
Dimension (h/w/d) 25 x 85 x 70mm
Guarantee 24 months
SCOPE OF DELIVERY & FEATURES
Scope of delivery

KVM LS-21JA

Retail packaging

User manual on CD
Features

Integrated cable VGA/PS2/Audi Jack (180cm)

Resolution max. 1680x1280
LOGISTICAL DATA
Shipping Unit 1 Pcs
Weight net = 0.275kgs
gross = 0.375kgs
Item number 88887170
EAN-Code 4260133127951

Data sheet LS-21JA VGA
Download
Picture package LS-21JA VGA
Download

* You need a PDF reader to read these documents
* Pictures and drivers are always packed as Zip. You need to unzip them before using.
