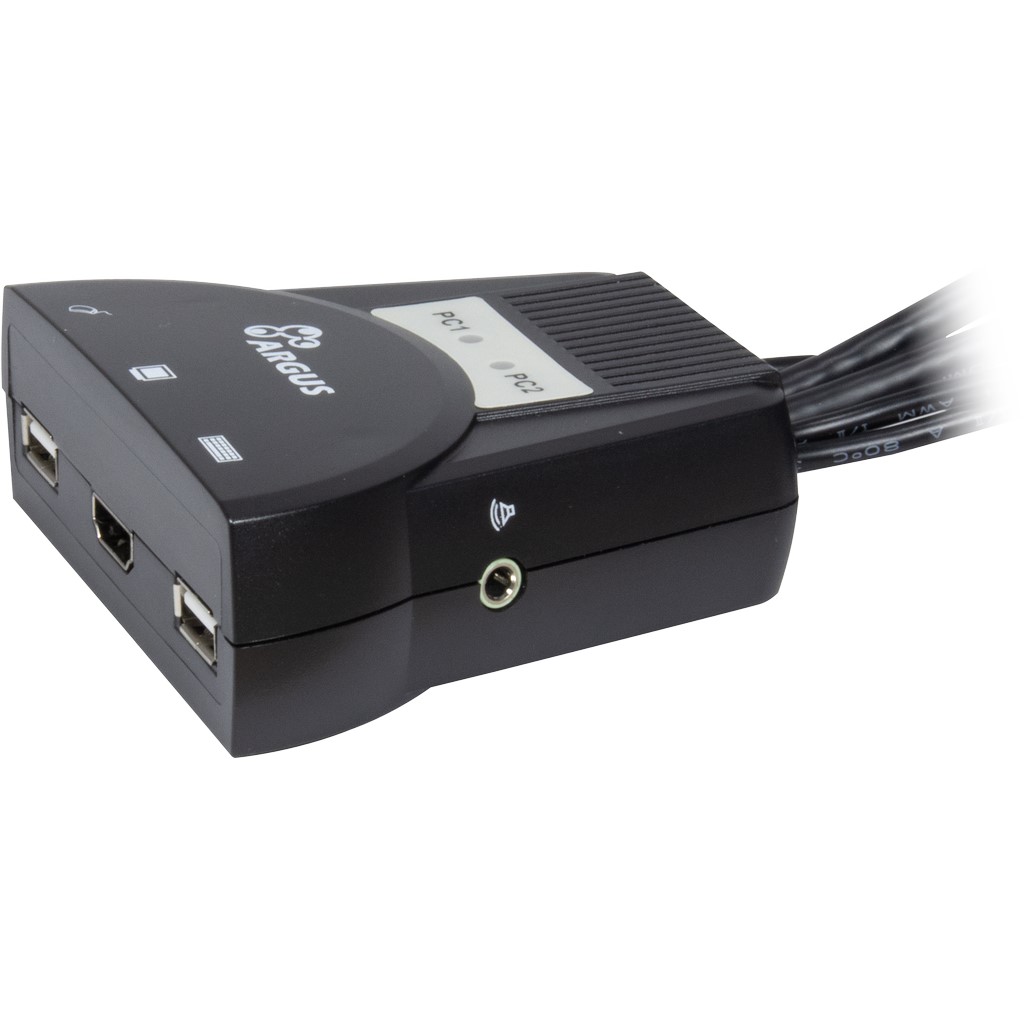

LS-21HA - 2-PORT HDMI KVM
The KVM-LS-21HA HDMI is an inexpensive 2-port KVM switch with an automatic audio switch for the desktop area.

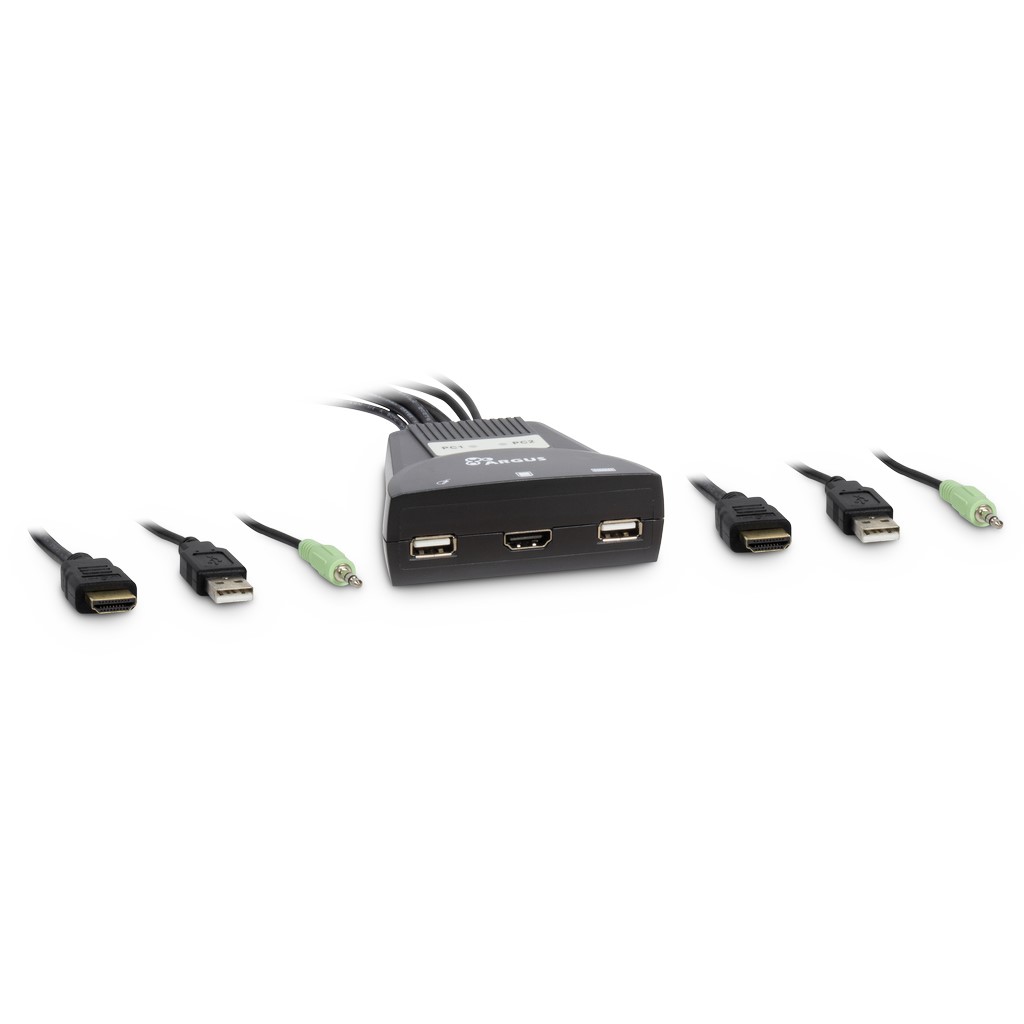

The KVM is connected to the computer via USB (keyboard/mouse), 3.5mm jack (audio) and HDMI via the 2 integrated connection cables.
The maximum resolution is 2048x1536 @ 60Hz.
| GENERAL DATA | |
|---|---|
| Outputs | 2 |
| Connectors input | 2x HDMI 2x 3.5mm Jack (Audio) 2x USB (Keyboard/Mouse) |
| Connectors output | 1x HDMI 1x 3.5mm Jack (Audio) 2x USB (Keyboard/Mouse) |
| Supported OS | No Restrictions |
| Switch Modi | Hotkey |
| OTHER DATA | |
| Power Supply | Via connected PC |
| Material | Plastic |
| Operating Temperature Storage Temperature |
-5°C~50°C -10°C~60°C |
| Humidity | 0-80% |
| MBTF | Approx. 120.000 hrs. |
| Dimension (h/w/d) | 30 x 85 x 80mm |
| Guarantee | 24 months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
KVM-LS-21HA Retail packaging User manual on CD |
| Features |
Integrated system cables HDMI/USB/Audio (180cm) Resolution max. 2048x1536 @60Hz |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| Weight | net = 0.27kgs gross = 0.36kgs |
| Item number | 88887340 |
| EAN-Code | 4260455646482 |
