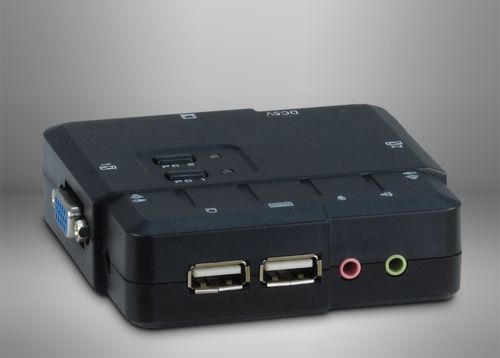

KVM CS-21UA VGA

The KVM CS-21UA VGA is a 2-Port KVM-Switch with reasonable price and audio switch for Desktops.

The KVM is connected to your system via USB, 3.5mm Audio Jack and DB15 VGA by 2 integrated cables.

GENERAL DATA
Outputs 2
Connectors input 2xDB15 (VGA, USB Keyboard, Mouse)
2x 4pol 3.5mm Audio Jack (Mic/Line)
Connectors output 2x USB (Keyboard, Mouse)
1x VGA
1x 3.5mm Audio Jack (Mic Mono)
1x 3.5mm Audio Jack (Line Stereo)
Controls 2x selection
LED 2x selection, 2x online
Supported OS No Restrictions
Switch Modi Hotkey or Controls
Switch Scan Time 5s (fix)
DDC
Display Resolution 1920x1440
Display Frequency 75Hz
OTHER DATA
Power Supply Via connected PC or External PSU 9V/0.5A (optional)
Input 9V ~ 0.5A DC
Material Placstic
Operating Temperature
Storage Temperature
-10°C~50°C
-20°C~60°C
Humidity 0-80%
MBTF Approx. 120.000 hrs.
Dimension (h/w/d) 25 x 85 x 85mm
Guarantee 24 months
SCOPE OF DELIVERY & FEATURES
Scope of delivery

KVM CS-21UA

Retail packaging

2x Cables VGA / USB / Audio (180cm)

User manual on CD (german / english)

Features

2x Hotkeys

LOGISTICAL DATA
Shipping Unit 1 Pcs
Weight net = 0.10kgs
gross = 0.67kgs
Item number 88887166
EAN-Code 4260133127913

Data sheet CS_21UA VGA
Download
Declaration of conformity CS-21UA VGA
Download
Picture package CS-21UA VGA
Download

* You need a PDF reader to read these documents
* Pictures and drivers are always packed as Zip. You need to unzip them before using.
