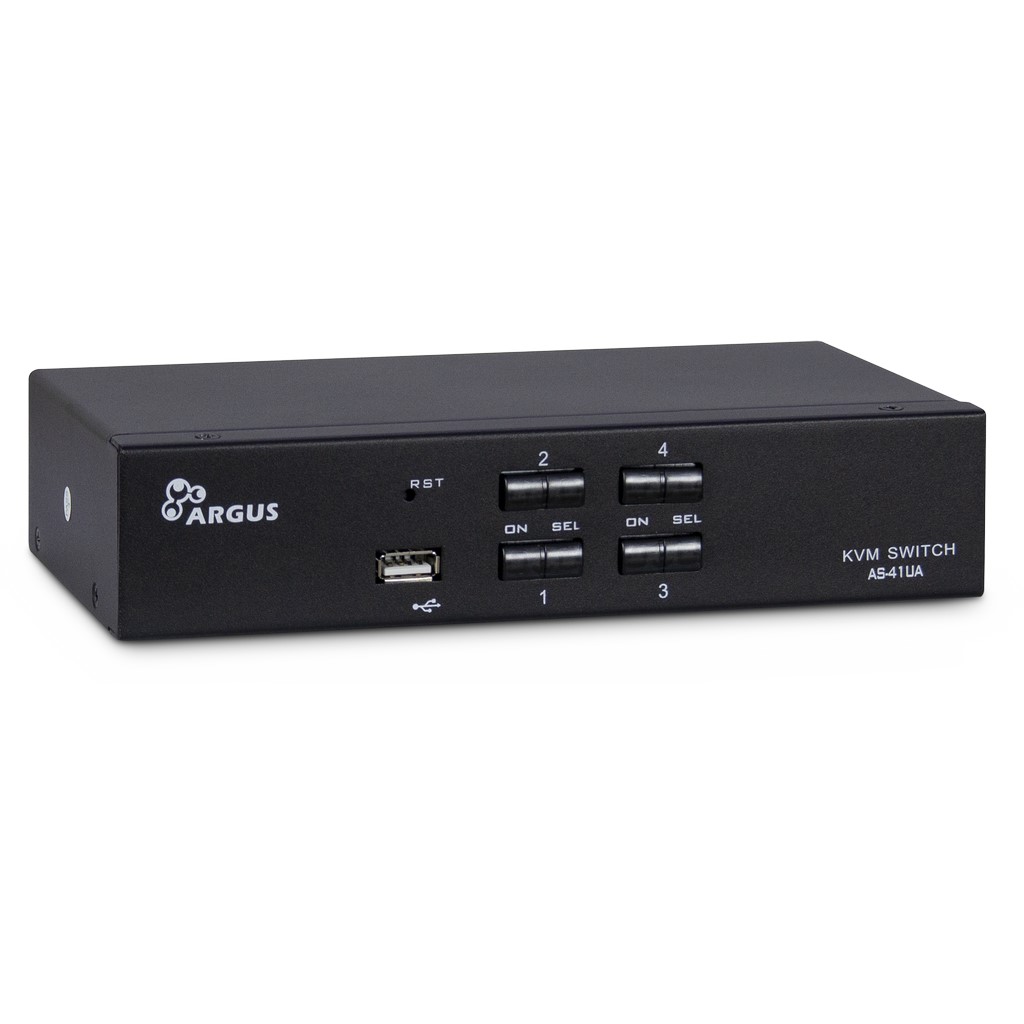

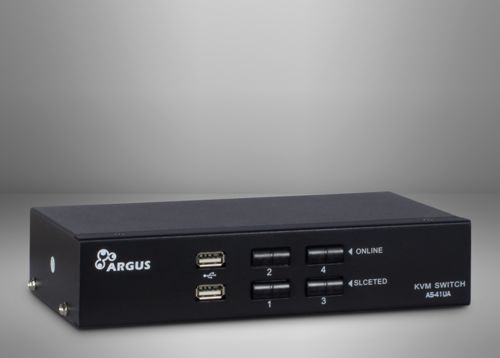

KVM AS-41UA VGA

The KVM AS-41UA VGA is a 4-Port KVM-Switch with reasonable price and automatically audio switch for Desktops.

The KVM is connected by 2 included cables to Keyboard/ Mouse (USB), Audio Mic/ Line (8x 3.5mm Audio Jack) and VGA (DB15) of the computers.

The integrated USB port in the front allows to connect and manage external devices, like USB sticks, over the KVM switch.

GENERAL DATA
Outputs 4

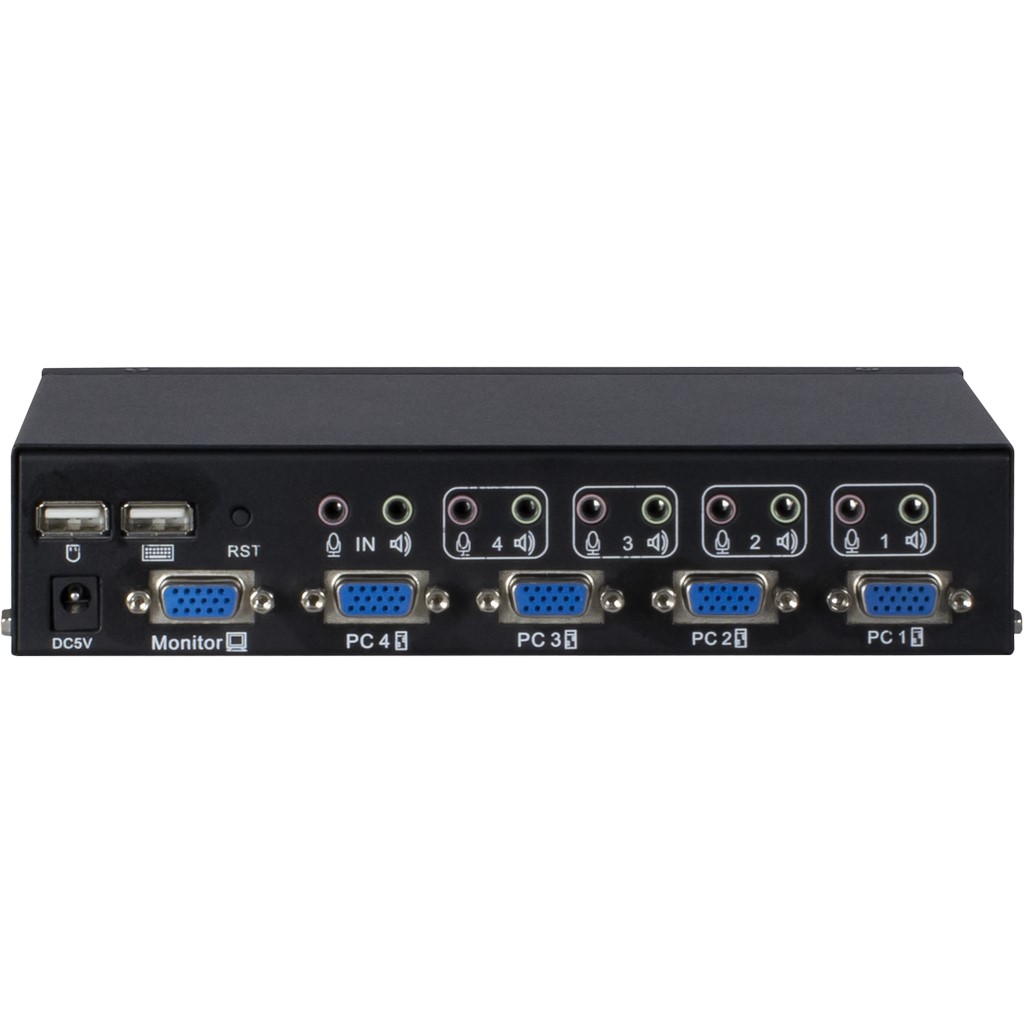

Connectors input 4x D-SUB15 (VGA, USB Keyboard, Mouse)
8x 3.5mm 3 Pol. Audio Jack (4x Line in, 4x Mic)
1x Power
Connectors output 2x USB (Keyboard, Mouse)
2x 3.5mm 3 Pol. Audio Jack (1x Line out, 1x Mic)
1x VGA
Controls 4x selection
LED 4x selection, 4x online
Supported OS No Restrictions
Switch Modi Hotkey or Controls
Switch Scan Time 5s (fix)
DDC
Display Resolution 1920x1440
OTHER DATA
Power Supply Via connected PC or External PSU (optional)
Input 5V ~ 0.5A DC
Material Rust-resistant Steel
Operating Temperature
Storage Temperature
5°C~40°C
-2°C~60°C
Humidity 0-80%
MBTF Approx. 120.000 hrs.
Dimension (h/w/d) 41 x 201 x 110mm
Guarantee 24 months
SCOPE OF DELIVERY & FEATURES
Scope of delivery

KVM AS-41UA

Retail packaging

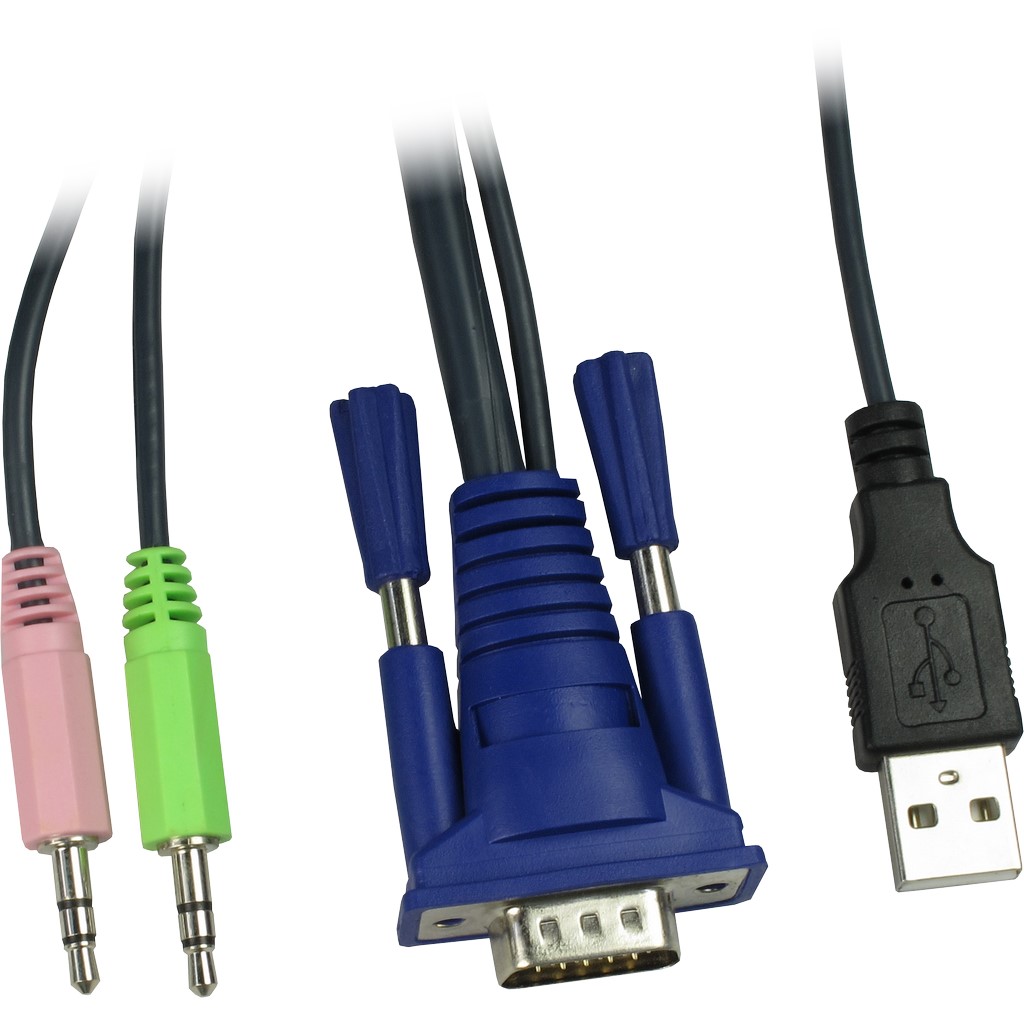

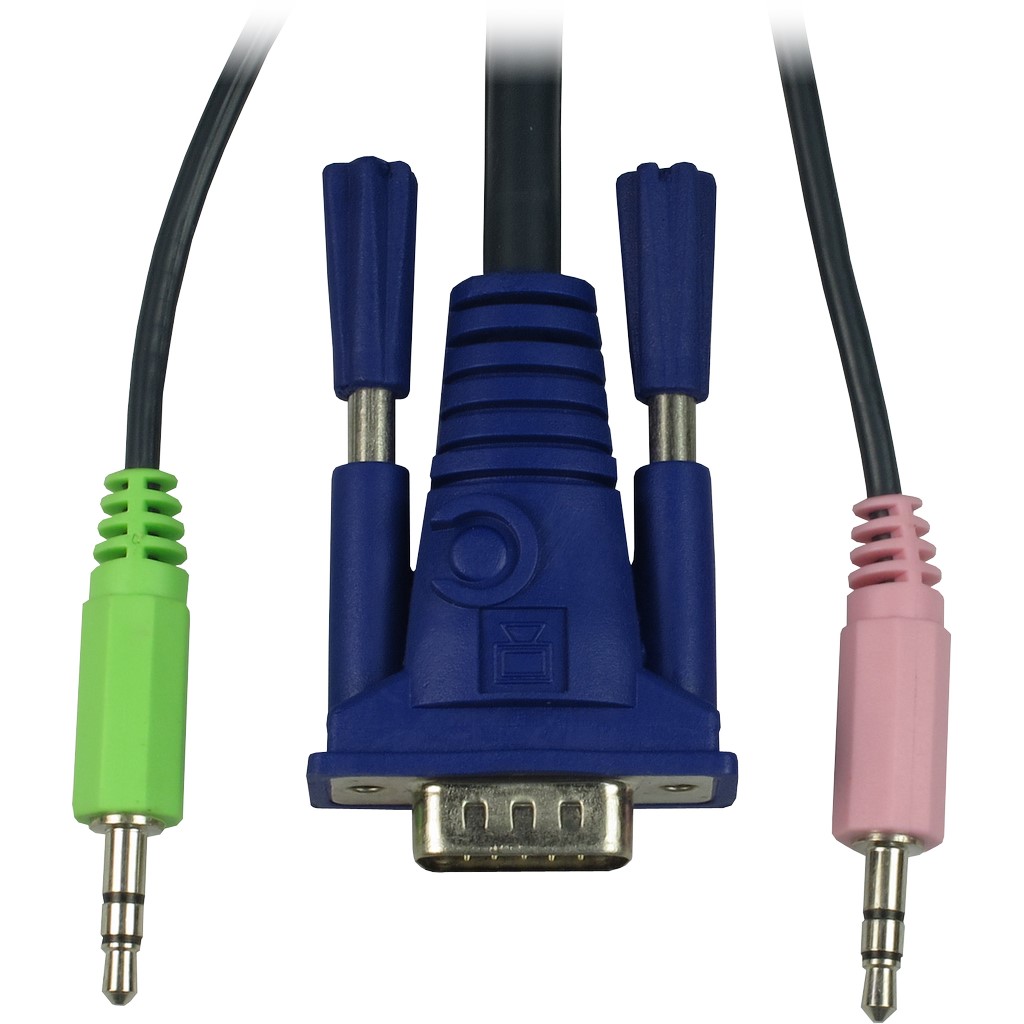

4x Cables DB15/Audio to VGA/USB/Audio (180cm)

User manual on CD (german / english)

Features

4x Hotkeys

USB port in the front to connect external data devices

LOGISTICAL DATA
Shipping Unit 1 Pcs
Weight net = 0.76kgs
gross = 1.88kgs
Item number 88887169
EAN-Code 4260133127944

Data sheet AS-41UA VGA
Download
Declaration of conformity AS-41UA VGA
Download
Manual AS-41UA VGA
Download
Picture package AS-41UA VGA
Download

* You need a PDF reader to read these documents
* Pictures and drivers are always packed as Zip. You need to unzip them before using.
