KVM AS-22HA HDMI
The KVM AS-22HA HDMI is a 4K KVM-Switch to control 2 computer with 2 monitors each from one desk.
The KVM will be connected by 2x USB, 2x Audio and 4x HDMI with the controlled computers. These cables are included.
The HDMI cables to the Monitors are not included.

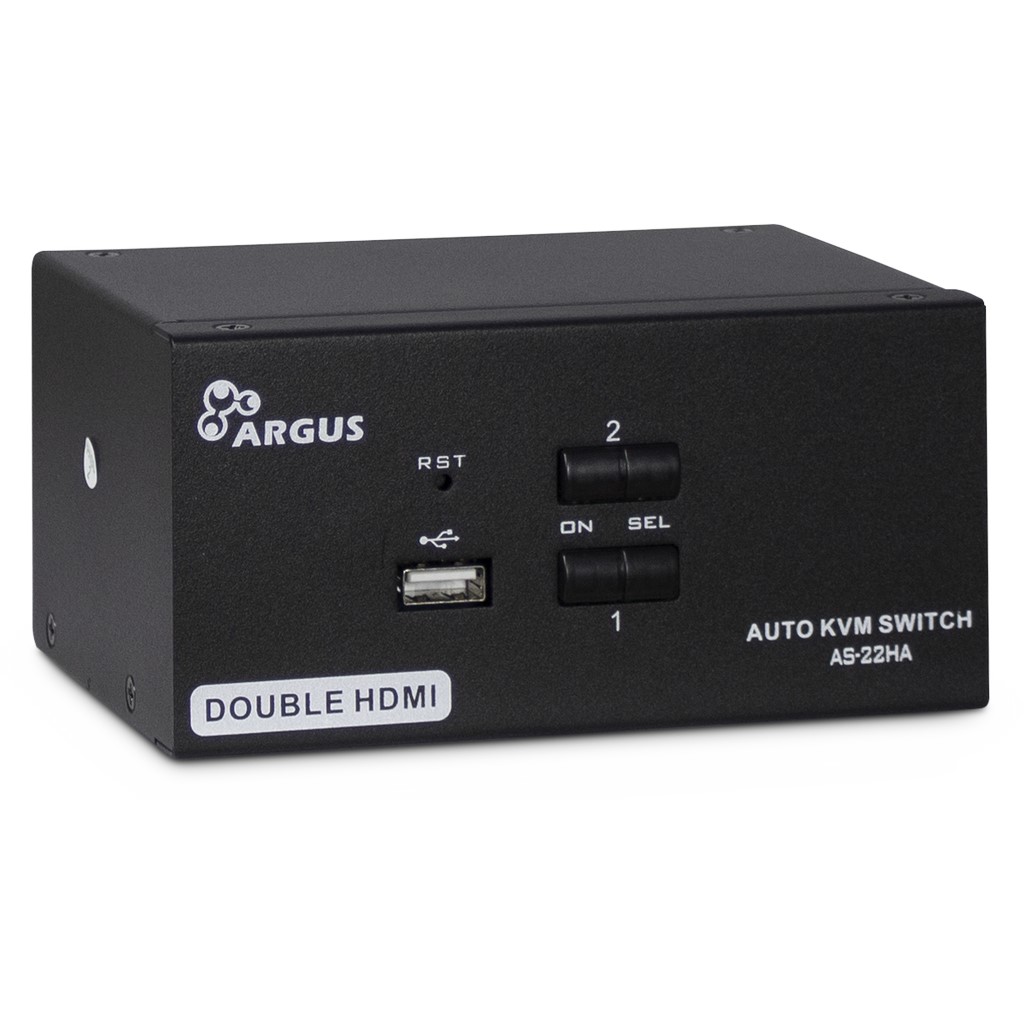

The additional USB port in the front allows to connect external data drives, such as USB sticks.
| GENERAL DATA | |
|---|---|
| Outputs | 2 |

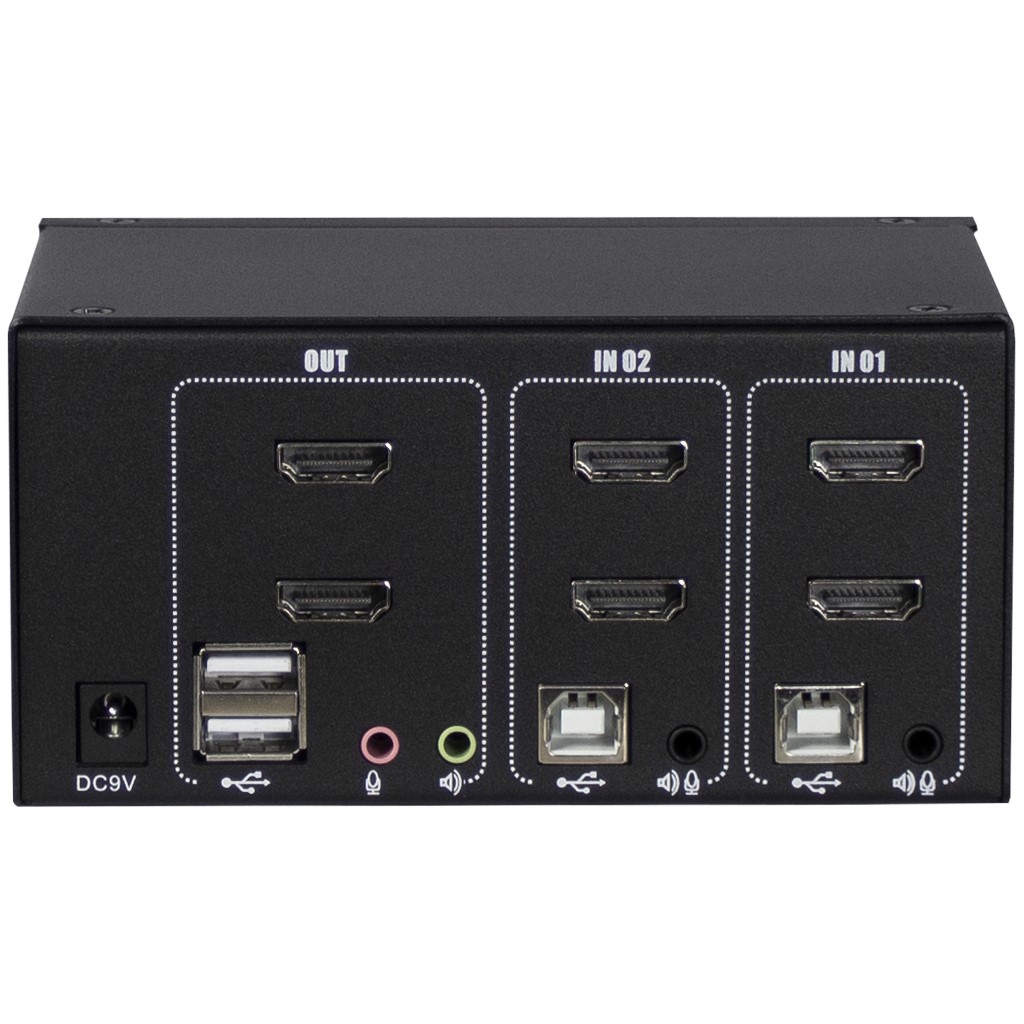

| Connectors input | 4x HDMI (HDMI, USB Keyboard/Mouse) 4x 3.5mm 3 Pol. Audio Jack (2x Line in/2x Mic in) 1x Power |
| Connectors output | 2x USB (Keyboard/Mouse) 2x 3.5mm 3 Pol. Audio Jack (1x Line out/1x Mic out) 2x HDMI |
| Controls | 2x selection |
| LED | 2x selection, 2x online |
| Supported OS | No Restrictions |
| Switch Modi | Hotkey or Controls |
| Switch Scan Time | 5s (fix) |
| DDC | |
| Display Resolution | max. 4K@30Hz (3840x2160@30Hz) |
| OTHER DATA | |
| Power Supply | Via connected PC or External 9V PSU (optional) |
| Input | 9V ~ 0.5A DC |
| Material | Rust-resistant Steel |
| Operating Temperature Storage Temperature |
5°C~40°C -2°C~60°C |
| Humidity | 0-80% |
| MBTF | Approx. 120.000 hrs. |
| Dimension (h/w/d) | 65 x 132 x 93mm |
| Guarantee | 24 months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |

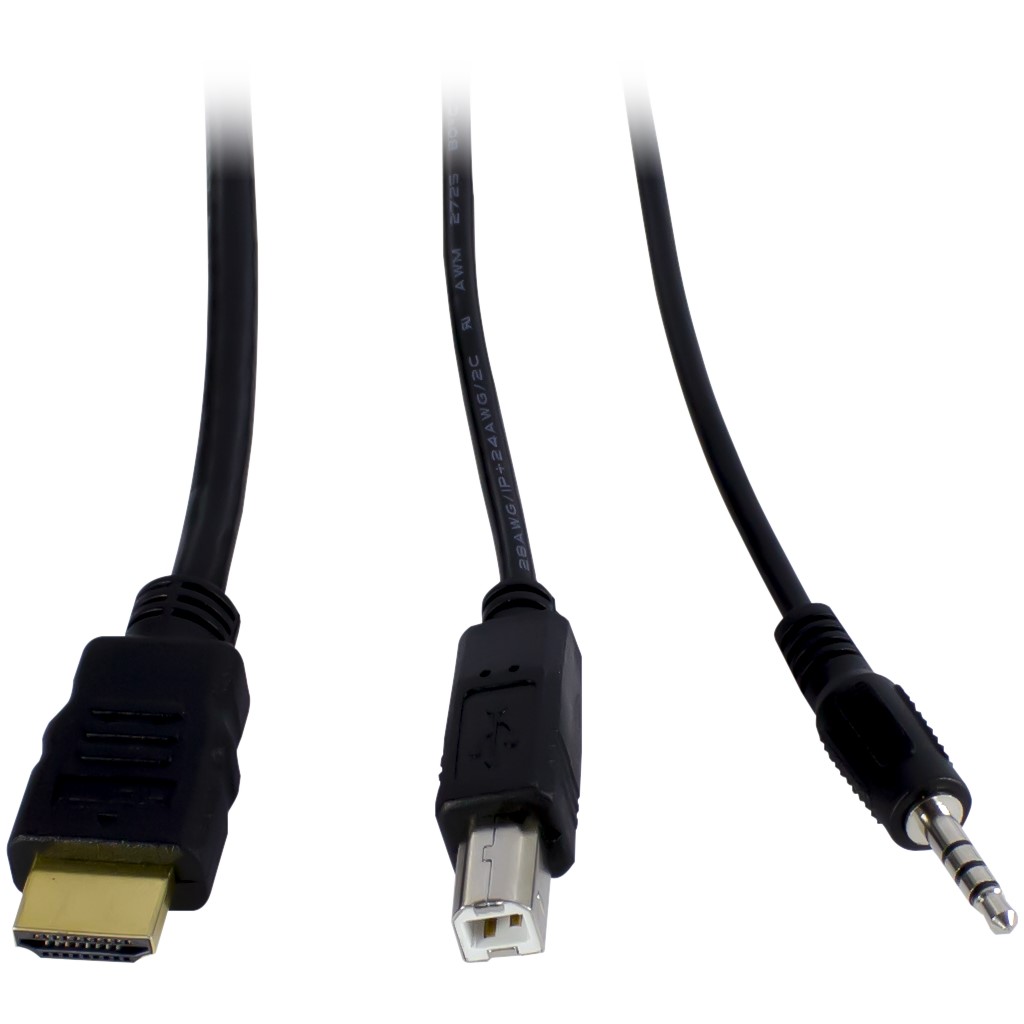

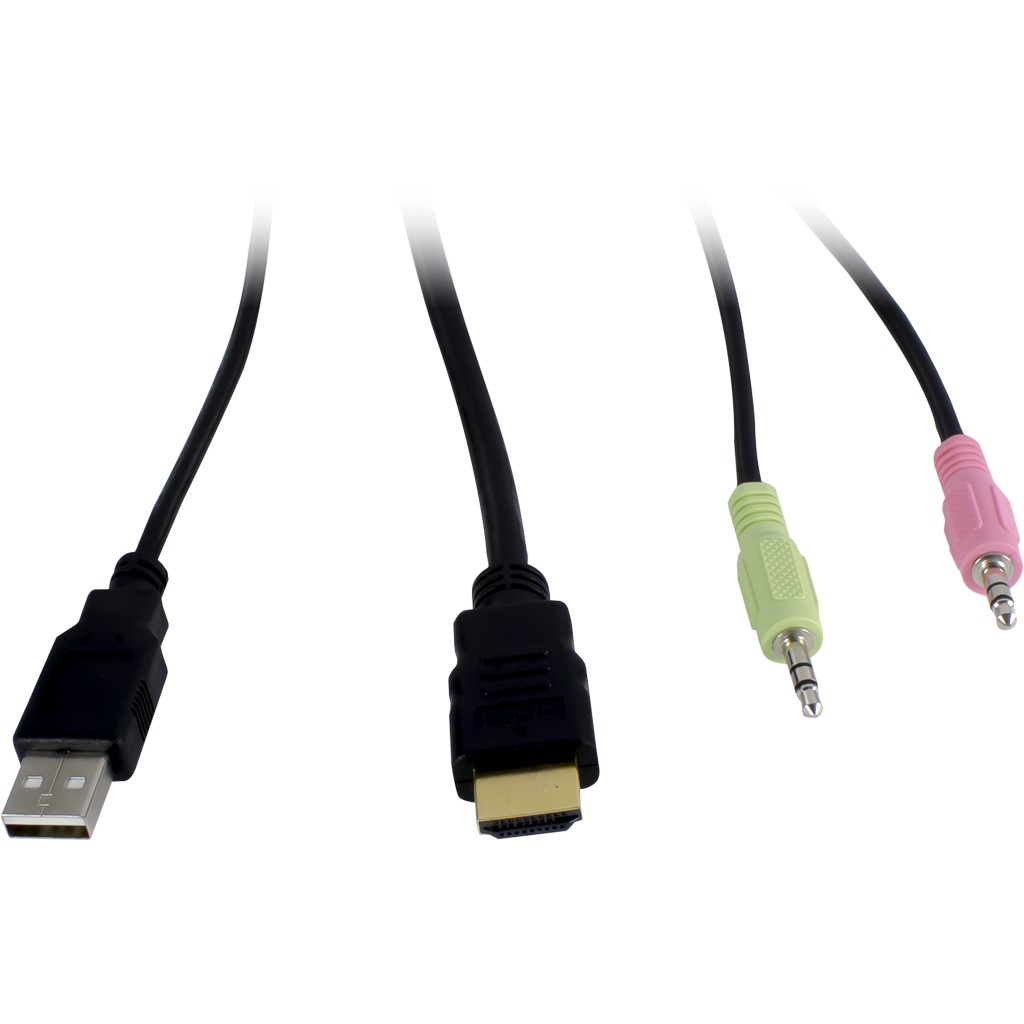

KVM AS-22HA Retail packaging 2x Cables HDMI/Audio/USB to HDMI/USB/Audio (170cm) User manual on CD (german / english) |
| Features |
2x Hotkeys USB-Port in the front for external data drives |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| Packing Unit | 12 Pcs |
| Weight | net = 0.58kgs gross = 1.22kgs |
| Item number | 88887243 |
| EAN-Code | 4260455643450 |
