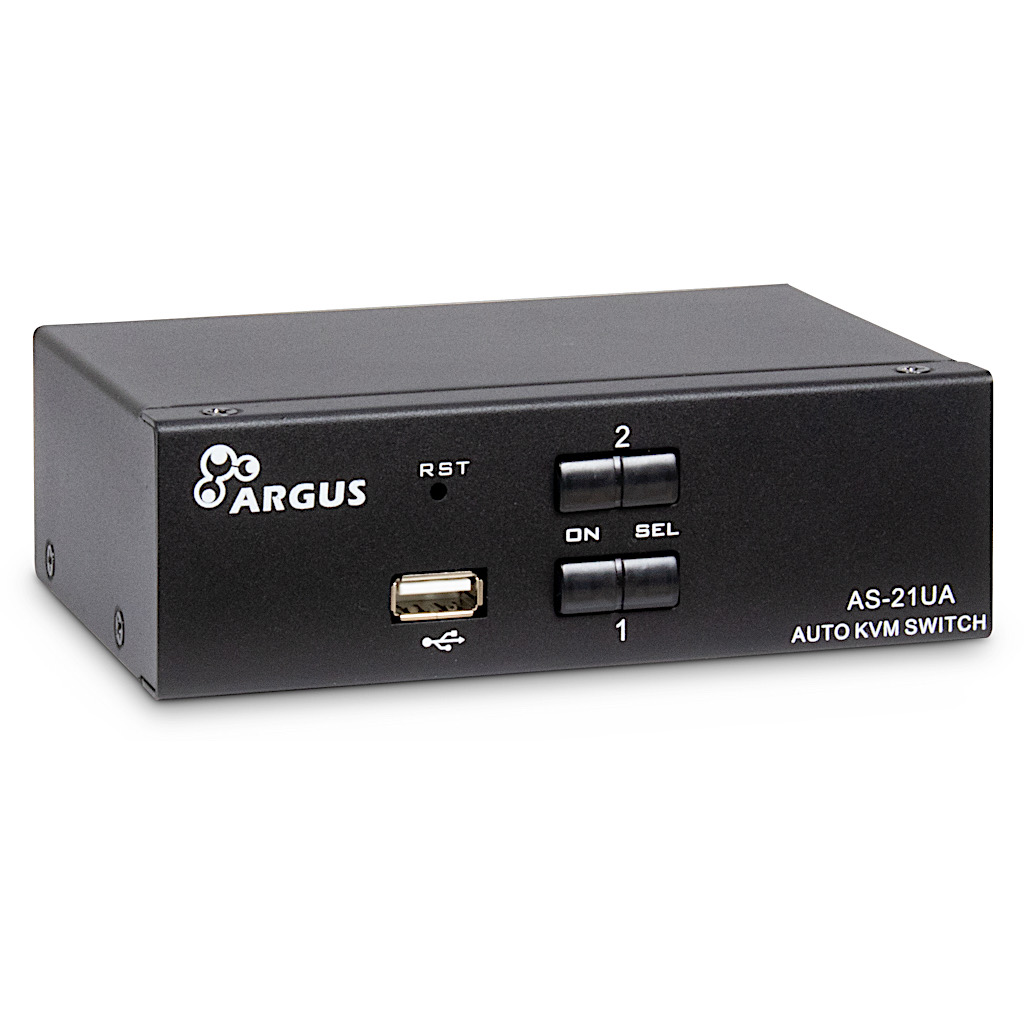

AS-21UA - 2-Port VGA KVM
The KVM AS-21UA VGA is a 2-Port KVM-Switch with reasonable price and automatic audio switch for Desktops.
The KVM is connected by 2 included cables to Keyboard/ Mouse (USB), Audio Mic/ Line (2x 3.5mm Audio Jack) and DB15 (VGA Monitor) of the computers.
The additional USB port in the front allows to connect external data drives, such as USB sticks.
| GENERAL DATA | |
|---|---|
| Outputs | 2 |

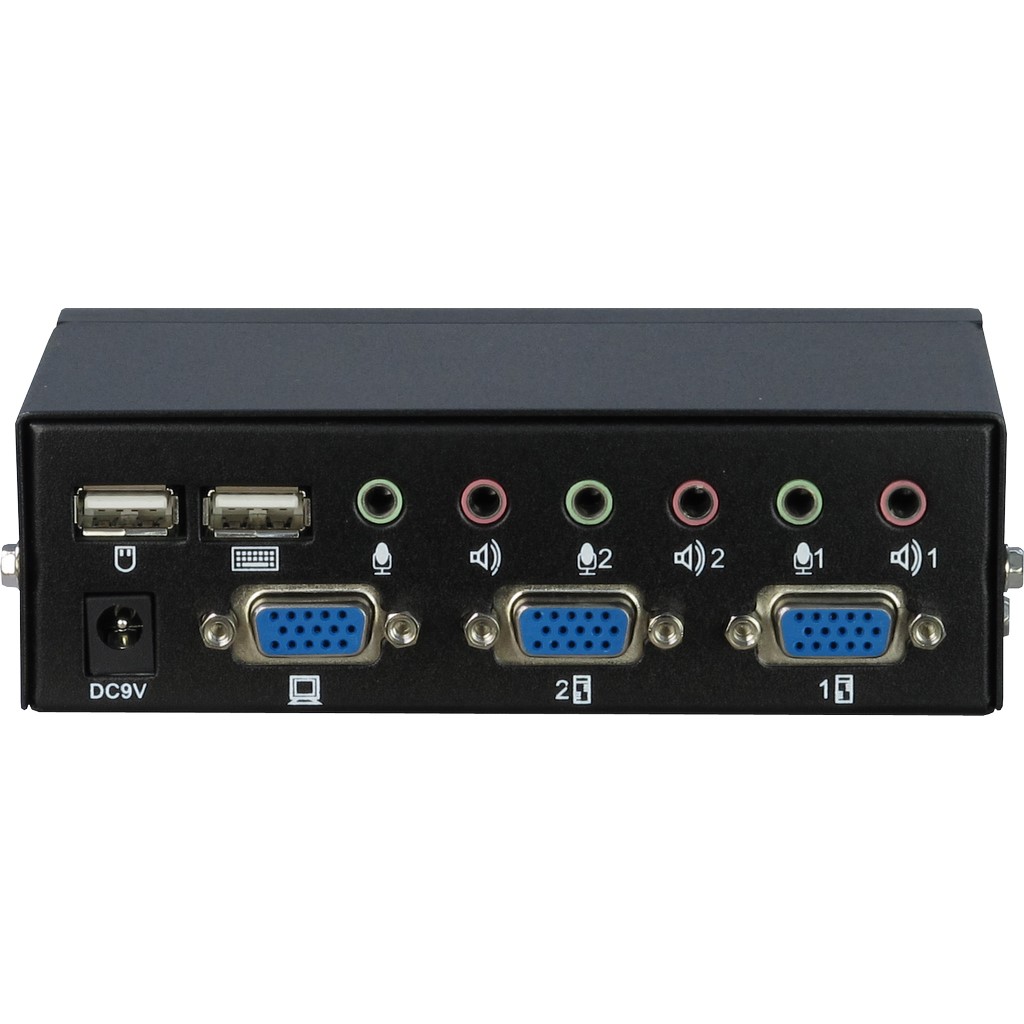

| Connectors input | 2x D-SUB15 (VGA, USB Keyboard, Mouse) 4x 3.5mm 3 Pol. Audio Jack (2x Mic, 2x Line) 1x Power |
| Connectors output | 2x USB (Keyboard, Mouse) 2x 3.5mm 3 Pol. Audio Jack (1x Mic, 1x Line) 1x VGA |
| Controls | 2x selection |
| LED | 2x selection, 2x online |
| Supported OS | No Restrictions |
| Switch Modi | Hotkey or Controls |
| Switch Scan Time | 5s (fix) |
| DDC | |
| Display Resolution | 1920x1440 |
| OTHER DATA | |
| Power Supply | Via connected PC or External PSU (optional) |
| Input | 9V ~ 0.5A DC |
| Material | Rust-resistant Steel |
| Operating Temperature Storage Temperature |
5°C~40°C -2°C~60°C |
| Humidity | 0-80% |
| MBTF | Approx. 120.000 hrs. |
| Dimension (h/w/d) | 42 x 132 x 93mm |
| Guarantee | 24 months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |

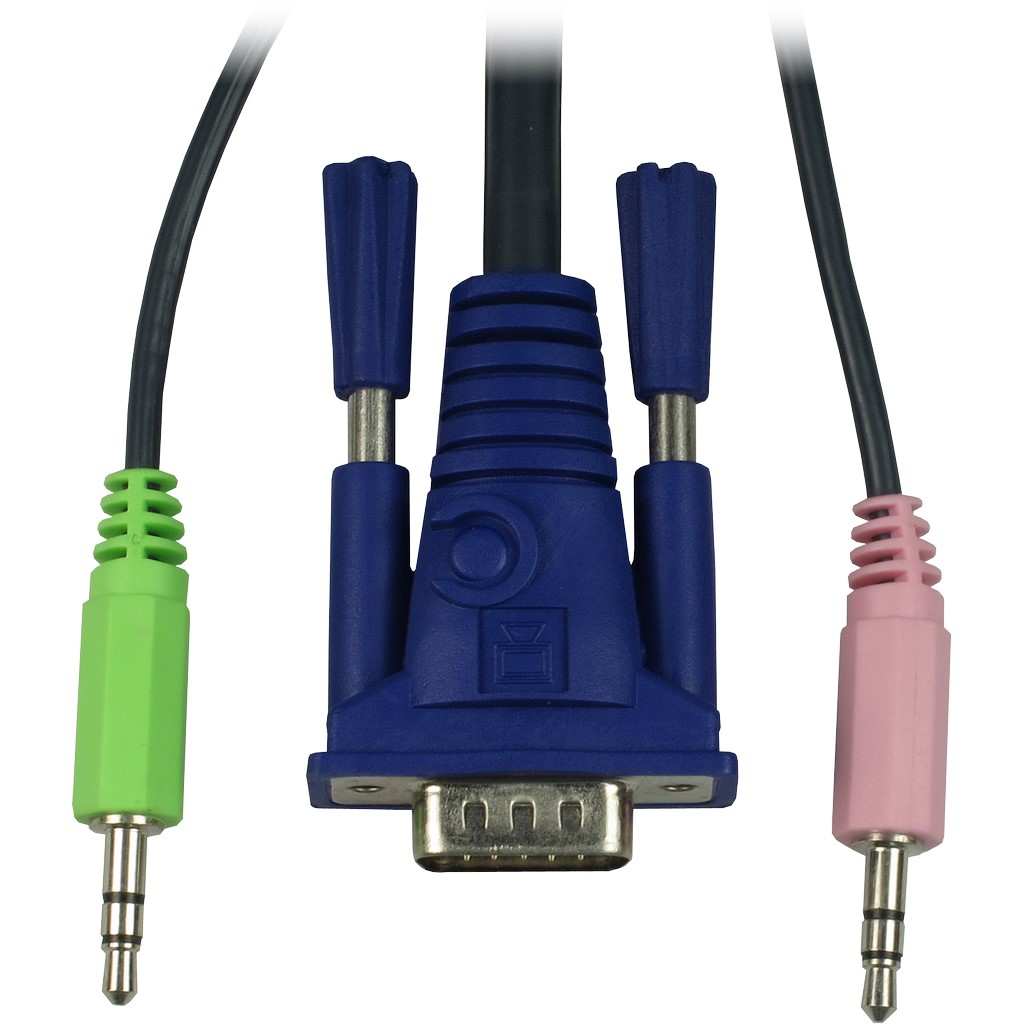

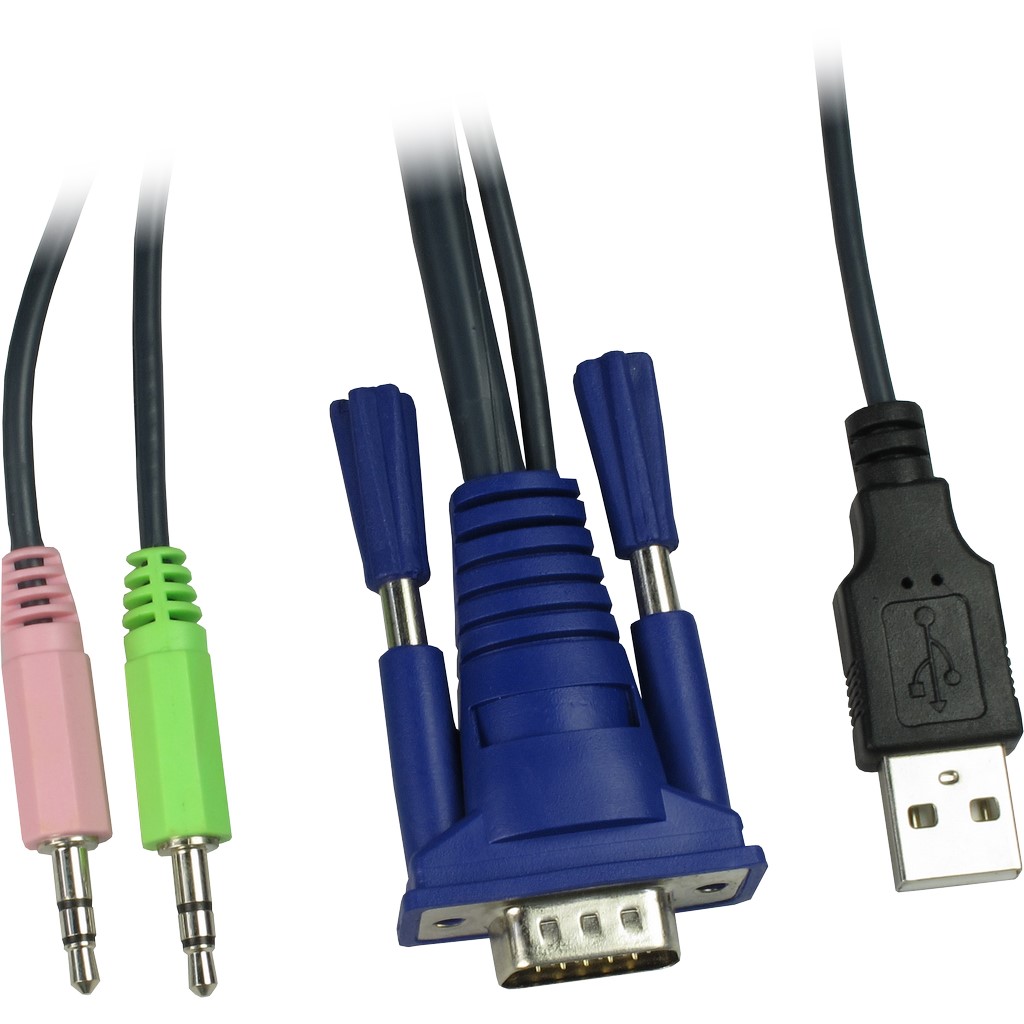

KVM AS-21UA Retail packaging 2x Cables DB15/Audio to VGA/USB/Audio (180cm) User manual on CD (german / english) |
| Features |
2x Hotkeys USB-Port in the front for external data drives |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| Weight | net = 0.52kgs gross = 0.99kgs |
| Item number | 88887168 |
| EAN-Code | 4260133127937 |
