| GENERAL DATA | |
|---|---|
| Outputs | 2 |
| Connectors input | 2x DVI-D (VGA, USB Keyboard, Mouse (only digital)) 4x 3.5mm 3 Pol. Audio Jack (2x Line in/2x Mic in) 1x Power |
| Connectors output | 2x USB (Keyboard/Mouse) 2x 3.5mm 3 Pol. Audio Jack (1x Line out/1x Mic out) 1x DVI-D (only digital) |
| Controls | 2x selection |
| LED | 2x selection, 2x online |
| Supported OS | No Restrictions |
| Switch Modi | Hotkey or Controls |
| Switch Scan Time | 5s (fix) |
| DDC | |
| Display Resolution | 1920x1200 DVI Single Link |
| OTHER DATA | |
| Power Supply | Via connected PC or External PSU (optional) |
| Input | 9V ~ 0.5A DC |
| Material | Rust-resistant Steel |
| Operating Temperature Storage Temperature |
5°C~40°C -2°C~60°C |
| Humidity | 0-80% |
| MBTF | Approx. 120.000 hrs. |
| Dimension (h/w/d) | 42 x 132 x 97mm |
| Guarantee | 24 months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |

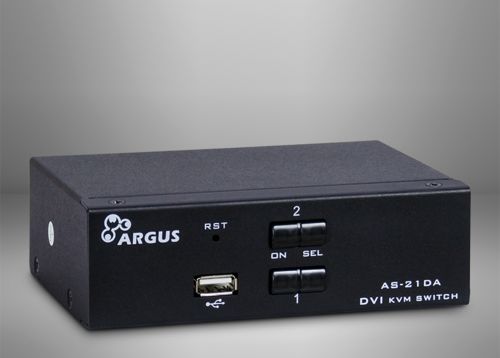

KVM AS-21DA Retail packaging 2x Cables DVI-D/USB/Audio to DVI-D/USB/Audio (180cm) User manual on CD (german / english) |
| Features |
2x Hotkeys The additional USB port in the front allows to connect external data drives, such as USB sticks. |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| Weight | net = 0.53kgs gross = 1.22kgs |
| Item number | 88887200 |
| EAN-Code | 4260133128835 |
