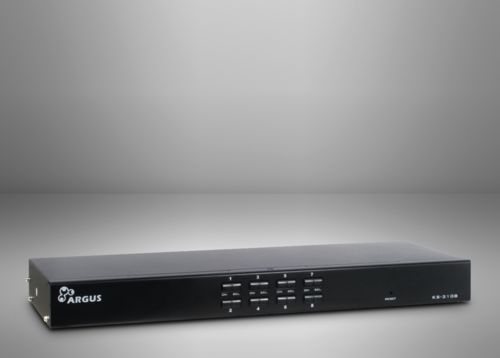

KVM KS-3108 RJ45
The KVM KS-3108 RJ45 is a professional 8-Port KVM-Switch.
The KVM KS-3108 RJ45 is usually used in server racks to switch and manage several installed servers with just one mouse, keyboard and monitor.
The in-build password protection prevents unauthorized access.
The KVM will be connected to your Computers with a RJ45 cable (usually LAN cables, Cat.5e or higher, max. 60m) and with the 4 included Dongle to VGA and USB.
| GENERAL DATA | |
|---|---|
| Keyboard / Mouse Connection | USB/PS2 |
| Monitor Connection | DB15 VGA |
| Slot for IP-Expansion modul | 1 |
| Outputs | 8 |
| Maximal Number of Administrable PCs | 256 max. 2 levels |
| Suitable for Server Racks | Min. 400mm depth |
| Connectors | 8x RJ45, RJ45 Dongle (VGA/USB, Keyboard, Mouse) |
| LEDs | 8x connect, 8x selection |
| Supported OS | No Restrictions |
| Transmission length | 60m |
| Switch Modi | Hotkey OSD Menu |
| Switch Scan Time | 1-255s (OSD adjustable) |
| DDC | |
| DISPLAY DATA | |
| Resolution | 1920x1080 |
| Frequency Range | 75Hz |
| OTHER DATA | |
| Power Supply | External PSU |
| Input | 9V-12V, 1A |
| Material | Rust-resistant Steel |
| Operating Temperature Storage Temperature |
-10°C~60°C -30°C~70°C |
| Humidity | 0-80% |
| MBTF | Approx. 120.000 hrs. |
| Dimension (h/w/d) | 43 x 432 x 156mm |
| Guarantee | 24 months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
KVM KS-3108 Retail packaging 8x Dongle RJ45 auf VGA/USB (20/40 cm) 19” Installation angle External PSU (Input: 100V-240V/0.35A, Output: 9V/1A) User manual on CD (English/German) |
| Features |
8x Hotkeys Password protection for keyboard and monitor |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| Weight | net = 1.94kgs gross = 3.68kgs |
| Item number | 88887164 |
| EAN-Code | 4260133127890 |
