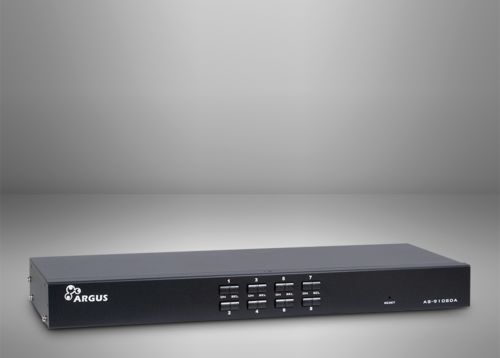

KVM AS-9108DA DVI
The KVM AS-9108DA DVI is a professional 8-port KVM switch.
It is mainly used in server cabinets in which several servers are installed, which can be operated centrally via the KVM AS-9108DA DVI with a keyboard, mouse and monitor thanks to the integrated switching option.
The integrated password protection prevents access to keyboard and monitor and additionally secures your servers against unauthorised operation.
The KVM is connected to the computer via USB and DVI using the 8 connection cables supplied.
| GENERAL DATA | |
|---|---|
| Keyboard / Mouse Connection | USB |
| Monitor Connection | DVI |
| Slot for IP-Expansion modul | |
| Outputs | 8 |
| Maximal Number of Administrable PCs | 256 max. 2 levels |
| Suitable for Server Racks | Min. 400mm depth |
| Connectors | 8x DVI/USB/Audio |
| LEDs | 8x connect, 8x selection |
| Supported OS | No Restrictions |
| Switch Modi | Hotkey OSD Menu |
| Switch Scan Time | 1-255s (OSD adjustable) |
| DDC | |
| DISPLAY DATA | |
| Resolution | 1920x1200 |
| OTHER DATA | |
| Power Supply | External PSU |
| Input | 9V-12V / 1A |
| Material | Rust-resistant Steel |
| Operating Temperature Storage Temperature |
-10°C~60°C -30°C~70°C |
| Humidity | 0-80% |
| MBTF | Approx. 120.000 hrs. |
| Dimension (h/w/d) | 43 x 432 x 156mm |
| Guarantee | 24 months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
KVM AS-9104DA DVI Retail packaging 8x Connection Cable USB/DVI, Audio 4Pin (180 cm) 19" Installation angle External PSU (Input: 100V-240V/0.35A, Output 9V/1A) User manual on CD (English, German) |
| Features |
8x Hotkeys Password protection for keyboard and monitor |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| Weight | net = 4.92kgs gross = 5.52kgs |
| Item number | 88887302 |
| EAN-Code | 4260455645751 |
