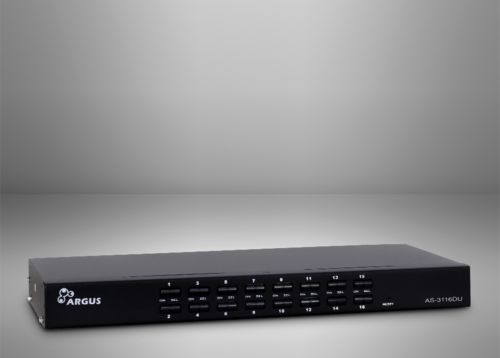

KVM AS-3116DU VGA
The KVM AS-3116DU VGA is a professional 16-Port KVM-Switch.
The KVM AS-3116DU VGA is usually used in server racks to switch and manage several installed servers with just one mouse, keyboard and monitor.
The in-build password protection prevent unauthorized access.
The KVM is connected to your computers with the 16 included cables by USB or PS2 and VGA.
GENERAL DATA | |
---|---|
Keyboard / Mouse Connection | USB/PS2 |
Monitor Connection | DB15 VGA |
Slot for IP-Expansion modul | 1 |
Outputs | 16 |
Maximal Number of Administrable PCs | 256 max. 2 levels |
Suitable for Server Racks | Min. 400mm depth |
Connectors | 16x DB15 (VGA/USB, Keyboard, Mouse) |
LEDs | 16x connect, 16x selection |
Supported OS | No Restrictions |
Switch Modi | Hotkey OSD Menu |
Switch Scan Time | 1-255s (OSD adjustable) |
DDC | |
DISPLAY DATA | |
Resolution | 1920x1080 |
Frequency Range | 75Hz |
OTHER DATA | |
Power Supply | External PSU |
Input | 9V - 12V, 1A |
Material | Rust-resistant Steel |
Operating Temperature Storage Temperature |
-10°C~60°C -30°C~70°C |
Humidity | 0-80% |
MBTF | Approx. 120.000 hrs. |
Dimension (h/w/d) | 43 x 432 x 156mm |
Guarantee | 24 months |
SCOPE OF DELIVERY & FEATURES | |
Scope of delivery |
KVM AS-3116DU Retail packaging 16x cables DB15 to VGA/USB/PS2 (180 cm) 19" Installation angle External PSU (Input: 100V-240V, Output: 9V/1A) User manual on CD (English/German) |
Features |
16x Hotkeys Password protection for keyboard and monitor |
LOGISTICAL DATA | |
Shipping Unit | 1 Pcs |
Weight | net = 2.02kgs gross = 5.78kgs |
Item number | 88887162 |
EAN-Code | 4260133127876 |
