EN



KVM AS-91XX TLS

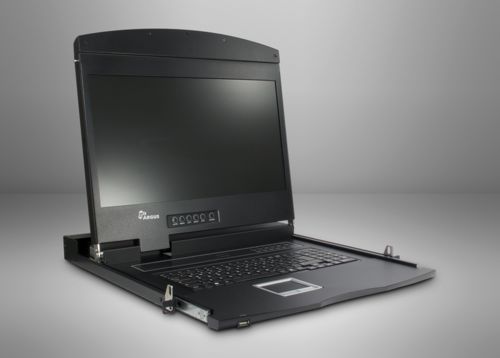

The KVM AS-91XX TLS series consists of a professional KVM console with extendable keyboard unit and 19" TFT LED monitor.

The console is mainly used in server cabinets in which one or more servers are installed, which can be operated centrally via the KVM AS-91xx TLS thanks to the integrated switching option.

The integrated password protection also prevents access to keyboard and monitor and additionally protects your servers from unauthorised operation.

The console is connected to the servers via the supplied system cables RJ45 to VGA/RJ45/USB.


  • Energy saving LED-Monitor
  • Password protection
  • 1080p Resolution
  • 24 months warranty
  •

general data
Keyboard 99er Keyboard with Touchpad (QWERTY-Keyboard)
Monitor 19" TFT LED
Maximal connectable 256
Suitable for racks 800-1000mm
Connectors Modular
Power
Keys 12x KVM
1x Power
5x TFT-Menue
Supported OS No limitation
Switch Mode Hotkey
OSD Menue
Switch scan time 1-255s (OSD adjustable)
DDC ●
mounting depth
Minimal mounting depth 385mm
Maximal mounting depth 690mm
DISPLAY DATa
Resolution 1920x1080
Display frequency 75Hz
Display brightness 300lm
Display contrast 1000:1
other data
Power supply External adapter
Input 12V, 5A
Material Noncorroding steel
Operation temperature
Storage temperature
-10°C~60°C
-30°C~70°C
Humidity 0-80%
MBTF average 120000 hrs
Warranty 24 months
scope of delivery & features
Scope of delivery

KVM AS-91xx TLS

Retail packaging

19" mounting kit

System cabel RJ45 toVGA/RJ45/USB (15cm) (quantity depending on model)

External power adapter (Input: 110V-240V 60W Output: 12V 5A)

Power cord

Manual on CD

Features

12x Hotkeys

Password protection for keyboard and mouse

Front USB-Port for additional keyboard and mouse

LOGISTical data

picture name PORT qty dimension weight ARTIcle no. EAN
AS-9104 TLS 4 44.5 x 482 x 615mm net 10.28kg
gros 16.33kg
99997223 4260455642217
AS-9108 TLS 8 44.5 x 482 x 615mm net 10.43kg
gros 16.87kg
99997227 4260455642453

Data sheet AS-91XX TLS
Download
Picture package AS-91XX TLS
Download

* You need a PDF reader to read these documents
* Pictures and drivers are always packed as Zip. You need to unzip them before using.
