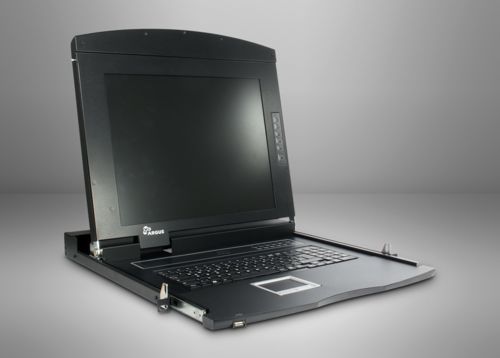

KVM AS-71XX TLS
The KVM AS-71XX TLS series consists of a professional KVM console with extendable keyboard unit and 17" TFT LED monitor.
The console is mainly used in server cabinets in which one or more servers are installed, which can be operated centrally via the KVM AS-71xx TLS thanks to the integrated switching option.
The integrated password protection also prevents access to keyboard and monitor and additionally protects your servers from unauthorised operation.
The console is connected to the servers via the supplied system cables RJ45 to VGA/RJ45/USB.
- Energy saving LED-Monitor
- Password protection
- 1080p Resolution
- 24 months warranty
| general data | |
|---|---|
| Keyboard | 99er Keyboard with Touchpad (QWERTY-Keyboard) |
| Monitor | 17" TFT LED |
| Maximal connectable | 256 |
| Suitable for racks | 800-1000mm |
| Connectors | Modular Power |
| Keys | 12x KVM 1x Power 5x TFT-Menue |
| Supported OS | No limitation |
| Switch Mode | Hotkey OSD Menue |
| Switch scan time | 1-255s (OSD adjustable) |
| DDC | ● |
| mounting depth | |
| Minimal mounting depth | 385mm |
| Maximal mounting depth | 690mm |
| DISPLAY DATa | |
| Resolution | 1920x1080 |
| Display frequency | 75Hz |
| Display brightness | 300lm |
| Display contrast | 1000:1 |
| other data | |
| Power supply | External adapter |
| Input | 12V, 5A |
| Material | Noncorroding steel |
| Operation temperature Storage temperature |
-10°C~60°C -30°C~70°C |
| Humidity | 0-80% |
| MBTF | average 120000 hrs |
| Warranty | 24 months |
| scope of delivery & features | |
| Scope of delivery |
KVM AS-71xx TLS Retail packaging 19" mounting kit System cabel RJ45 to VGA/RJ45/USB (15cm) (quantity depending on model) External power adapter (Input: 110V-240V 60W Output: 12V 5A) Power cord Manual on CD |
| Features |
12x Hotkeys Password protection for keyboard and mouse Front USB-Port for additional keyboard and mouse |
| LOGISTIcal data | |
| picture | name | PORT qty | dimension | weight | ARTIcle no. | EAN |
|---|---|---|---|---|---|---|
 |
AS-7104 TLS | 4 | 44.5 x 482 x 615mm | net 10.17kg gros 16.20kg |
99997225 | 4260455642224 |
 |
AS-7108 TLS | 8 | 44.5 x 482 x 615mm | net 10.31kg brutto 16.74kg |
99997226 | 4260455642446 |
