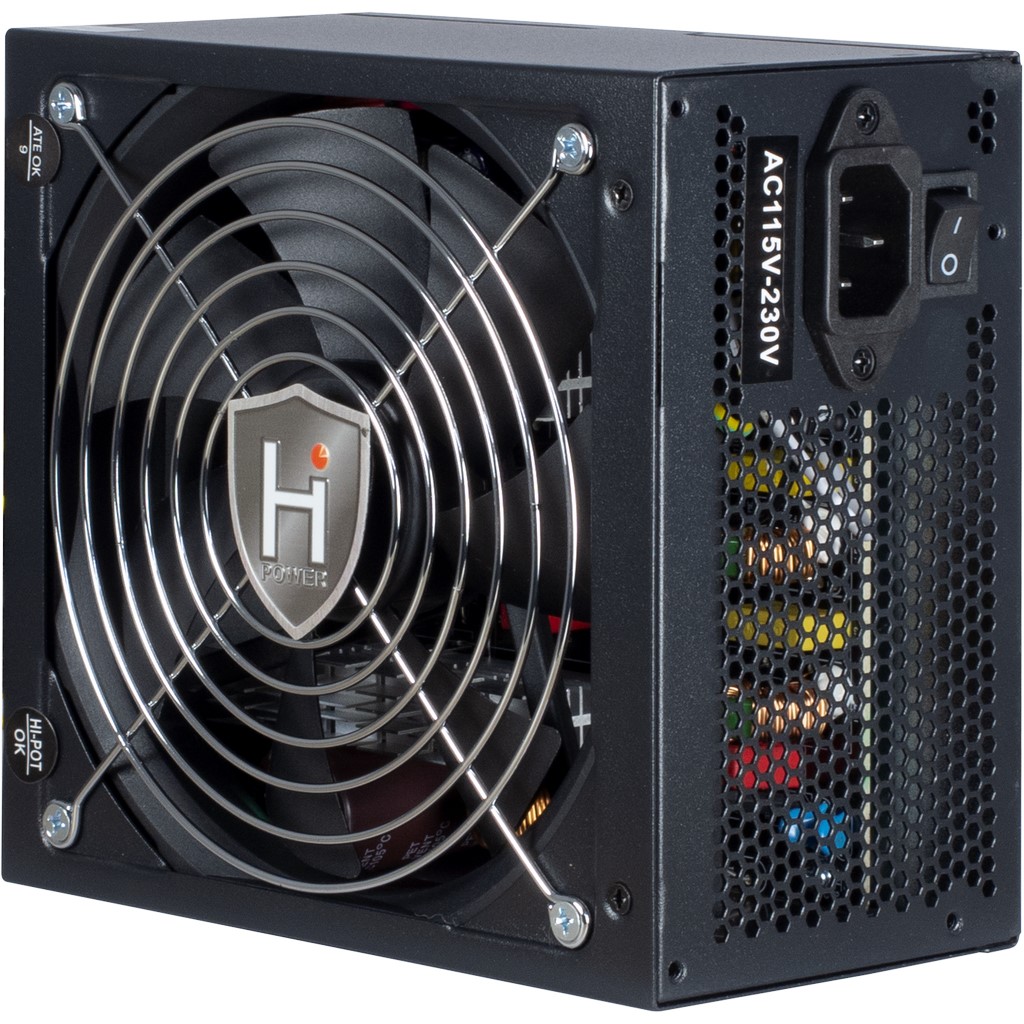

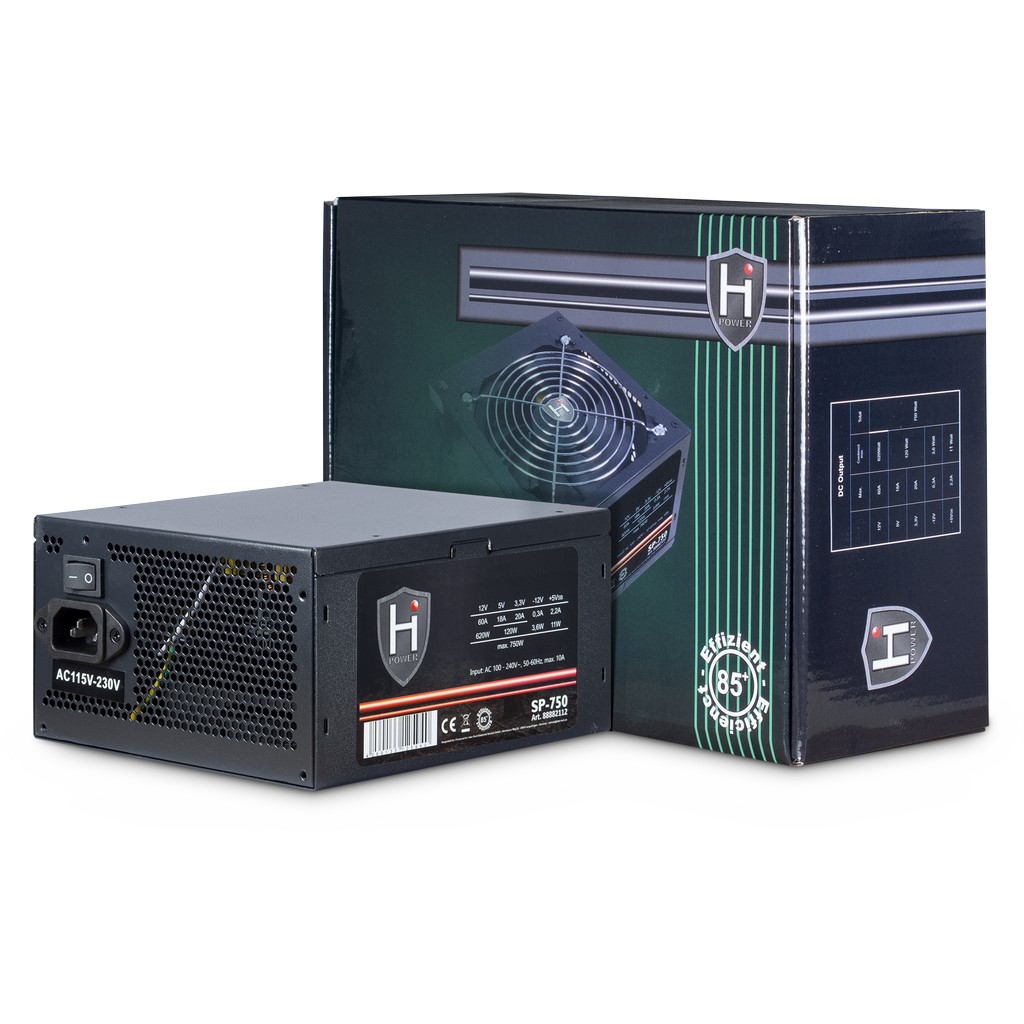

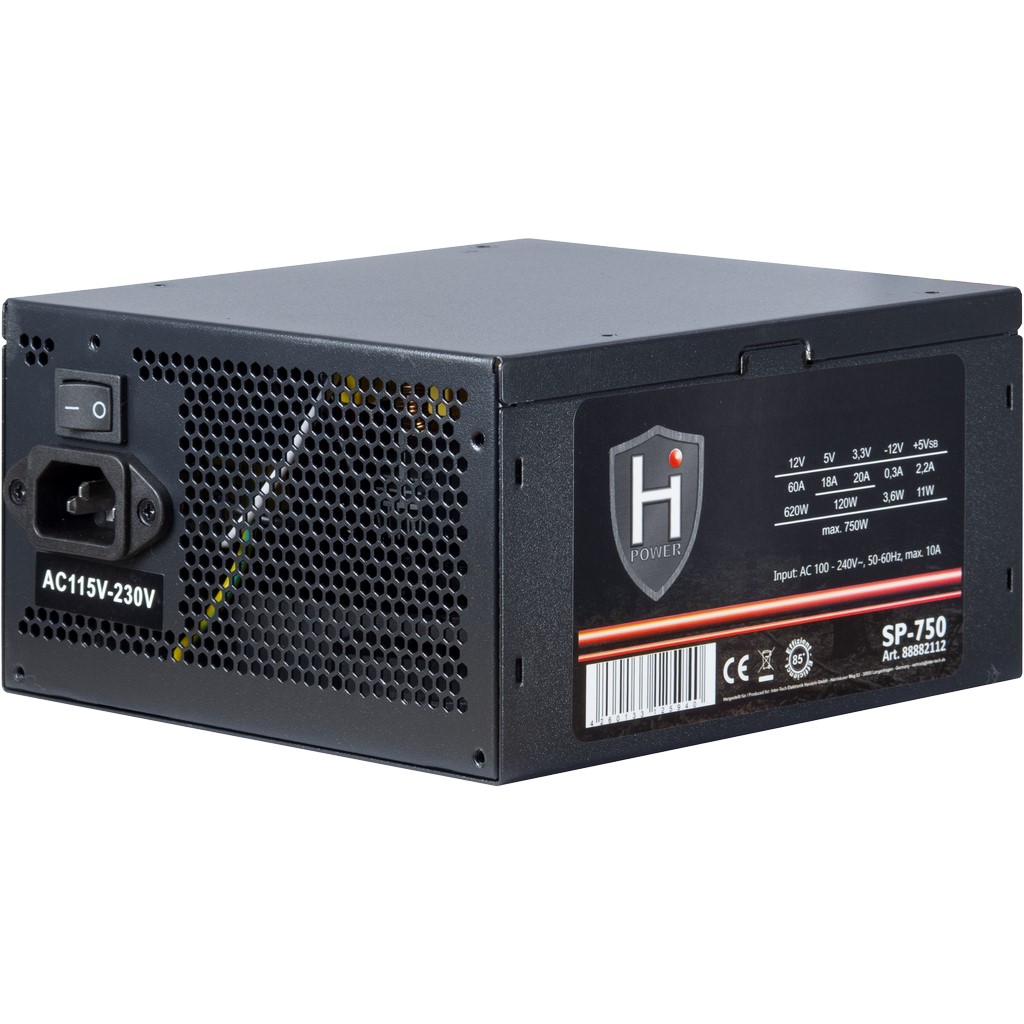

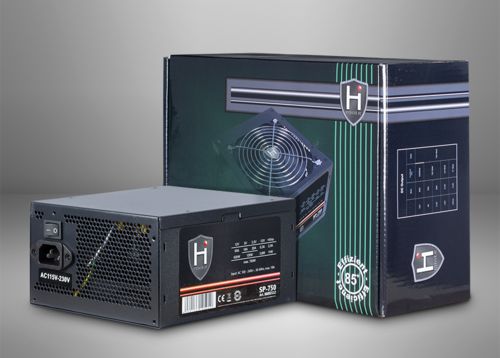

HIPOWER SP-750
HiPower SP-750 – high power, low cost
The 750W version of the HiPower series reliably supplies power-hungry systems with electricity and also saves electricity costs. With an efficiency of over 85%, the powerloss is kept low, which is clearly reflected in the power consumption.
With 60A on the 12V line, there is more than enough power available for potent hardware, which is protected from damage by the built-in protective circuits (OPP, OVP and SCP) in all cases.
The powerful 140mm fan reliably ensures proper cooling of the power supply and the multitude of connections round off the overall package.
- over 85% efficiency
- 60A on the 12V line
- OPP, OVP, SCP
- powerful 140mm fan
POWER & EFFICIENCY | |
---|---|
Output | 750Watt |
Efficiency |
|
ATX-Version | 2.4 |
CONNECTORS | |
Mainboard 20+4Pin | 1x |
4Pin / 4+4Pin / 8Pin 12V | / / |
PCI-Express 6+2Pin | 1x |
PCI-Express 6Pin | 1x |
IDE 4Pin (Molex) | 6x |
S-ATA | 6x |
Floppy | 1x |
Fan monitoring | |
OTHER DATA | |
Fans / -size | 1x 140mm |
Fan control | auto |
Full Range Input | auto |
80PLUS® Certificate | |
Noise level | 19-35dB |
Dimension (h/w/d) | 86 x 150 x 160mm |
Guarantee | 24 months |
Safeties | OPP, OVP, SCP |
SCOPE OF DELIVERY & FEATURES | |
Scope of delivery |
Power supply HiPower SP-750 Retail package Manual (german) Power cord Mounting screws Cable ties |
LOGISTICAL DATA | |
Shipping Unit | 1 Pcs |
Packing Unit | 5 Pcs |
EU palett | 280 Pcs |
Weight | net = 1.48kgs gross = 1.82kgs |
Item number | 88882112 |
EAN-Code | 4260133125940 |
PERFORMANCE DATA
AC Input | 100V/240V 50-60Hz max. 10A | |||||
DC Output | + 3.3V | + 5V | + 12V | - 12V | + 5VSB | |
SP-750 | Max. Current |
20A | 18A | 60A | 0.3A | 2.2A |
Max. Combined Power |
120W | 620W | 3.6W | 11W | ||
750W |
CABLE CONFIGURATION
