GW-CRPS-800

Article No.
88887430

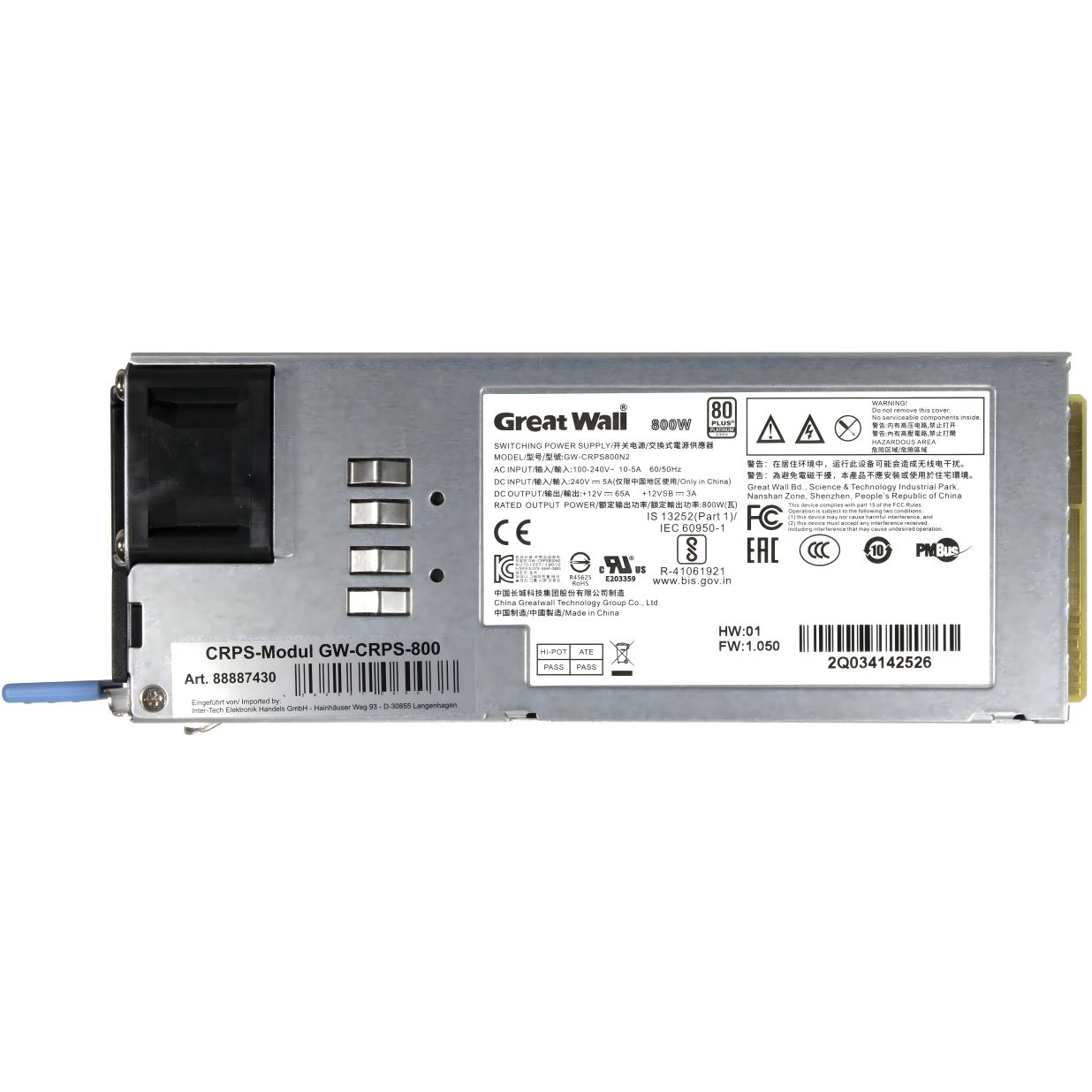

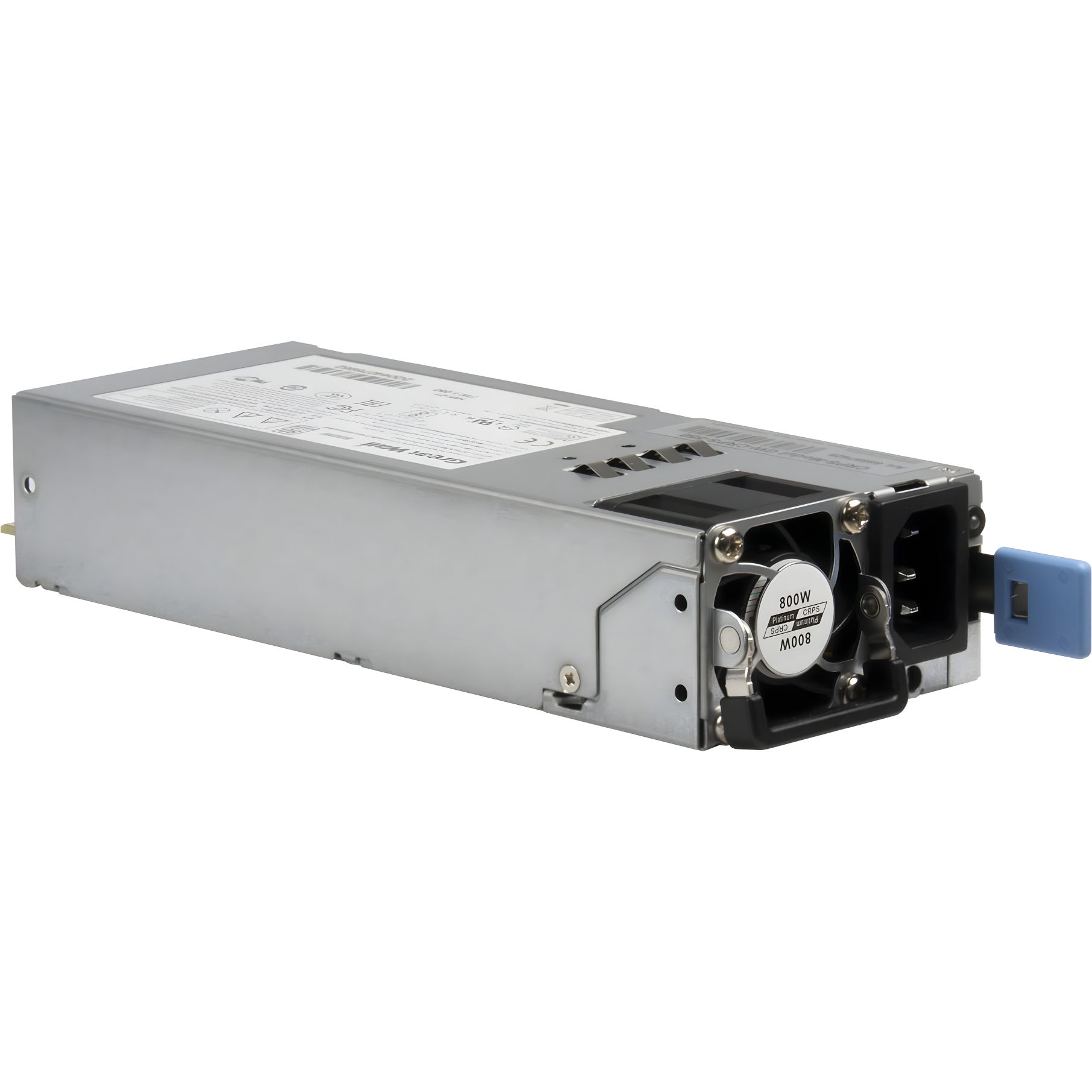

Great Wall CRPS 800W Power Supply GW-CRPS-800
High-performance and compact Great Wall CRPS 800W server power supply for professional server and storage systems.
This CRPS (Common Redundant Power Supply) power supply is specifically designed for use in compatible server platforms.

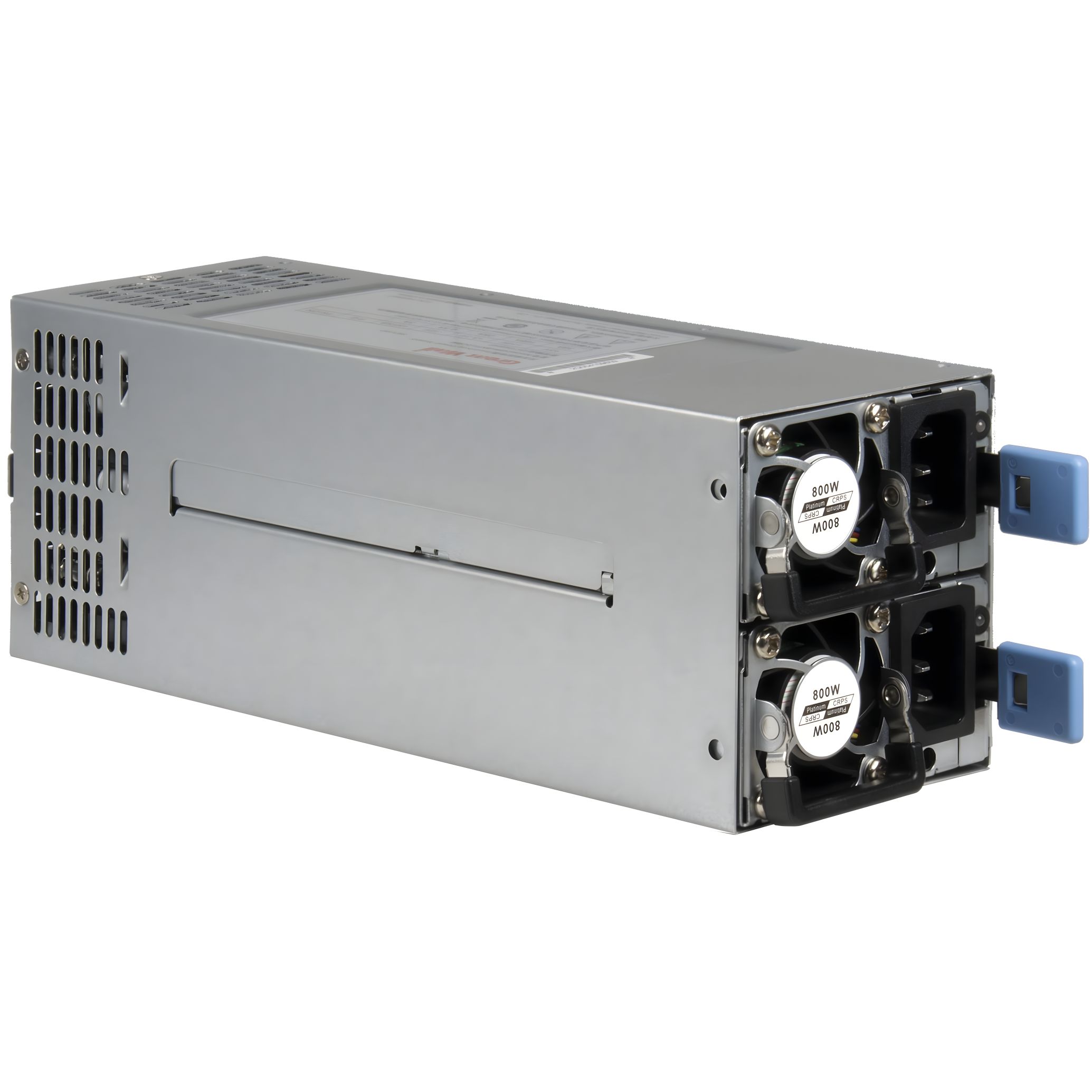

Compatible with the Great Wall CRPS chassis GW-BKPV2CB (Item No. 88887428)

Features

800W CRPS module
Intel CRPS form factor
80PLUS Platinum

Input
Voltage


Frequency
Current
AC 90 - 140 V~
AC 180 - 264 V~
DC 180 - 310V=
47 - 63Hz at AC
5A at 230V~
10A at 110V~

Output
Voltage
+ 12V
+ 12Vsb
Total rated power
Voltage tolerance
Ripple/ Noise
Rated current
max. 65A
max. 3A
max. 800W
+/- 5%
<120mV @ +12V, -12Vsb

Safety
Over power protection
Over voltage protection
Over current protection
Short circuit protection
Temperature protection
+
+
+
+
+

Economic data
Efficiency @230V
@ 10% power
@ 20% power
@ 50% power
@ 100% power
Standby power consumption
MTBF

92.12 %
94.20 %
94.43 %
92.35 %
< 0.50 W
250.000 h at 75% power and max. 55°C

Environmantal
Temperature

Humidity

Altitude
0°C - 55°C (operating)
-40°C - 70°C (storage)
up to 85% (operating, non condensing)
up to 95% (storage, non condensing)
0 - 5000m (operating)
0 - 15000m (storage)

Scope of delivery

Power supply module

Warranty

5 years

Logistic data
Dimensions
Net weight
Gross weight
Article number
GTIN
Packing unit
185 x 73,5 x 39 mm
0.755 kgs
0.835 kgs
88887430
4262531060038
1 pc
10 pcs (carton)



Data sheet GW-CRPS-800
Download
80PLUS report GW-CRPS-800
Download
Declaration of conformity GW-CRPS-800
Download
Pictures GW-CRPS-800
Download
