GW-CRPS-1600

Article No.
88887432

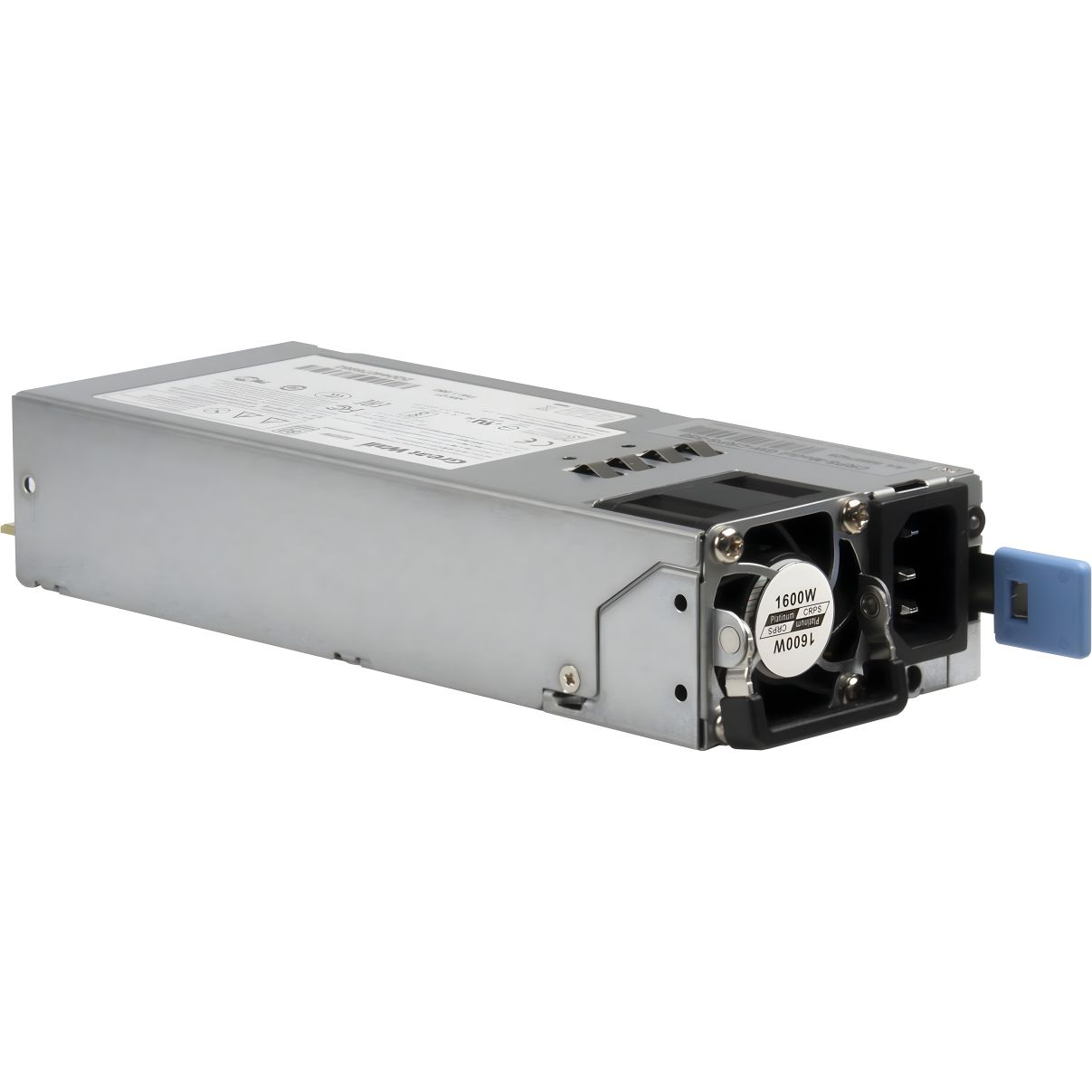

Great Wall CRPS 1600W Power Supply GW-CRPS-1600
High-performance and compact Great Wall CRPS 1600W server power supply for professional server and storage systems.
This CRPS (Common Redundant Power Supply) power supply is specifically designed for use in compatible server platforms.

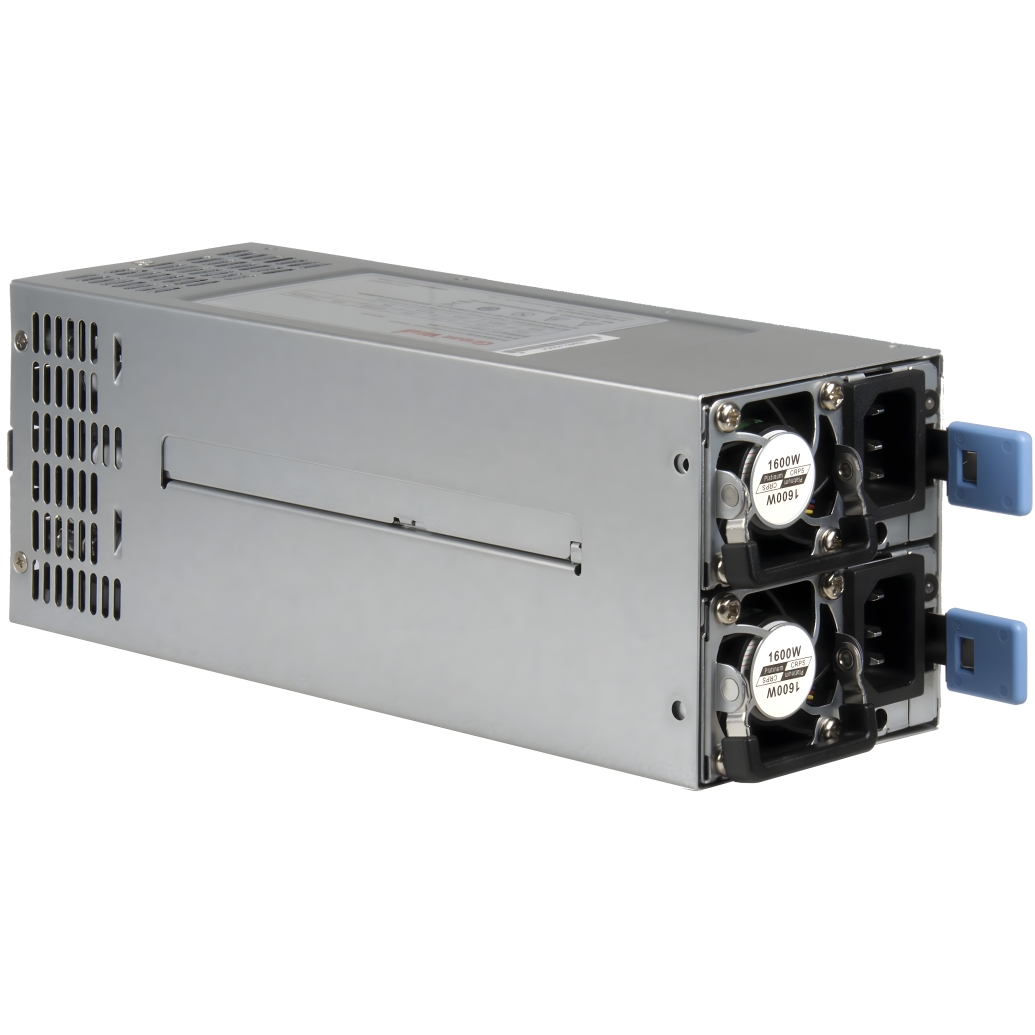

Compatible with the Great Wall CRPS chassis GW-BKPV2CB (Item No. 88887428)

Features

1600W CRPS module
Intel CRPS form factor
80PLUS Platinum

Input
Voltage


Frequency
Current
AC 90 - 140 V~
AC 180 - 264 V~
DC 180 - 310V=
47 - 63Hz bei AC
9.5A bei 230V~
12A bei 110V~

Output
Voltage
+ 12V
+ 12Vsb
Total rated power
Voltage tolerance
Ripple/ Noise
Nennstrom
max. 132A
max. 3A
max. 1600W
+/- 5%
<120mV @ +12V, -12Vsb

Safety
Over power protection
Over voltage protection
Over current protection
Short circuit protection
Temperature protection
+
+
+
+
+

Economic data
Efficiency @230V
@ 10% power
@ 20% power
@ 50% power
@ 100% power
Standby power consumption
MTBF

90.39 %
93.52 %
94.42 %
92.14 %
< 0.50 W
250.000 Std. bei 75% Leistung und max. 55°C

Environmantal
Temperature

Humidity

Altitude
0°C - 55°C (operating)
-40°C - 70°C (storage)
up to 85% (operating, non condensing)
up to 95% (storage, non condensing)
0 - 5000m (operating)
0 - 15000m (storage)

Scope of delivery

Power supply module

Warranty

5 years

Logistic data
Dimensions
Net weight
Gross weight
Article number
GTIN
Packing unit
185 x 73,5 x 39 mm
0.880 kgs
0.940 kgs
88887432
4262531060052
1 pc
10 pcs (carton)



Data sheet GW-CRPS-1600
Download
80PLUS report GW-CRPS-1600
Download
Declaration of conformity GW-CRPS-1600
Download
Pictures GW-CRPS-1600
Download
