GW-BKPV2CB

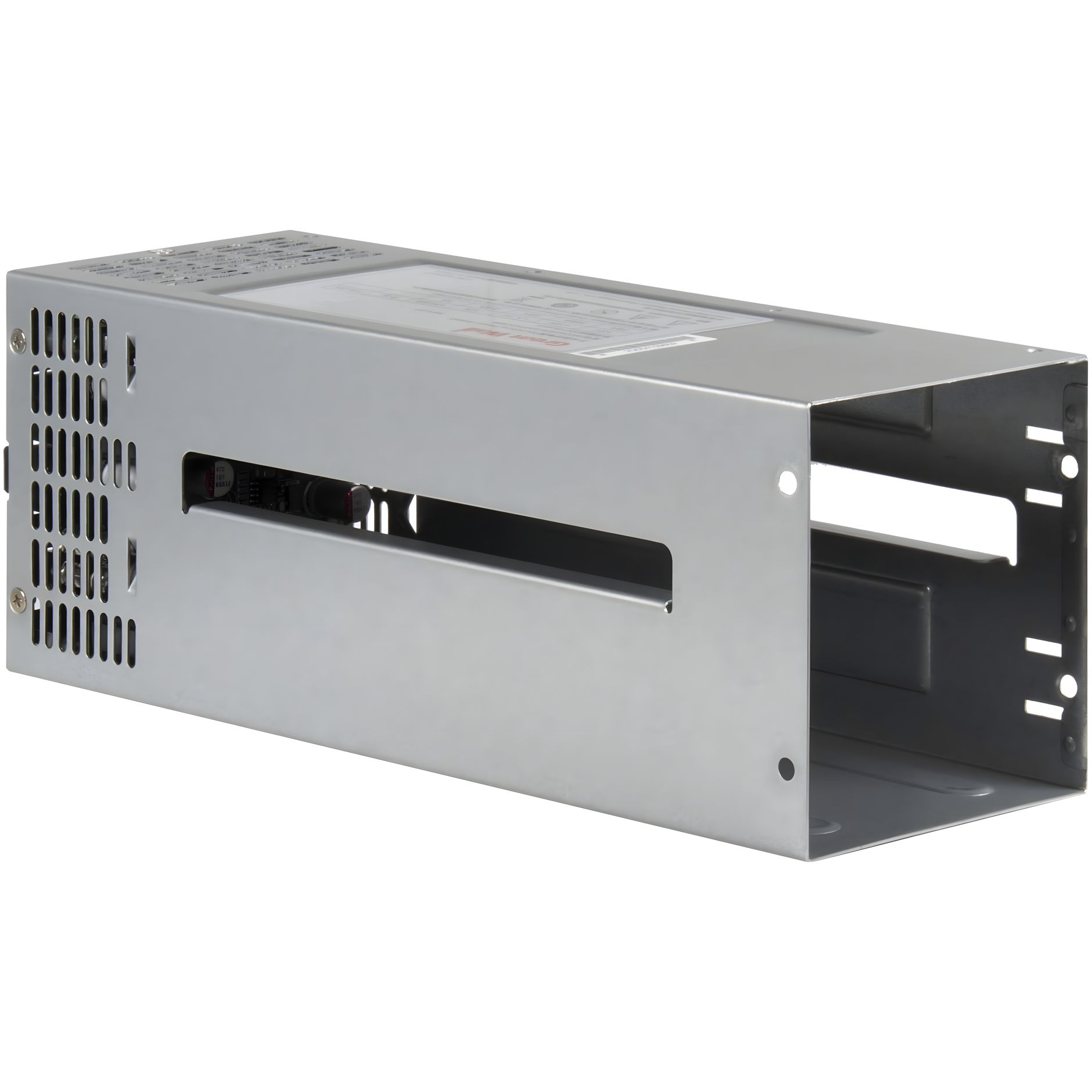

Greatwall CRPS Chassis GW-BKPV2CB for Modular Power Supply Solutions up to 2000 W

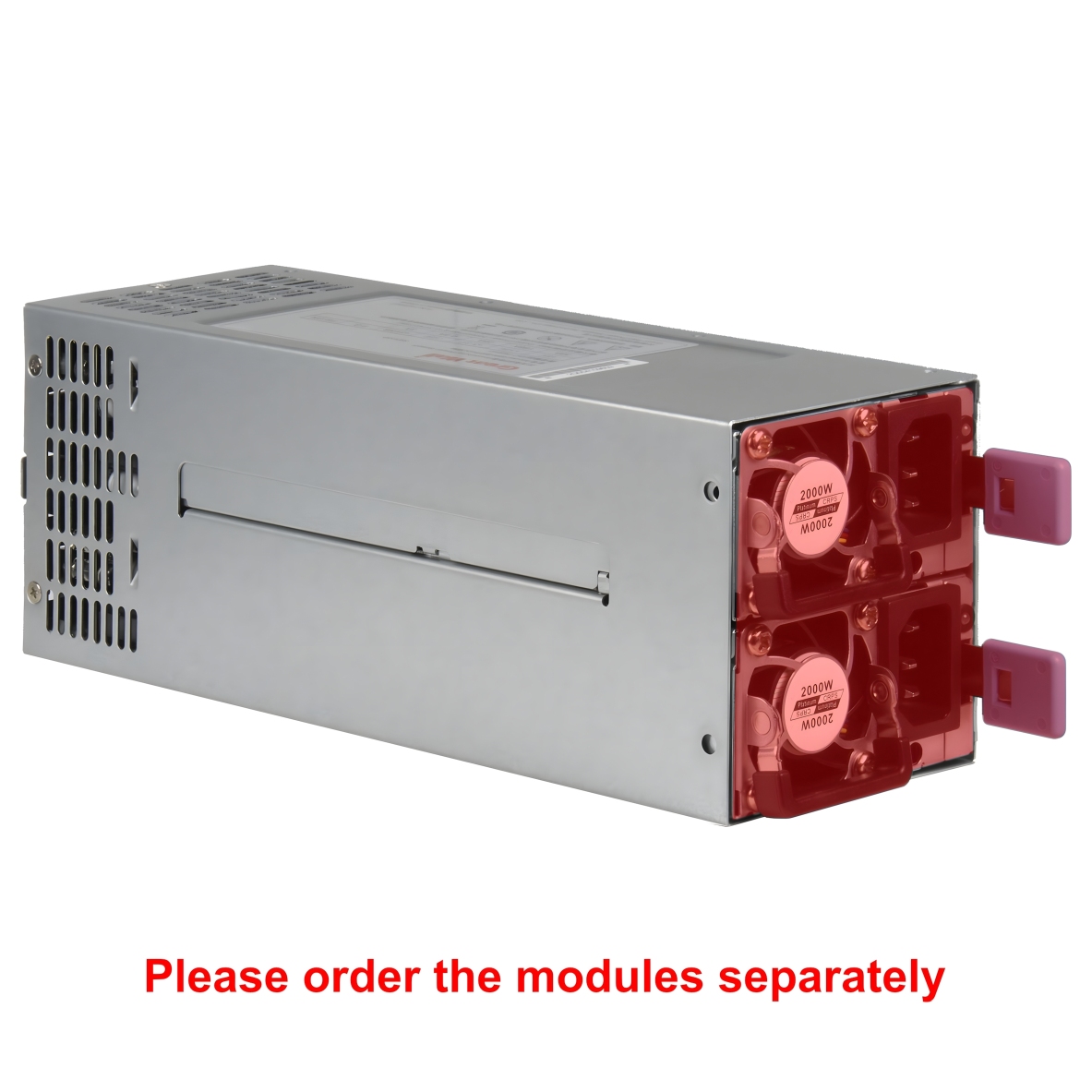

High-performance, modular CRPS chassis designed for power supply modules with a total output of up to 2000 W. The chassis supports PMBus for monitoring and communication and offers extensive connection and monitoring options.
Highlights:
- For CRPS modules up to 2000 W
- High-power 12V-6x2 connector
- Modular design
- PMBus support
- Up to 25 A continuous current on the 3.3 V and 5 V lines
- Connection for alarm LED
- Integrated alarm reset switch
- I²C bus for additional communication and monitoring functions

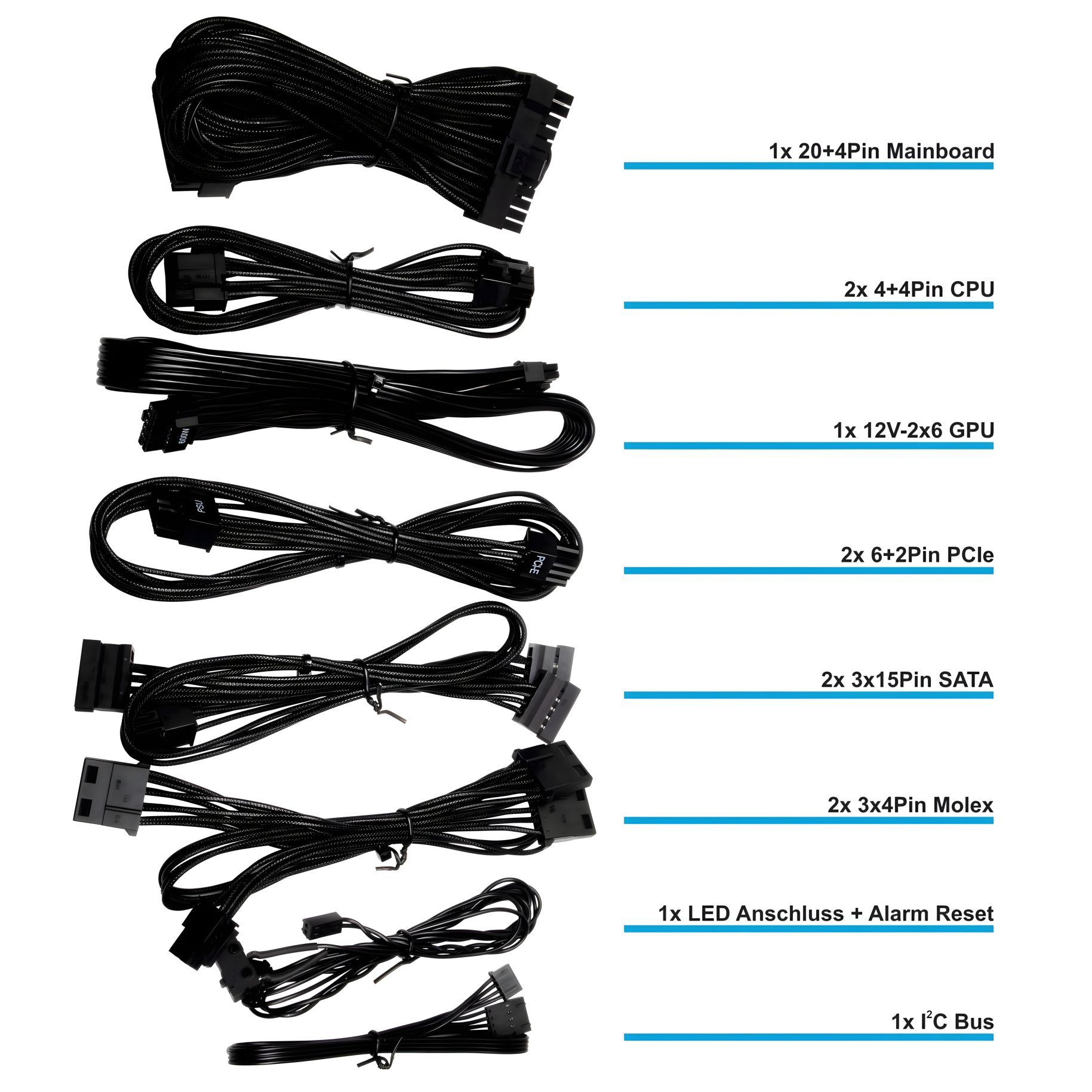

- Comprehensive cable set included
Ideal for high-performance and flexible PC, workstation, and server systems that require a modular power supply with extensive monitoring and connectivity options.
Features |
For modules up to 2000W
|
|
Input |
Voltage |
12V= |
Output |
Voltage+ 12V- 12V5V3.3V5VsbTotal rated power |
Rated currentup to 166A depending on the modules usedmax. 0.5Amax. 25Amax. 25A3Amax. 2000W depending on the modules used |

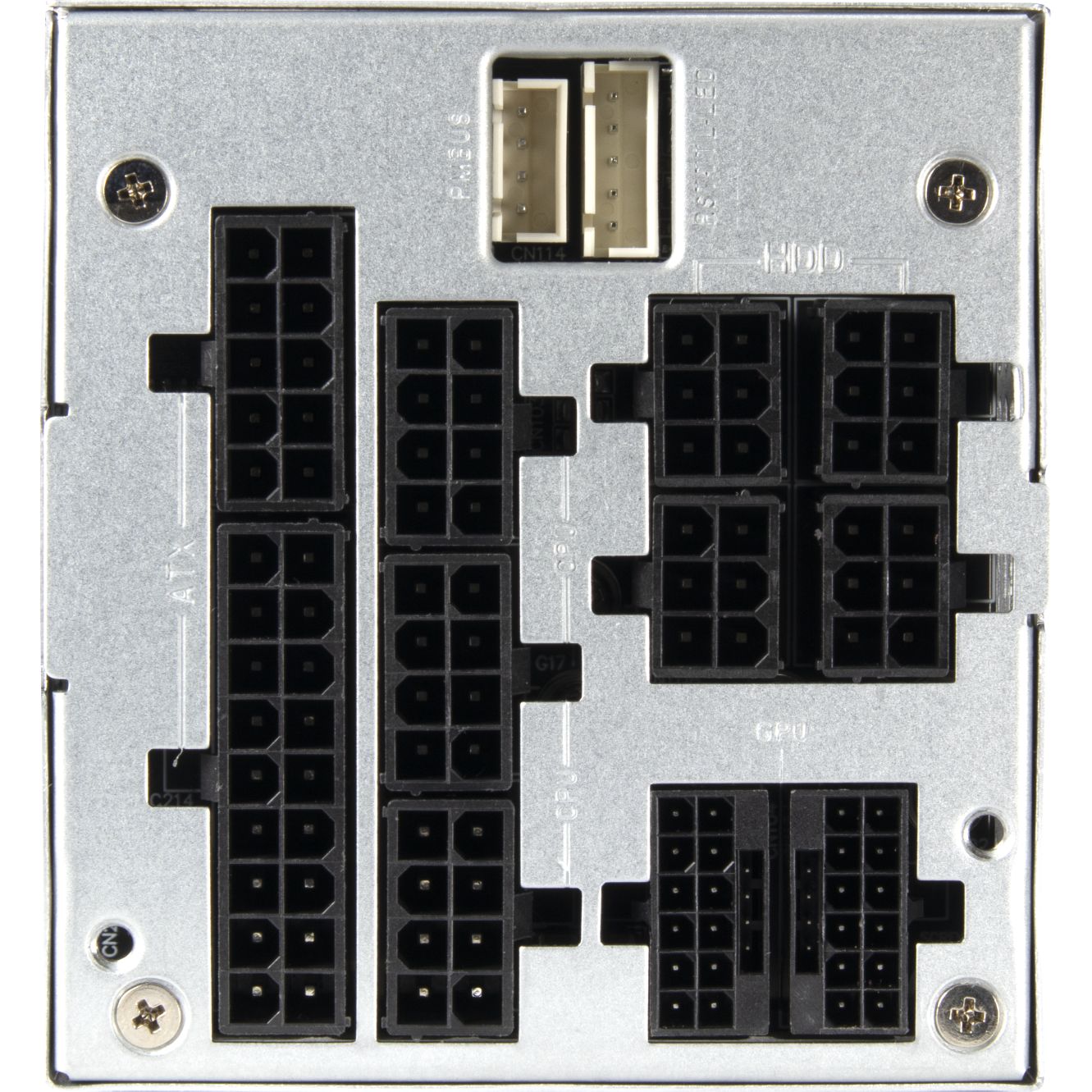

Connectors |
MainboardCPU 4+4GPU 12V-2x6PCIeSATAMolexLEDAlarm resetI2C Bus |
1x 20+4Pin2x 4+4Pin1x2x 6+2Pin2x 3x15Pin2x 3x4Pin111 |
Environmental |
Temperature
|
0°C - 55°C (operating)
|
Scope of delivery |
|
Power supply module |
Warranty |
|
5 years |
Logistic data |
DimensionNet weightGross weightArticle numberGTINPacking unit |
225 x 77 x 84 mm1.140 kgs1.300 kgs8888742842625310600761 pc
|
