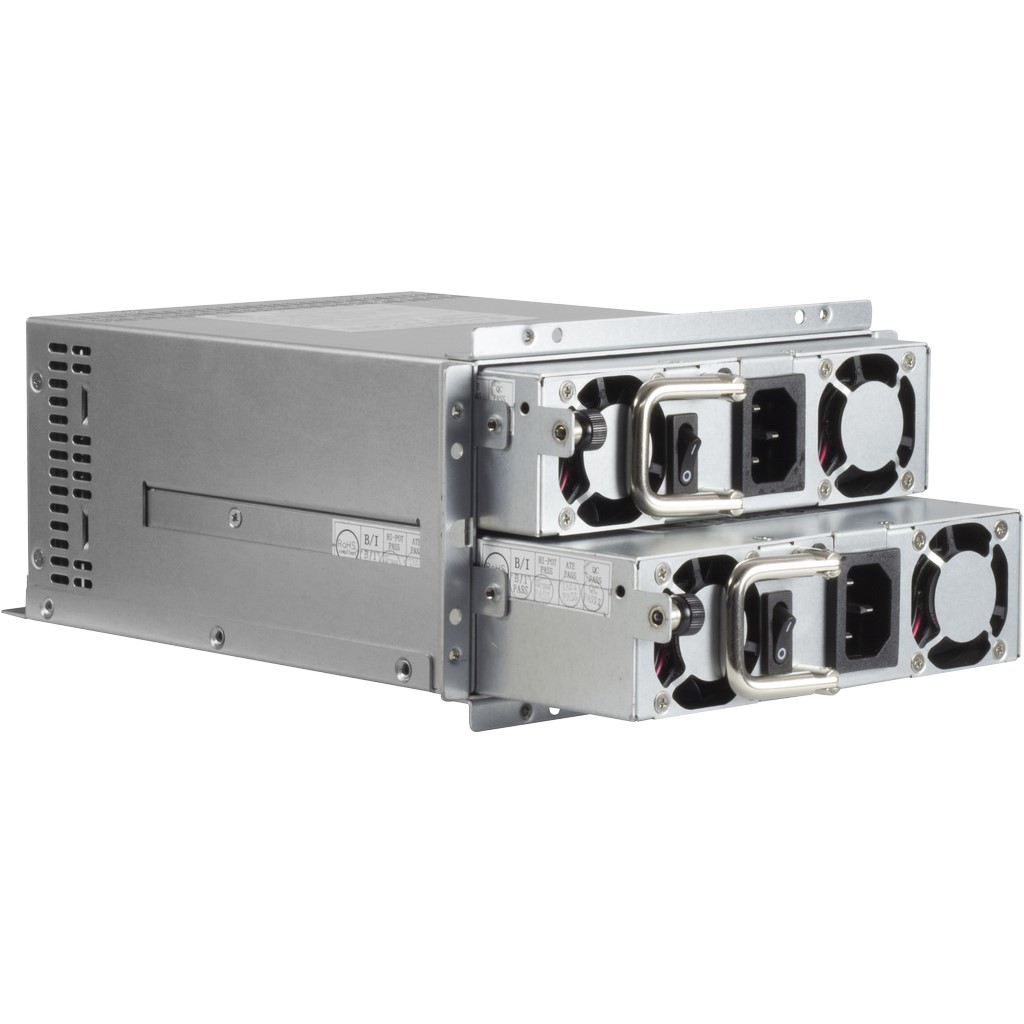

ASPOWER R2A-MV0700

High-quality, 700 watt redundant PS/2 power supply with 80PLUS® Silver certification.



  • up to 92 % Efficiency
  • Full Range Input
  • 80PLUS® Silver
We give warranty of 36 months from date of purchase for power supplies of ASPOWER series.
As an additional service we offer direct RMA handling with Inter-Tech in warranty case.

POWER & EFFICIENCY
Output 700Watt
Efficiency

at 20% 115V88%
at 20% 230V89%
at 50% 115V90%
at 50% 230V92%
at 100% 115V86%
at 100% 230V87%

CONNECTORS
Mainboard 20+4Pin 1x
4Pin / 4+4Pin / 8Pin 12V / 2x /
PCI-Express 6+2Pin
PCI-Express 6Pin
IDE 4Pin (Molex) 6x
S-ATA 2x
Floppy 1x
Fan monitoring
OTHER DATA
Fans / -size 4x 40mm
Fan control auto
Full Range Input auto
Redundancy
80PLUS® Certificate 80PLUS® Silver
Operating Temperatur 0°C to 50°C
Storage Temperatur -40°C to 70°C
Dimension (h/w/d) 84 x 150 x 190mm
Guarantee 36 months
Safeties OVP, SCP , OPP, OCP, OTP
MBTF Average 100000h
SCOPE OF DELIVERY & FEATURES
Scope of delivery

Power supply ASPOWER R2A-MV0700

Features

Bicoloured LED status display per module

Acoustic and visual alarm for module and fan failure

Cable for reset and alarm LED

TTL-Output for failure signals on compatible Backplanes or Mainboards

LOGISTICAL DATA
Shipping Unit 1 Pcs
Packing Unit 4 Pcs
Weight net = 3.69kgs
gross = 4.09kgs
Item number 99997230
EAN-Code 4260455642286



PERFORMANCE DATA

AC INPUT VOLTAGE CURRENT FREQUENCY
100-240V 10A Max. 50/60Hz
DC OUTPUT + 5V + 3.3V + 12V - 12V + 5VSB Max. 700W
30A 30A 58A 1A 3A
Attention: +5V & +3.3V combined max. 200W

CABLE CONFIGURATION

Data sheet R2A-MV0700
Download
Technical drawing R2A-MV0700
Download
80PLUS Report R2A-MV0700
Download
Declaration of conformity R2A-MV0700
Download
Picture package R2A-MV0700
Download

* You need a PDF reader to read these documents
* Pictures and drivers are always packed as Zip. You need to unzip them before using.
