| POWER & EFFICIENCY | |
|---|---|
| Output | 550Watt |
| Efficiency |
|
| CONNECTORS | |
| Mainboard 20+4Pin | 1x |
| 4Pin / 4+4Pin / 8Pin 12V | / / |
| PCI-Express 6+2Pin | |
| PCI-Express 6Pin | |
| IDE 4Pin (Molex) | 2x |
| S-ATA | 6x |
| Floppy | |
| Fan monitoring | |
| OTHER DATA | |
| Fans / -size | 4x 40mm |
| Fan control | auto |
| Full Range Input | auto |
| Redundancy | |
| 80PLUS® Certificate | |
| Operating Temperatur | 0°C to 50°C |
| Storage Temperatur | -40°C to 70°C |
| Dimension (h/w/d) | 84 x 150 x 190mm |
| Guarantee | 36 months |
| Safeties | OTP, OVP, OCP, SCP , OPP |
| MBTF | Average 100000h |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |

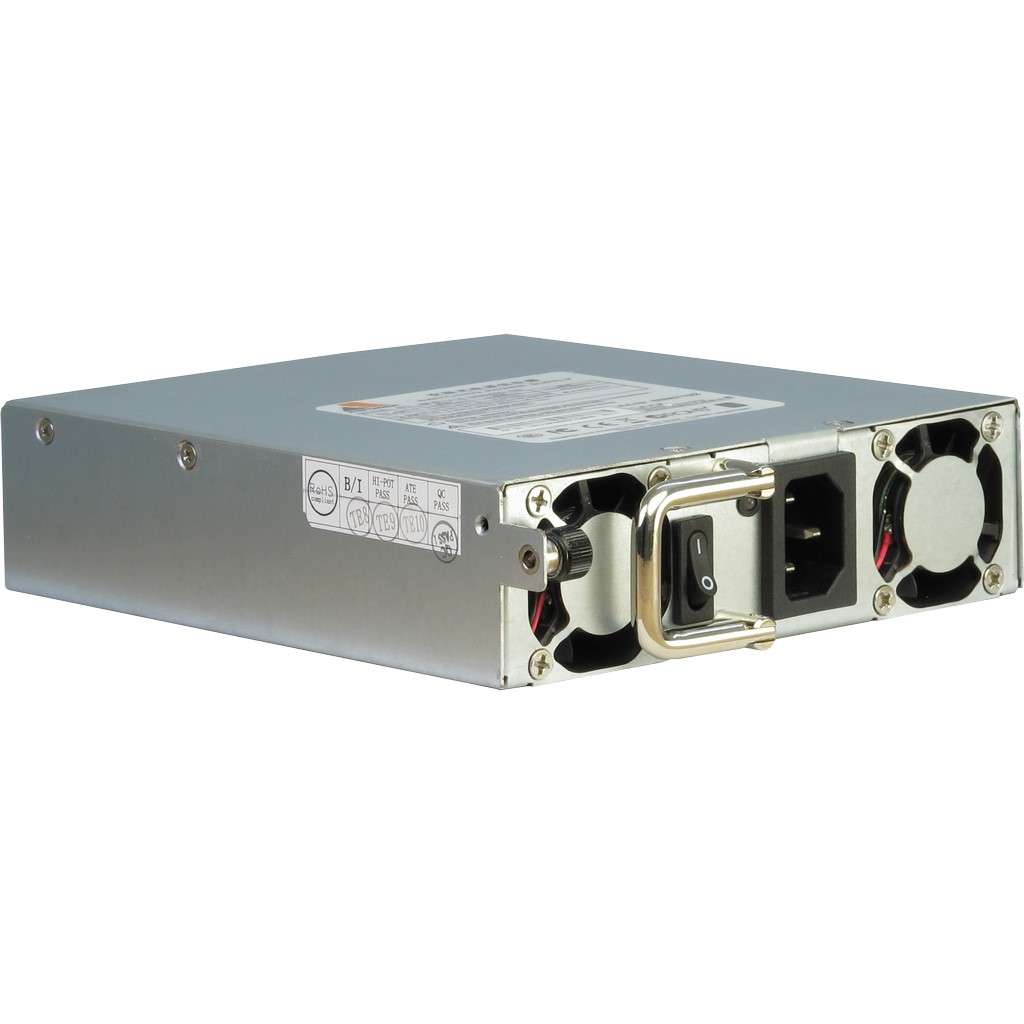

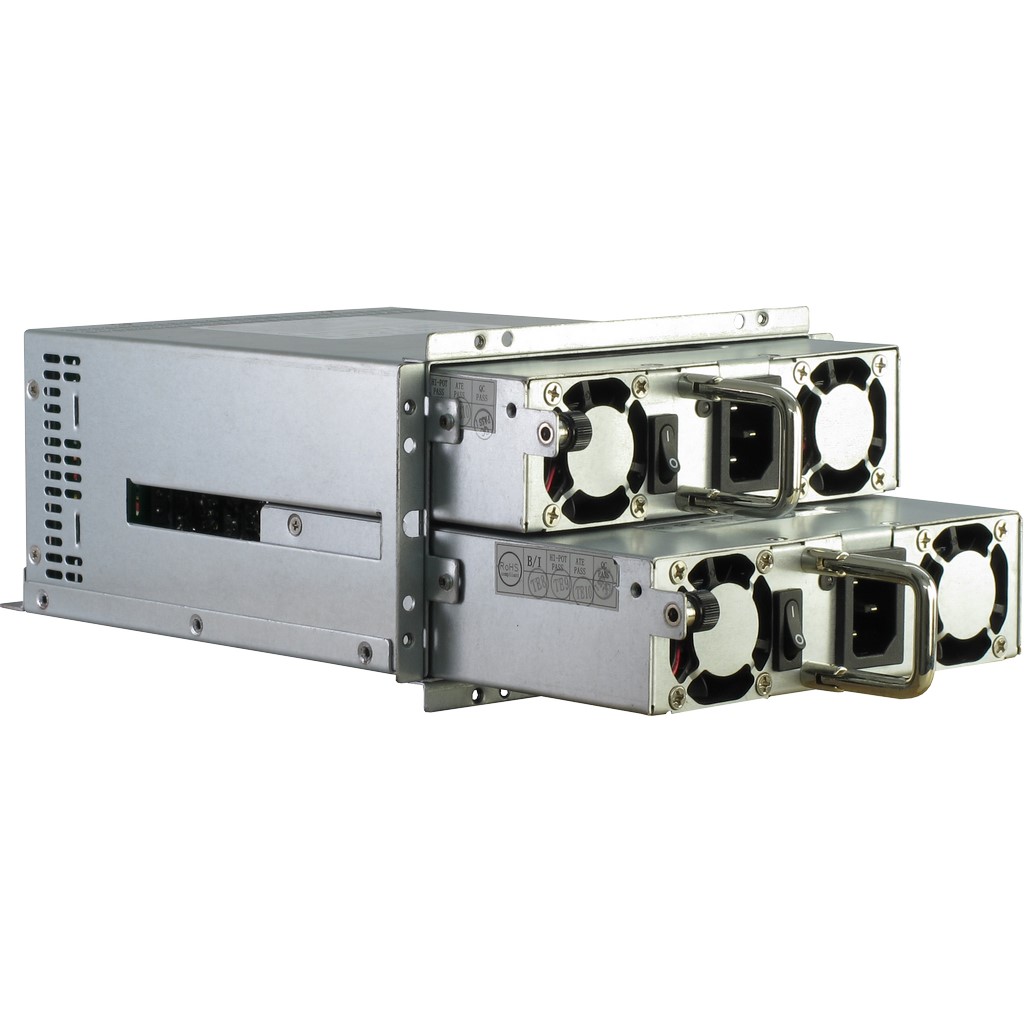

Power supply ASPOWER R2A-MV0550 |
| Features |
Bicoloured LED status display Acoustic alarm signal when a module power failing or a fan error arose Cable for reset and alarm LED TTL-Output for failure signals on compatible Backplanes or Mainboards |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| Packing Unit | 4 Pcs |
| Weight | net = 3.71kgs gross = 4.11kgs |
| Item number | 99997003 |
| EAN-Code | 4260455646703 |
PERFORMANCE DATA
| AC Input | 100-240V 8-4A 47-63Hz | |||||
| DC Output | + 3.3V | + 5V | + 12V | - 12V | + 5VSB | |
| ASPOWER R2A-MV0550 |
Max. Current |
30A | 30A | 46A | 1A | 3A |
| Max. Combined Power |
180W | 450W | 25W | |||
| 550W | ||||||
CABLE CONFIGURATION
