High-quality, 500 watt server power supply with 80PLUS® Silver certification.| POWER & EFFICIENCY | |
|---|---|
| Output | 500Watt |
| Efficiency |
|
| CONNECTORS | |
| Mainboard 20+4Pin | 1x |
| 4Pin / 4+4Pin / 8Pin 12V | / / |
| PCI-Express 6+2Pin | |
| PCI-Express 6Pin | |
| IDE 4Pin (Molex) | 4x |
| S-ATA | 2x |
| Floppy | 1x |
| Fan monitoring | |
| OTHER DATA | |

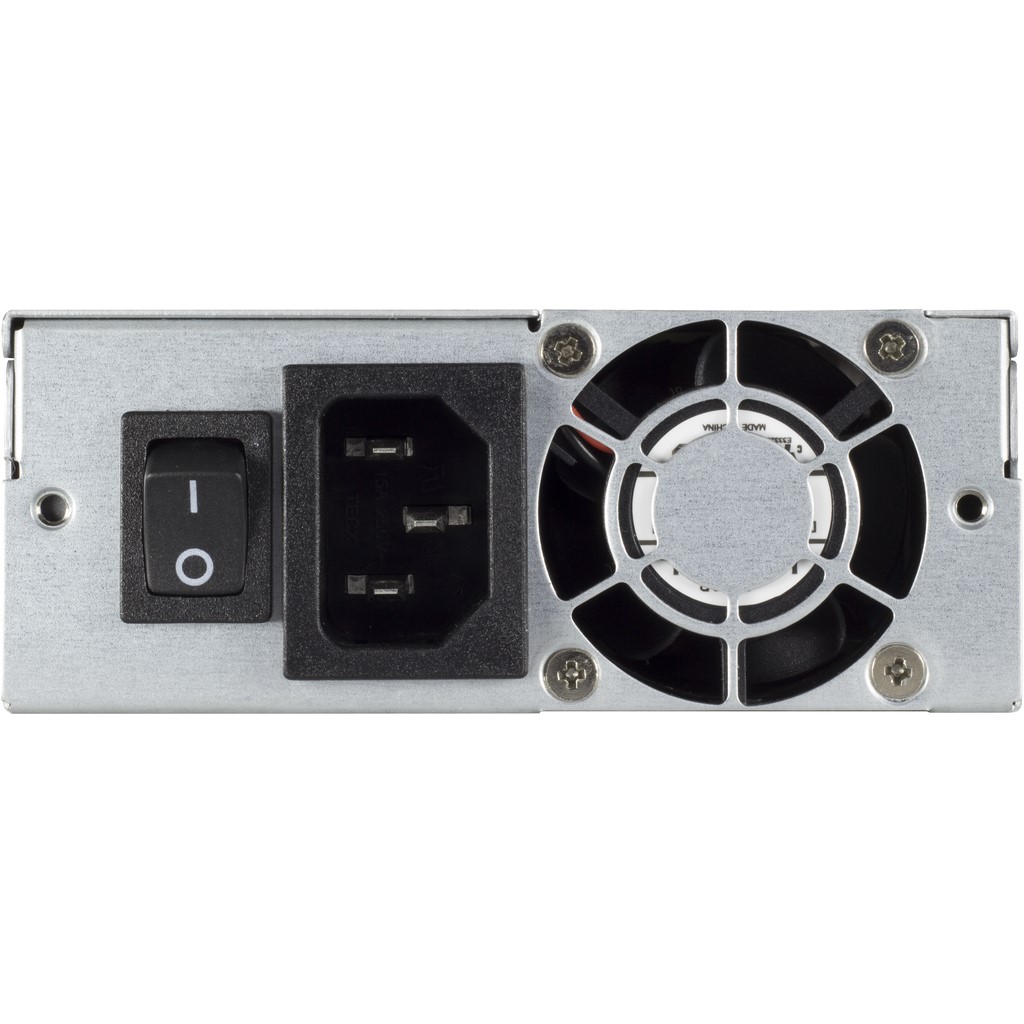

| Fans / -size | 1x 40mm |
| Fan control | auto |
| Full Range Input | auto |
| Redundancy | |
| 80PLUS® Certificate | 80PLUS® Silver |
| Operating Temperatur | 0°C to 50°C |
| Storage Temperatur | -40°C to 70°C |
| Dimension (h/w/d) | 40 x 100 x 205mm |
| Guarantee | 36 months |
| Safeties | OVP, SCP , OPP, OCP, OTP |
| MBTF | Average 100000h |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |

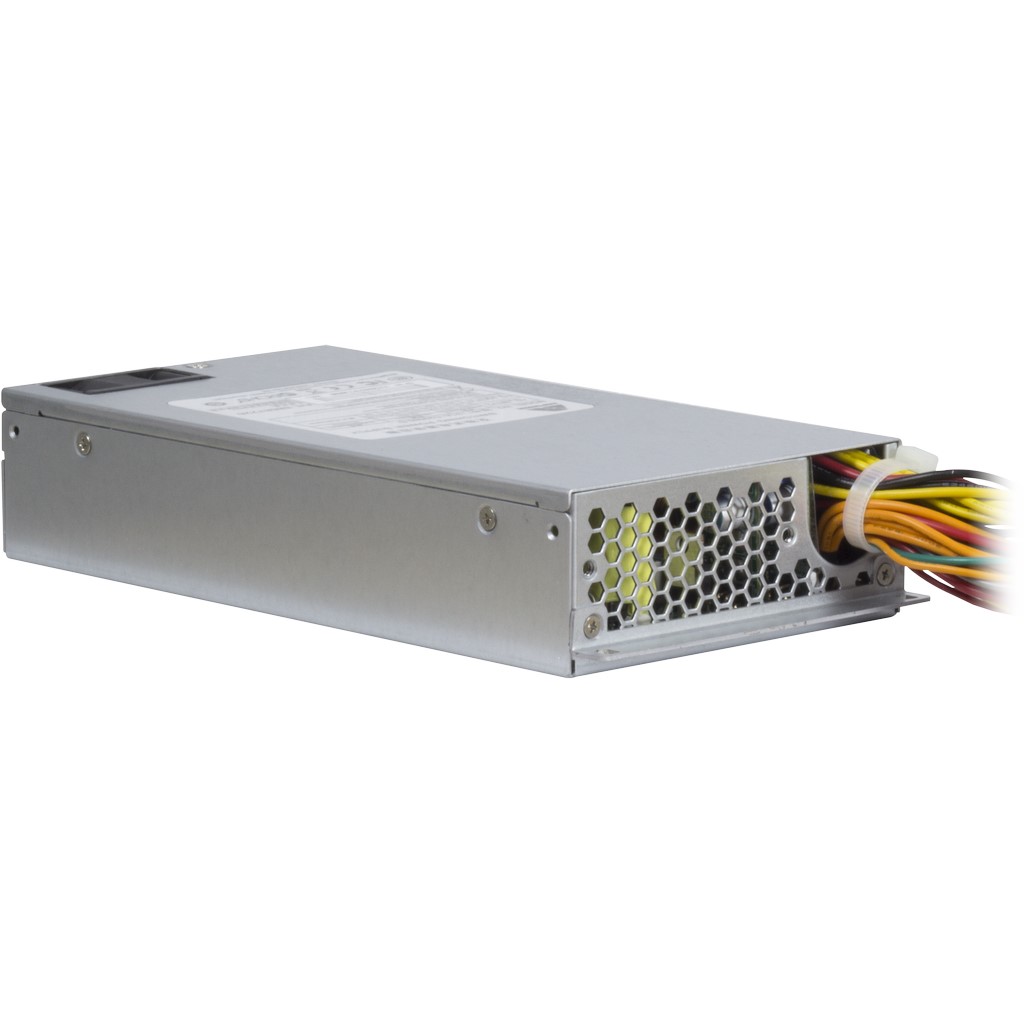

Power supply ASPOWER U1A-C20500-D |
| Features | |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| Packing Unit | 8 Pcs |
| Weight | net = 1.33kgs |
| Item number | 88887226 |
| EAN-Code | 4260455642255 |
PERFORMANCE DATA
| AC INPUT | VOLTAGE | CURRENT | FREQUENCY | ||||||
| 100-240V | 8A Max. | 50/60Hz | |||||||
| DC OUTPUT | + 5V | + 3.3V | + 12V | - 12V | + 5VSB | Max. 500W | |||
| 25A | 25A | 40A | 1A | 3A | |||||
| Attention: +5V & +3.3V combined max. 150W | |||||||||
CABLE CONFIGURATION
