TFX-350 RETAIL

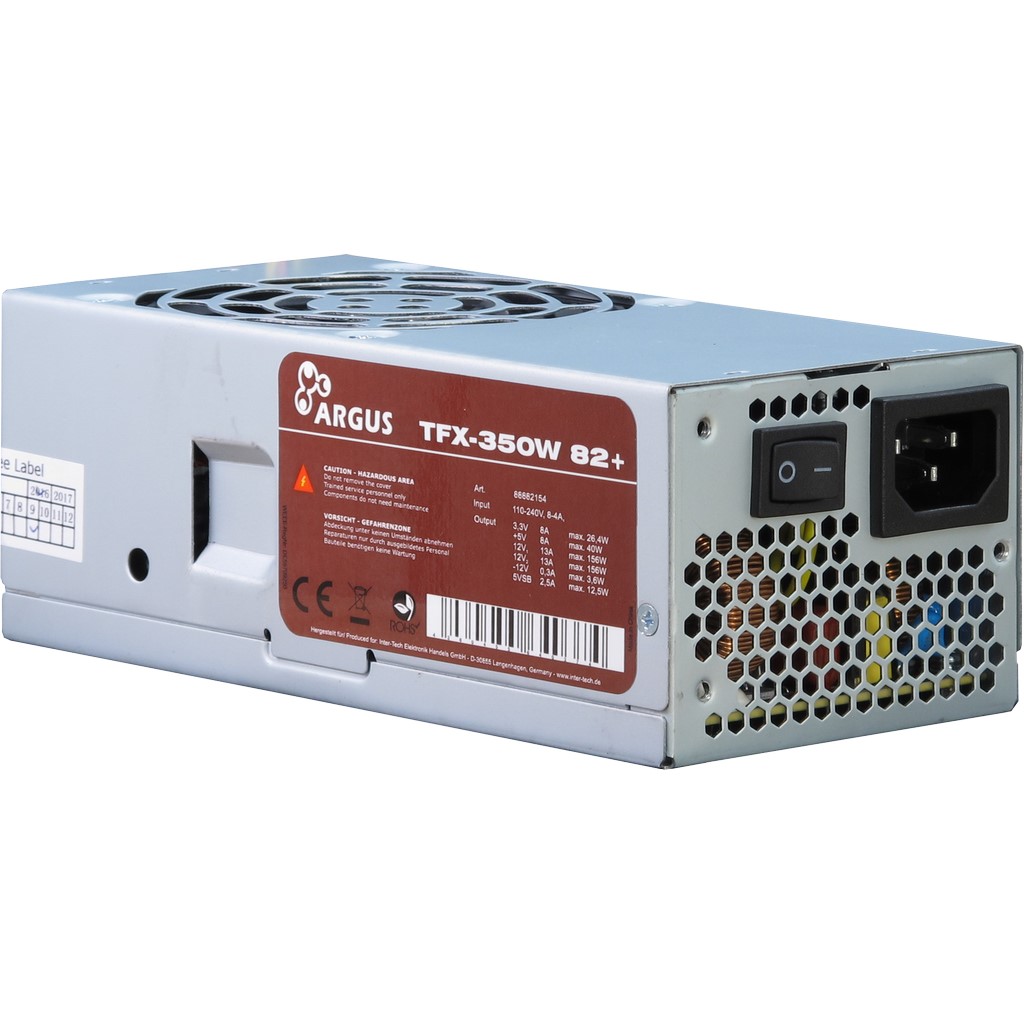

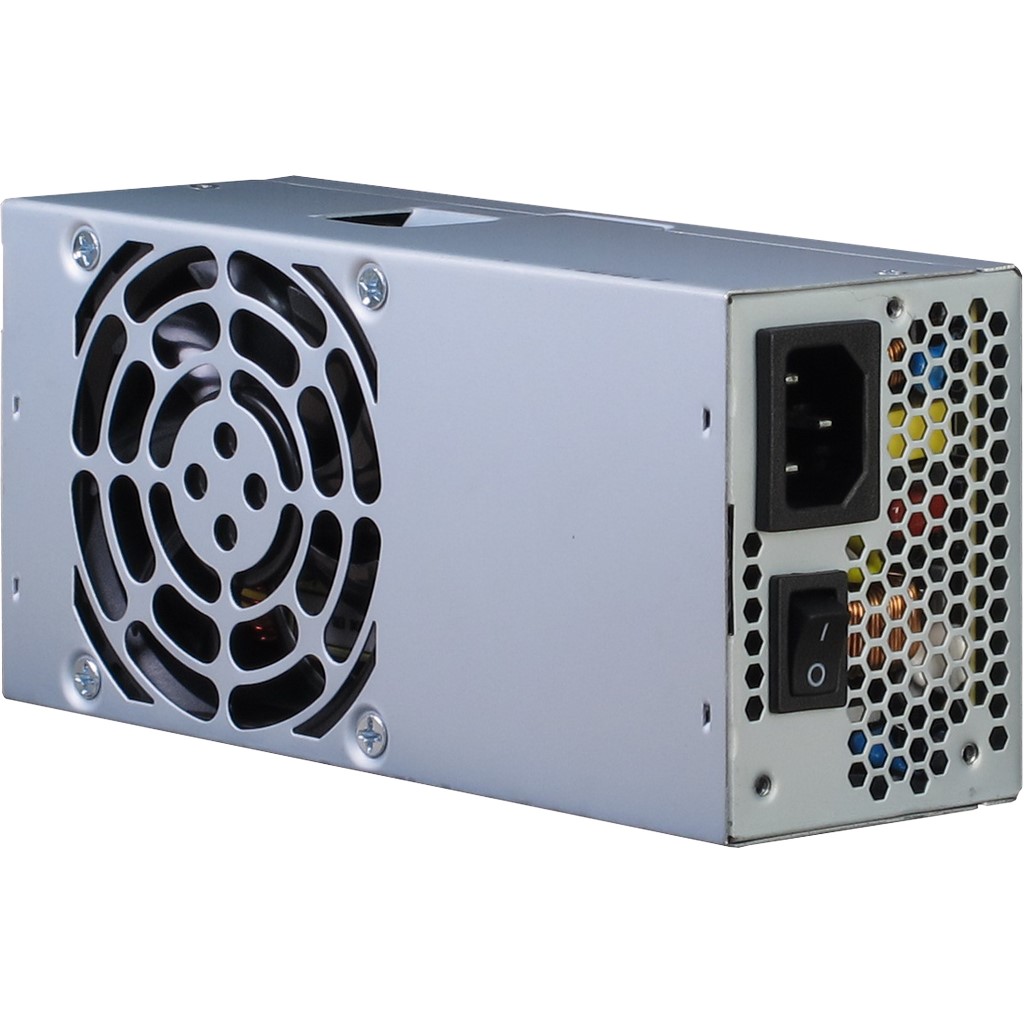

TFX-350W Retail - The ARGUS TFX-PSU with 82+
The TFX-350W is the perfect TFX-PSU for Desktop-Systems with particular performance requirements.
The PSU convinces due to several connection options. It also offers a PCIe 6+2pin plug to supply a separate graphics card with higher power consumption.
With an efficiency of more than 82+, the TFX-350W has a positive impact on your wallet and protects the environment.
| POWER & EFFICIENCY | |
|---|---|
| Output | 350Watt |
| TFX-Format | |
| CONNECTORS | |
| Mainboard 20+4Pin | 1x |
| 4Pin / 4+4Pin / 8Pin 12V | -/1/- |
| PCI-Express 6+2Pin | 1x |
| PCI-Express 6Pin | |
| IDE 4Pin (Molex) | 2x |
| S-ATA | 3x |
| Floppy | 1x |
| Fan monitoring | |
| OTHER DATA | |
| Fans / -size | 1x 80mm |
| Fan control | auto |
| Full Range Input | auto |
| PFC | active |
| 80PLUS® Certificate | |
| Dimension (h/w/d) | 65 x 85 x 175mm |
| Warranty | 24 months |
| Safeties | OVP, SCP , OCP, OS |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
Power supply TFX-350W Retail package Power cable Manual |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| Packing Unit | 10 Pcs |
| Weight | net = 0.99kgs gross = 1.27kgs |
| Item number | 88882154 |
| EAN-Code | 4260455640374 |
PERFORMANCE DATA
| AC~ Input |
Voltage | Current | Frequency | |||
| 110 - 240V | 8-4A | 50-60Hz | ||||
| DC = Output |
+ 3.3V | + 5V | + 12V1 | + 12V2 | - 12V | + 5VSB |
| 8A | 8A | 13A | 13A | 0.3A | 2.5A | |
| Max | 26.4W | 40W | 156W | 156W | 3.6W | 12.5W |
| 350W | ||||||

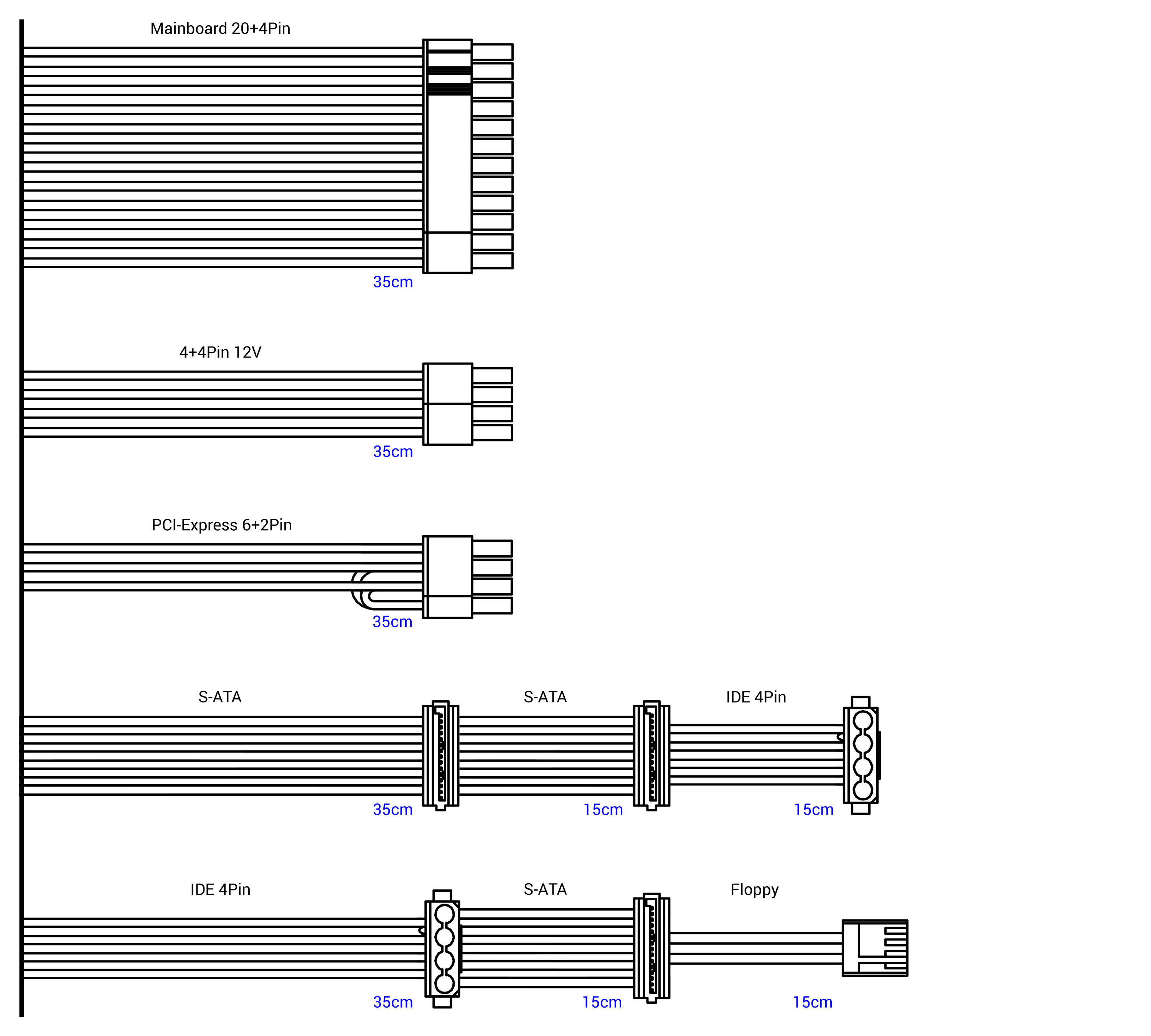

CABLE CONFIGURATION
