FLEX FA-250

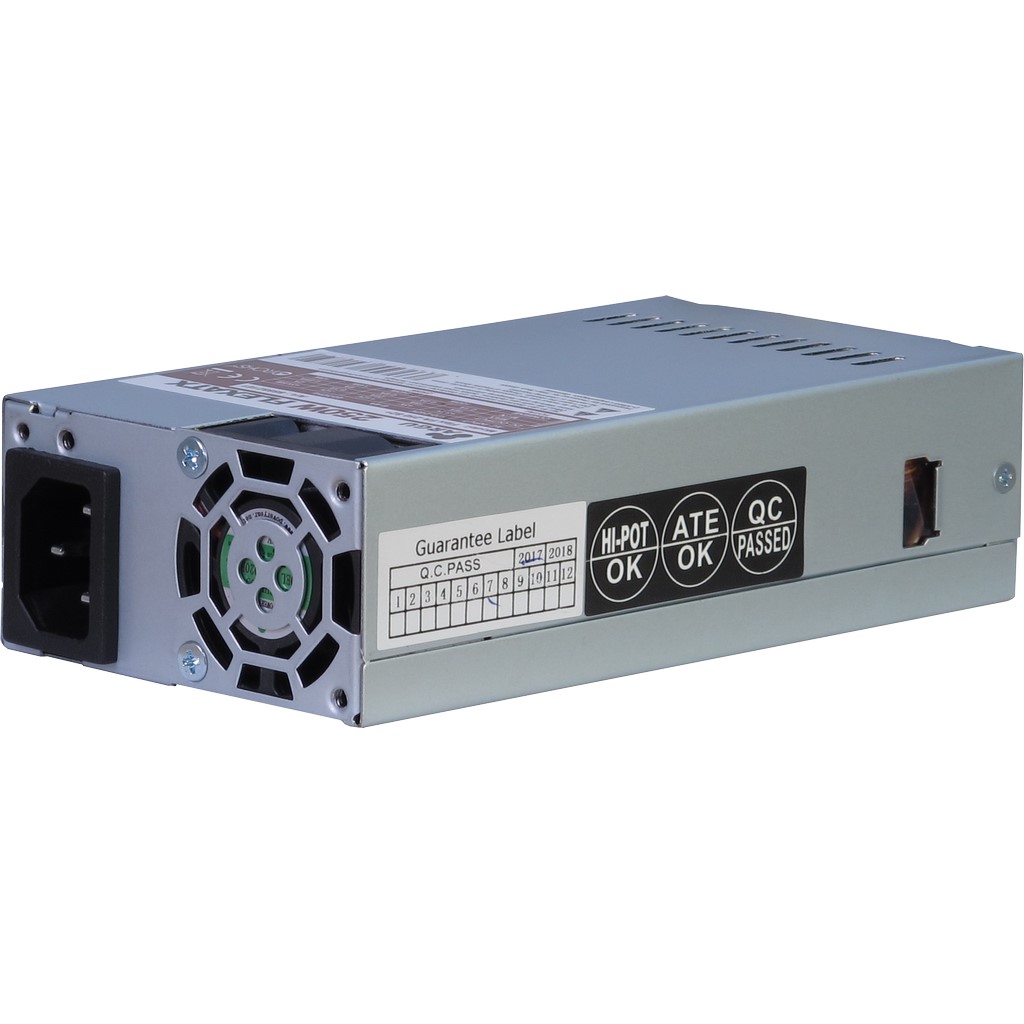

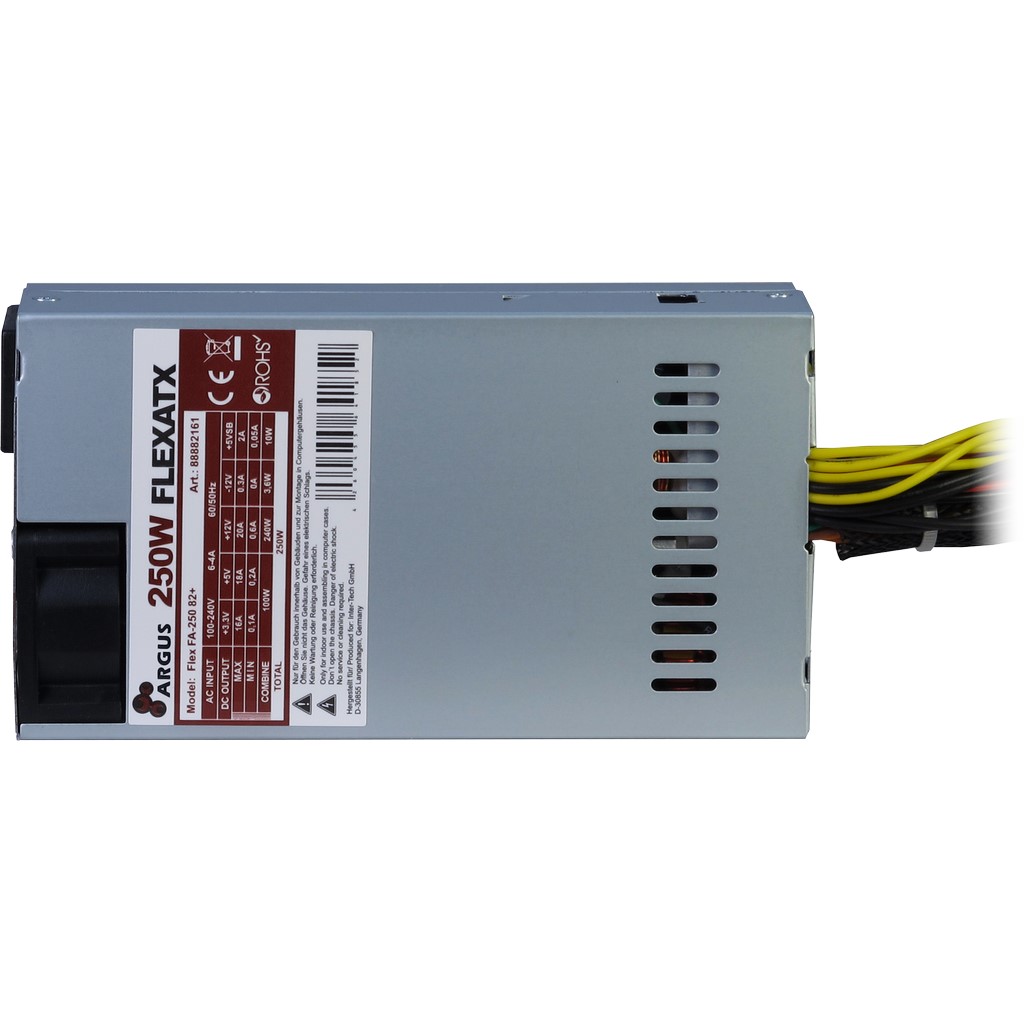

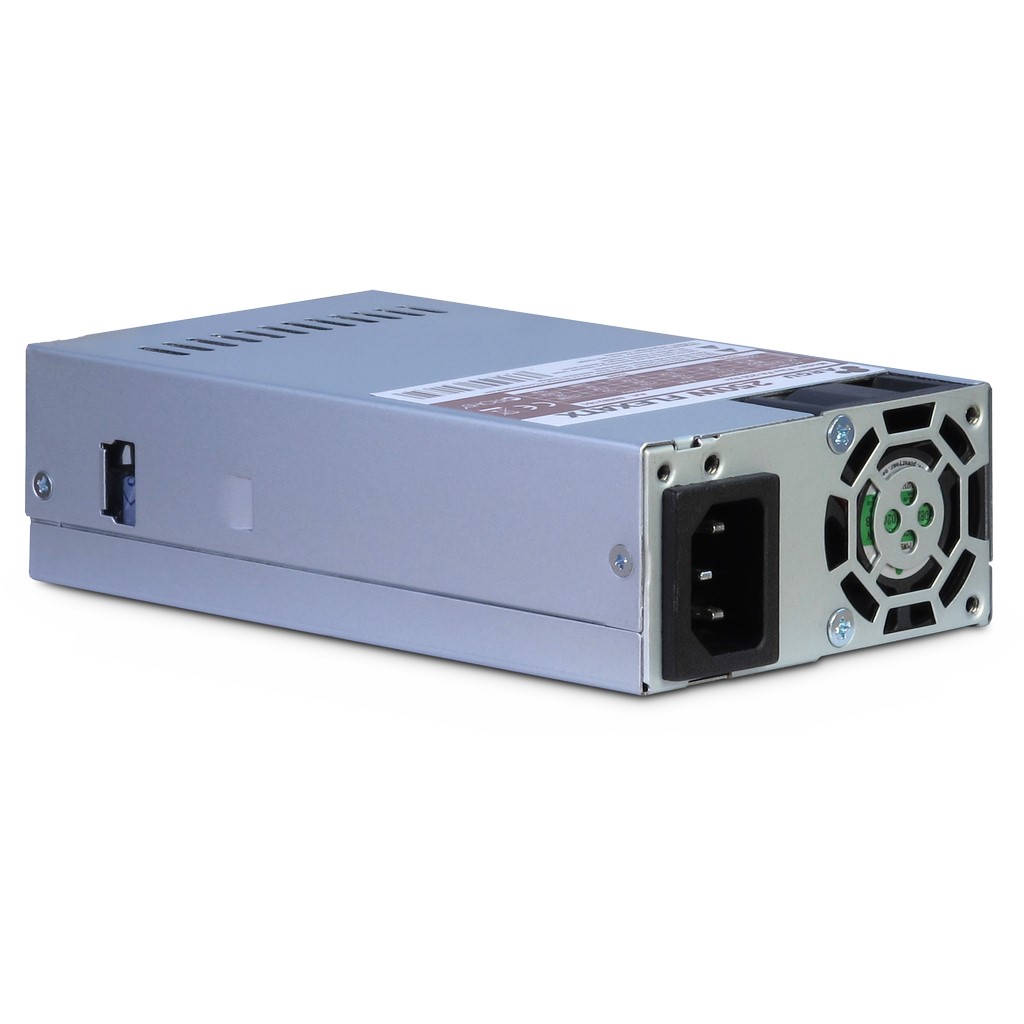

Argus FA-250 – Flex-ATX Power.
The Argus FA-250 is an industrial Flex-ATX power supply which meets the important EMI-, EMV- and safety standards.
The PSU is compliant to ATX 12V 2.31 and offers relevant protective functions. It offers active PFC (Power Factor Correction), a widerange input of 110-240V and efficiency of at least 82%.
Due to the length of the cables and a sleeved 20+4pin cable it ensures an easy and clean installation.
- Efficiency >82%
- PCI-Express plug
- Retail-package
- Warranty 2 years
| POWER & EFFICIENCY | |
|---|---|
| Output | 250Watt |
| Efficiency |
|
| CONNECTORS | |
| Mainboard 20+4Pin | 1x |
| 4Pin / 4+4Pin / 8Pin 12V | / / |
| PCI-Express 6+2Pin | |
| PCI-Express 6Pin | |
| IDE 4Pin (Molex) | 2x |
| S-ATA | 2x |
| Floppy | |
| Fan monitoring | |
| OTHER DATA | |
| Fans / -size | 1x 40mm |
| Fan control | auto |
| Full Range Input | auto |
| Redundancy | |
| 80PLUS® Certificate | |
| Dimension (h/w/d) | 41 x 82 x 150mm |
| Guarantee | 24 months |
| Safeties | OVP, OCP, SCP , OS |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
Power supply FA-250 Retail package power cord manual |
| Features | |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| Packing Unit | 18 Pcs |
| Weight | net = 0.76kgs gross = 1.01kgs |
| Item number | 88882160 |
| EAN-Code | 4260455641845 |
PERFORMANCE DATA
| AC Input | 100-240V 6-4A 60/50Hz | |||||
| DC Output | + 3.3V | + 5V | + 12V | - 12V | + 5VSB | |
| FA-250 | Max. Current |
16A | 18A | 20A | 0.3A | 2A |
| Min. Current |
0.1A | 0.2A | 0.6A | 0A | 0.05A | |
| Combine | 100W | 240W | 3.6W | 10W | ||
| Total | 250W | |||||
CABLE CONFIGURATION
