Product Recall
EN


SX-0816

Article No.
88887426
19"-PDU with 8 switchable C13 outlets for professional remote power distribution and monitoring in server and network cabinets. The maximum total load is 16 A, with each individual outlet capable of handling up to 10 A. Each port can be switched individually via remote access, enabling targeted control and a reboot function for connected devices.
The integrated monitoring system reliably records total current, total voltage, and total power, ensuring transparent energy monitoring. Additionally, a temperature and humidity sensor is integrated to ensure optimal environmental conditions in the rack and to enable an early response to critical changes.
Management is conveniently handled via a web interface or SNMP and supports a wide range of network protocols, including HTTP, HTTPS, DHCP, SNMP, TCP/IP, UDP, and email notifications. Customizable warning and alarm thresholds enable proactive monitoring and automatic notifications when thresholds are exceeded.
The PDU features one C20 input and eight C13 outputs and is ideal for data centers, server racks, network environments, and professional IT infrastructures where reliable power distribution, remote control, and environmental monitoring are required.





Compare aller PDUs



Features




Remote monitoring via web interface or SNMP
Measurement of current, voltage, and power (total measurement)
Configurable alert thresholds
HTTP/HTTPS, DHCP, SNMP
Email notifications
User management
Temperature and humidity measurement via built-in sensor

Input
Input voltage
Current
Connector
Length power cord
AC 100 - 240 V~, 50/60 Hz
max 3840W
1x C20
2 m

Output
Output voltage
Max. output
Max. output/ port
Connectors
AC 100 - 240 V~, 50/60Hz
16A
10A
8x C13

Remote-Control
Network
Protocols
1x RJ45, 10/100M
TCP/IP, UDP, HTTP, HTTPs, DHCP, SNMP, Mail

Safety
Over power protection
+

Environmental
Temperature

Humidity
0°C - 50°C (Operation)
-20°C - 60°C (Storage)
0% - 80% (Operation, non condensing)
0% - 85% (Storage, non condensing)

Scope of delivery

PDU

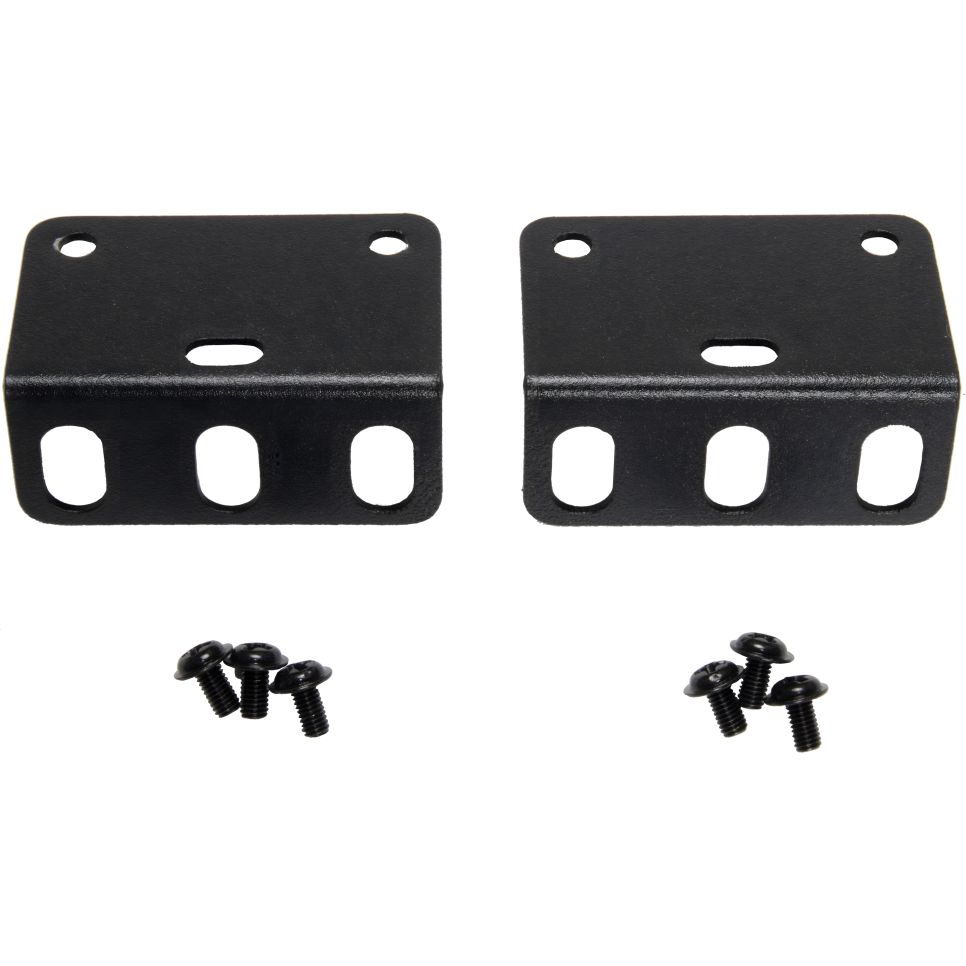

Mounting brackets and screws
C19 to C20 connection cable
Short instructions, English + German

Warranty

24 Months

Logistic data
Dimension
Net weight
Gross weight
Article number
GTIN
Packing unit
442 x 170 x 44 mm
2.30 kg
2.88 kg
88887426
4262531060007
1 pcs/ 4 pcs

Data sheet SX-0816
Download
Manual SX-0816
Download
Certificate manager/SNMP_MIB
Download
Firmware update_German_v2503
Download
Firmware update_German_v2506
Download
Install version 2503 first!
Declaration of Conformity SX-0816
Download
Pictures SX-0816
Download
