SM-1688

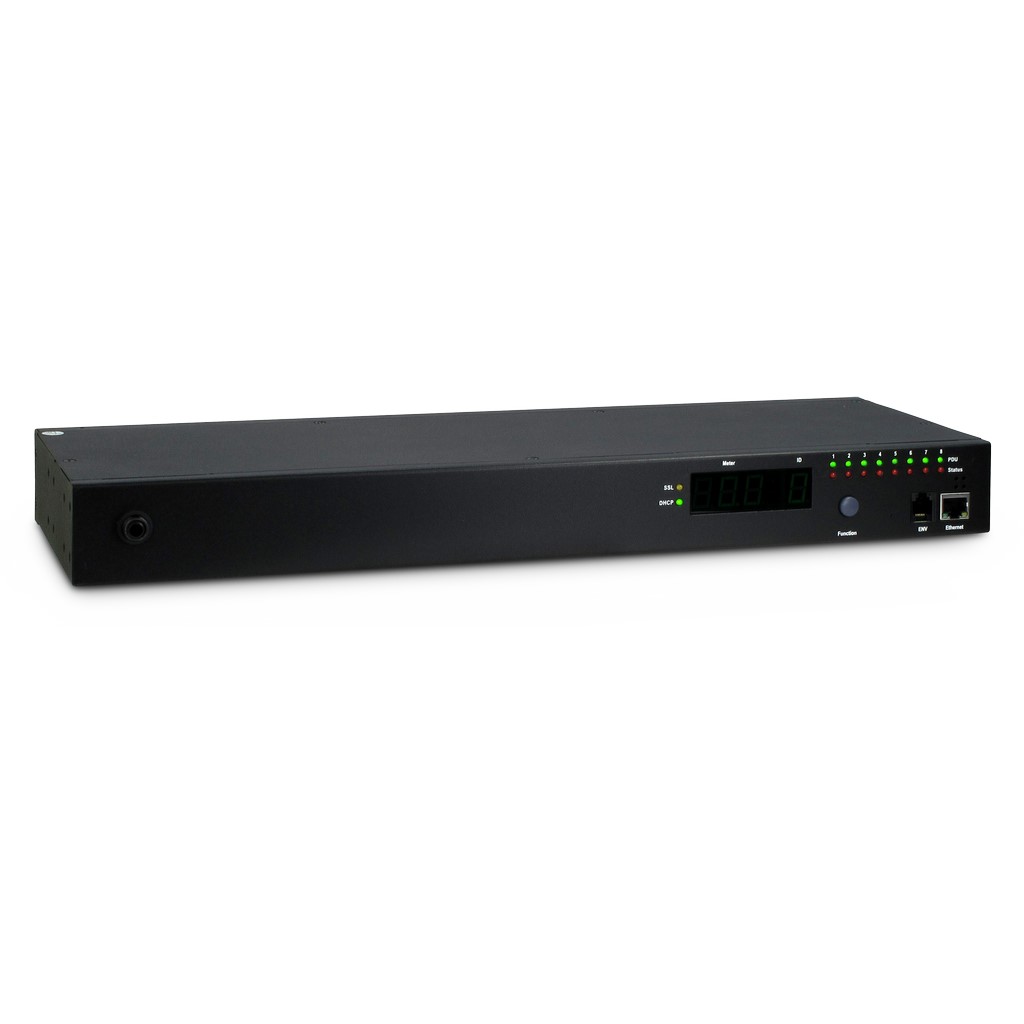

The PDU (Power Distribution Unit) SM-1688 is a switchable power board for 19" server cabinet, which can be operated through web interface and SNMP.
All 8 outputs can be switched individually via remote access and the individual current consumption and voltage can be queried via the web interface.

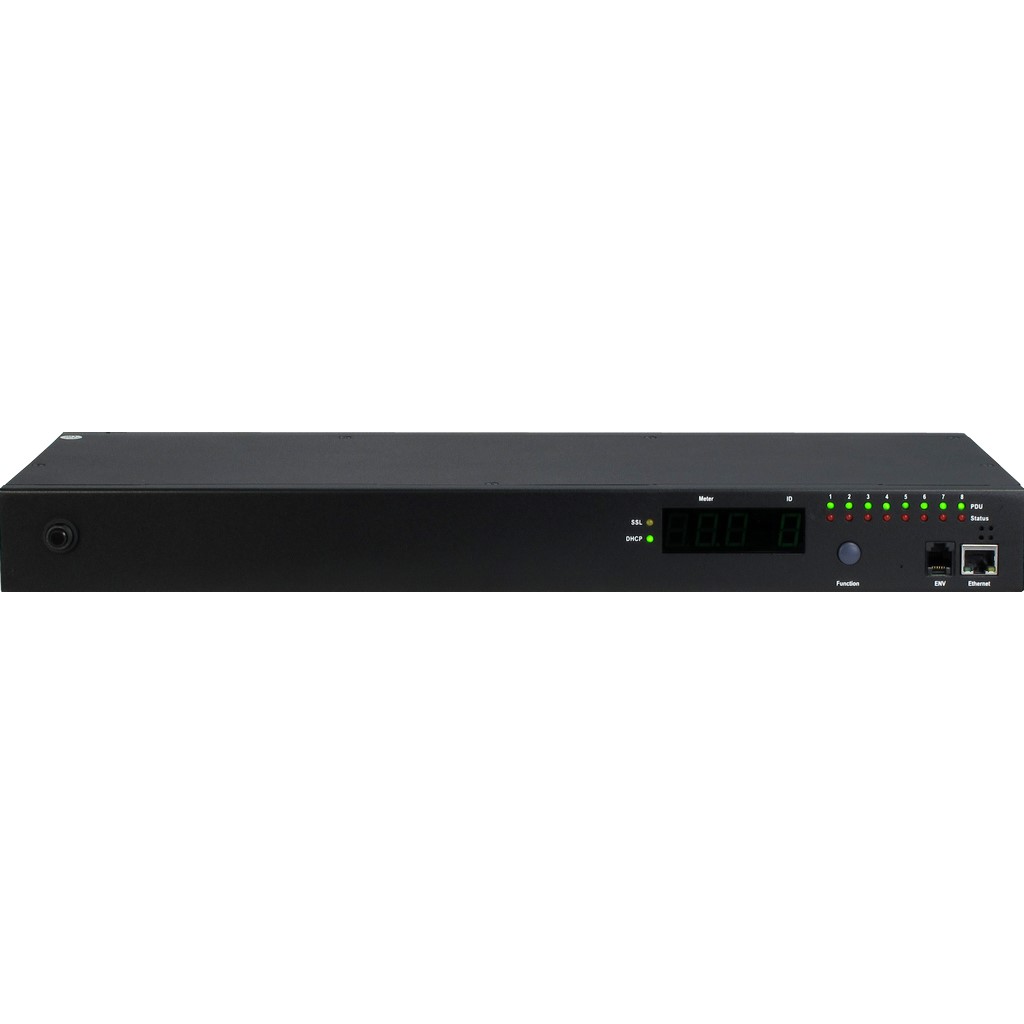

Over the integrated display, the power consumption of the selected output can also be shown.
Furthermore, the PDU SM-1688 can be connected to an external sensor to monitor the temperature and the humidity through web interface.
| GENERAL DATA | |
|---|---|

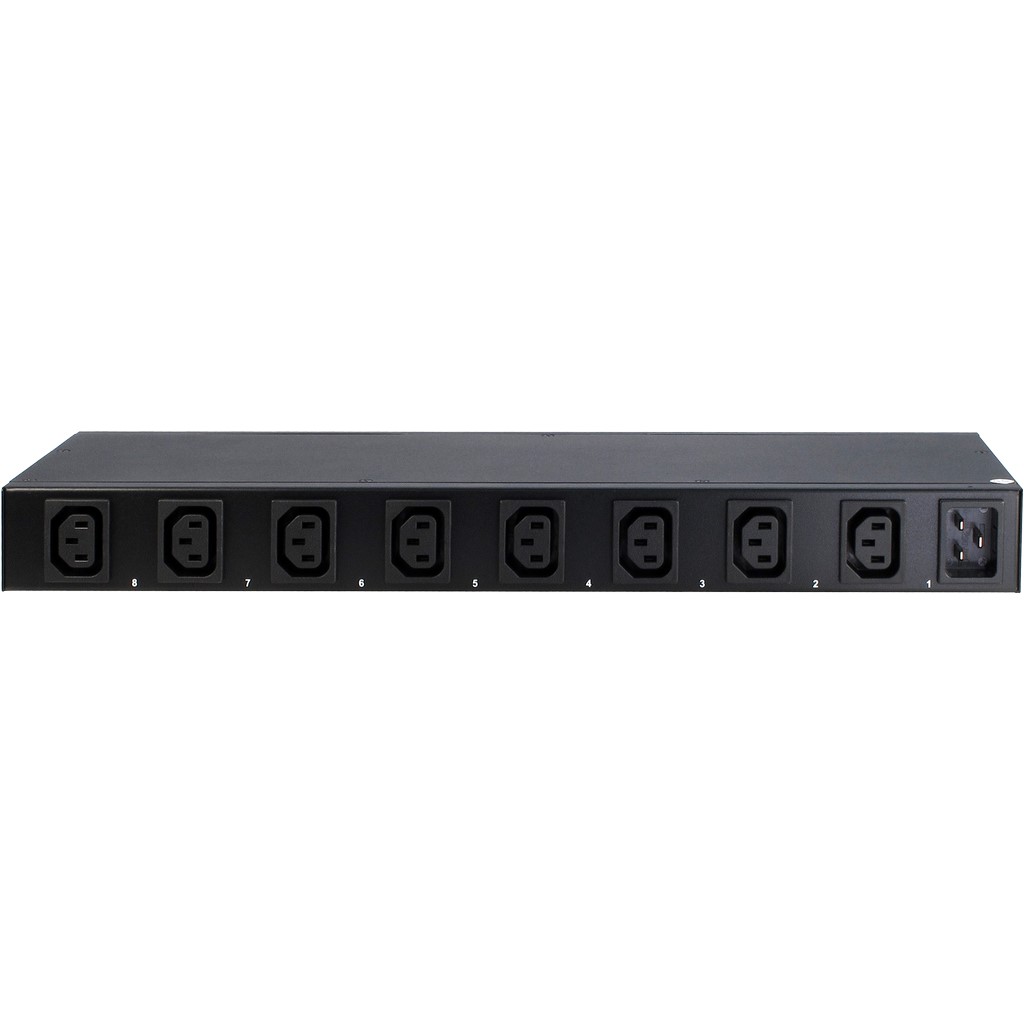

| Connector | 1x Power In (C20) 8x Power Out (C13) 1x RJ11 (PDU Bus) 1x RJ45 (LAN) |
| Controls | Automatic Cutout |
| LED / LED Display | Power Link Range |
| Material | 1.2mm Steel |
| OTHER DATA | |
| Dimension (h/w/d) | 45 x 432 x 165mm |
| Warranty | 24 months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
PDU SM-1688 Mounting Kit Connection Cable C20/C19 (2m) "PDU Utility", German and English User Manual on CD |
| Features |
Measurement of Current, Voltage and Output Web Interface HTTP, SNMP, DHCP, UDP, PFC Adjustable Alarm Function Maximum input current 16A Maximum output current 16A (total) Switching current per socket max. 10A |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| Weight | net = 2.875kgs gross = 3.715kgs |
| Item number | 88887071 |
| EAN-Code | 4260133125292 |
