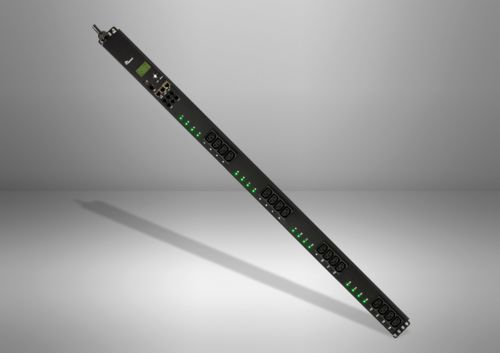

SA-1632WN
The PDU SA-1632WN is a switchable power strip, intended for installation in 19" server cabinets, which can be operated via web interface or SNMP.
All 16 outputs can be switched individually via remote access.
The individual current consumption and individual voltage can be queried via the web interface.
A cascade input and output allows to connect several PDUs of SA-series and control them together via one access.
Using the included sensor, temperature and humidity can monitored via the web interface.
Power will be come by a CEE 1-32 plug
Features
|
|
Remote Monitoring by Webinterface or SNMPMeasure of current, voltage and powerAdjustable warning valuesHTTP/HTTPS, DHCP, SNMPE-Mail notificationUser managementMeasure of temperatur and humidity using the included sensor |
Input |
Input voltageCurrentConnector |
AC 100 - 240 V~, 50/60 Hzmax 32A1x CEE 1-32, fixed |
Output |
Output voltageMax. outputMax. output/ portConnectors |
AC 100 - 240 V~, 50/60Hz32A, 7360W10A16x C13 |
Remote control
|
NetworkCascade input/outputTemperature sensorOther sensorsProtocols |
1x RJ45, 10/100M2x RJ45, 10/100M1x RJ116x RJ11TCP/IP, UDP, HTTP, HTTPs, DHCP, SNMP, Mail |
Safety |
Over power protection |
+ |
Environmental |
Temperature
|
0°C - 50°C (Operation)
|
Scope of delivery
|
|
PDU
|
Warranty |
|
24 Months |
Logistic data
|
DimensionNet weightGross weightArticle numberGTINPacking unit |
1126 x 66 x 44.5 mm3.000 kgs3.470 kgs8888739542604556489051 pcs/ 9 pcs |
