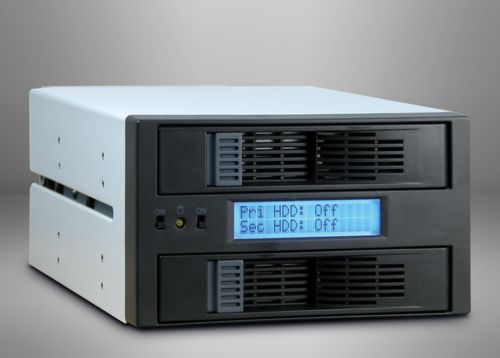

SB-C 102
Sub-RAID for two 2.5" or 3.5" S-ATA I, II, III hard drives.
This compact Sub-RAID system provides schools, public facilities, controllers in offices or even your own personal PC at home the opportunity for a high speed data back up. It’s the best option when you need high performance but don’t want to spend much money or time
The SB-C 102 operates on its own. Just plug it in, adjust it and here it goes!
Through the Hot Swap-Racks the hard disks can be changed while the PC is in actual operation.
| GENERAL DATA | |
|---|---|
| RAID-Level | RAID 1 |
| Processor | MSR 2044 |
| HDD Interface | 2x 2.5" or 3.5" S-ATA I, II, III |
| Capacity of HDD | up to 2TB |
| HDD Size | Standard 2.5" an 3.5" |
| Required Space | 2x 5.25"-Bay |
| Host Connector | S-ATA II |
| Max. Data Transfer Rate | 3Gbit/s |
| Supported OS | Win98/SE, Win 2000/ME, XP, Vista, 7, Linux |
| OTHER DATA | |
| User Interface | |
| Auto Rebuilding | |
| Hot Swap | |
| Plug & Play | |
| Power Switch | |
| Fan | 1x 80mm |
| Display | HDD State (HDD1 + HDD2) Alarm Recovery Process in % |
| LED | HDD Activity/Access |
| Alarm | HDD Error (optical, optional acoustical) |
| Switch | 2x Buttons to interrupt the backup process of the HDDs individually HighSpeed/NormalSpeed-Update Power Button |
| Power supply | 4Pin Molex |
| Material | Aluminum |
| Dimension (h/w/d) | 86 x 147 x 220mm |
| Warranty | 24 months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
Sub-RAID SB-C 102 Retail package Screw Set Manual (English) |
| Features |
Fan extern removable No waste of system resources thanks to MRS HighSpeed-Backup Technology |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| Packing Unit | 8 Pcs |
| Weight | net = 1.62kgs gross = 1.86kgs |
| Item number | 88887005 |
| EAN-Code | 4260133122055 |
