ST-5255

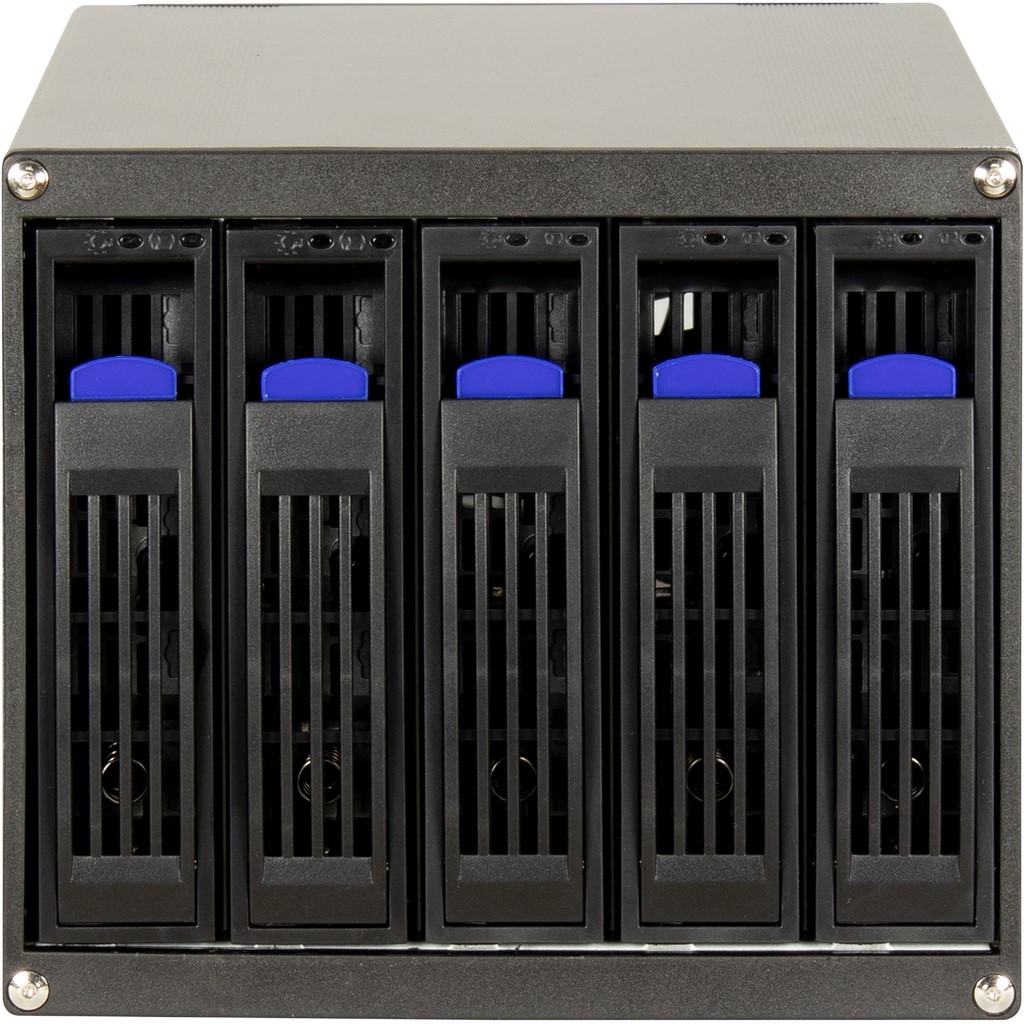

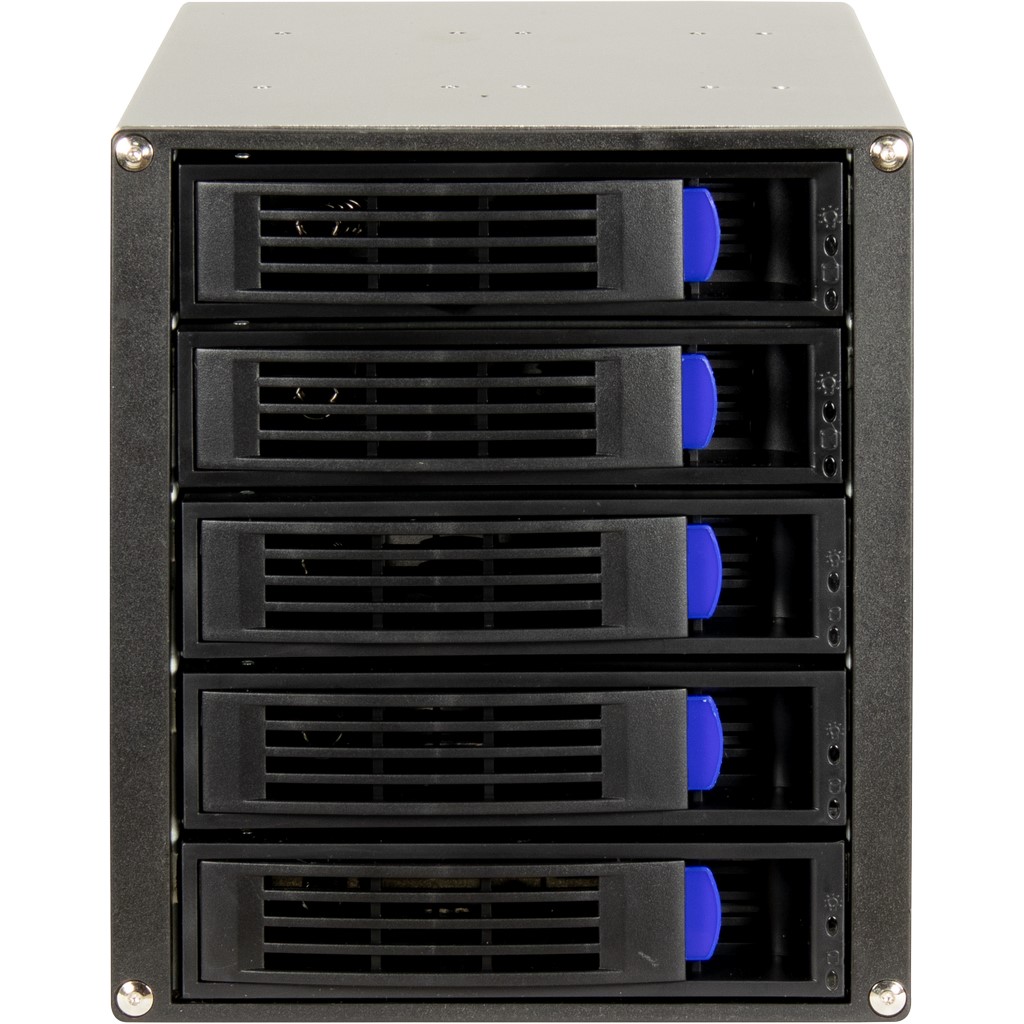

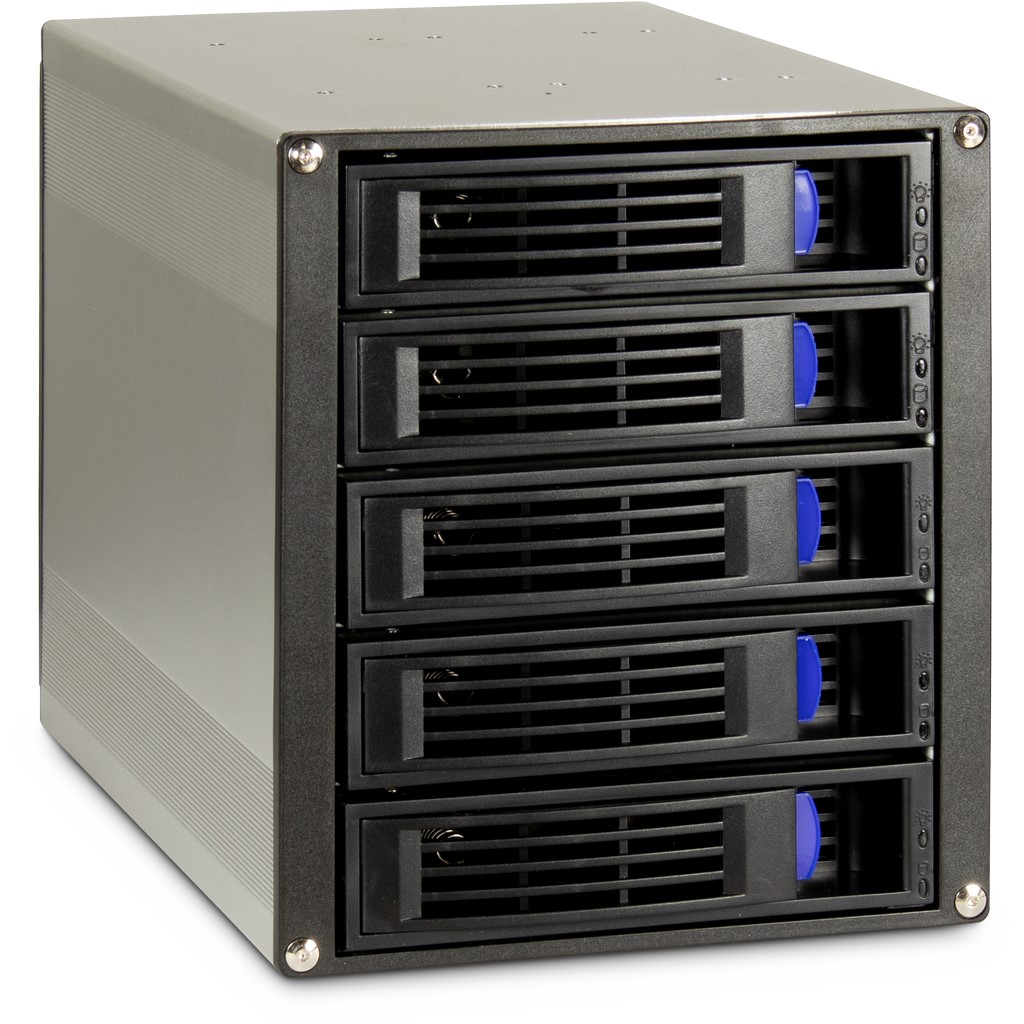

The ST-5255 is a 5-bay removable rack for 2.5"or 3.5" hard disks that can be mounted in three 5.25" bays. It supports speeds of up to 6 Gb/s and offers the option of a RAID configuration of the installed hard disks (RAID controller required).

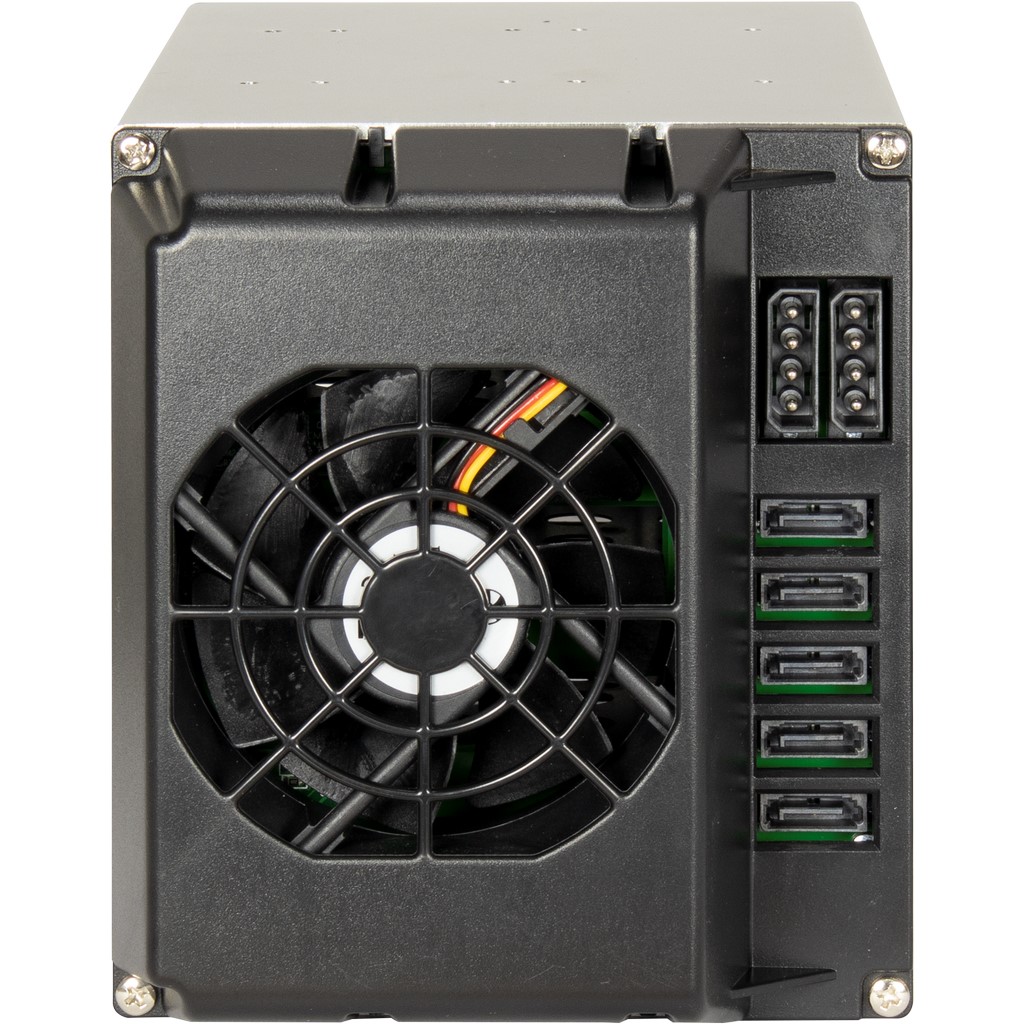

The hard disks are connected via five individual S-ATA cables (not included), and the power is supplied via two 4pin Molex. An integrated 80mm fan also ensures optimal cooling of the installed hard drives.

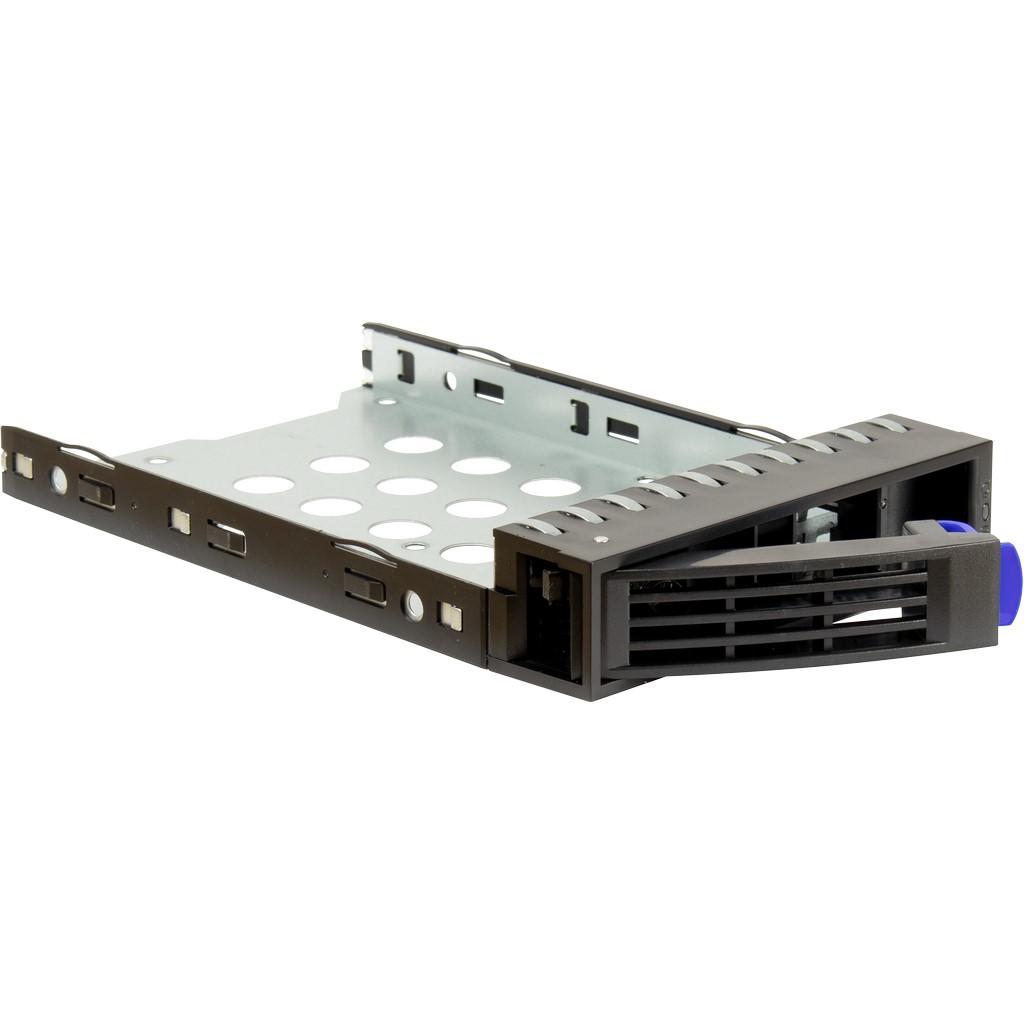

- 5-way removable frame for 2.5" or 3.5" hard drives
- SAS or up to S-ATA III (6Gb/s)
- RAID support (controller required)
- Integrated 80mm fan as standard
Please note! By use in combination with an Intel Onboard S-ATA-Controller the Controller has to be set to RAID-Mode (Hot-Plug will be set automatically) or every port separately to "Hot-Plug/external Port" (depends on your BIOS). If these settings are not available in your BIOS, maybe an error-free use is only possible by using an additional S-ATA-Controller.
| GENERAL DATA | |
|---|---|
| Required Space | 3x 5.25"-Bay |
| HDD Connectors | 5x S-ATA or SAS |
| HDD Size | Standard 3.5" or 2.5" |
| Interface | SAS or S-ATA I, II, III |
| Controller Connectors | 5x S-ATA |
| Max. Data Transfer Rate | 6 Gbit/s |
| OTHER DATA | |
| Hot Swap | |
| Plug & Play | |
| Fan | 1x 80mm ball-bearing |
| LED | 5x HDD Access |
| Controls | |
| Power connections | 2x 4Pin Molex |
| Material | Aluminum & Plastic |
| Dimension (h/w/d) | 127 x 145 x 225mm |
| Warranty | 24 months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
ST-5255 Retail package |
| Features |
Hot-Swap Electromagnetically shielded Redundant 4Pin Molex power connectors Supports all operating systems Ball bearing 80mm fan Supports RAID 0, 1, 5, 6, 10 (RAID controller required) |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| Packing Unit | 6 Pcs |
| Weight | net = 2.21kgs gross = 2.46kgs |
| Item number | 88887370 |
| EAN-Code | 4260455647502 |
