| POWER & EFFICIENCY | |
|---|---|
| Output | 300Watt |
| ATX-Version | 2.2 |
| CONNECTORS | |
| Mainboard 20+4Pin | 1x |
| 4Pin / 4+4Pin / 8Pin 12V | / / |
| PCI-Express 6+2Pin | |
| PCI-Express 6Pin | |
| IDE 4Pin (Molex) | 2x |
| S-ATA | 2x |
| Floppy | 1x |
| Fan monitoring | |
| OTHER DATA | |
| Fans / -size | 1x 80mm |
| Fan control | auto |
| Full Range Input | |
| PFC | passive |
| 80PLUS® Certificate | |
| Dimension (h/w/d) | 63.5 x 125 x 100mm |
| Warranty | 24 months |
| Safeties | OVP, SCP , OPP, OS |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |

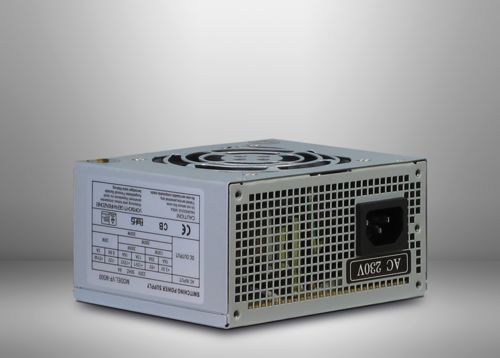

Power supply VP-M300 Power cable |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| Packing Unit | 10 Pcs |
| Weight | net = 0.75kgs |
| Item number | 88882015 |
| EAN-Code | 4260133121003 |
PERFORMANCE DATA
| AC Input | 230V 6A 50Hz | ||||||
| DC Output | + 3.3V | + 5V | + 12V1 | + 12V2 | - 12V | + 5VSB | |
| VP-M300 | max. current | 16A | 20A | 13A | 16A | 0.8A | 2A |
| max. combined Power | 130W | 200W | 20W | ||||
| 280W | |||||||
| 300W | |||||||
CABLE CONFIGURATION
