S-3901 IMPULSE
S-3901 Impulse – RGB meets Design
Are you looking for a special case, that moves your lighting concept into new spheres? Then the S-3901 Impulse is just right for you!

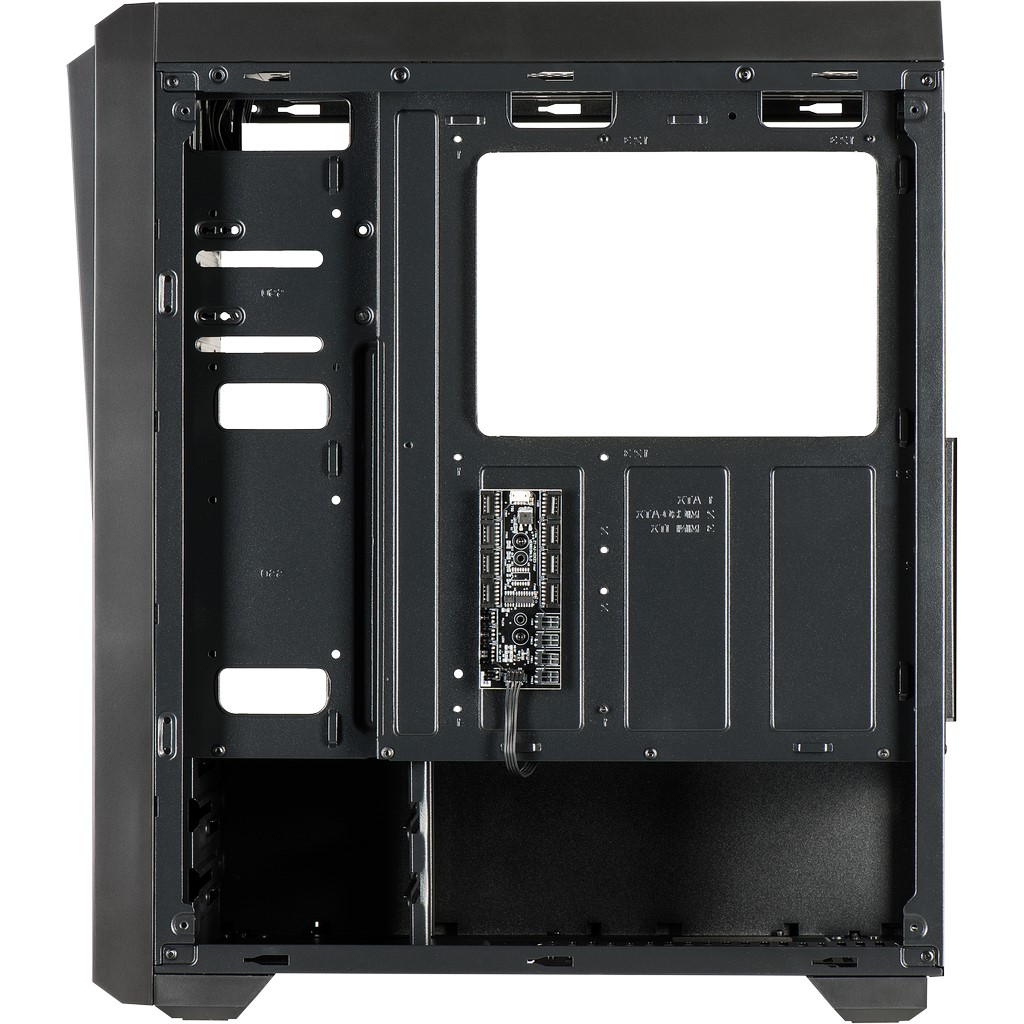

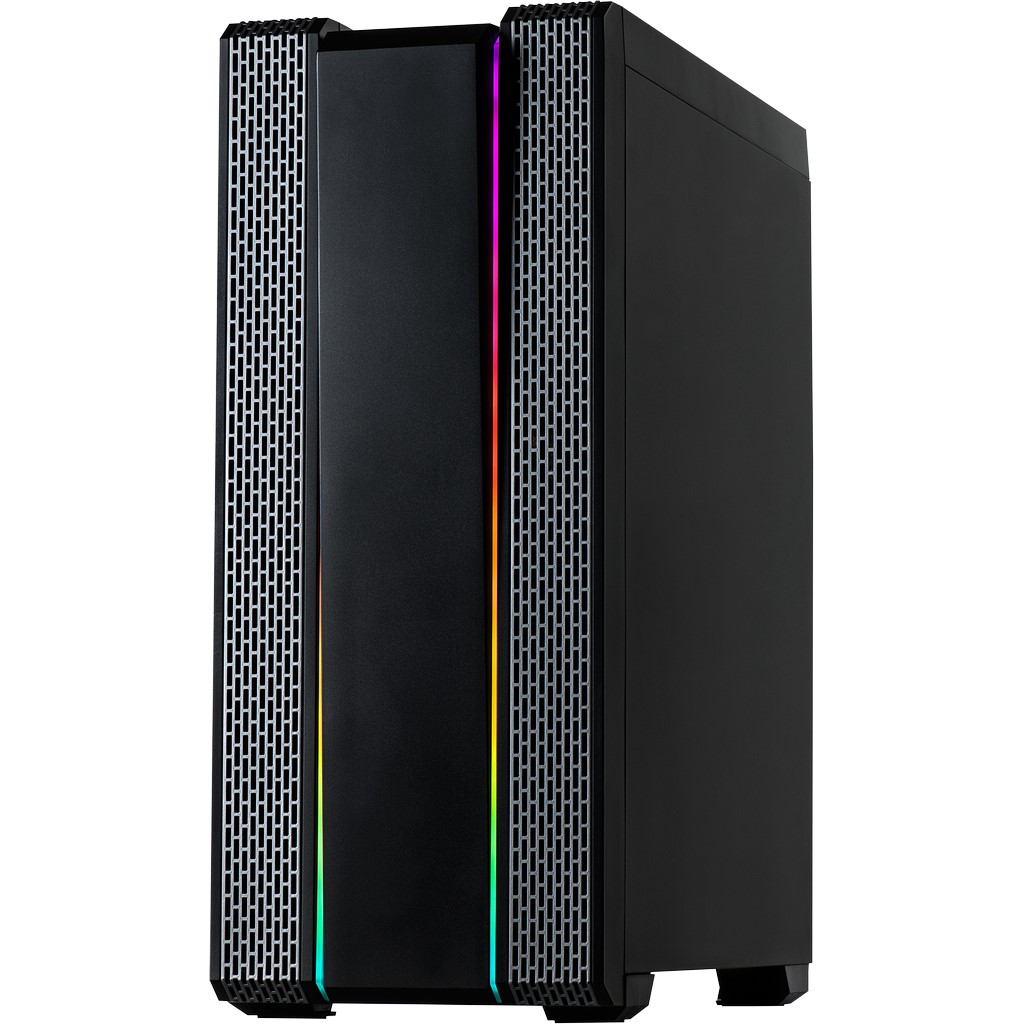

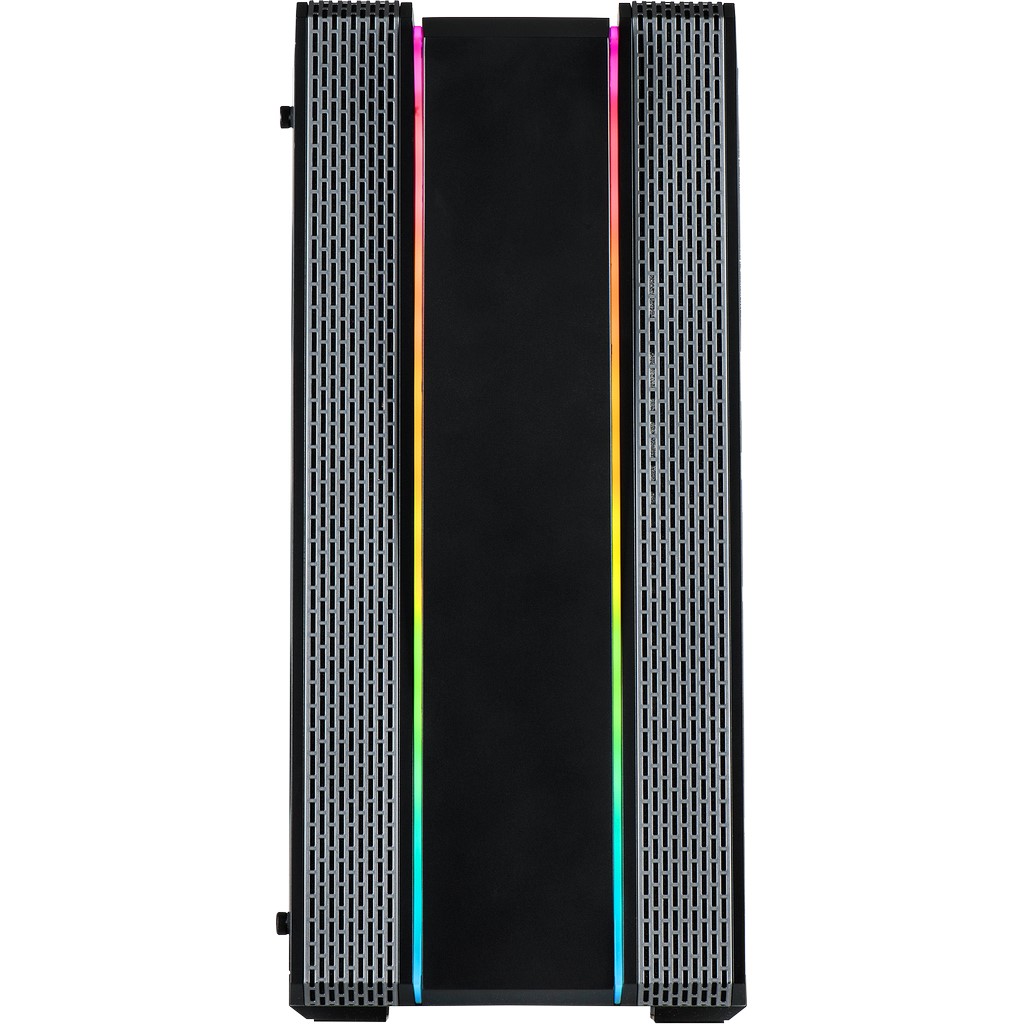

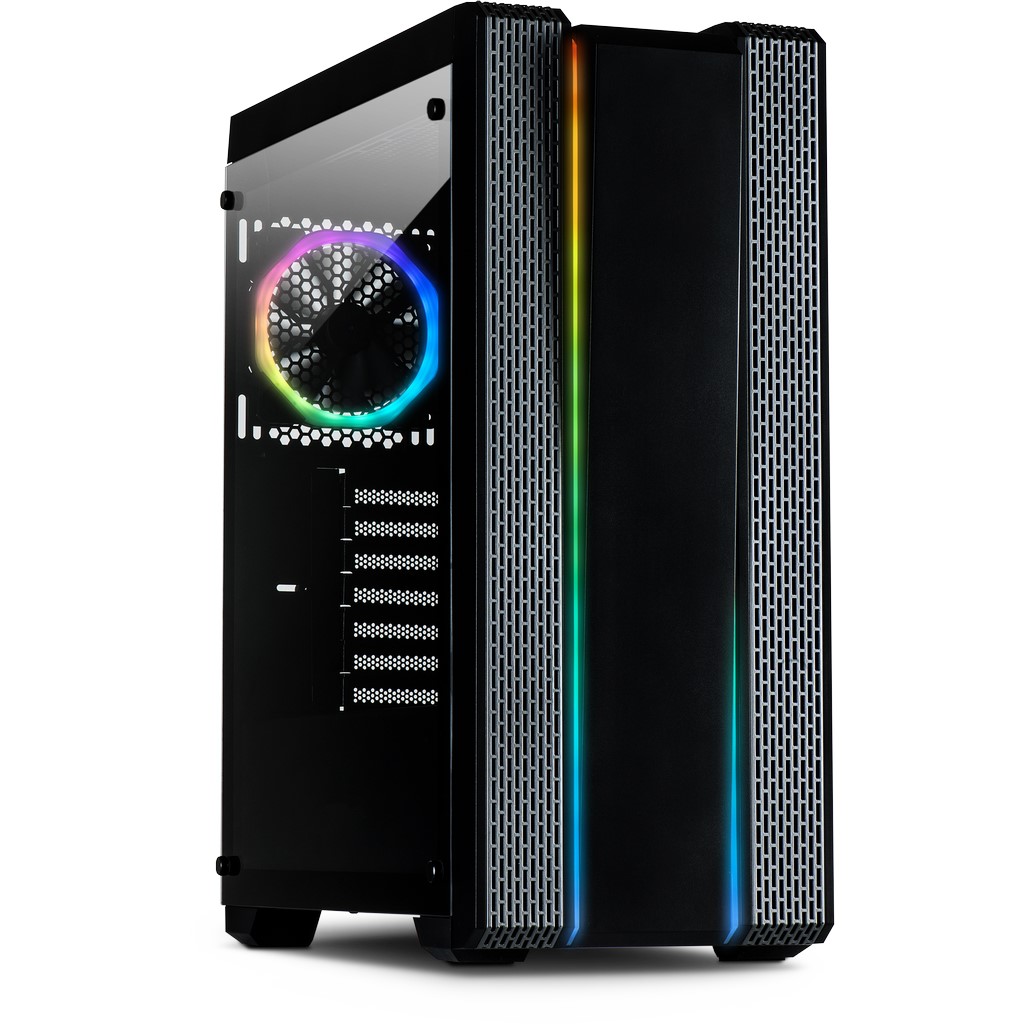

A slightly tinted Tempered Glass side panel and two RGB LED strips, which run over the front panel and the whole top of the case, make the S-3901 the ideal candidate for a high-end system with elaborate LED lighting. This is not only due to the standard 120mm RGB LED fan, that is installed on the rear panel, but also because of the digital 5V RGB control board, which accommodates up to 7 additional RGB fans, which are managed via the RGB motherboard control header. Space for up to four additional 3-pin fans round off the connection variety of the integrated circuit board.

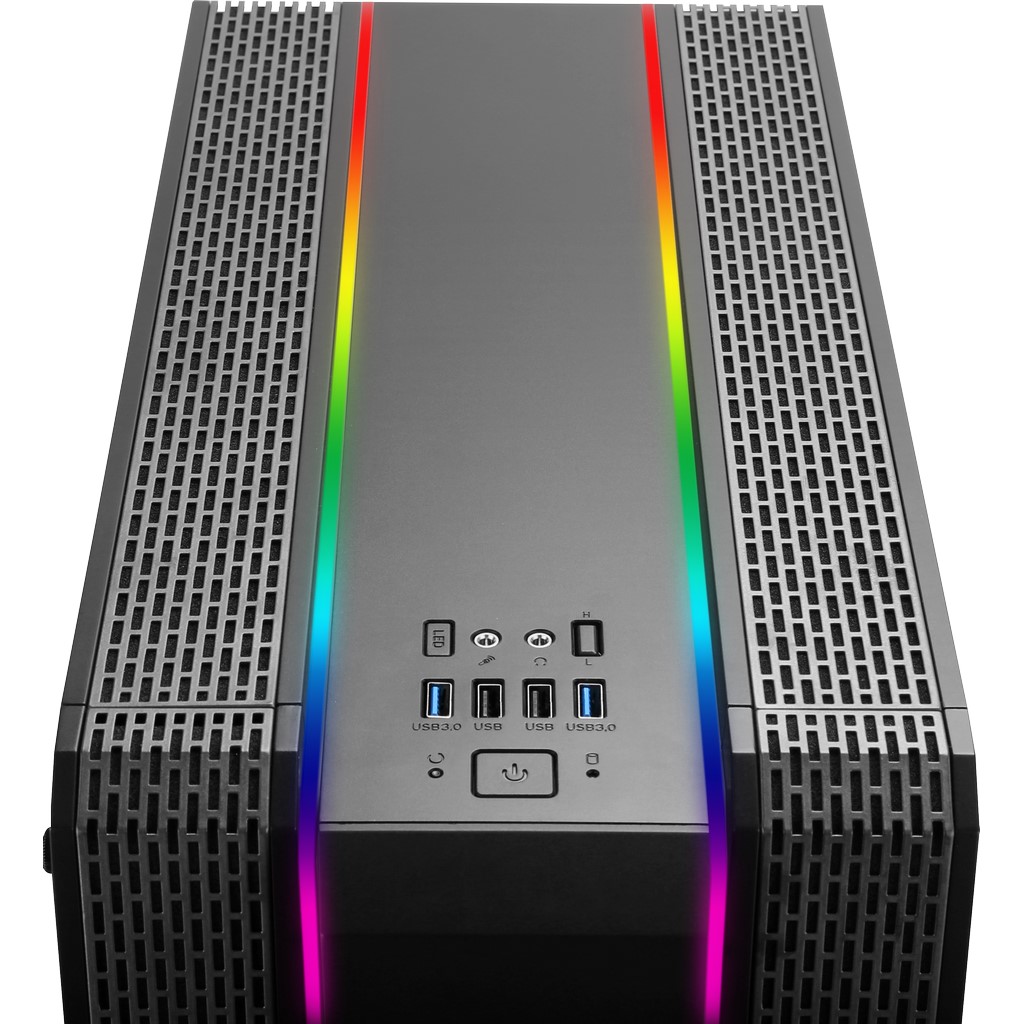

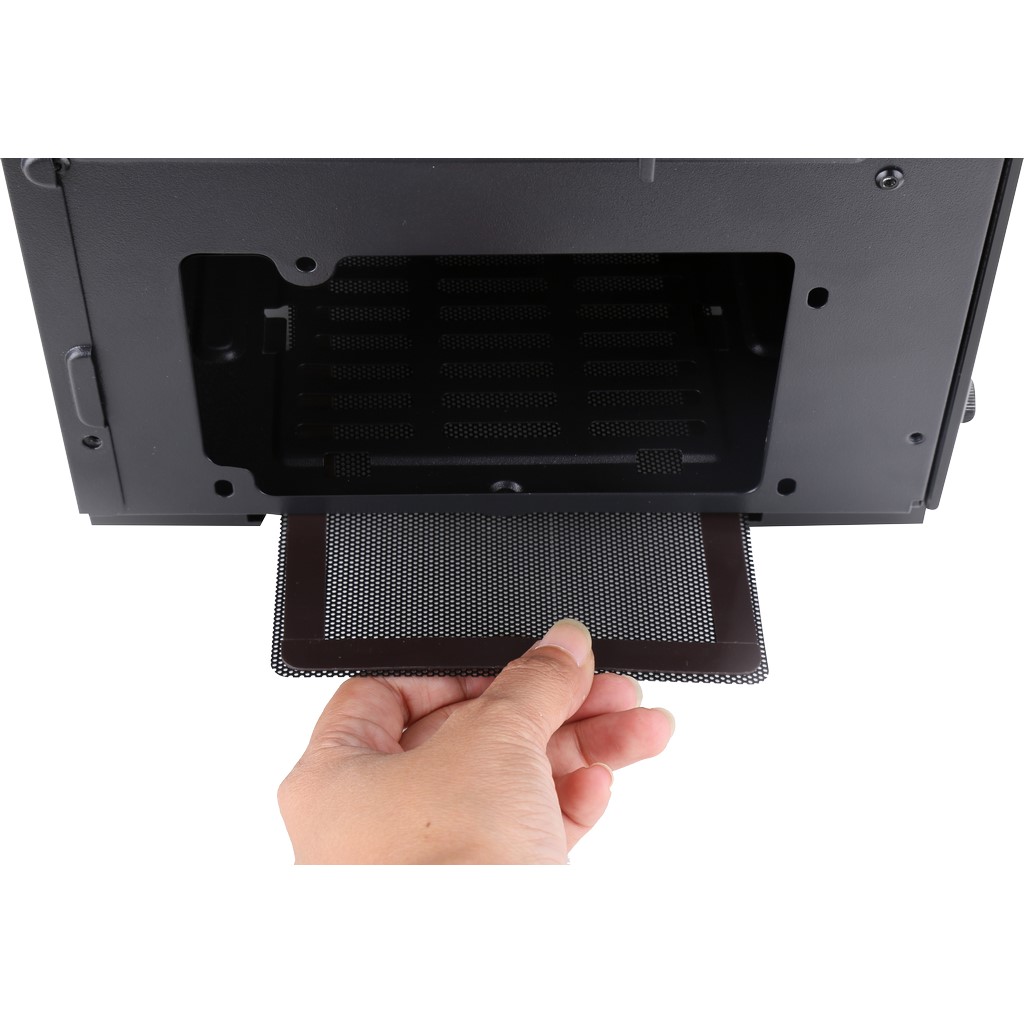

In the top of the case are, in addition to the LED strips, fixed dust filter inserts and the controls. In addition tot wo USB 2.0 and USB 3.0 ports and HD audio jacks, there is a slider to set the fan speed (Off/Low/High) and a switch for manually switching through the LED effects. Another removable dust filter under the power supply and a variety of ways to lay the cables, complete the offer.
- RGB control board (allows effects like running light or rainbow)
- 3pin RGB header connector for digital 5V RGB motherboard control
- Includes two RGB LED strips and a 120mm RGB fan
- Side panel made of Tempered Glass
SIZE | |
---|---|
Form factor | ATX, μATX, ITX |
Dimensions (h/w/d) | 505 x 215 x 455mm |
INSTALLATION DIMENSIONS | |
Height CPU cooler (max.) | 175mm |
Length graphics card (max.) | 275mm |
DRIVE BAYS | |
5.25" external | |
3.5" external | |
3.5" internal | 2x |
2.5" internal | 2x |
FRONT CONNECTORS | |
USB 3.0 | 2x |
USB 2.0 | 2x |
Card Reader | |
Microphone | 1x |
Headphones | 1x |
POWER SUPPLY | |
ATX-PSU | |
FAN MOUNTING OPTION | |
Front | 3x 120mm or 2x 140mm (optional) |
Rear | 1x 120mm (serial, RGB, 6pin connector) |
Top | 2x 120mm or 2x 140mm (optional) |
GUARANTEE / WARRANTY | |
Warranty | 24 months |
SCOPE OF DELIVERY & FEATURES | |
Scope of delivery |
Case Retail packaging Screw set Manual (German, English) |
Features |

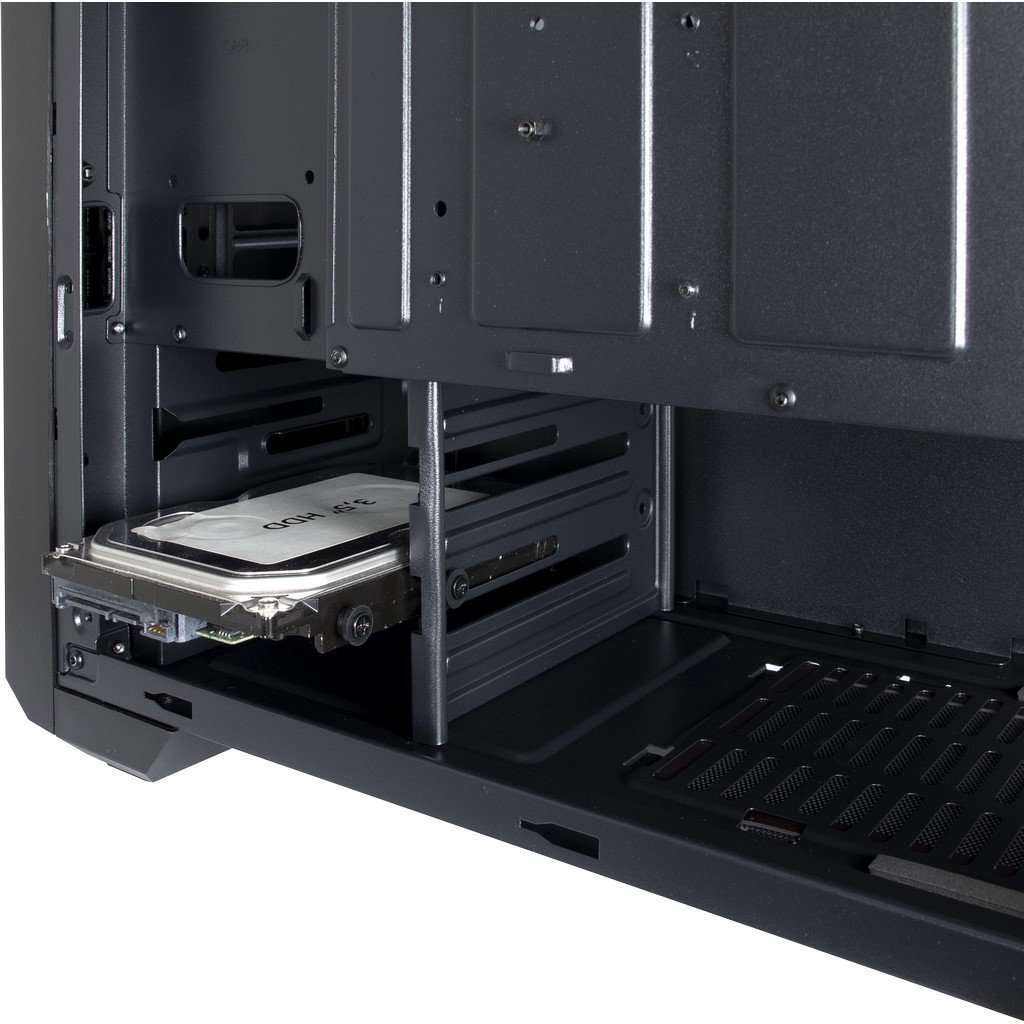

Front panel and top with two RGB light strips Side panel made of Tempered Glass 1x 120mm RGB fan at the rear included 3pin RGB header connector for 5V RGB motherboard control LED switch to change colour effects RGB control board for up to 7 additional RGB fans with specific 6pin connector and four 3pin fans Manual fan control via slider in the top Two 3.5" bays below the motherboard carrier with separate airflow Place for water cooling in sizes of 120mm and 240mm Power supply adapter in a separate cage in the bottom part Openings for easy laying of cables Easy removable dust filter below the power supply Slot plates screwed and mesh grid Stands |
LOGISTICAL DATA | |
Shipping Unit | 1 Pcs |
EU palett | 24 Pcs |
Weight | net = 6.78kgs gross = 8.04kgs |
Item number | 88881272 |
EAN-Code | 4260455641371 |
