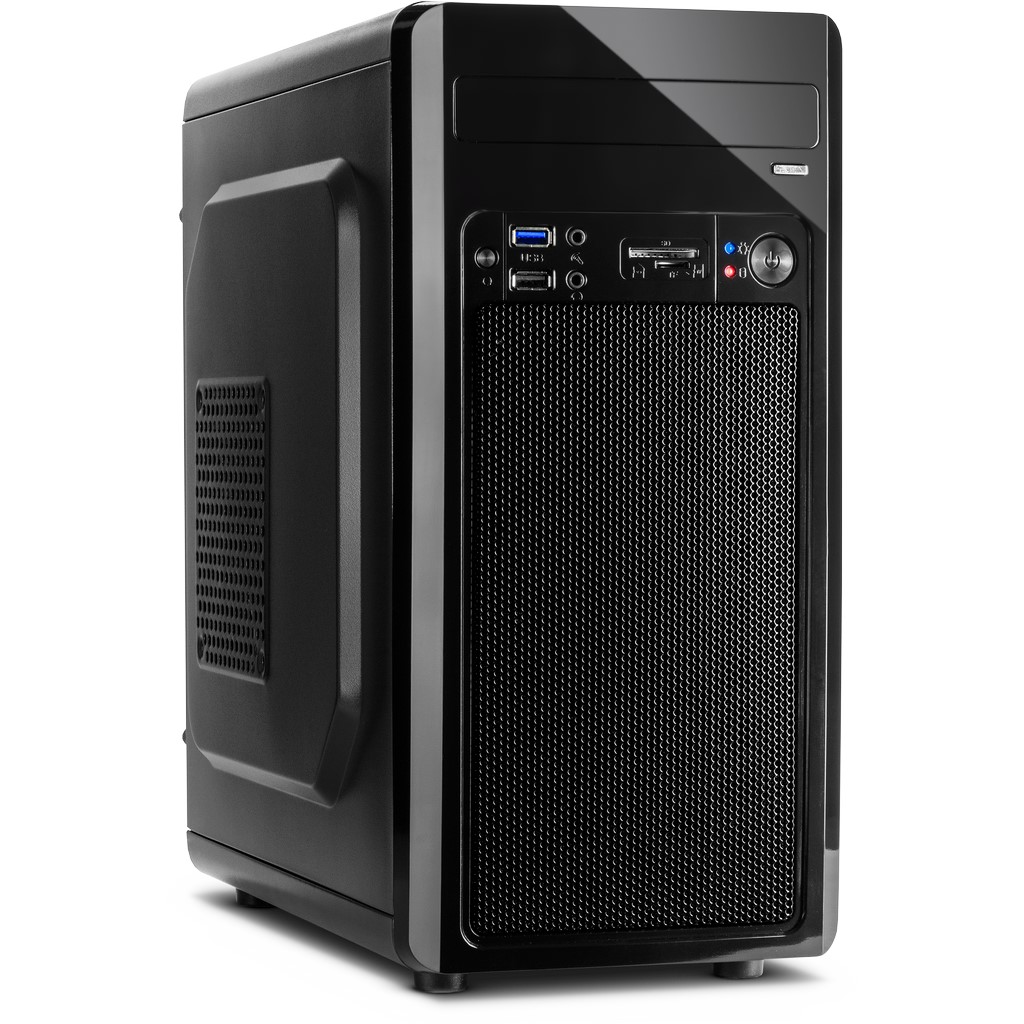

MC-02 MICRO
The MC-02 Micro convinces with several mounting options in a small case.
EOL

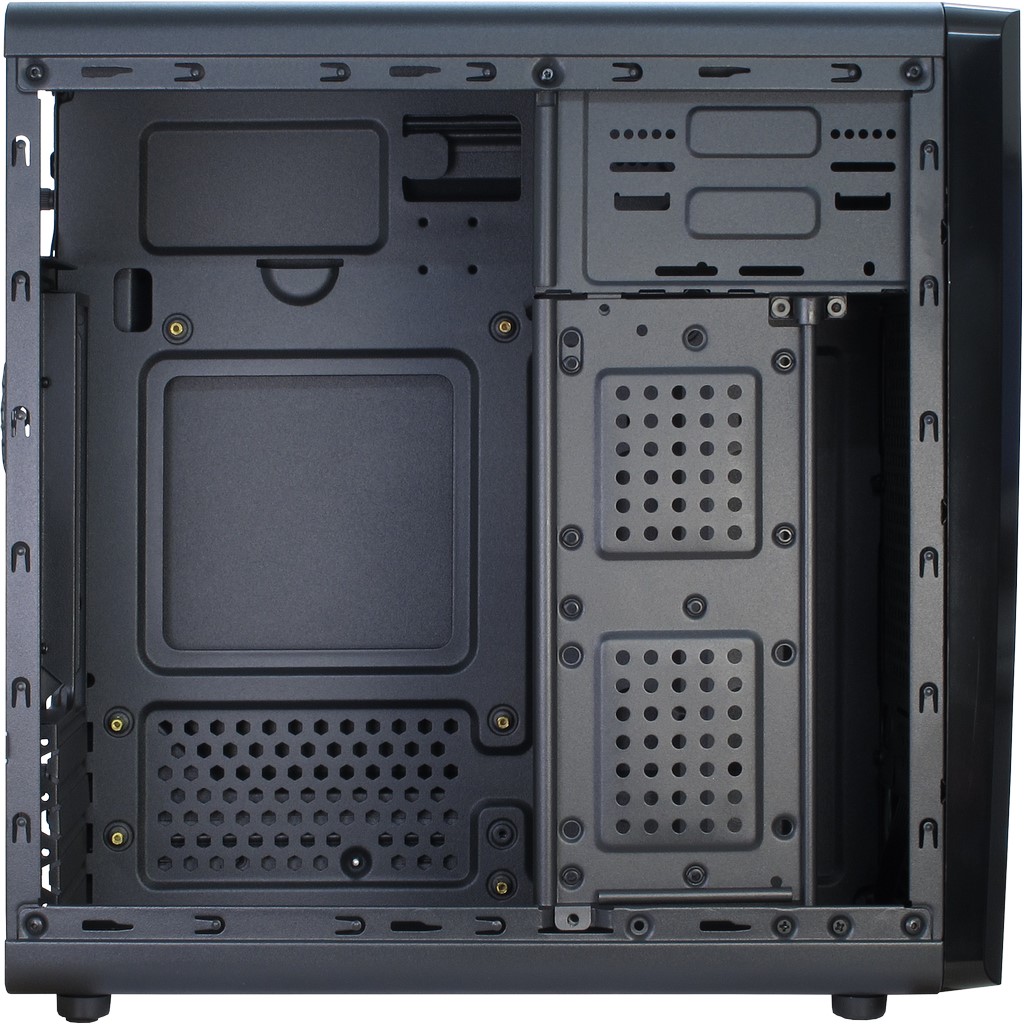

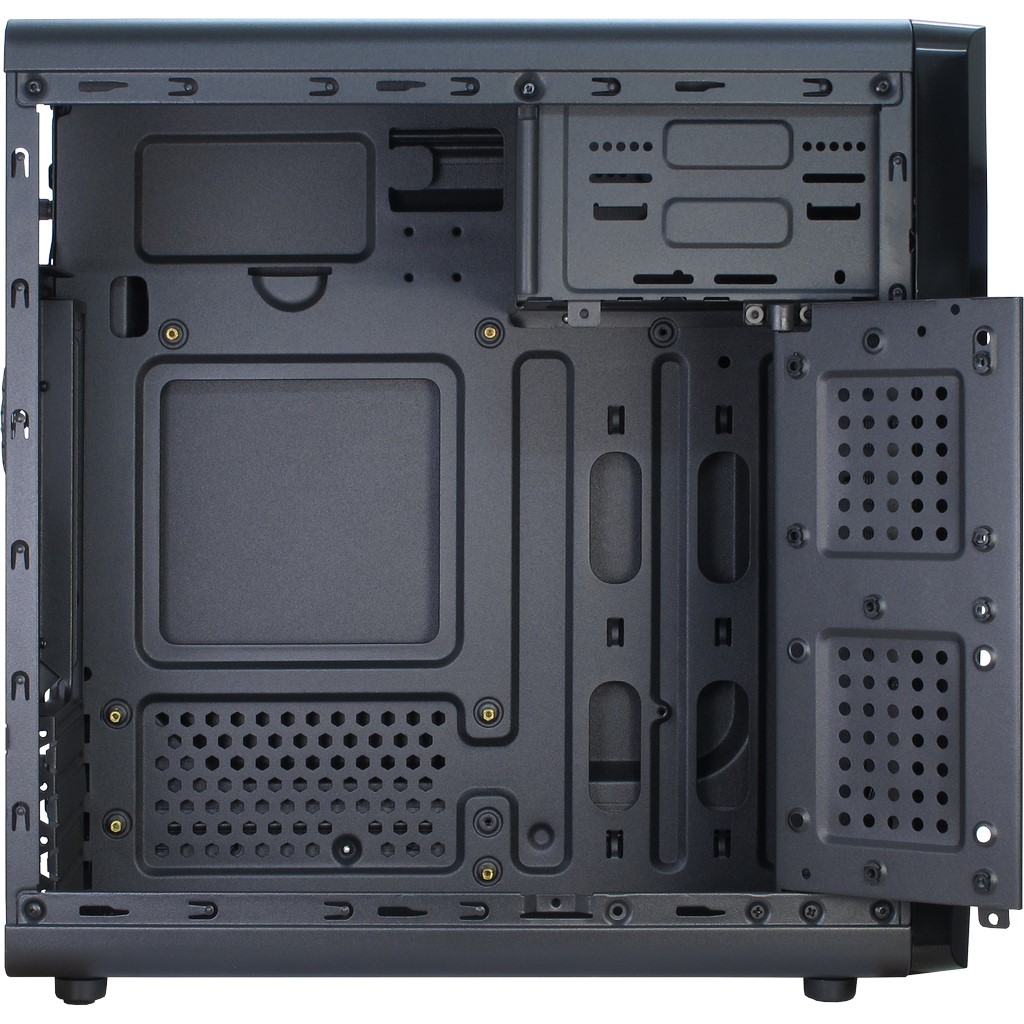

Beside the space for the HDDs, the case offers openable HDD brackets which make the mounting of all components a cinch. Rubber buffers in the mounting holes for one 3.5" HDD and dumped case feet ensure a quiet operation. The cage is completely vanished in black and with its rounded corners it looks as if it was made from one piece.

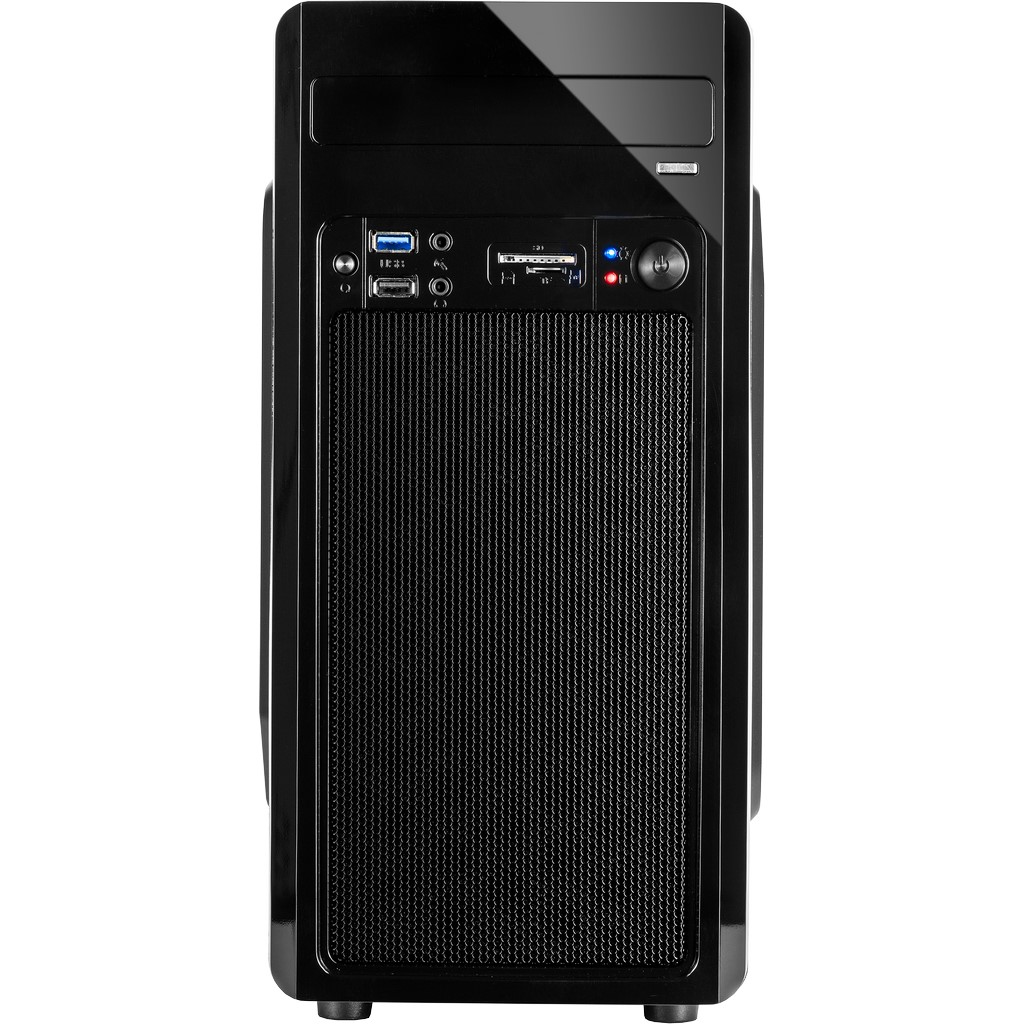

The MC-02 Micro is equipped with one USB 3.0 und USB 2.0 connector in the front panel. A Card Reader for SDXC and Micro SDXC-cards is also included. Space for graphics Cards with a length of 30.5cm complete the offer.
| SIZE | |
|---|---|
| Form factor | μATX |
| Dimensions (h/w/d) | 365 x 190 x 365mm |
| INSTALLATION DIMENSIONS | |
| Height CPU cooler (max.) | 125mm |
| Length graphics card (max.) | 305mm |
| DRIVE BAYS | |
| 5.25" external | 1x |
| 3.5" external | |
| 3.5" internal | 2x¹ |
| 2.5" internal | 3x¹ |
| ¹ the results may differ in certain combinations
FRONT CONNECTORS |
|
| USB 3.0 | 1x |
| USB 2.0 | 1x |
| Card Reader | |
| Microphone | 1x |
| Headphones | 1x |
| POWER SUPPLY | |
| ATX-PSU | |
| FAN MOUNTING OPTION | |
| Front | 1x 120mm (optional) |
| Rear | 1x 80mm (optional) |
| Side | 1x 120mm (optional) |
| GUARANTEE / WARRANTY | |
| Warranty | 24 months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
Case Retail packaging Screw Set Speaker |
| Features |
Micro-SDXC/SDXC Card Reader Vibration dumped mounting for one 3.5" HDD Front panel with piano finish with Mesh-grid Drive bays 90° turnable Space for graphics Cards with a length of 30.5cm Cable management Side panel with thumb screws USB 3.0, USB 2.0 and Audio plug internal as standard block connectors Reset- Button Look loop HD-Audio |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| EU palett | 35 Pcs |
| Weight | net = 2.90kgs gross = 3.57kgs |
| Item number | 88881267 |
| EAN-Code | 4260133126459 |
