| GENERAL DATA | |
|---|---|
| Compatible with | 19" Cases Not suitable for 1U cases except K-126L |
| Length | 26" * |
| Extension | 550mm to 650mm (depending on the mounting in the rack) |
| Mounting Height | 49mm |
| Max. Load | 30kgs |
| Colour | Silver |
| Material | 1.1mm Steel |
| Dimensions (h/w/d) | 13.5** x 45 x 650mm |
| GUARANTEE / WARRANTY | |
| Warranty | 24 months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |

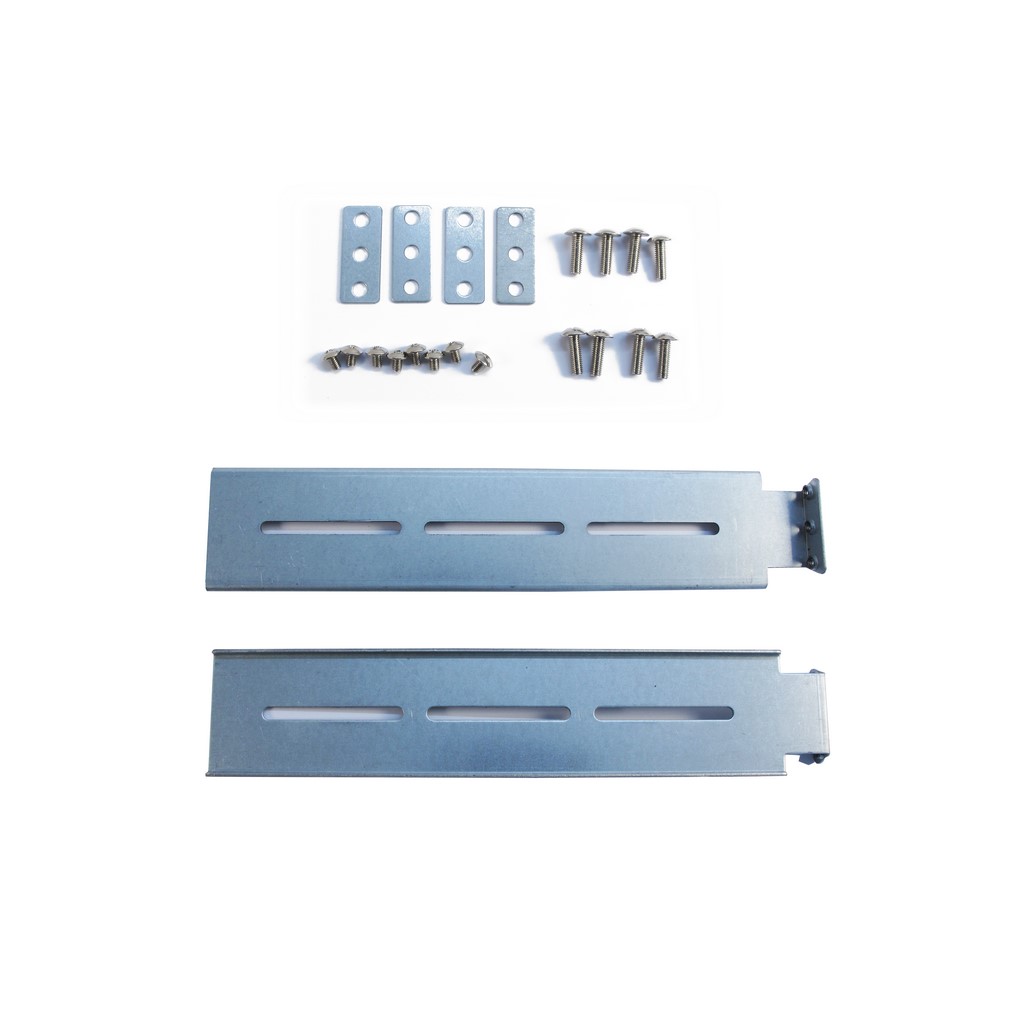

4 brackets for rack mounting (with screws) |
| Features | |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Set |
| Weight | net = 2.37kgs gross = 2.55kgs |
| Item number | 88887129 |
| EAN-Code | 4260133126510 |
* Mounting depth from 580mm to 850mm depending on the mounting in the rack
** Mounting width 10mm
