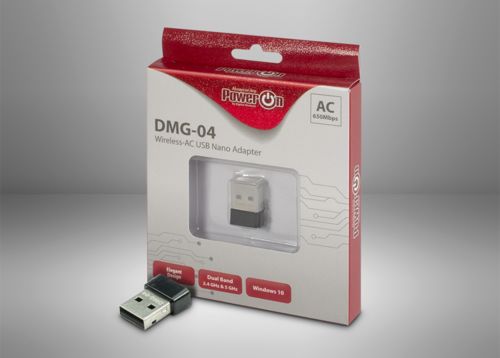

DMG-04
Wi-Fi 5 USB Nano WLAN Stick
The DMG-04 enables your computer or laptop to connect to existing Wi-Fi network (802.11 n/b/g/ac (WiFi 5)) with a transfer rate of up to 650 Mbps. It hits the excellent wireless connection and stable transfer rate although its nano size of 2cm.
Due to its compact construction, the DMG-04 can be used in slim notebooks without attracting attention. The sensitive contacts will be covered with a protection cap if not in use.
| WIRELESS | |
|---|---|
| Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, 802.11ac (WiFi 5) |
| Antenna | 1T1R |
| Transfer rate | 200Mbps n / 433Mbps ac |
| Frequency | 2.4Ghz + 5GHz |
| Bandwidth | 20/40/80MHz |
| Data Security | 64/128-bits WEP, WPA/WPA2, TKIP, AES |
| Protocols | QoS-WMM, WMM-PS, WPS, PIN, PBC |
| Transmission power | max. 18dBm (63mW) |
| OTHER DATA | |
| Interface | USB 2.0 |
| Chipset | Realtek RTL-8811CU Single Chipset |
| Environment working | Temperature: 0°C~85°C Humidity: 5%~90% (non condensing) |
| Environment storage | Temperature: -20°C~85°C Humidity: 5%~95% (non condensing) |
| Operating System | Windows 7/8/8.1/10/11, Linux up from Kernel 2.2.18 |
| Dimension (h/w/d) | 7 x 15 x 20mm |
| Warranty | 24 months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |
DMG-04 Retail packaging Driver-CD Manual (English, German) |
| Features |
Transfer rate up to 650Mbps Fast wide range transfer |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| Packing Unit | 200 Pcs |
| Weight | net = 0.005kgs gross = 0.030kgs |
| Item number | 88888151 |
| EAN-Code | 4260455645409 |
 |
