BP-4724-NVMe 12-port

Article No.
88887408

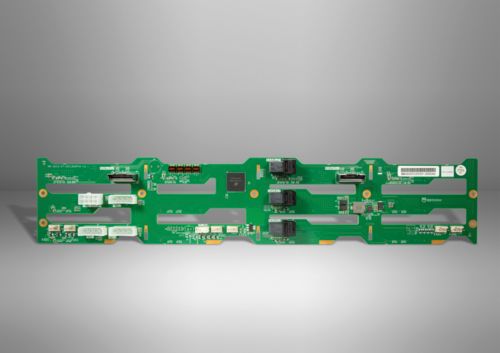

This 12-port server backplane is a professional upgrade for high-performance data storage in server and workstation environments.

It supports SATA, SAS and NVMe interfaces for maximum flexibility and speed in data transfer. Perfect for applications where both high capacity and speed are required, such as databases, virtualization or media processing.
With this versatile backplane for servers, you get a future-proof and powerful solution for your storage requirements. Benefit from compatibility with modern interfaces and easy handling during operation.

The top row supports SATA/SAS/NVMe, the bottom two rows support SATA/SAS.

Features

12-port Backplane for SATA, SAS and NVMe
Bootable

Technical data
Drives

Connection A

Connection B



Data transfer rate
SATA
SAS
NVMe
Suitable for cases
4x NVMe-SSD (U.2/ U.3) or 4x SAS/SATA-SSD/HDD (2.5" or 3.5")
8x SAS/SATA-SSD/HDD (2.5" or 3.5")
4x SFF8639 (U.2/U.3/SAS/SATA)
8x SAS
2x SFF8654-8i (for 2x NVMe U.2/U.3 SSD each)
3x SFF8643 (for 4x SAS/SATA-SSD/HDD each)
3x Power (Molex), 1x CPU P8
(Connection is either via the Molex connector or the P8 connector)



6G
12G
16G
4U-4724 (max. 1x mountable), 4U-4736 (max. 2x mountable)

Scope of delivery

1 Backplane

Warranty

24 Months

Logistic data
Net weight
Gross weight
Article number
GTIN
Packing unit
0.215 kgs
0.220 kgs
88887408
4260455649544
1 pcs



Data sheet BP-4724-NVMe
Download
Pictures BP-4724-NVMe
Download
